Product PDF

Ishida Uni-8 Price Computing Scale with Printer and Color Touchscreen

  • Wi-Fi
  • Fixed side load cassette with virtual function
  • Prints safe handing instructions, country of origin, 2020 nutrition, custom text messages, custom images and more
  • Batch printing
  • Graphic based QR code printing
  • Customizable color touch screen with adjustable viewing angle
  • Assign color images to presets keys
  • Display videos with sound on operator display
  • PC-based with a solid-state drive for speed and reliability
  • Secured remote access
  • Self-service mode
  • Cash register interface
  • Fully compliant with RoHS regulations for a completely lead-free machine
  • Optional linerless kit
  • Compatible with third-party software, including Upshop 360®, ADC's InterScale®, Invafresh’s ePlum®, Toast®, Square® and Droste®
Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo UL_Listed_C-US
WEB Uni 8 Pole

Flexibility and Customization in a Price Computing Scale

The Ishida Uni-8 digital price computing retail scale has a 10-inch LCD operator screen for clear visibility and flexibility. The operation screen can be customized for frequently used functions such as PLU presets, categories, top sellers and more for quick employee access.

Choose from bench, pole or hanging scale types to best fit your store’s needs. This scale’s large memory stores high-quality images and videos, allowing in-store promotions to be shown on the customer-facing display.

The Uni-8 has high-speed wired or wireless communication with gigabit Ethernet, making it possible to easily process large files. State-of-the-art technology within the scale allows for more compatibility and flexibility with external systems in your store, such as Ishida’s ScaleLink Pro 5 scale management software. Remote maintenance access is also available to help your system get up and running quickly.

Power:
100 to 240 VAC, 50/60 Hz

Power Consumption:
In operation: 120 W
Stand-by: 50 W

Resolution:
3,000 display divisions maximum

Communications:
LAN
Static/DHCP
Wi-Fi 802.11a/b/g/n/ac 2.4 GHz/5 GHz
Security: WEP/WPA/WPA2/PEAP w/ MSCHAPv2

Input/Output:
LAN x 1
USB x 4 (service, transaction data)
RS-485 x 1

Operating System:
Linux

Memory Capacity:
SSD 2 GB

Preset Keys:
99 dynamically programmed groups with 99 sub pages

Display:
Operator: capacitive touch panel, TFT LCD color touchscreen with LED backlight with WSVGA, 10.1 inch (800 × 600 pixels)
Customer: color LCD, 7 inch (1024 × 600 pixels)
Unit price: eight digits
Tare: four digits
Weight: five digits
Total price: eight digits

Printer:
Print head: 2.2 inch (56 mm) direct thermal, effective 2.2 inch (56 mm)
Dots/inch: 200 dpi (8 dot/mm)
Speed: 4.7 inch/sec (120 mm/sec) max
Min weight: 0.015 lb (0.006 kg)
Formats: 999 customizable label formats
Barcodes: JAN, EAN, EAN128, CODE128, UPC, ITF, GS1, Custom

Label Size:
Type: die-cut, continuous, optional linerless label with kit
Width: with liner, 1.2 to 2.5 in (30 to 64 mm), linerless 1.2 to 2.4 in (30 to 60 mm)
Length: with liner, 1.2 to 7.9 inch (30 to 200 mm), linerless, 1.2 to 6.9 inch (30 to 175 mm)

Label Roll:
I.D.: 1.6-inch (40 mm) min
O.D.: 3.9-inch (100 mm) max
Backing width: 2.6-inch (66 mm) max

Platter:
14.5 × 10.5 inch (368 × 267 mm)

Weight:
Approx. 29 lb (13.2 kg)

Temperature:
Operating: 32 °F to 104 °F (0 °C to 40 °C

Humidity:
20% to 85% RH (without condensation)

Warranty:
One-year limited

Approvals:
NTEP 23-036
cULus Listed

Bench Dimensions
A 10.5 in (266 mm) E 7.7 in (197 mm)
B 17.3 in (440 mm) F 6.7 in (170 mm)
C 14.6 in (370 mm) G 6.3 in (159 mm)
D 16.1 in (410 mm) H 20.3 in (515 mm)

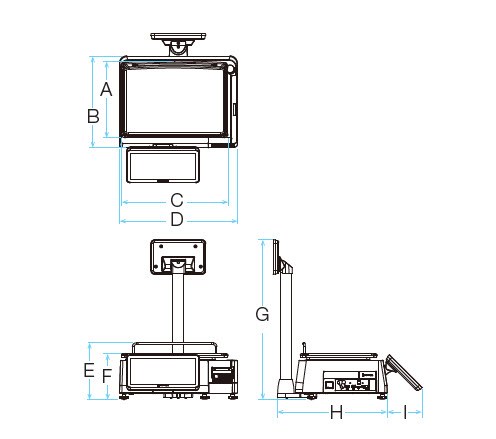

Bench Dimensions
A 10.5 in (266 mm) F 6.3 in (159 mm)
B 12.6 in (319 mm) G 21.9 in (555 mm)
C 14.6 in (370 mm) H 15.0 in (382 mm)
D 16.1 in (410 mm) I 3.7 to 5.6 in (93 to 143 mm)
E 7.7 in (197 mm)

Resources/Downloads

Title Download Email
Ishida Uni-8 Catalog Page Download Email

Title Version Revision Download Email Category Archived
Ishida Uni-8 User Manual A Download Email No

Title Download Email
Ishida Uni-8 Replacement Parts Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
Ishida Uni-8 Series Request Download Email Retail Equipment

Title Version Size Release Date Download Email
VNC Viewer for Remote Connection - RealVNC ver. 6.19.325 6.19.325 7.4 MB 04/15/2019 Download Email

Title View Download Email Category
Get to Know the Uni-8 Price Computing Scale View Download Email Retail Equipment

Parts

Part # Description List Price Cart/Quote
220030 Retail Scale, Uni-8 Bench, 2.4Ghz Wifi, 10.1 inch operator screen, PC based 15x0.005/30x0.01lb 115VAC Ishida

Consult
220031 Retail Scale, Uni-8 Pole, 2.4Ghz Wifi, 10.1 inch operator screen, PC based 15x0.005/30x0.01lb 115VAC Ishida

Consult

Options

Part # Description List Price Cart/Quote
46916 Retail Scale OPT,Produce Platter 11-1/2 in Deep x 17 in Wide Ishida

Consult
46917 Retail Scale OPT,Fish Platter 11-1/2 in Deep x 17 in Wide Ishida

Consult
170541 Option,Linerless Kit, Liner free, Uni-3, (Uni-8B, Uni-8P), Ishida

Consult
225296 OPTION, Side cover, ports painted mild steel, Uni-8 Ishida

Consult
188153 Tear Bar,Bracket Lock UNI-3 Bench, Pole and Hanging, BC-4000, Astra II Ishida

Consult

Communication

Manuals and Service Tools

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

Related Products

WEB SC Uni 8H

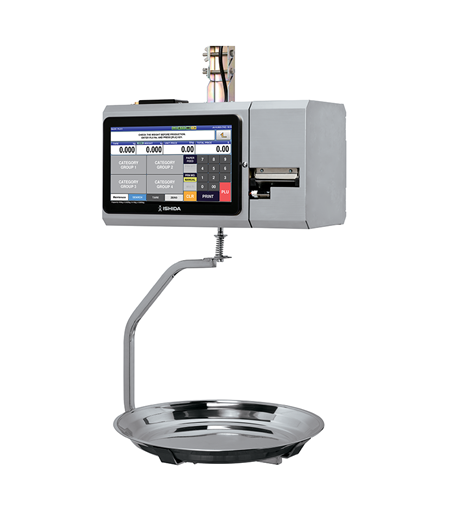

Ishida Uni-8H Hanging Price Computing Scale
