Ishida Uni-8 Series Price Computing Printing Scale

  • Wi-Fi enabled
  • Fixed side-load cassette with virtual function
  • Prints safe handling instructions, country of origin, 2020 nutrition, custom text messages, custom images and more
  • Batch printing
  • Dynamically generated QR code printing
  • Customizable color touchscreen with adjustable viewing angle
  • Assign color images to preset keys
  • Display videos with sound on the operator and customer displays
  • PC-based with a solid-state drive for speed and reliability
  • Secure remote access
  • Self-service mode
  • Cash register interface
  • Fully compliant with RoHS regulations for a completely lead-free machine
  • Top seller presets with scheduled or real-time updates
  • Filter for third-party driver communication
  • Dynamic search
  • Optional linerless kit
  • Compatible with third-party software, including Upshop 360®, ADC's InterScale®, Invafresh’s ePlum®, Toast®, Square® and Droste®
Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo UL_Listed_C-US
WEB Uni 8 Pole

Flexibility and Customization in a Price Computing Scale

The Ishida Uni-8 digital price computing retail scale has a 10-inch LCD operator screen for clear visibility and flexibility. The operation screen can be customized for frequently used functions such as PLU presets, categories, top sellers and more for quick employee access.

Choose from bench, pole or hanging scale types to best fit your store’s needs. This scale’s large memory stores high-quality images and videos, allowing in-store promotions to be shown on the customer-facing display.

The Uni-8 has high-speed wired or wireless communication with gigabit Ethernet, making it possible to easily process large files. State-of-the-art technology within the scale allows for more compatibility and flexibility with external systems in your store, such as Ishida’s ScaleLink Pro 5 scale management software. Remote maintenance access is also available to help your system get up and running quickly.

Power:
100 to 240 VAC, 50/60 Hz

Power Consumption:
In operation: 120 W
Stand-by: 50 W

Resolution:
3,000 display divisions maximum

Communications:
LAN
Static/DHCP
Wi-Fi 802.11a/b/g/n/ac 2.4 GHz/5 GHz
Security: WEP/WPA/WPA2/PEAP w/ MSCHAPv2

Input/Output:
LAN
Two USB-A (service, transaction data)
RJ11

Operating System:
Linux

Memory Capacity:
SSD 2 GB

Preset Keys:
99 dynamically programmed groups with 99 subpages

Display:
Operator: capacitive touch panel, TFT LCD color touchscreen with LED backlight with WSVGA, 10.1 in (800 × 600 px)
Customer: color LCD, 7 in (1024 × 600 px)
Unit price: eight digits
Tare: four digits
Weight: five digits
Total price: eight digits

Printer:
Printhead: 2.2 in (56 mm) direct
thermal, effective 2.2 in (56 mm)
Resolution: 200 dpi (8 dot/mm)
Speed: 4.7 in/sec (120 mm/sec) max
Min. weight: 0.015 lb (0.006 kg)
Formats: customizable, up to 999
Barcodes: UPC, JAN, EAN, EAN128, CODE128, ITF, GS1, QR, Custom

Label Size:
Type: die-cut, continuous, optional linerless label
Width: with liner 1.2 to 2.5 in (30 to 64 mm), linerless 1.2 to 2.4 in (30 to 60 mm)
Length: with liner 1.2 to 7.9 in (30 to 200 mm), linerless 1.2 to 6.9 in (30 to 175 mm)

Label Roll:
I.D.: 1.6-in (40 mm) min
O.D.: 3.9-in (100 mm) max
Backing width: 2.6-in (66 mm) max

Platter:
14.5 × 10.5 in (368 × 267 mm)

Weight:
Approx. 29 lb (13.2 kg)

Temperature:
Operating: 32 °F to 104 °F (0 °C to 40 °C)

Humidity:
20 to 85% RH (without condensation)

Warranty:
One-year limited

Approvals:
NTEP 23-036
cULus Listed

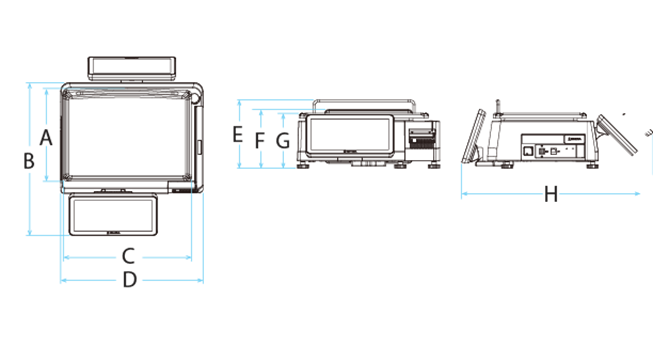

Bench Dimensions
A 10.5 in (266 mm) E 7.7 in (197 mm)
B 17.3 in (440 mm) F 6.7 in (170 mm)
C 14.6 in (370 mm) G 6.3 in (159 mm)
D 16.1 in (410 mm) H 20.3 in (515 mm)

Bench Dimensions
A 10.5 in (266 mm) F 6.3 in (159 mm)
B 12.6 in (319 mm) G 21.9 in (555 mm)
C 14.6 in (370 mm) H 15.0 in (382 mm)
D 16.1 in (410 mm) I 3.7 to 5.6 in (93 to 143 mm)
E 7.7 in (197 mm)

Resources/Downloads

Title Download Email
Ishida Uni-8 Catalog Page Download Email

Title Version Revision Download Email Category Archived
Ishida Uni-8 User Manual A Download Email No

Title Download Email
Ishida Uni-8 Replacement Parts Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
Ishida Uni-8 Series Request Download Email Retail Equipment

Title Version Size Release Date Download Email
VNC Viewer for Remote Connection - RealVNC ver. 6.19.325 6.19.325 7.4 MB 04/15/2019 Download Email

Title View Download Email Category
Get to Know the Uni-8 Price Computing Scale View Download Email Retail Equipment

Parts

Part # Description List Price Cart/Quote
220030 Retail Scale, Uni-8 Bench, 2.4Ghz Wifi, 10.1 inch operator screen, PC based 15x0.005/30x0.01lb 115VAC Ishida

Consult
220031 Retail Scale, Uni-8 Pole, 2.4Ghz Wifi, 10.1 inch operator screen, PC based 15x0.005/30x0.01lb 115VAC Ishida

Consult
220032 Retail Scale, Uni-8 Hanging, 2.4Ghz Wifi, 10.1 inch operator screen, PC based 15x0.005/30x0.01lb 115VAC Ishida

Consult

Options

Part # Description List Price Cart/Quote
46916 Retail Scale OPT,Produce Platter 11-1/2 in Deep x 17 in Wide Ishida

Consult
46917 Retail Scale OPT,Fish Platter 11-1/2 in Deep x 17 in Wide Ishida

Consult
170541 Option,Linerless Kit, Liner free, Uni-3, (Uni-8B, Uni-8P), Ishida

Consult
225296 OPTION, Side cover, ports painted mild steel, Uni-8 Ishida

Consult
160906 USB Memory, Stick 1G Hagiwara, UDG4-1GDRJS, Ishida

Consult
