Ishida Uni-9 Series PC Scale

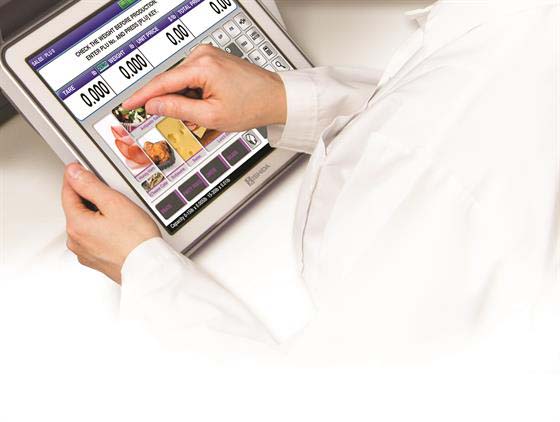

  • Large color touchscreen (12 in)
  • Adjustable touchscreen viewing angle
  • Customer display can play video on either 12.1 in (800 × 600) or 7 in (800 × 480) screen, bench scale only
  • Dual-range weighing (0 to 15 lb × 0.005 lb, 15 to 30 lb × 0.01 lb)

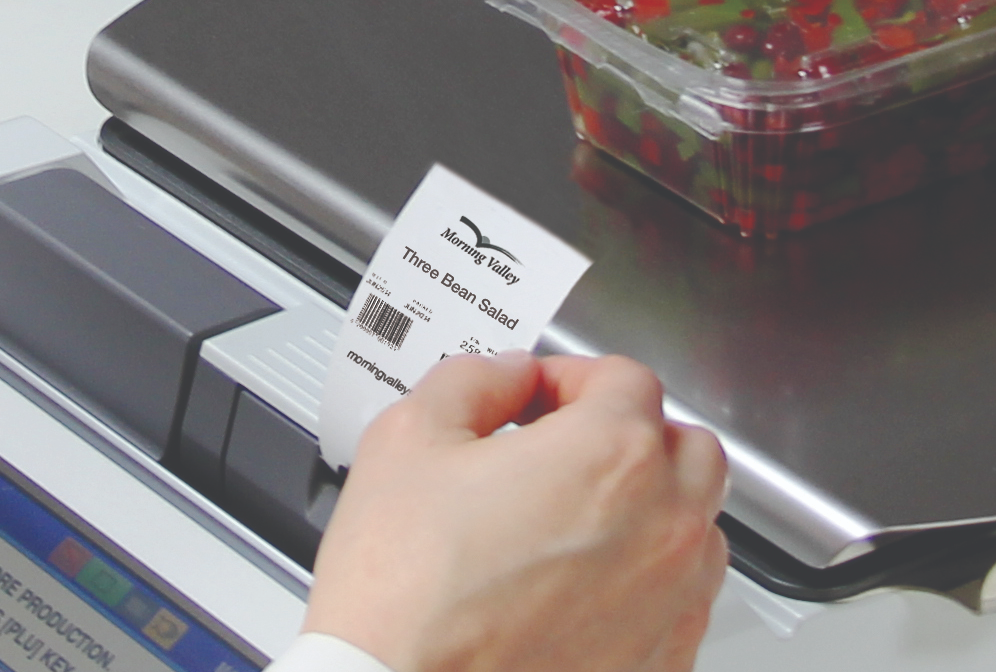

  • Label printing: die-cut labels and/or continuous paper
  • Customizable label formats: 999
  • Up to seven label cassettes allow quick label changing or easy switching to different size labels
  • Intranet browsing capabilities for order entry, recipe lookup and more
  • PC-based scale operating system
  • Solid state drive eliminates moving parts
  • SD memory card slot
  • SSD memory 250 MB
  • 80 mm wide printing
  • Up to 150 mm/sec print speed
  • 2020 nutrition labeling
  • Configurable for different languages including Spanish, French and German
  • Fully compliant with RoHS regulations for a completely lead-free machine
  • Barcodes: EAN/UPC 8/12/13, ITF FS1, QR CODE, Databar/Limited/Expanded, CODE128, EAN128
  • Compatible with third-party communication software, including ADC’s InterScale, Invatron’s PLUM and Droste's PCScale Manager

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo

WARNING: Cancer and Reproductive Harm California Proposition 65

Feast Your Eyes on the Uni-9 Series

The Uni-9 Series delivers the gourmet experience in retail weighing and wrapping through a large, vivid display and advanced communication all in a more compact design.

Modern Retail Settings Want More Functionality in Less Space

Retailers will appreciate the Uni-9’s compact design that fits nicely on virtually any size counter, occupying a very small footprint. This PC-based touchscreen scale is available with a seven- or 12-inch LED backlit customer display for stunning promotional images and videos. The PC-based technology together with a crystal-sharp LED display provide more marketing capabilities such as video with sound and product pairing. In addition, more behind-the-counter functions such as store intranet access through a browser, recipe lookup, order entry and training videos reduce the need for additional PCs in all departments.

Up to Seven Different Printer Cassettes

Once a cassette is installed, the Uni-9 automatically detects correct label format settings, eliminating setup time when changing product. An optional liner-less cassette uses no backing paper, doubling the usable paper amount with less waste, keeping operations green and uninterrupted longer.

Technology Means Convenience

Network connectivity allows for remote scale management and updates. A frequent-seller feature determines popular items and strategically places them on the user’s screen for added convenience and efficiency. Operators will especially find the universal interface of the Uni-9 easy to navigate from any department.

Uni-9 Short Pole Scale/Pole Scale

The pole and short pole models’ low-profile base combined with larger display screens is optimal for keeping eye contact with customers and still providing an ergonomic setup for employees. The short pole model is for use on the countertop, providing a 12-inch display for customer view while offsetting an easy-to-use touchscreen display behind the counter. The pole scale model is used behind the counter, providing a raised customer display above the countertop.

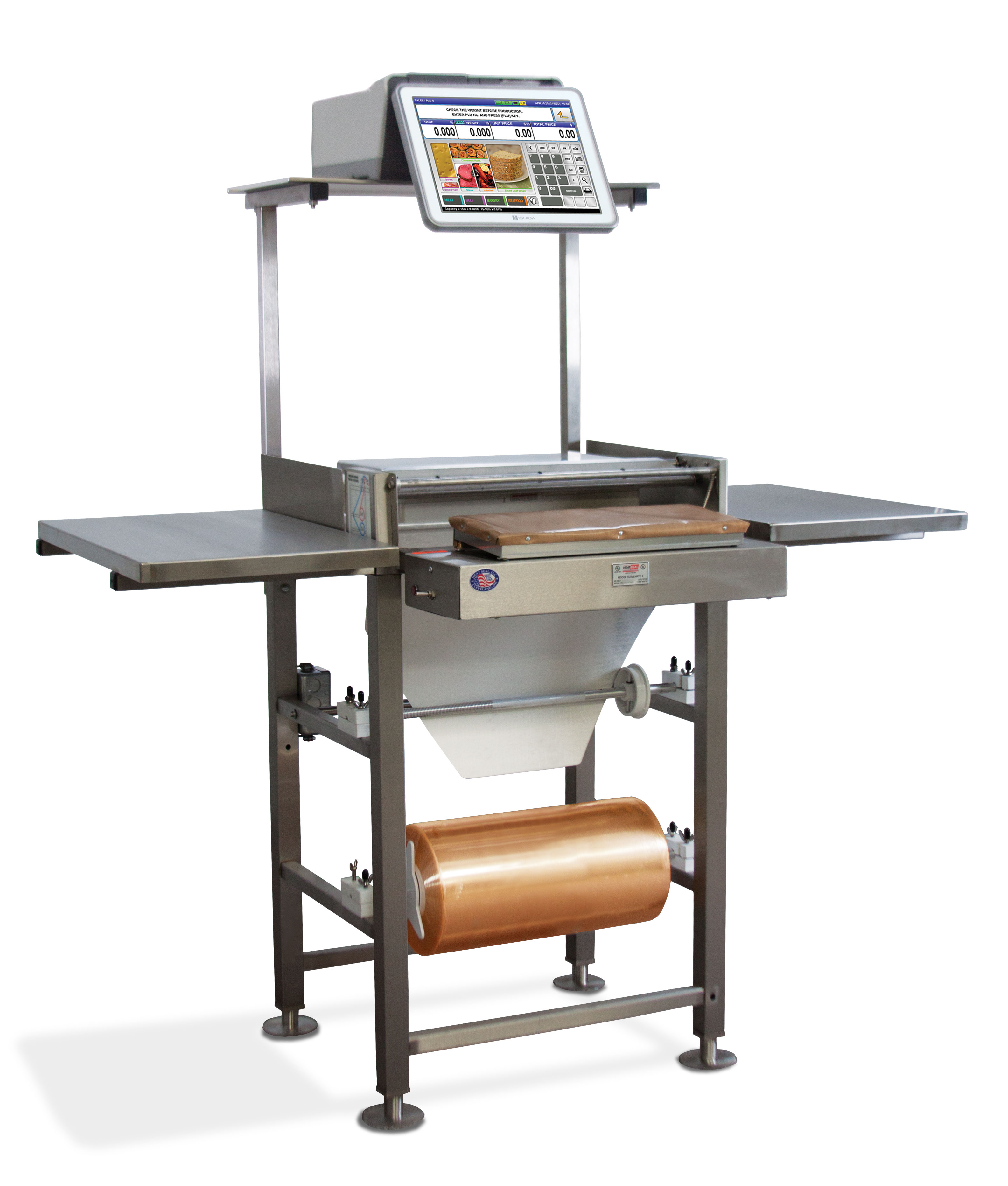

Uni-9 RP Remote Platter

The Uni-9 RP is capable of weighing and wrapping nonstandard sizes and shapes when used in conjunction with a wrapping station. The Uni-9 RP is available in standard 30 lb capacity or optional 60 lb capacity. In addition to a larger capacity option, the Uni-9’s PC-based technology allows the scale base to communicate with PCs via Ethernet or Wi-Fi, providing optimal workspace flexibility.

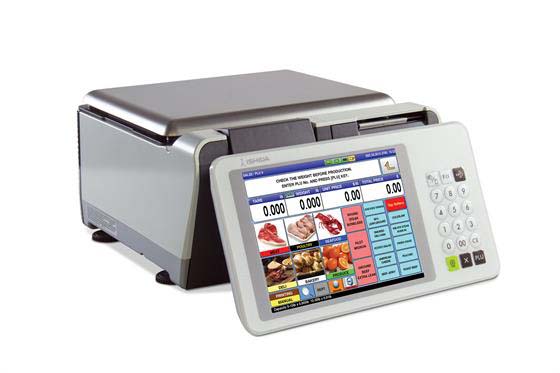

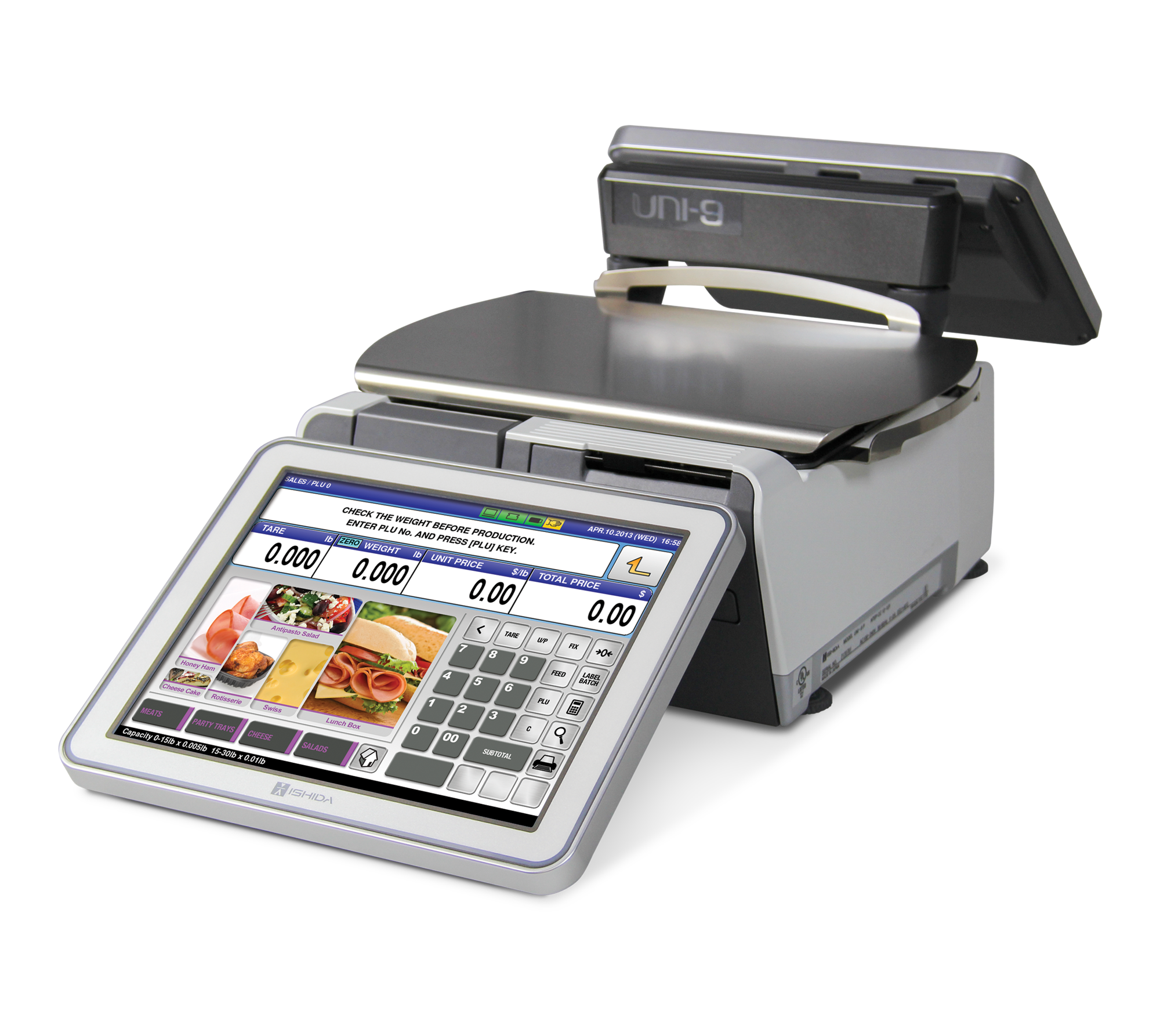

Uni-9 Bench Scale

The Uni-9 bench scale is available with or without a seven-inch customer display and is ideal for both backroom and front counter operations. This Uni-9 model offers wireless remote operation allowing for more flexible placement of the scale.

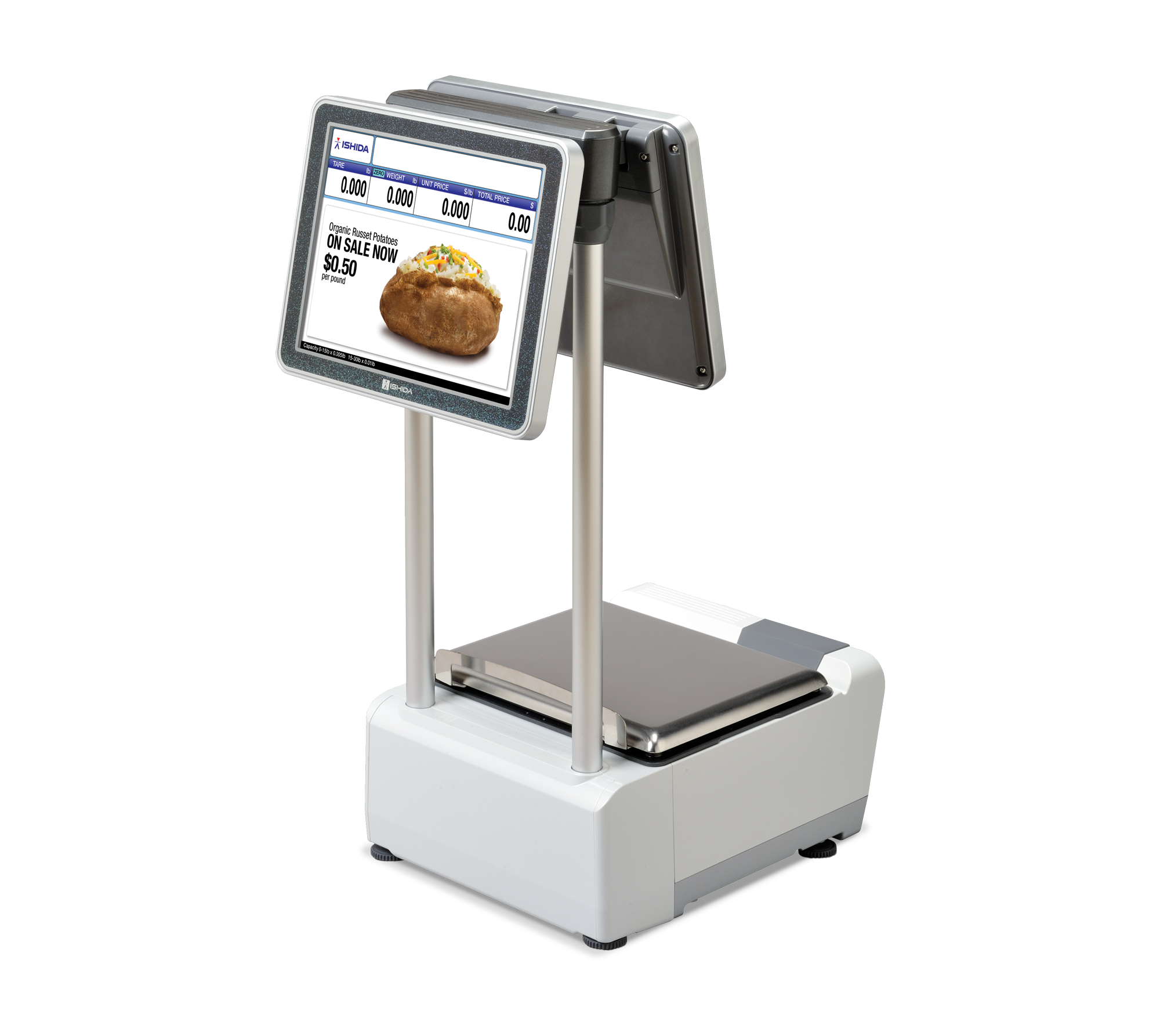

Uni-9 Elevated Displays

The Uni-9’s eye-level displays ensure operator focus remains on the customer. Interacting with the touchscreen can be accomplished while maintaining customer eye contact. The screens are adjustable to almost any angle, while the printer and scale base are conveniently mounted at workstation-level.

Uni-9 Hanging Scale

The suspended ergonomic design of the Uni-9 hanging type follows quickly on the heels of the first color touchscreen hanging scale on the market, Ishida’s Uni-7 hanging scale. Ideal for seafood and other high-moisture foods, the suspended design keeps product away from the operator touchscreen, which resounds with a beep when buttons are pressed. Customers and employees alike will find the large 12-inch display easy to read and use.

Capacity (Dual Range):
0 to 15 × 0.005 lb, 15 to 30 × 0.01 lb

Print Speed:
3.9/ 4.7/ 5.9 in/sec
(100/ 120/ 150 mm/sec)

Label Size:
Width: 1.2 to 3.1 in (30 to 80 mm)
Length: 0.8 to 7.9 in (20 to 200 mm)

Display:
Operator side: 12 in (800 × 600) color touch panel
Uni-9DB: 8.4 in
Customer side: 7 in (800 × 480) or 12 in (800 × 600) for bench, 12 in for other models
Type: Five-wire resistive

Display Items:
Tare: Four-digits
Unit price: Six-digits
Weight: Five-digits
Total price: Six-digits

Memory:
SSD memory 250 MB

Communications:
Static TCP/IP 1G Base T Ethernet
(auto-duplex) Wireless WEP/WPA/WPA2

Input/Output:
LAN 1 channel
USB 4 channel
SD 1 channel (SDHC: MAX 32 GB)
(for transaction data)

Operating Voltage:
Range: 100 to 240 V, 50/60 Hz
Permissible Tolerance: +/- 10%

Operating Environment:
32 °F to 104°F (0°C to 40°C)
20 to 85% relative humidity

Power Supply:
AC100 to 240 V, 50/60 Hz

Power Consumption:
Stand-by: 50 W
In operation: 120 W

Classification:
NTEP CC 12-121
UL listed

Warranty:
One-year limited

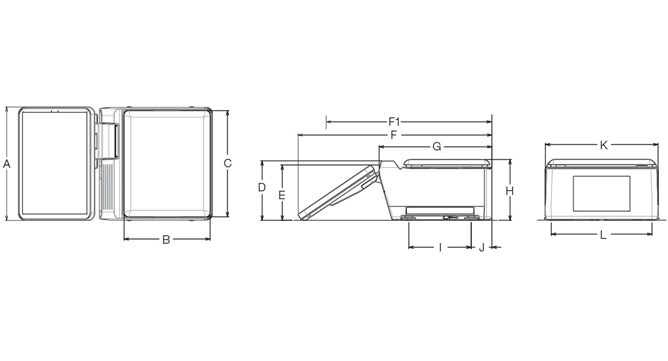

Dimensions Bench
A 11.9 in (302 mm) E 5.8 in (147.5 mm) I 6.5 in (166 mm)
B 9.0 in (229 mm) F 20.3 in (516 mm) J 2.2 in (55 mm)
C 11.1 in (283 mm) G 11.8 in (300 mm) K 11.8 in (300 mm)
D 6.2 in (158.5 mm) H 6.4 in (162 mm) L 10.6 in (268 mm)
DB Model
F1 16.3 in (415 mm)

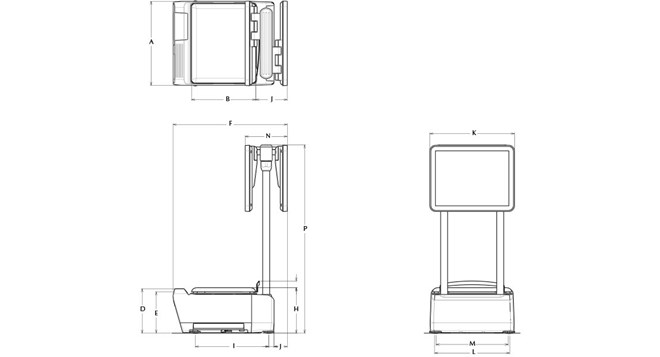

Dimensions Elevated Keyboard
A 11.8 in (300 mm) H 6.4 in (162 mm) L 10.6 in (268 mm)
B 9.0 in (229 mm) I 10.3 in (262 mm) M 10.2 in (258 mm)
D 6.2 in (158.5 mm) J 1.9 in (47 mm) N 5.9 in (150 mm)
E 5.8 in (147.5 mm K 11.9 in (302 mm) P 26.4 in (671.5 mm)
F 16.1 in (408 mm)

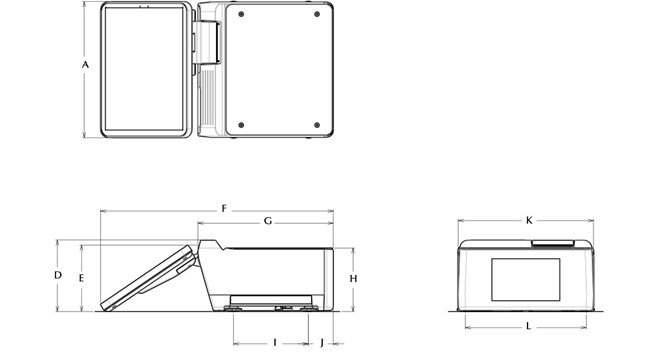

Dimensions Labeler
A

11.9 in (302 mm)

G 11.8 in (300 mm) K 11.8 in (300 mm)
D 6.2 in (158.5 mm) H 5.6 in (141 mm) L 10.6 in (268 mm)
E 5.8 in (147.5 mm) I 12.50 in (318 mm)
F 20.3 in (516 mm) J 2.2 in (55 mm)

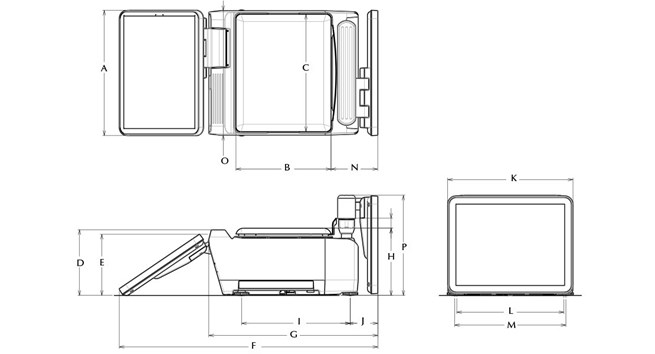

Dimensions short pole
A 11.9 in (302 mm) G 16.0 in (407 mm) M 10.2 in (258 mm)
B 9.0 in (229 mm) H 6.4 in (162 mm) N 4.4 in (112.5 mm)
C 11.1 in (283 mm) I 10.3 in (262 mm) O 11.8 in (300 mm)
D 6.2 in (158.5 mm) J 1.9 in (47 mm) P 9.5 in (241.5 mm)
E 5.8 in (147.5 mm K 11.9 in (302 mm)
F 24.5 in (623 mm) L 10.6 in (268 mm)



Resources / Downloads

Title View Email Category Type
Gleaming Grocery View Email Retail Equipment|Price Computing Scales Application Story
Weighing Meat from Farm to Table View Email Agriculture Application Story

Title Download Email
Ishida Uni-9 Countertop Scale Catalog Page Download Email

Title Version Revision Download Email Category Archived
Ishida Uni-9 Operation Manual: Jan 2016 Download Email Retail Equipment No
Ishida Uni-9 Series Cleaning, Sanitizing and Inspection Instructions A Download Email Retail Equipment|Price Computing Scales No

Title Download Email
Uni-9 Cassette Unit Replacements Parts Page Download Email
Uni-9 Customer Display Unit - Bench, DB Replacements Parts Page Download Email
Uni-9 Customer Display Unit - Pole, Short Pole Replacements Parts Page Download Email
Uni-9 Electric Unit/Wiring Guide - Bench Replacements Parts Page Download Email
Uni-9 Electric Unit/Wiring Guide -DB Replacements Parts Page Download Email
Uni-9 Electric Unit/Wiring Guide -Pole, Short Pole Replacements Parts Page Download Email
Uni-9 Linerless Cassette Unit Replacements Parts Page Download Email
Uni-9 Main Body - Bench Replacements Parts Page Download Email
Uni-9 Main Body - DB Replacements Parts Page Download Email
Uni-9 Main Body - Pole Replacements Parts Page Download Email
Uni-9 Main Body - Short Pole Replacements Parts Page Download Email
Uni-9 Operation Unit - Bench, Pole, Short Pole Replacements Parts Page Download Email
Uni-9 Operation Unit - DB Replacements Parts Page Download Email
Uni-9 Pole Unit Replacements Parts Page Download Email
Uni-9 Printer Frame Replacements Parts Page Download Email
Uni-9 Printer Unit Replacements Parts Page Download Email
Uni-9 Scale Unit Replacements Parts Page Download Email
Uni-9 Short Pole Unit Replacements Parts Page Download Email

Title Collateral Wizard Request Download Email Category
Ishida Uni-9 Series Collateral Wizard Request Download Email Retail Equipment|Price Computing Scales
New FDA Nutrition Label Requirements Download Email Retail Labelers|Retail Equipment
Retail Systems Literature Request Download Email Retail Accessories|Retail Equipment|Retail Labelers

Title View Email Category
Ishida SLP-5: Automatic Presets for the Uni-9, Rev 3 April 2020 Download Email Retail Equipment|Retail Software

Title View Download Email Category
Rice Lake/Ishida Retail Overview View Download Email Retail Equipment
Cleaning the Uni-9 Series PC Scale's Thermal Print Head View Download Email Retail Equipment|Price Computing Scales

Parts

Part # Description List Price Cart
170095 Retail Scale,Uni-9 Bench Linerless, PC Based, 15x0.005/30x0.01lb RF, 115VAC Ishida

List Price: $5,009.00

168873 Retail Scale, Uni-9DB 8.4 inch Oerator display, Wired LAN, PC Based 15x0,005/30x0.01lb, 115VAC Ishida

List Price: $4,355.00

151251 Retail Scale, UNI-9 Short Pole, PC Based, 15x0.005/30/0.01 RF, 115VAC Ishida

List Price: $6,035.00

170096 Retail Scale, Uni-9 SP PC Based, 15x0.005, 30x0.01lb, RF 115VAC, Ishida

List Price: $6,578.50

160262 Retail Labeler, Uni-9 Bakery Version XL, PC Based, No Scale, RF, 115VAC Ishida

List Price: $4,246.00

211871 Retail Scale, Uni-9 Bench 2.4/5Ghz WiFi, Platter w/Backstop, PC Based 15x0.005/30x0.01lb 115VAC Ishida

List Price: $4,616.50

Options

Uni-9 Options

Part # Description List Price Cart
119030 USB Flash Drive-1GB Branded RLWS and Ishida, Uni-7 black

List Price: $12.00

78860 Cable,Ethernet Cross RJ45 to RJ45, 7FT

List Price: $40.00

105346 Label,Roll Retail Blank DTL 64mm x 85mm (2.52 x 3.34) Small Core 425 LPR 12 RPC Ishida

List Price: $93.00

155393 Option,Label Cassette UNI-9 UNI-9DB UNI-9XL UNI-9DXL UNI-9DB RP Ishida

List Price: $245.50

159947 Option,Cassette Linerless Label Top Cutter Version UNI-9 Ishida

List Price: $485.50

174110 Card, SD 2GB Uni-7, WM-Ai, IP-Ai Ishida

List Price: $158.50

155395 Option, Larger platter Uni-9, 14in W x 9in D, Ishida

List Price: $398.00
