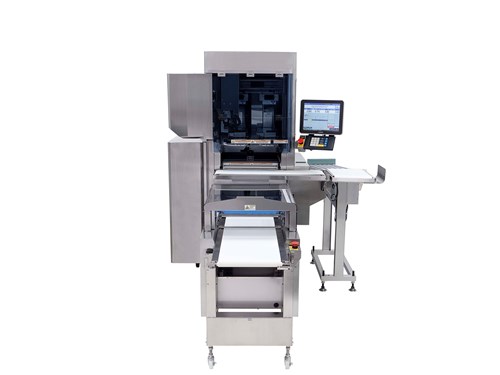

Ishida WM-Ai B-Type Automatic Wrapper with In-feed Conveyor

  • Process up to 35 packages per minute with automatic tray identification and centering
  • Variable speed infeed and wrap
  • Automatic film selection
  • Easy front film loading with auto set
  • Robotic label application with user-selectable positioning
  • Efficient film usage minimizes waste
  • Wraps most trays between #17S and #1014
  • High-capacity label roll with more than five times the length of a standard roll
  • Fixed high-capacity front-load cassette
  • Prints safe handling instructions, country of origin, 2020 nutrition, custom text messages, custom images and more
  • Graphic-based QR code printing

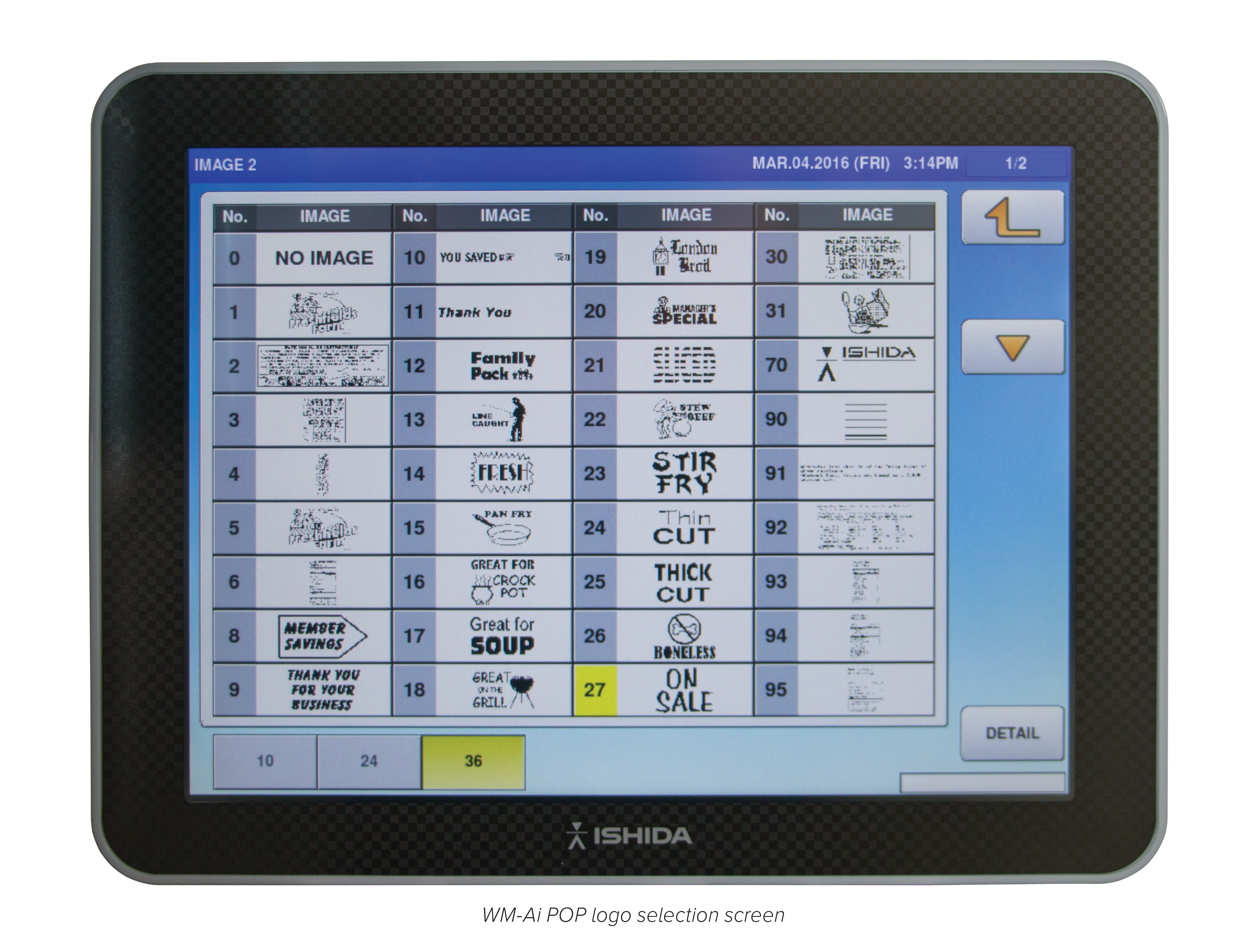

  • Large customizable color touchscreen with adjustable viewing angle and tactile keypad
  • Assign color images to preset keys
  • Display videos with sound
  • PC-based with a solid-state drive for speed and reliability
  • Secure remote access
  • Modes: Wrap and Label, Wrap, Label
  • Optional Wi-Fi kit (factory installation recommended)
  • Fully compliant with RoHS regulations for a completely lead-free machine
  • Compatible with third-party software, including Upshop 360®, ADC's InterScale®, Invafresh’s ePlum®, Toast®, Square® and Droste®
Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo UL_Listed_C-US

WARNING: Cancer and Reproductive Harm California Proposition 65
Hdimage(1)

Wrap Easier Than Ever Before with Automatic Wrappers

The WM-Ai automatic wrapper with an in-feed conveyor combines all the functions of the renowned WM-Ai wrapper with even more efficiency in a sleek, high-tech system. The WM-Ai wrapper and in-feed conveyor function as one to allow for ergonomic production line layouts. Reduce downtime while boosting productivity by weighing, wrapping and labeling with just one unit.

Designed with removable units, the WM-Ai automatic meat wrapper can help reduce dust and debris accumulation. An open interior design with generous clearance below aids cleaning processes. Maintain cleanliness in your food environment by wrapping with the WM-Ai.

Power:
200 to 240V (1-phase)
Standard 20A circuit

Power Consumption:
In operation: 1,800 W max
Stand-by: 360 W min

Resolution:
3,000 display divisions maximum

Communications:
LAN
Static/DHCP
Optional Wi-Fi 802.11a/b/g/n/ac 2.4 GHz/5 GHz
Security: WEP/WPA/WPA2

Input/Output:
LAN
Four USB-A (service, transaction data)
SD card (expanded storage, 16 GB max)

Operating System:
Linux

Memory Capacity:
SSD 2 GB

Preset Keys:
99 dynamically programmed groups with 99 sub pages
19 tactile function keys

Display:
Operator: resistive thin film analogue touch panel, TFT LCD color touchscreen with LED backlight with SVGA, 12.1 in (800 × 600 px)
Unit price: six digits
Tare: four digits
Weight: five digits
Total price: eight digits

Printer:
Printhead: 3.1 in (80 mm) direct thermal, effective 3 in (76mm)
Resolution: 300 dpi (12 dot/mm)
Speed: 4.7 in/sec (120 mm/sec) max
Min. weight: 0.015 lb (0.006 kg)
Formats: customizable, up to 999
Barcodes: UPC, JAN, EAN, EAN128, CODE128, ITF, GS1, custom

Main Label Size:
Type: Die-cut
Width: 1.4 to 3.1 in (35 to 80 mm)
Length: 1.0 to 4.1 in (27 to 105 mm)

POP Label Size:
Type: Die-cut
Width: 1.0 to 2.6 in (25 to 65 mm)
Length: 1.0 to 2.5 in (25 to 64 mm)

Main Label Roll:
I.D.: 3-in (76 mm) min
O.D.: 9-in (230 mm) max
Backing width: 3.2-in (82 mm) max

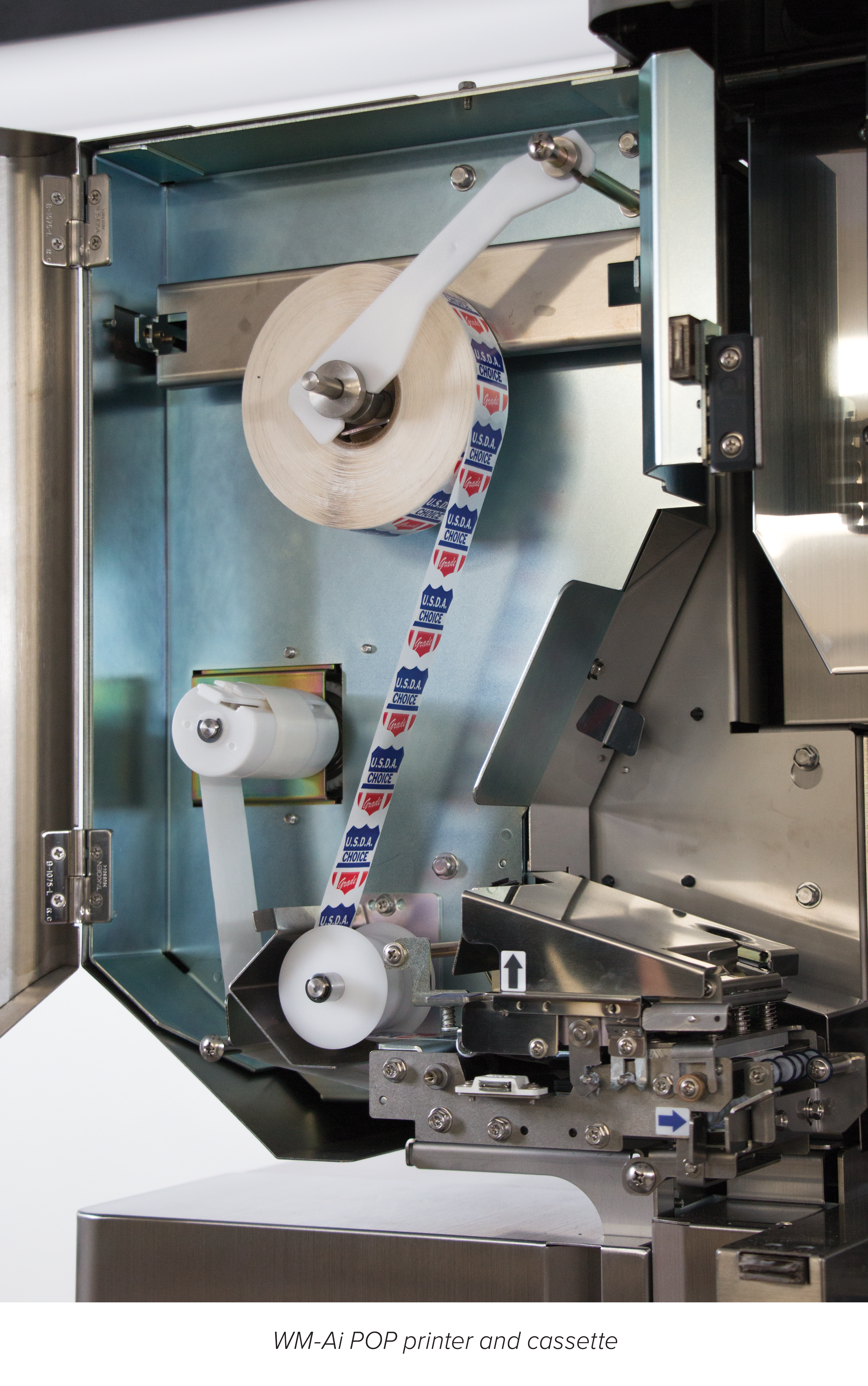

POP Label Roll:
I.D.: 1.5-in (38 mm) min, with optional kit 3-in (76 mm) min
O.D.: 7.9-in (200 mm) max, with optional kit 9-in (230 mm) max
Backing width: 2.7-in (68 mm) max

Wrapping:
Cycle speed: Weigh, wrap and label, 35 packages per minute max
Width: 3.7 to 14.9 in (95 to 380 mm)
Depth: 3.1 to 10.2 in (80 to 260 mm)
Height: 0.4 to 5.1 in (10 to 130 mm)
Tray height: 2.7-in (70 mm) max
Weight: 0.015 lb (0.006 kg) to 13 lb (5.9 kg)
Tray material: Polystyrene Paper (PSP), Polypropylene (PP), Polyethylene Terephthalate (PET), CTF, Paper

Film:
Type: PVC, PO, PE
Rolls: Two, automatic film selection
Length: 5,000 ft (1,524 m) max
Width: 10, 12, 14, 16, 18, 20, 21 in (250, 300, 350, 400, 450, 500, 530 mm)
O.D.: 7.9-in (200 mm) max
Recommended: Mitsubishi A50

Platter:
15.2 × 12.5 in (386 × 318 mm)

Weight:
Standard: approx. 1,438 lb (652.3 kg)
POP: approx. 1,519 lb (689 kg)

Temperature:
Operating: 41 °F to 95 °F (5 °C to 35 °C)

Humidity:
20 to 85% RH (without condensation)

Noise:
73 to 75 dB

Warranty:
One-year limited, based on volume of 2,800 packs per day using Mitsubishi film

Approvals:
NTEP 06-029
cULus Listed

Rear Exit
A 39.1 in (1,000 mm) G 1.2 in (30 mm) M MAX 98.8 in (2,510 mm) S 28.9 + 2.0 in (733 + 50 mm)
B 10.7 in (272 mm) H 11.8 in (299 mm) N 78.7 in (2,000 mm) T 28.0 in (710 mm)
C 11.8 in (300 mm) I 22.2 in (565 mm) O 31.5 in (800 mm) U 24.1 in (612 mm)
D 21.1 in (535 mm) J 44.1 in (1,120 mm) P 17.3 in (2,261 mm) V 7.9 in (200 mm)
E 47.8 in (1,215 mm) K MAX 58.6 in (1,485 mm) Q 6.9 in (175 mm) W 33.5 + 2.0 in (850 + 50 mm)
F 64.4 to 2.0 in (1,635 + 50 mm) L 9.1 in (230 mm) R 38.3 + 2.0 in (973 + 50 mm)

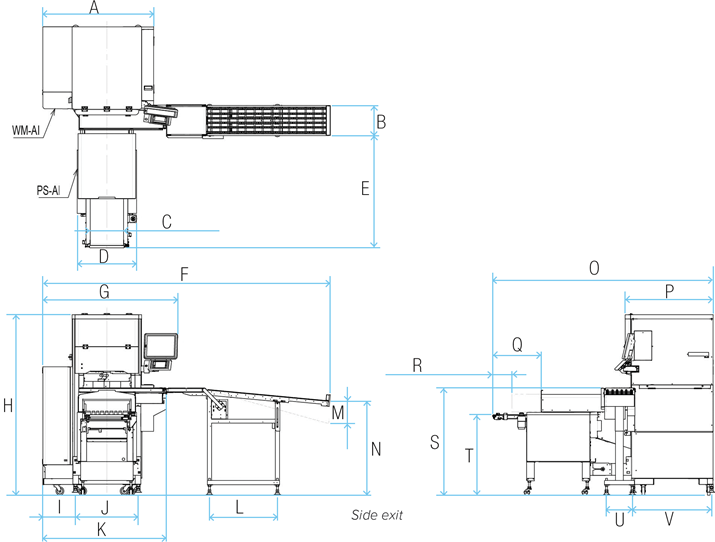

Side Exit
A 39.3 in (1,000 mm) G 47.8 in (1,215 mm) M 7.9 in (200 mm) S 38.3 + 2.0 in (973 + 50 mm)
B 10.7 in (272 mm) H 64.4 + 2.0 in (1,635 + 50 mm) N 33.3 + 2.0 in (850 + 50 mm) T 28.9 + 2.0 in (733 + 50 mm)
C 11.8 in (300 mm) I 11.8 in (299 mm) O 78.7 in (2,000 mm) U 9.1 in (232 mm)
D 21.1 in (535 mm) J 22.2 in (565 mm) P 31.5 in (800 mm) V 28.0 in (710 mm)
E 39.8 in (1,012 mm) K 44.1 in (1,120 mm) Q 17.3 in (2,261 mm)
F MAX 102.6 in (2,605 mm) L 24.1 in (612 mm) R 6.9 in (175 mm)

PS-Ai Automatic Indexing In-feed Conveyor
A 17.2 in (438 mm) E 17.1 in (434 mm) H 6.9 in (175 mm)
B 11.8 in (300 mm) F 40.6 in (1,030 mm) I 28.9 + 2.0 in (733 + 50 mm)
C 21.1 in (535 mm) G 17.3 in (440 mm) J 20.7 in (535 mm)
D 37.4 + 2.0 in (950 + 50 mm)

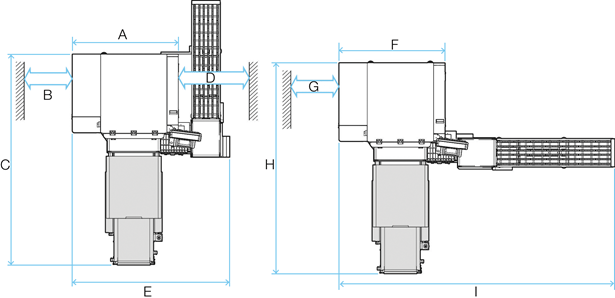

Layout Configuration (drawings not to scale)
A 39.4 in (1,000 mm) D 19.7 in (500 mm) G 11.8 in (300 mm)
B 11.8 in (300 mm) E 58.5 in (1,485 mm) H 78.9 in (2,005 mm)
C 78.9 in (2,005 mm) F 39.4 in (1,000 mm) I 102.4 in (2,600)

Resources/Downloads

Title Download Email
Ishida WM-Ai B-Type Catalog Page Download Email

Title Version Revision Download Email Category Archived
Ishida WM-Ai Operation Manual 2 A Download Email Wrappers No
Ishida WM-Ai Instrucciones de Limpieza, Desinfección e Inspección Download Email Retail Equipment|Wrappers No

Title Collateral Wizard Request Download Email Category
WM-Ai Automatic Wrapper with In-Feed Conveyor Request Download Email Wrappers|Retail Equipment

Title View Download Email Category
WM-Ai Automatic Wrapper with Infeed Conveyor View Download Email Retail Equipment

Parts

Part # Description List Price Cart/Quote
198844 Wrapper,WM-Ai AS2-BRK PS-Ai, Fully Automatic, 220VAC 20A,Ishida

Consult
198846 Wrapper,WM-Ai AS2-BRPK PS-Ai, Day glow, Fully Automatic, 220VAC 20A,Ishida

Consult

Options

Part # Description List Price Cart/Quote
197187 Table,Pack-off Roller 3ft w/fixed 1 foot Infeed and Package Stop Stainless Steel POP Label Rack Sold Separately

List Price: $2,188.00
192307 Table,Pack-off Roller 5ft w/fixed 1 foot Infeed and Package Stop Stainless Steel POP Label Rack Sold Separately

List Price: $2,519.00
188046 Label Dispenser, POP 36 inch, AL frame, SST label holder, includes SST mounting hardware for use with pack off tables

List Price: $912.00
104293 Option, Rotary bin, 28 inch x 8 inch, adjustable height with extended stainless shaft, wheel and handle, Ishida

Consult
178069 Kit,Dayglow Labeler 3 inch Core, WM-Ai P Wrapper Ishida

Consult
201643 Cover, Wrapper Washdown Plastic 58in W x 85in Deep x 56in Tall WM-Ai B-Type, Ishida

Consult
174110 Card, SD 2GB Uni-7, WM-Ai, IP-Ai Ishida

Consult
201868 PROMO,Floor Mat Rice Lake/Ishida, WM-Ai B-Type, Template Mat

Consult
201306 PROMO,Floor Mat Rice Lake/Ishida, WM-Ai B-Type Discharge, Template Mat

Consult
201305 PROMO,Floor Mat Rice Lake/Ishida, WM-Ai B-Type Infeed, Template Mat

Consult
155149 Tray,Camera Calibration White-poly, 200mm W x 130mm D x 30mm H, WM-4000 Ishida

Consult
160906 USB Memory, Stick 1G Hagiwara, UDG4-1GDRJS, Ishida

Consult
95540 Key,Safety Switch Door Interlock 65mm Long OMNi-4000, OMNi-3000, OMNi-3000S, OMNi-3000ST WM-4000, WM-Ai, WM-Micro, Ishida

Consult
176133 Harness,C2 Film Feeder Extension Cable WM-Ai Ishida

Consult

Communication

Wrapping Film

Related Products

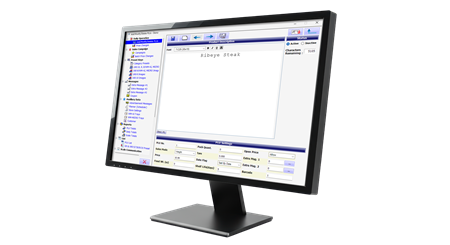

1 US Scalelinkpro5
