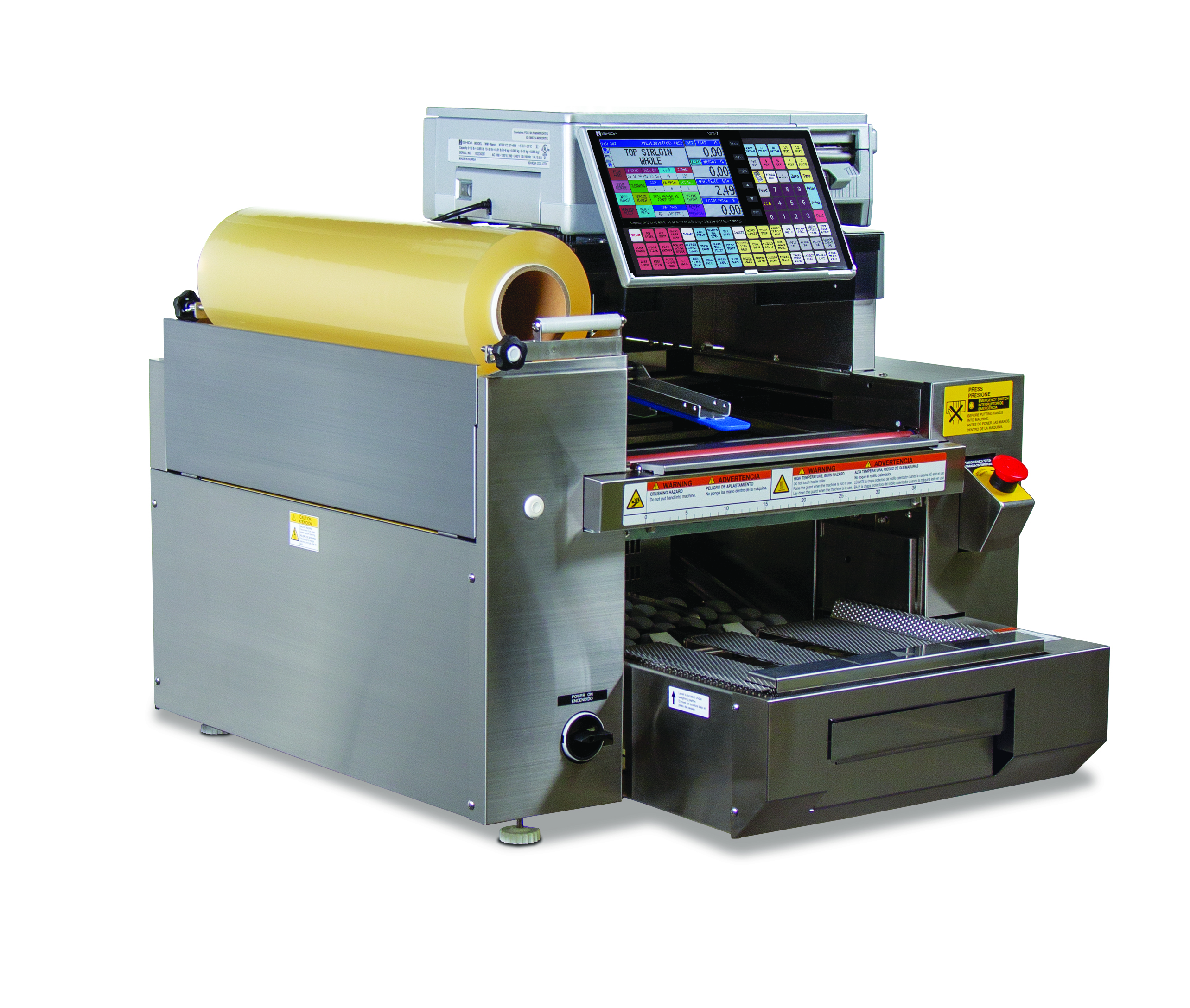

Ishida WM-Nano Tabletop Wrapper

  • 7-inch color LCD touchscreen with backlight and positive input response
  • Adjustable touchscreen viewing angle
  • Dual-range weighing (0 to 15 lb × 0.005 lb/15 to 30 lb × 0.01 lb)
  • Front-load label cassette
  • Internal wireless communications, 802.11 b/g
  • Ethernet communications
  • Up to 99 pages of preset keys
  • 77 tactile keys
  • 4 MB standard memory expandable to 2 GB
  • 30+ selectable fixed bar code formats
  • Compatible with third-party communication software, including Invatron’s PLUM and ADC’s InterScale
  • Supports 2020 nutritional data requirements

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo

WARNING: Cancer and Reproductive Harm California Proposition 65

A Slimmer, Trimmer Auto-Wrapper

Until recently there’s been little middle ground in wrapping equipment. Retailers could choose a small, manual station or a room-sized automatic machine. But now there’s another choice.

Ishida’s WM-Nano is currently the only auto-wrapper on the market compact and affordable enough for all retailers. At just 28 inches wide, 34 inches deep, and 28 inches high, it’s a unique concept—a tabletop unit with an integrated scale and printer, offering all the benefits and features of a full-size automatic machine in a modest size and affordable price.

The WM-Nano boosts output as high as 15 packages per minute (PPM), while reducing the risk of repetitive motion injuries often caused by hand-packaging and achieving the same attractive, quality wrap every time, regardless of operator.

By reducing space requirements 50 to 70 percent over competitor models, the WM-Nano fits almost anywhere and accommodates a wide range of products and tray sizes.

Controlled by the Uni-7 price-computing scale and printer, the WM-Nano brings the same user interface right from the front counter to the back room, where operators won’t have to learn another type of equipment.

Packs Per Minute:
Up to 15 ppm

Wrapping Capacity:
7.5 lb × 0.005 lb or 7.5 lb × 0.01 lb

Capacity (Dual Range):
15 × 0.005 lb/30 × 0.01 lb

Wrapping Size:
Width: 5.0 to 9.0in
Length: 5.1 to 12.0in
Height: max 5.0 in
Tray Height: 1.8 in

Rear Display:
Not available

Tray:
PSP, PP, NET

Film Type:
PVC

Power:
200 to 240V 50/60Hz, 15A

Print Head:
Direct thermal 2.2 in head (56 mm)

Print Speed:
3.2/ 3.9/ 4.7/ 5.9 in/sec
(80/ 100/ 120/ 150 mm/sec)

Label Size:
Width: 1.2 to 2.5 in (30 to 64 mm)
Length: 0.8 to 7.9 in (20 to 200 mm)

Film Size:
16 to 22 in (400 to 560 mm)

Noise:
75 db

Operating Temperature:
41 °F to 95 °F (5 °C to 35 °C)

Humidity:
20% to 85% relative humidity

Dimensions:
(W × L × H)
27.5 × 33.5 × 27.5 in
(700 × 850 × 700 mm)

Weight:
188 lb (85 kg)

Classification:
NTEP CC 07-099

Warranty:
One-year limited
Based on volume of 900 packs per day

Resources / Downloads

Title View Email Category Type
Community Matters View Email Retail Equipment|Retail Accessories Application Story
High-Quality Wrapper Film for Quality Product Presentation Email Retail Equipment|Wrappers Articles
Gleaming Grocery View Email Retail Equipment|Price Computing Scales Application Story
Wrapping Up Quality View Email Application Story

Title Download Email
Ishida WM-Nano Wrapping System Catalog Page Download Email

Title Version Revision Download Email Category Archived
Ishida Uni-5/7 Operator Keysheet: June 2021 Download Email Retail Equipment No
Instrucciones de Limpieza, Desinfección e Inspección de la WM-Nano A Download Email Wrappers|Retail Equipment No
Ishida WM-Nano Cleaning, Sanitizing and Inspection Instructions B Download Email Wrappers|Retail Equipment No
Ishida WM-Nano Operation Caution Card Download Email Wrappers No
Ishida WM-Nano User's Manual Download Email Wrappers No

Title Download Email
WM-Nano Infeed Unit Replacement Parts Catalog Page Download Email
WM-Nano Control Unit and Wiring Diagrams Replacement Parts Catalog Page Download Email
WM-Nano Harness Unit Replacement Parts Catalog Page Download Email
WM-Nano Film Load Arm Unit Replacement Parts Catalog Page Download Email
WM-Nano Film Feeder Unit Replacement Parts Catalog Page Download Email
WM-Nano Fan Heater Unit Replacement Parts Catalog Page Download Email
WM-Nano Drive Unit Replacement Parts Catalog Page Download Email
WM-Nano Cutter Unit Replacement Parts Catalog Page Download Email
WM-Nano Cover Unit Replacement Parts Catalog Page Download Email
WM-Nano Lift and Lift Head Unit Replacement Parts Catalog Page Download Email
WM-Nano Maintenance Parts Replacement Parts Catalog Page Download Email
WM-Nano Wrapper Main Body Unit Replacement Parts Catalog Page Download Email
WM-Nano Wrapping Unit Replacement Parts Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
Retail Film Wrap - Mitsubishi Download Email Retail Equipment
Retail Systems Literature Request Download Email Retail Accessories|Retail Equipment|Retail Labelers
WM-Nano Tabletop Wrapper Request Download Email Retail Equipment|Wrappers

Title View Download Email Category
Rice Lake/Ishida Retail Overview View Download Email Retail Equipment
WM-Nano Sales Video View Download Email Retail Equipment
Uni-7 Keyboard Programming View Email Retail Equipment|Price Computing Scales
WM-Nano Overview View Download Email Retail Equipment

Parts

Part # Description List Price Cart
120674 Wrapper,WM-Nano L Type, 15ppm, includes UNI-7 RP unit, 220VAC Ishida

List Price: $25,080.00

Options

Communications

Part # Description List Price Cart
78860 Cable,Ethernet Cross RJ45 to RJ45, 7FT

List Price: $40.00

152628 License,ScaleLink Pro 5 SLP5 Item Management, Maintenance, Ishida

List Price: $1,495.00

Manuals and Service Tools

Wrapping Film

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
