ITCM Hardware Kits
- Provides greater safety than traditional/suspension configurations
- Complete package for ease of installation
- Built-in electrical isolation without having to use isolators (not available on 20,000 lb version)
- Provides correct load cell loading even in difficult installations
- Dramatically reduces overall length
- Capacities from 300 to 20,000 lb
- Clevis mounts with nylon insulating washers
- PTFE-lined rod end ball joints (not available on 20,000 lb version)
- Completely isolates load cell from stray currents
- Grounding strap for electrical continuity
- Zinc plated clevis
- Mount only: does not include load cell
Applications
- Suspended hoppers
- Mechanical scale conversions
- Replaces traditional eye bolt, isolator configurations

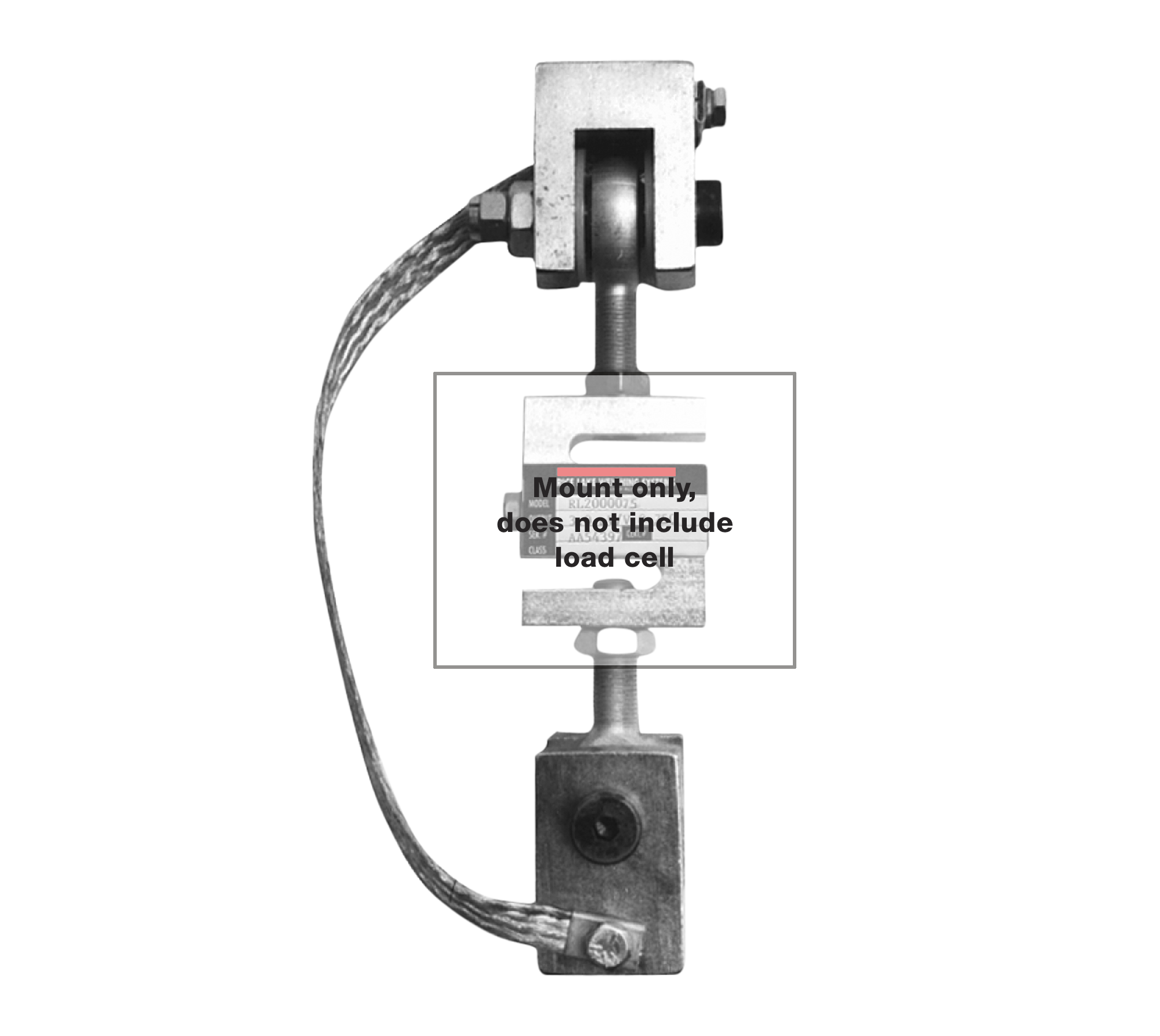

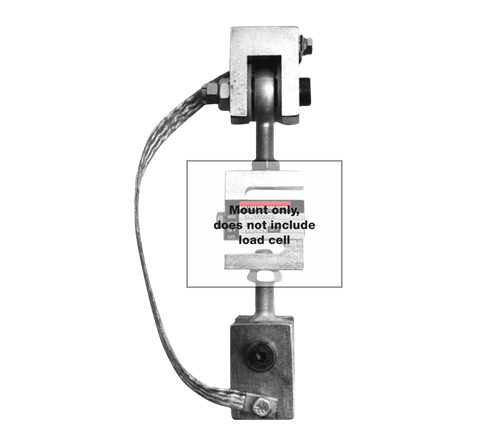

The Isolated Tension Cell Mount (ITCM) is a mounting assembly designed for tension mounting s-beam load cells in suspended hopper assemblies and mechanical scale conversions. The ITCM incorporates clevis and unique rod end ball joint assemblies, reducing the overall length to less than half of traditional tension cell mounts, while providing correct load alignment. In addition, the load cell is completely electrically isolated from stray currents, a major cause of load cell failure. To complete the design, a grounding strap connects the two clevis assemblies to further ensure load cell safety.
ITCM Hardware Kit Dimensions
| Part # | Load Rating | Clevis Thread | Rod End Thread | Safe Load* |
|---|---|---|---|---|
| Mild Steel | ||||
| 17968 | 300 lb | 3/8-16 | 3/8-24 | 300 lb |
| 17969 | 300 lb | 1/2-13 | 3/8-24 | 300 lb |
| 17894 | 500 lb | 3/8-16 | 1/4-28 | 500 lb |
| 17895 | 500 lb | 1/2-13 | 1/4-28 | 500 lb |
| 17896 | 2,000 lb | 1/2-13 | 1/2-20 | 2,000 lb |
| 17897 | 2,500 lb | 5/8-11 | 1/2-20 | 2,500 lb |
| 17898 | 4,000 lb | 3/4-10 | 1/2-20 | 4,000 lb |
| 17899 | 5,000 lb | 3/4-10 | 3/4-16 | 5,000 lb |
| 17900 | 10,000 lb | 1-8 | 3/4-16 | 10,000 lb |
| 17958 | 15,000 lb (RL20000I) | 1 1/4-7 | 1-12 | 15,000 lb |
| 63166 | 15,000 lb (RL20001) | 1 1/4-7 | 1-14 | 15,000 lb |
| 17959 | 20,000 lb** | 1 1/2-6 | 1 1/4-12 | 20,000 lb |
| *Do not exceed the safe load **Not electrically isolated | ||||
| Stainless Steel | ||||
| 33630 | 500 lb | 3/8-16 | 3/8-24 | 500 lb |
| 33631 | 300 lb | 1/2-13 | 3/8-24 | 300 lb |
| 33632 | 500 lb | 3/8-16 | 1/4-28 | 500 lb |
| 33633 | 500 lb | 1/2-13 | 1/4-28 | 500 lb |
| 33634 | 2,000 lb | 1/2-13 | 1/2-20 | 2,000 lb |
| 33635 | 2,500 lb | 5/8-11 | 1/2-20 | 2,500 lb |
| 33636 | 3,000 lb | 3/4-10 | 1/2-20 | 3,000 lb |
| 33637 | 5,000 lb | 3/4-10 | 3/4-16 | 5,000 lb |
| *Do not exceed the safe load | ||||
Resources / Downloads
Parts
Mild Steel
| Part # | Description | List Price | Cart |
|---|---|---|---|
| 17968 | Mount,ITCM 300 lb Mild Steel Zinc Plated Tension Clevis THD 3/8-16NC Rod End THD 3/8-24 NF No Cell For SENSTRS |
List Price: $236.00 |
|
| 17969 | Mount,ITCM 300 lb Mild Steel Zinc Plated Tension Clevis THD 1/2-13NC Rod End THD 3/8-24 NF No Cell For SENSTRS |
List Price: $236.00 |
|
| 17894 | Mount,ITCM 500 lb Mild Steel Zinc Plated Tension Clevis THD 3/8-16NC Rod End THD 1/4-28 NF No Cell |
List Price: $236.00 |
|
| 17895 | Mount,ITCM 500 lb Mild Steel Zinc Plated Tension Clevis THD 1/2-13NC Rod End THD 1/4-28 NF No Cell |
List Price: $236.00 |
|
| 17896 | Mount,ITCM 2,000 lb Mild Steel Zinc Plated Tension Clevis THD 1/2-13NC Rod End THd 1/2-20 NF No Cell |
List Price: $285.00 |
|
| 17897 | Mount,ITCM 2,500 lb Mild Steel Zinc Plated Tension Clevis THD 5/8-11NC Rod End THD 1/2-20 NF No Cell |
List Price: $285.00 |
|
| 17898 | Mount,ITCM 4,000 lb Mild Steel Zinc Plated Tension Clevis THD 3/4-10NC Rod End THD 1/2-20 NF No Cell |
List Price: $285.00 |
|
| 17899 | Mount,ITCM 5,000 lb Mild Steel Zinc Plated Tension Clevis THD 3/4-10NC Rod End THD 3/4-16 NF No Cell |
List Price: $325.00 |
|
| 17900 | Mount,ITCM 10,000 lb Mild Steel Zinc Plated Tension Clevis THD 1-8NC Rod End THD 3/4-16NF No Cell |
List Price: $325.00 |
|
| 17958 | Mount,ITCM 15,000 lb Mild Steel Zinc Plated Tension Clevis THD 1-1/4-7NC Rod End THD 1-12NF No Cell |
List Price: $1,284.00 |
|
| 63166 | Mount,ITCM 15,000lb Mild Steel Zinc Plated Tension Clevis THD 1-1/4-7NC, Rod End THD 1-14NF, No Cell |
List Price: $1,229.00 |
|
| 17959 | Mount,ITCM 20,000 lb Mild Steel Zinc Plated Tension Clevis THD 1-1/2-6NC Rod End THD 1-1/4- 12NF No Cell |
List Price: $1,134.00 |
