ITCM SS Isolated Tension Cell Module

Complete Kit Includes

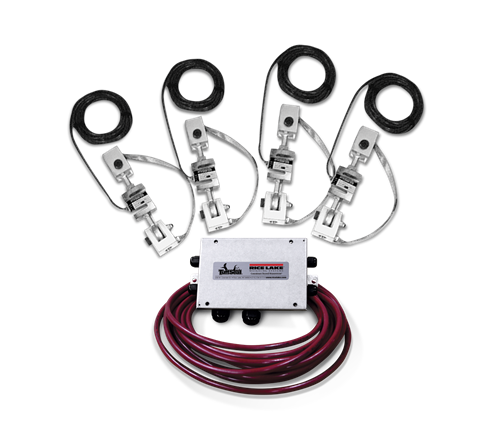

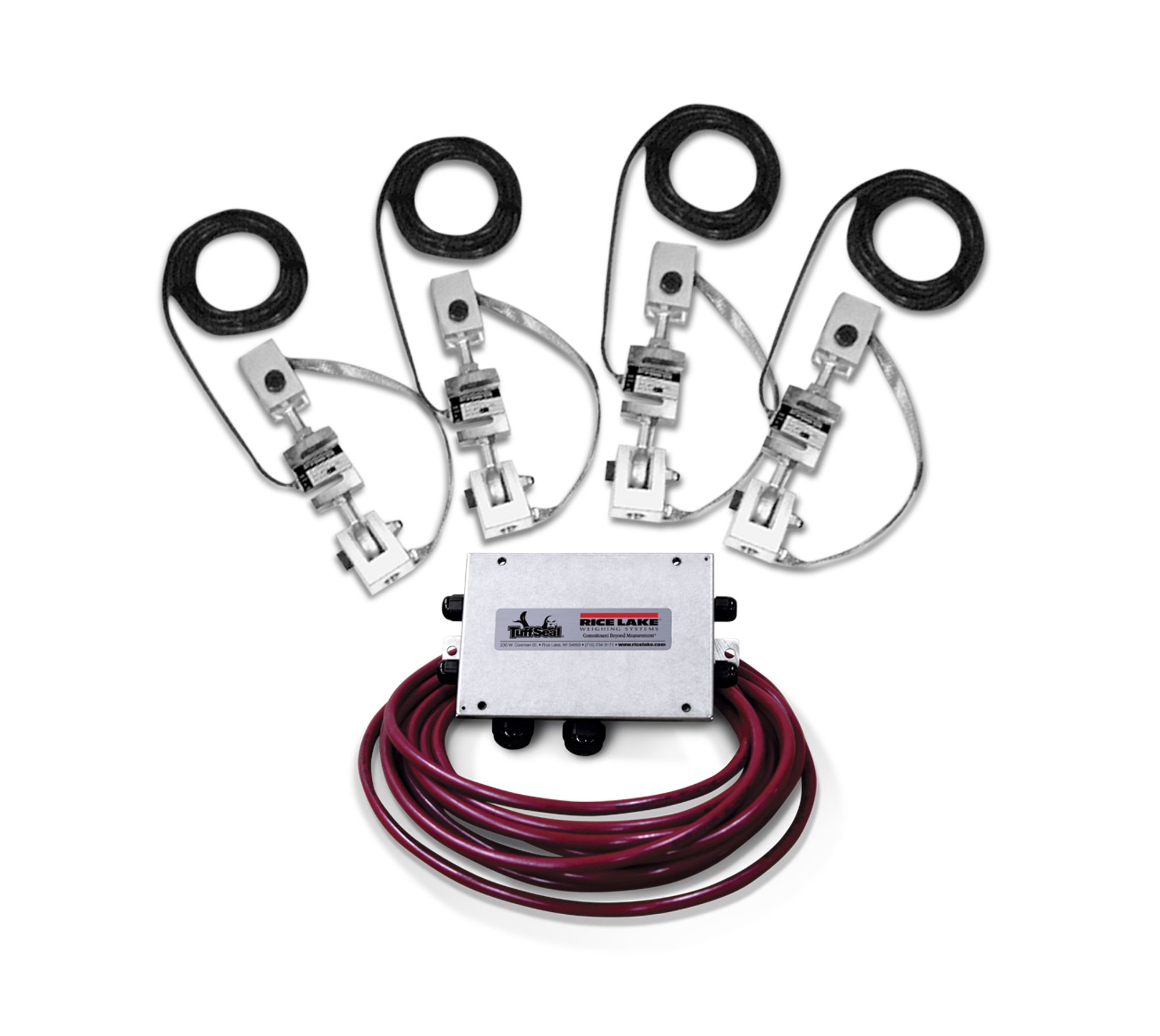

  • Three or four ITCM assemblies with RL20000ST NTEP Certified S-beam load cells
  • One JB4SS NEMA Type 4X stainless steel signal trim junction box
  • 25 ft of hostile environment EL147HE SURVIVOR® load cell cable

Standard Features

  • Capacities (per module): 100 to 5,000 lb
  • Clevis mounts with nylon insulating washers
  • PTFE-lined rod-end ball joints
  • Load cell is completely isolated from stray currents
  • Grounding strap provides alternative path to ground
  • Complete package for ease of installation
  • Provides correct loading even in difficult installations
  • Lower overall height compared to other isolated tension assemblies

Applications

  • Suspended hoppers and tanks
  • Mechanical scale conversions
  • Use as a single module or in multiples

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO FM Approved

WARNING: Cancer and Reproductive Harm California Proposition 65

Stainless Steel Tension Load Cell Module

The ITCM Series utilizes several Rice Lake Weighing Systems components to provide an unmatched level of performance in tank and hopper weighing applications and mechanical scale conversions. The ITCM SS incorporates clevis and unique rod-end ball joint assemblies to reduce the overall length to less than half of the traditional tension cell mounts, while providing correct load alignment. In addition, the load cell is completely electrically isolated from stray currents, which are a major cause of load cell failure. To complete the design, a grounding strap connects the two clevis assemblies to further provide safety to your load cells.

Applications:

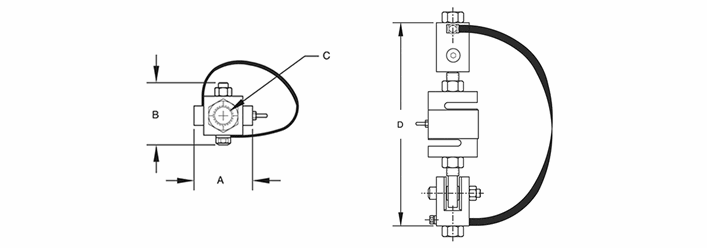

Load Cell Capacity A B C D Single Module 3-Module Kit 4-Module Kit
lb/in Part# Part# Part#
100 lb 2.00 1.81 3/8-16 NC 7.00 (ref) 46765 46735 46751
100 lb 2.00 1.81 1/2-13 NC 7.00 (ref) 46766 46736 46752
250 lb 2.00 1.81 3/8-16 NC 7.00 (ref) 46767 46737 46753
250 lb 2.00 1.81 1/2-13 NC 7.00 (ref) 46768 46738 46754
500 lb 2.68 2.68 1/2-13 NC 9.50 (ref) 46769 46739 46755
500 lb 2.68 2.68 5/8-11 NC 9.50 (ref) 46770 46740 46756
750 lb 2.68 2.68 1/2-13 NC 9.50 (ref) 46771 46741 46757
750 lb 2.68 2.68 5/8-11 NC 9.50 (ref) 46772 46742 46758
1000 lb 2.68 2.68 1/2-13 NC 9.50 (ref) 46773 46743 46759
1000 lb 2.68 2.68 5/8-11 NC 9.50 (ref) 46774 46744 46760
2500 lb 2.68 2.68 5/8-11 NC 9.50 (ref) 46775 46745 46761
2500 lb 2.68 2.68 3/4-10 NC 9.50 (ref) 46776 46746 46762
3000 lb 3.37 3.37 3/4-10 NC 10.75 (ref) 46777 46747 46763
5000 lb 3.37 3.37 3/4-10 NC 12.00 (ref) 46778 46748 46764
* Load Rating is per module

Resources / Downloads

Title Download Email
ITCM SS Weigh Module Catalog Page Download Email

Title Version Revision Download Email Category Archived
ITCM Series Installation Guide Download Email Weigh Modules No
Load Cell and Weigh Module Handbook B Download Email Load Cells|Weigh Modules No

Title Download Email
Weigh Module Application Download Email

Title Download Email
ITCM SS Isolated Tension Cell Mount Assembly Standard Model Replacement Parts Page Download Email

Title Collateral Wizard Request Download Email Category
ITCM Assembly Light to Medium Capacity Mount Assembly Collateral Wizard Request Download Email Weigh Modules
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules
Load Cell Selection Guide Request Download Email Load Cells|Weigh Modules
Your First Choice in Load Cells Download Email Load Cells

Title View Download Email Category
Custom Weigh Modules and Load Cell Mounts View Download Email Weigh Modules|Load Cells|Load Cell Hardware|Hardware

Title Download Email Category
Properly Welding on Structures with Load Cells Download Email Load Cells
