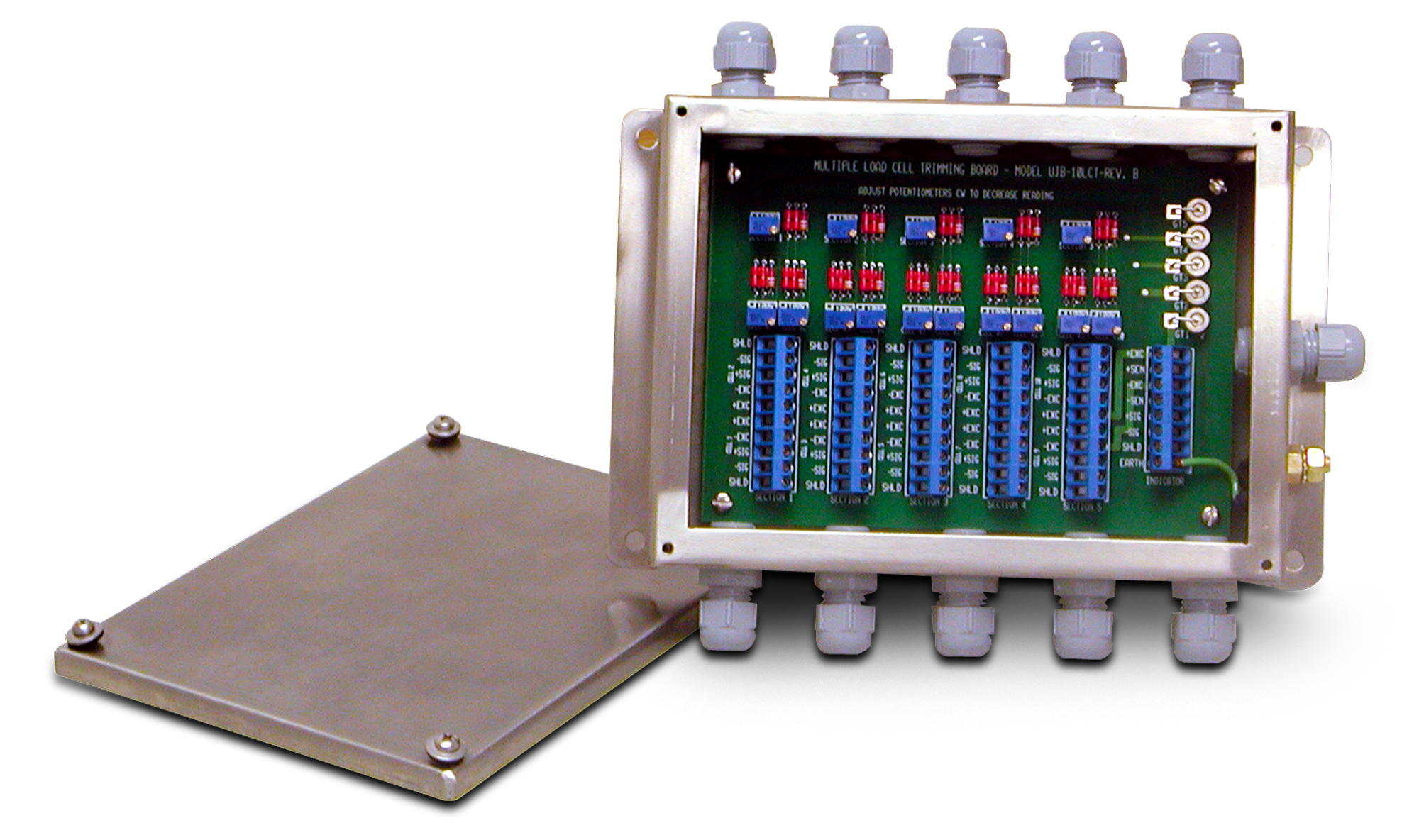

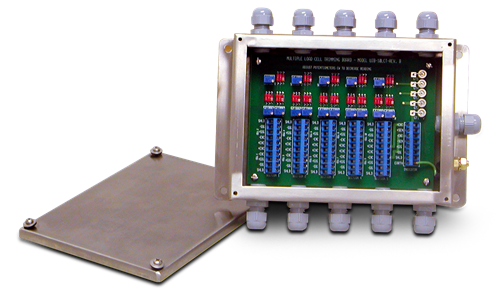

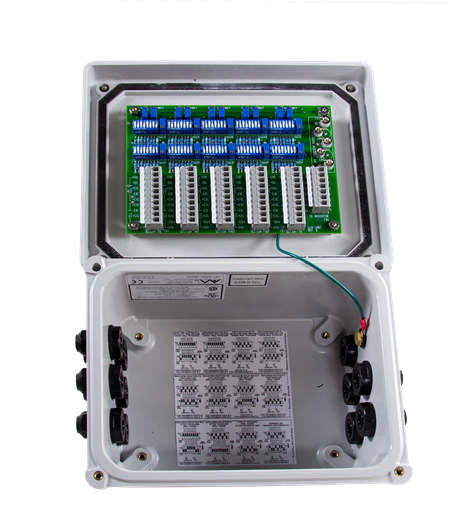

JB1010ST Signal Trim Junction Box

  • Transient protection using gas discharge tubes
  • Stainless steel, NEMA Type 4X enclosure
  • Section and individual cell trim capability
  • Compact enclosure only 1.75 in deep
  • Strain relief cable fitting
  • Number of cells: Two, four, six, eight or 10 single load cells
  • Any unused channels require modification
  • Legal for Trade sealing screws, wire and seal included
Applications
  • Tank, truck and railroad scales
  • Summing 10 load cells with individual and section trimming capability

Specifically for signal trimming, the compact JB1010ST signal trim junction box with transient protection provides individual cell and section trim capability. The JB1010ST junction box totals up to ten single load cells and includes transient protection inside the element-resistant NEMA Type 4X stainless steel enclosure.

Cable Fittings:
11 nylon cable strain reliefs for cable dimension range: 0.079 to 0.314 in

Connectors:
Electrovert 0.197 miniature screw terminals,
Five positions
Maximum wire size: #14 AWG
External enclosure ground stud

Trimming:
Individual cell and section signal trim

Potentiometers:
100,000 ohm, 25-turn cerment, individual trim
100 ohm potentiometers for section trimming

Enclosure:
Stainless steel

Temperature:
Operating Range
0 °F to 122 °F (-18 °C to 50 °C)

Circuit Board:
6.5 × 4.5 in

Warranty:
One-year limited
