Load Button

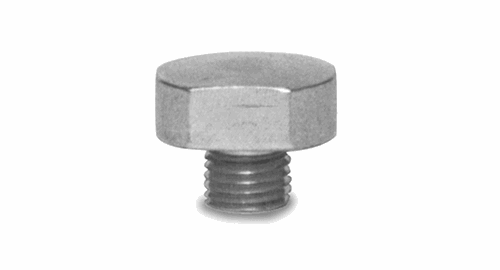

Load Button
- Suitable for use with compression mounting assemblies, canisters, s-beams and single-ended beams
- Hardened alloy steel

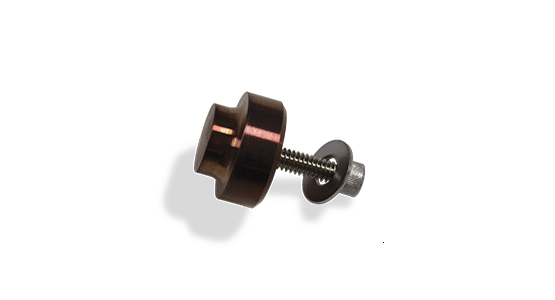

Load Button Insert Kit
- To be used with RLSSB and VPG Revere SSB load cells (1,000 to 5,000 lb)
- Hardened alloy steel

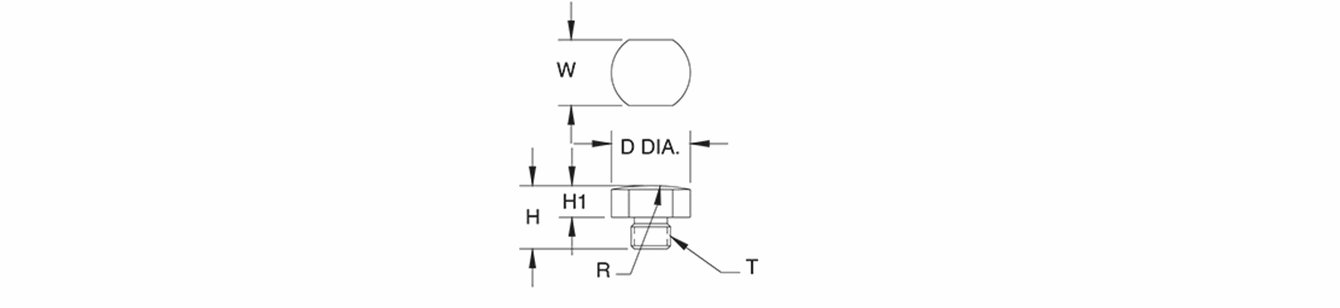

Load Button Dimensions
| Part # | T | D | H | H1 | R | W |
|---|---|---|---|---|---|---|
| 17750 | 3/8-24 UNF | 0.75 in | 0.60 in | 0.30 in | 2.00 in | 0.63 in |
| 17751 | 1/2-20 UNF | 0.75 in | 0.70 in | 0.30 in | 4.00 in | 0.63 in |
| 17752 | 3/4-16 UNF | 1.50 in | 0.90 in | 0.30 in | 6.00 in | 1.25 in |

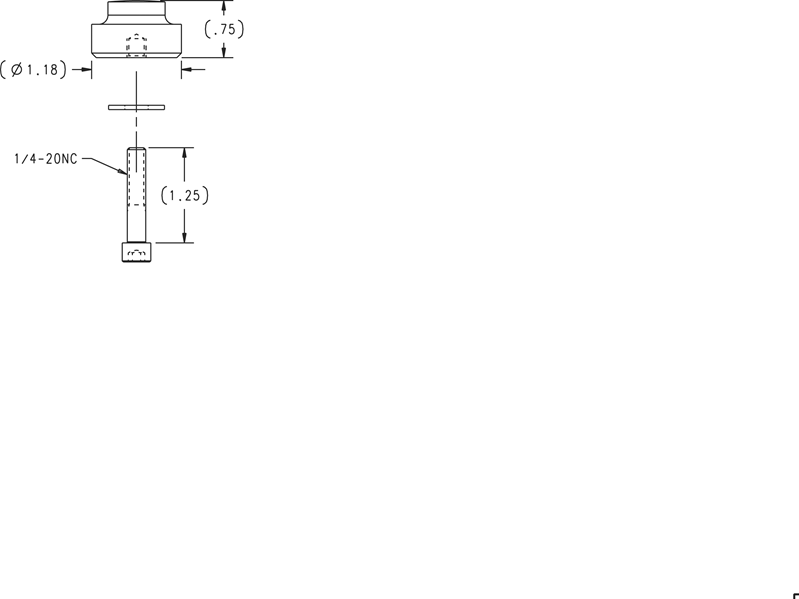

Load Button Insert Kit Dimensions
Resources / Downloads
Parts
Load Button
| Part # | Description | List Price | Cart |
|---|---|---|---|
| 17750 | Load Button,Convex 3/8-24 UNF 17-4PH SST Condition H900 |
List Price: $37.00 |
|
| 17751 | Load Button,Convex 1/2-20 UNF 17-4PH SST Condition H900 |
List Price: $32.00 |
|
| 17752 | Load Button,Convex 3/4-16 UNF 17-4PH SST Condition H900 |
List Price: $50.00 |
