Load Cell Conduit Adapters
- Used to adapt conduit to load cells
- 303 stainless steel

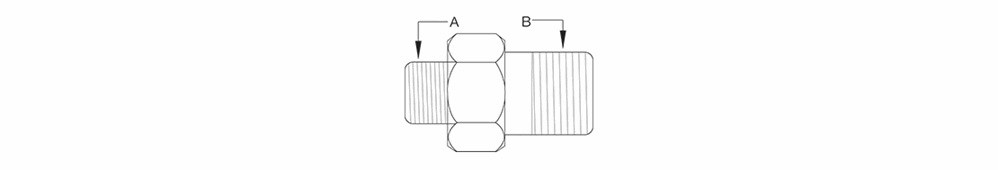

Conduit Adaptors Dimensions
PART # | A | B |
---|---|---|
31533 | 3/8-24 UNF | — |
31534 | — | 1/4-18 NPT |
31535 | 5/8-18 UNF | 1/2-14 NPT |
Note: 31533 and 31534 are used together to form male-to-male adaptor |
Resources / Downloads
Parts
Part # | Description | List Price | Cart |
---|---|---|---|
31533 | Adapter,Conduit SST 3/8-24UNF Thread Nipple |
List Price: $37.00 |
|

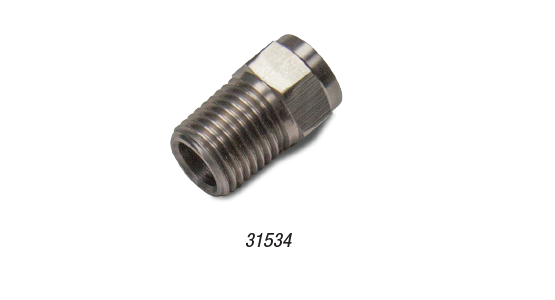

31534 | Adapter,Conduit SST 1/4-18 NPT 3/8-24UNF-ZA |
List Price: $37.00 |
|

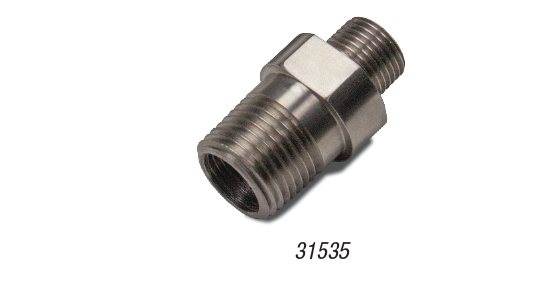

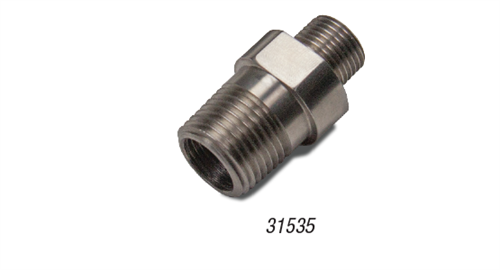

31535 | Adapter,Conduit SST 1/2in NPT 5/8-18UNF-2A |
List Price: $37.00 |
Options
No options found for this product
Replacement Parts
Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.
To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
