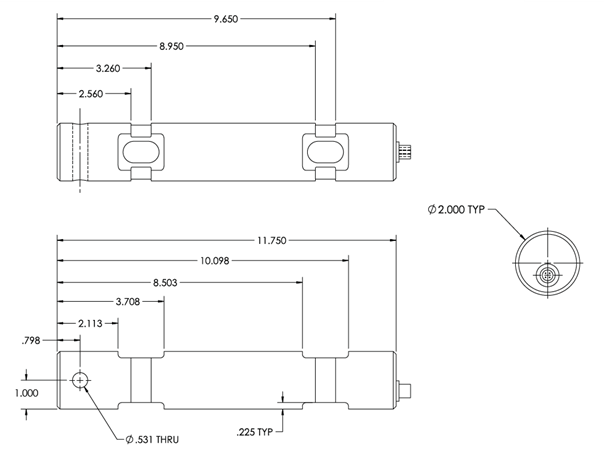

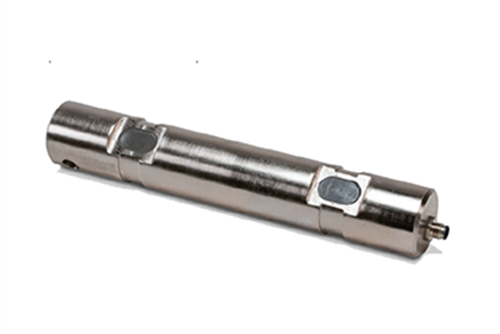

Load Pin - 2 Inch, 20K Alloy Steel, Environmentally Sealed

This 2-inch load pin is used in Rice Lake's Loadrunner kits and semi trailer landing gear. This load pin can be paired with load and support collars for applications that have pivot or rotation requirements.

Request More Information
Loadpin 2In

Full Scale Output:
1.3 mV/V

Material/Finish:
Alloy steel

Temperature:
14 °F to 104 °F (-10 °C to 40 °C)

Rated Excitation:
15 VDC (5 to 10 V recommended)

Insulation Resistance:
500 megohms at 50 VDC

Seal Type:
Environmentally sealed

Connector Type:
Turck, M12 4-pin male

Connection Pin Out:
Pin 1 - Excitation +
Pin 2 - Signal +
Pin 3 - Excitation -
Pin 4 - Signal -

Warranty:
One-year limited

Resources / Downloads

Title Download Email
Load Pin - 2 Inch, 20K Alloy Steel, Environmentally Sealed Download Email
Onboard Weighing Load Cell, Complete Selection Download Email

Parts

Part # Description List Price Cart
181895 Load Pin, Load Runner OB Onboard 20K Rated Output: 1.3mV/V, Pin1: EX+ PIN2: SIG+, PIN3: EX-, PIN4: SIG-, SAME AS 131207 LOAD RUNNER KIT

List Price: $1,050.00
