Load Ranger Wireless Wheel Pad Scale

  • Up to 6 individual pads (3 sets) per system, completely wireless
  • Up to 14 individual pads (7 sets) maximum per system, pairs must be joined with Y-cables and communicate wirelessly to the indicator
  • Industrial RF radio module to communicate with indicator
  • Integrated wheels and nonslip rubber under platform
  • Internal rechargeable battery with 40 hours of battery life

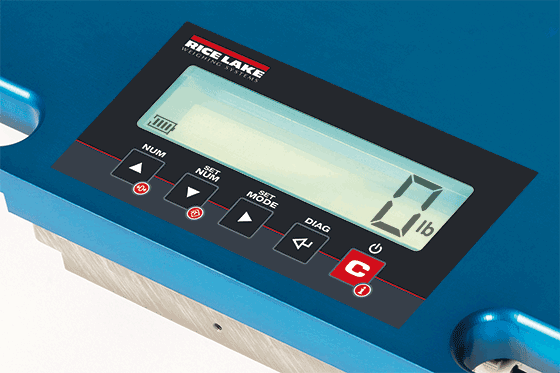

  • Built-in indicator on each scale with 1 in character display
  • IP67 rating
  • Cover plate protects built-in indicator

Optional remote indicator with integrated printer in carrying case:

  • Carrying case: 1 ft × 1 ft 6 in × 7 in (325× 460 × 170 mm)
  • Backlit graphic display with touchscreen technology
  • Internal battery with 10 hours of battery life
  • Real-time clock
  • Permanent data storage
  • 24-bit A/D converter, up to 2,300 conversions per second
  • One RS-232 serial port
  • Thermal printer
  • ABS transport case

​Wheel weighing software:

  • Multi-scale function mode weighs with up to 14 individual pads (seven sets)
  • Static axle weighing function, up to two channels
  • Calculation of center of gravity
  • Semi-automatic and preset tare
  • Selection of displayed data on LCD touchscreen
  • 1,000 field database
  • Print and display list of last 3,500 vehicles

Options/Accessories:

  • Leveling modules
  • Aluminum ramps
  • NTEP Class IIII (Select sizes and capacities only, consult factory for more information)

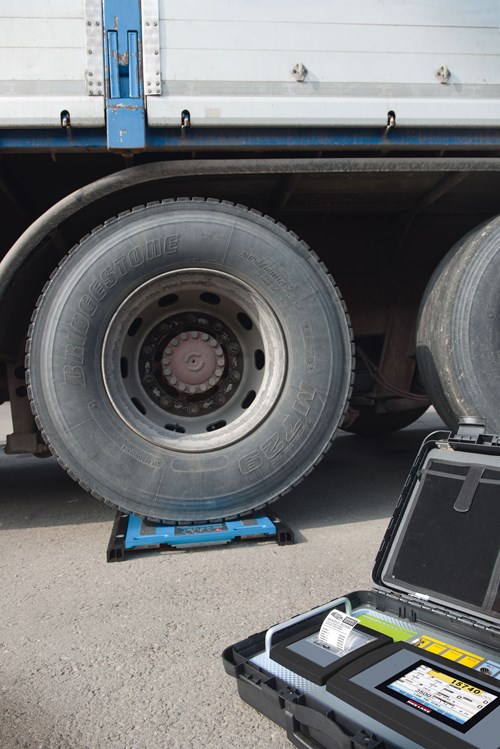

Load Ranger wheel weigh pads are vehicle weighing scales ideal for mobile and temporary applications. Load Ranger wireless wheel pads offer an adaptable solution for vehicle weighing. With unmatched accuracy, Load Ranger wireless wheel pads capture wheel or axle weights, either individually or in sets of up to 14 pads. The built-in weight indicator is equipped with industrial Bluetooth® and 2.4 GHz wireless communication. For easy, onsite positioning, these wheel weigh pads have integrated wheels and handles for ease of use in restricted spaces. Load Ranger can be completely wireless with six individual weigh pads with integrated weight displays and an optional remote weight indicator, or systems can include up to 14 weigh pads joined via cable with wireless capability to an optional remote indicator. Load Ranger is adaptable for many applications and provides quick axle and weight readouts.

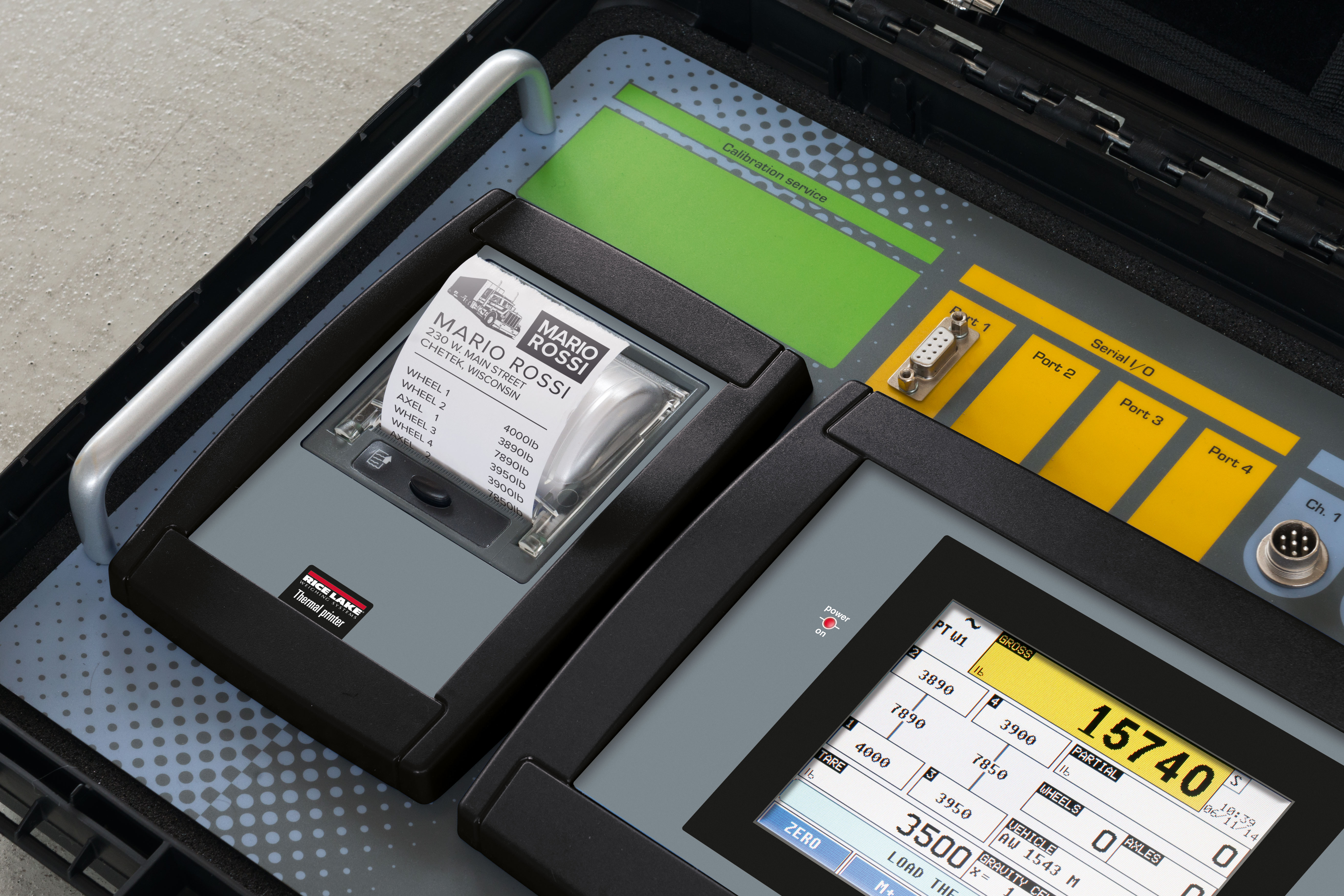

Remote Touchscreen Indicator and Printer

To simplify operation, Load Ranger wheel weigh pads can be paired with an optional touchscreen digital weight indicator and thermal printer fitted in an ABS plastic transport case. This all-in-one solution allows remote weight summing from integrated wheel pad sets and ticket printing.

Construction:
Aluminum alloy

Display:
1 in character display on each scale

System Accuracy:
0.05% of rated capacity

Power Supply:
Rechargeable battery
Approximately 40 hours of battery life
Includes uL approved AC wall adaptor

Operating Temperature:
14 °F to 104 °F (-10 °C to 40 °C)

Storage Temperature:
-4 °F to 140 °F (-20 °C to 60 °C)

Effective Wireless Communication Range:
Up to 160 ft (50m) line of sight typical



Warranty:
Two-year limited

Approvals:
NTEP CC 20-003P Class IIII
(Select sizes and capacities only, consult factory for more information)

Platform Dimensions
RF-MD RF-WD RF-XWD
A 1 ft 8 in (511 mm) 1 ft 10 in (564 mm) 2 ft (611 mm)
B 2 ft (611 mm) 2 ft 8 in (813 mm) 3 ft 3 in (991 mm)
C 2.28 in (58 mm) 2.28 in (58 mm) 2.28 in (58 mm)
D 1 ft 4 in (406 mm) 1 ft 6 in (457 mm) 1 ft 8 in (511 mm)
E 1 ft 10 in (564 mm) 2 ft 6 in (750 mm) 3 ft 1 in (950 mm)
Loading Surface Dimensions
RF-MD 1 ft 3 in x 1 ft 4 in (381 mm x 406 mm)
RF-WD RF-WD 1 ft 11in x 1 ft 6 in (584 mm x 457 mm)
RF-XWD RF-XWD 2 ft 5 in x 1 ft 8 in (737 mm x 511 mm)

Resources / Downloads

Title Download Email
Load Ranger Catalog Page Download Email

Title Version Revision Download Email Category Archived
Load Ranger Wheel Weigh Pad System Technical Manual C Download Email Portable Vehicle Scales|Vehicle Scale System No
Load Ranger Wheel Weigh Pads Quick Start Guide B Download Email Portable Vehicle Scales|Vehicle Scale System No

Title Download Email
Load Ranger Replacement Parts Page Download Email

Title Collateral Wizard Request Download Email Category
Load Ranger Wheel Weigh Pads Collateral Wizard Request Download Email Portable Vehicle Scales
Law Enforcement Approved Load Ranger Wheel Pad Scale Download Email

Title Version Size Release Date Download Email
Load Ranger Firmware (2.4 GHz) 1.00 1.4 MB 05/16/2022 Download Email
Load Ranger Firmware (Bluetooth) 1.00 3.2 MB 05/16/2022 Download Email

Title View Download Email Category
Connecting with Rice Lake Tools View Email Indicators / Controllers|Pallet Jack|Wheel Load Scales
Load Ranger is the Solution for Mobile Weighing View Download Email Portable Vehicle Scales

Parts

Part # Description List Price Cart
212108 Indicator,Load Ranger-2G4 Load Ranger indicator with 2.4Ghz,w/AF08,includes RF1TR-1&BLTH-1 installed, Touch Screen, Includes US & EU Adapters

List Price: $2,100.00

Load Ranger RF-MD

Load Ranger RF-WD

Load Ranger RF-XWD

Options

Part # Description List Price Cart
190916 CABLE, RS485 Load Ranger 10M, RS485 to connect between a wheel pad and a RL-AI indicator M12 connectors, 1 male and 1 female Vendor PN 14CAVO485

List Price: $185.00

188744 CABLE, Load Ranger RS485 10M, RS485 to connect between wheel weighing pads M12 connectors

List Price: $185.00

181881 Ramp, LoadRanger-S Ramp for S-Series Load Ranger scale, AL

List Price: $265.00

181882 Ramp, Load Ranger-W Ramp for Load Ranger W-Series scale, AL

List Price: $300.00

181883 Ramp, Load Ranger-EW Ramp for Load Ranger EW Series, AL

List Price: $325.00

182053 Paper Roll,57mm x30m AI-1 12mm Core 51mm OD, RPT57C, for Load Ranger printer, RL-HPJ Pallet Jack Scale Sold by the Roll

List Price: $3.00

185064 Power Supply, 0.35A 100-240VAC input, 5.0-14.4VDC, Max 1.0A Output Load Ranger Wireless Wheel Pads, Battery Charger for NiMH/NiCd Batteries, UL Approved

List Price: $100.00

192591 Power Adapter,Load Ranger Indicator External 110-230 VAC IN, 12 VDC Out

List Price: $90.00

212110 Radio Frequency Module, retro fit kit for Load Ranger, 2.4GHz Radio frequency module, complete of TTL port. Comes with 2.4GHz RF module, antenna, communication cable, mounting bracket, and ground cable.

List Price: $525.00

212111 Radio Frequency Module, retro fit kit for Load Ranger Remote indicator, 2.4GHz Radio frequency module. Comes with 2.4GHz RF module, antenna, and communication cable.

List Price: $525.00
