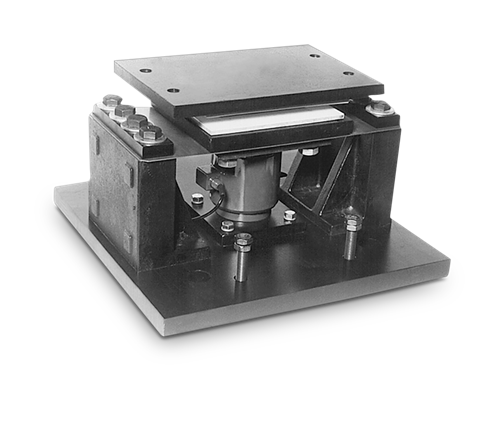

MagnaMount® Tank, Truck, Rail Assembly

  • Capacities: 50,000 lb, 100,000 lb and 200,000 lb
  • Protects load cell from shock and side loads
  • Low-profile design
  • High-strength load bearing plate made of highgrade carbon steel hardened to Rockwell C 48-54
  • PTFE-coated shock absorbing pads
  • Compatible with VPG® Revere CP and CSP and Rice Lake Weighing Systems’ RLCSP1 NTEP Certified load cells

Constant Load Cell Protection

The MagnaMount tank, truck and railroad scale assembly is designed for use with Rice Lake Weighing Systems' RLCSP1 or VPG Revere CP or CSP load cells. The "shielded cell" load cell mounting assembly is a highly reliable design that shields the load cell from shock and side load effects, assuring accurate weighing even under adverse loading conditions.

Applications:

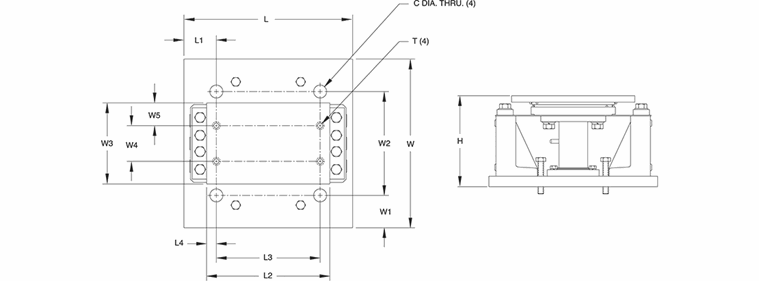

Rated Capacity C H L L1 L2 L3 L4 T W W1 W2 W3 W4 W5
lb/in
50,000 1.25 7.39 13.00 1.75 11.25 8.50 1.37 3/4-10 UNC 12.00 1.75 8.50 8.00 4.50 1.75
100,000 1.50 11.29 20.00 2.25 18.00 15.50 1.25 7/8-9 UNC 17.00 2.50 12.00 9.00 5.50 1.75
200,000 2.00 14.10 26.00 5.00 19.00 16.00 1.50 1-8 UNC 26.00 5.00 16.00 12.50 5.50 3.50

Resources / Downloads

Title Download Email
Magnamount Weigh Module Catalog Page Download Email

Title Version Revision Download Email Category Archived
MagnaMount Installation Guide Download Email Weigh Modules No
Load Cell and Weigh Module Handbook B Download Email Load Cells|Weigh Modules No

Title Download Email
Weigh Module Application Download Email

Title Download Email
MagnaMount Tank Truck and Railroad Truck Mount Assembly Replacement Parts Page Download Email

Title Collateral Wizard Request Download Email Category
MagnaMount Heavy Capacity Mount Assembly Collateral Wizard Download Email Weigh Modules
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules
Load Cell Selection Guide Request Download Email Load Cells|Weigh Modules
Your First Choice in Load Cells Download Email Load Cells

Title View Download Email Category
Custom Weigh Modules and Load Cell Mounts View Download Email Weigh Modules|Load Cells|Load Cell Hardware|Hardware

Title Download Email Category
Properly Welding on Structures with Load Cells Download Email Load Cells

Parts

Part # Description List Price Cart
21723 Mount,Magna Mount 10,000- 50,000 lb Steel Painted Compression No Cell

List Price: $1,855.00

21724 Mount,Magna Mount 100,000 lb Steel Painted Compression No Cell

List Price: $2,210.00

17974 Mount,Magna Mount 200,000 lb Steel Painted Compression No Cell

List Price: $3,145.00

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

Related Products

Portals 0 Products Dfb03da29bc846f3921250cca1e4a656 Orig

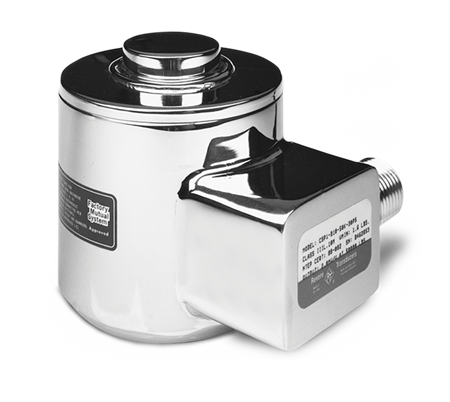

VPG Revere CP Stainless Steel, Compression Canister Load Cell
