MAS-LC Stationary Animal Scale

  • Field configurable swinging gates that open left or right
  • Bolt-on racks and swinging gates
  • Durable X-Lug or X-Plank floor over steel I-beam
  • Solid 48-inch kick panel sides
  • Solid 48-inch kick panel swinging gate
  • Spring-loaded latch on swinging gates
  • Rugged all-weather powder paint
  • Scale collapses for shipping
  • Factory assembly at no charge

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO Measurementcanada Approved BW

WARNING: Cancer and Reproductive Harm California Proposition 65

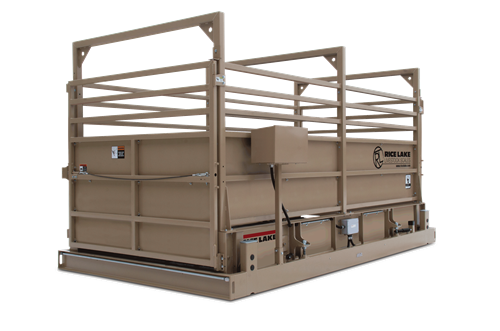

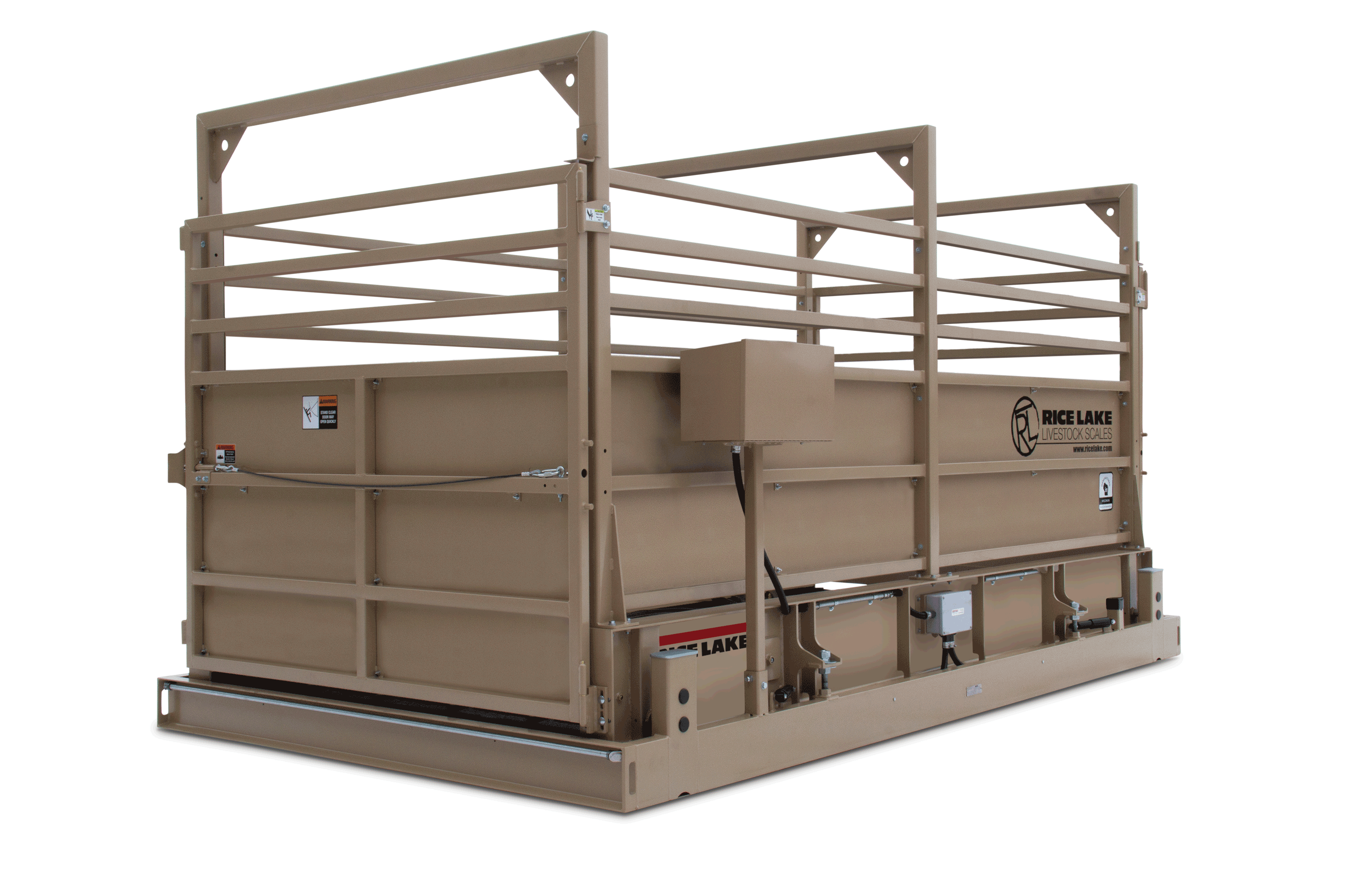

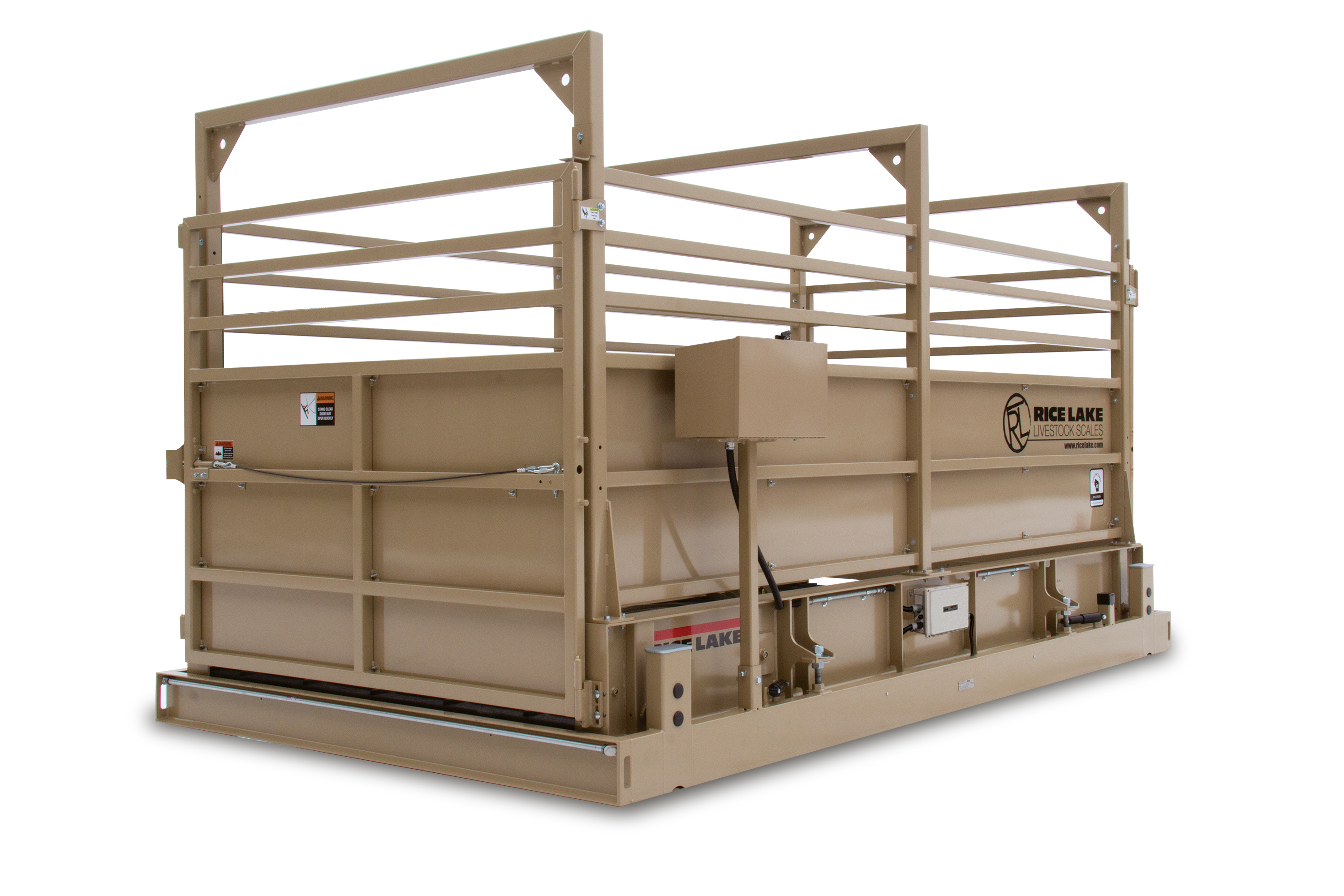

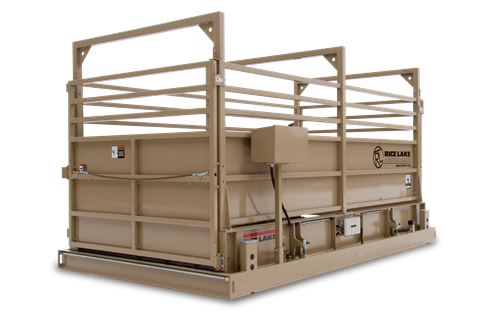

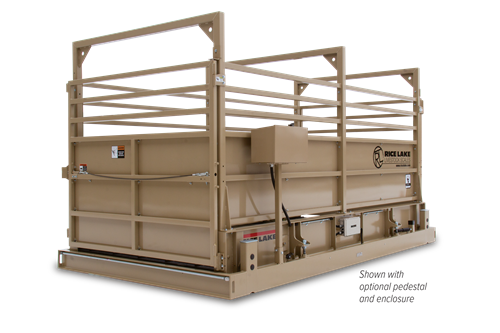

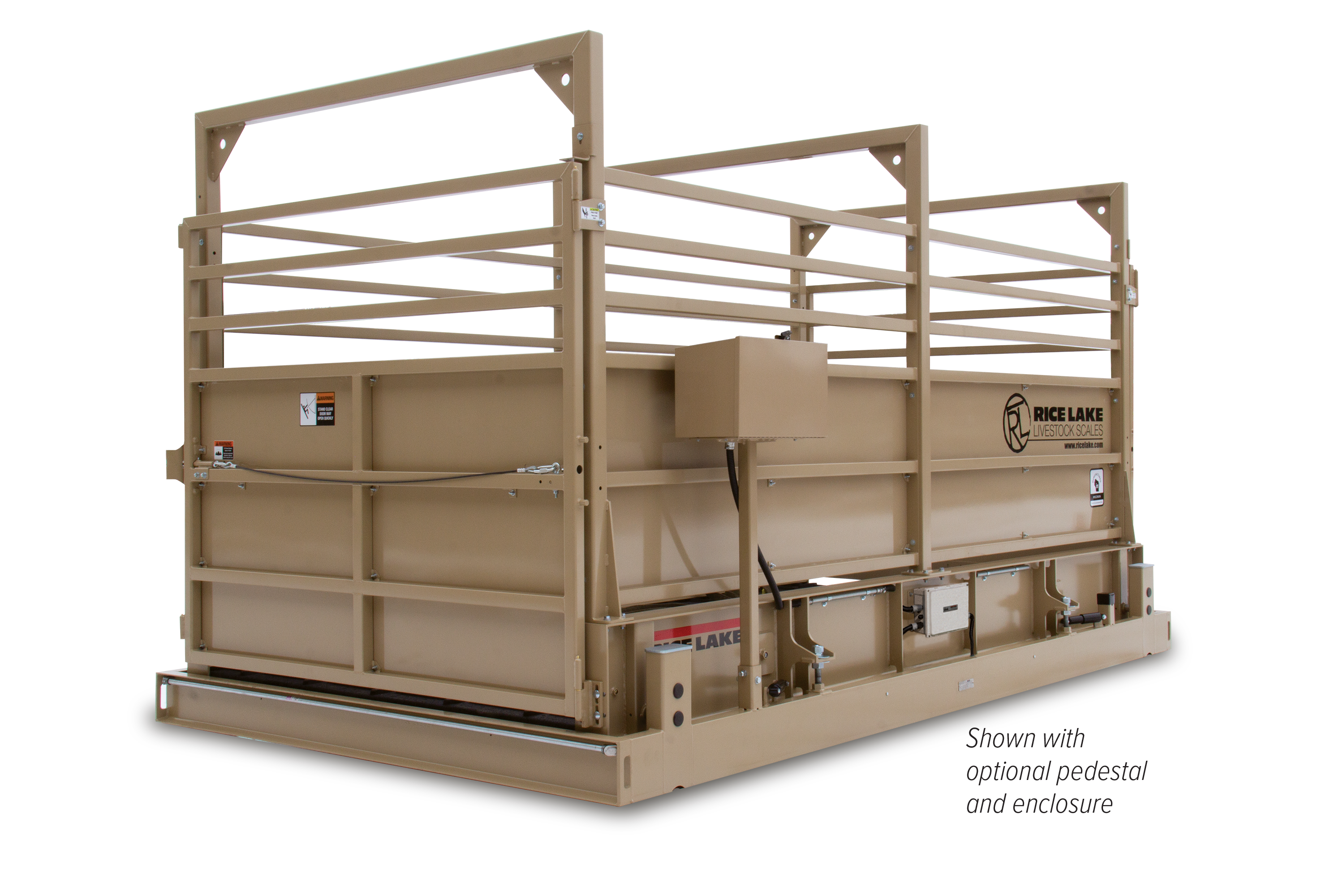

A Stationary, Digital Livestock Scale

This scale combines the accuracy of fully electronic weighing technology with steel I-Beam weighbridge designs typically found in heavy capacity vehicle weighing scales. With a wide range of sizes, the MAS-LC is the right choice for any stationary cattle weighing application.

Racks & Gates

3-inch thick wall tubing for the sectional uprights with 2-inch horizontal thick wall tubing connecting the uprights. Powder-coated 11 gauge steel plate above the structural I-Beam is 4 feet tall and ensures reliable containment.

Deck Construction

The shipping weights of the MAS-LC scales tell the story. This scale is not only one of the heaviest in its class; it is also extreme duty. Steel I-Beam construction using W 16 inch x 26 lb per foot structural main beams with S 4 inch x 7.7 lb per foot cross beams with 1.5 x ¼ inch stringers between the beams. This weighbridge is built to last a generation or longer.

Flooring

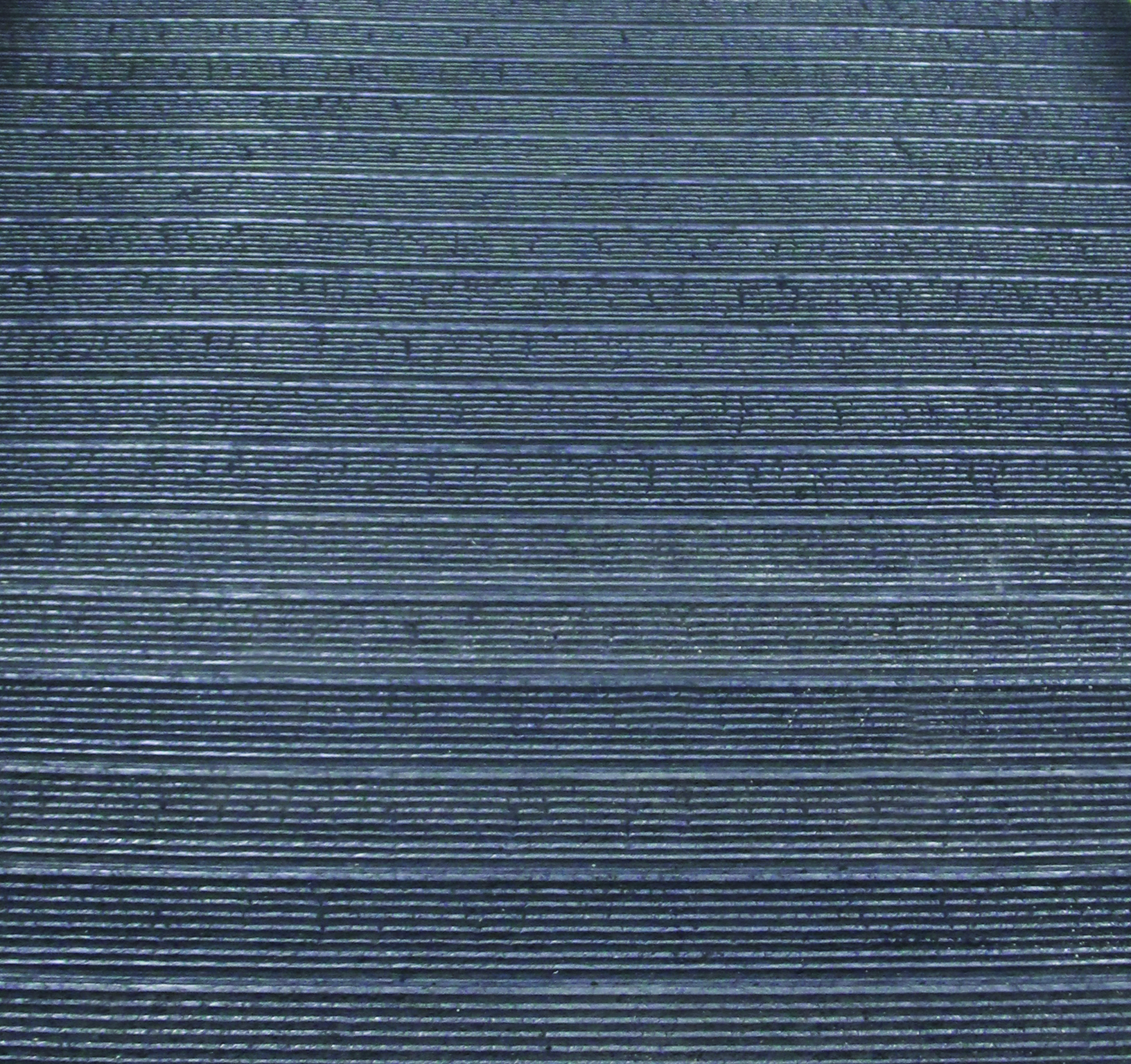

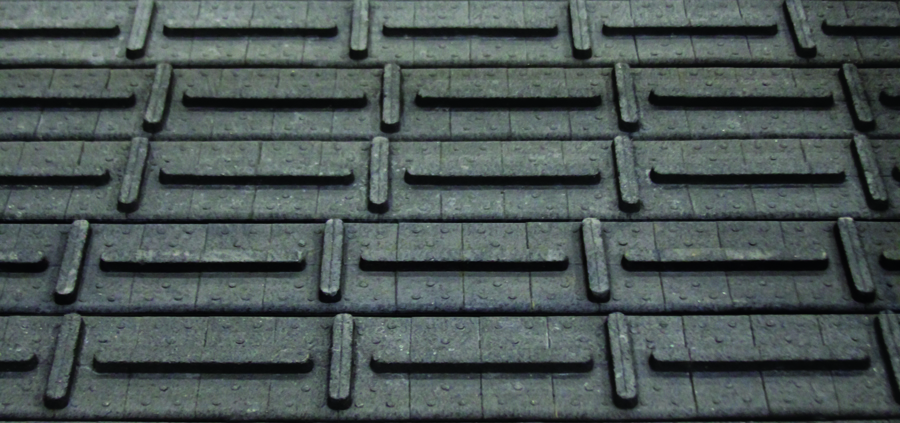

The MAS-LC offers unmatched traction for animals in wet and slippery conditions with either X-Lug or X-Plank flooring. Both styles are made from durable, recycled plastic and rubber material that will never rot or harbor bacteria and moisture like wood flooring. X-Lug flooring provides a deep, aggressive tread and X-Plank flooring utilizes a less-aggressive, wheel-accessible tread.

Legal For Trade

Like all MAS series scales, the MAS-LC is certified for commercial use in both the United State and Canada. Certified scales are held to exacting design characteristics providing accurate weights allowing you to sell across the scale. Add a choice of digital weigh centers, printers, or remote displays and you will have an easy to use system that will provide years of proven cattle weighing performance.

Full Scale Capacity:
25,000 lb

Decking:
X-Lug or X-Plank rubber flooring over a steel I-beam deck.

Racks and Gates:
Constructed of three inch steel main tubes; two-inch steel support tubes
Two end swing gates with latch (gates swing outward from scale)

Height:
Ground to top of swinging gate:
6 ft 7 in
Ground to top of up and over rack: 8 ft 1 in
Ground to weigh platform:
8 in

Warranty:
Two-year limited warranty on the weighbridge
Two-year parts and electronics warranty

Approvals:
NTEP CC 99-091
Measurement Canada AM-5284

Resources / Downloads

Title View Email Category Type
5 Factors to Consider when Purchasing a Livestock Scale Email Agriculture|Livestock Scales Articles
A Winning Investment View Email Agriculture Application Story
Steering Profits View Email Livestock Scales|Agriculture Application Story
Weighing Meat from Farm to Table View Email Agriculture Application Story

Title Download Email
MAS-LC Load Cell Animal Scale Catalog Page Download Email

Title Version Revision Download Email Category Archived
482-AG Livestock Digital Weight Indicator Technical Manual B Download Email Weight Indicators|Livestock Scales|Agriculture No
MAS-LC Stationary Livestock Scale Installation Manual H Download Email Agriculture|Livestock Scales No
920i AC/DC Agricultural Multi-Animal Indicator C Download Email Livestock Scales|Weight Indicators|Indicators / Controllers No
Portable Animal Scales AC/DC Power Supply Adaptor Box Kit Installation A Download Email Agriculture|Livestock Scales No

Title Download Email
Livestock Scale Gate Questionnaire Download Email

Title Collateral Wizard Request Download Email Category
MAS-LC Animal Scale Collateral Wizard Request Download Email Livestock Scales
Livestock Weighing Buyers Guide Request Email Livestock Scales
Rice Lake Livestock Scale Overview Guide Request Download Email Livestock Scales
Importance of Cattle Shrink Download Email Livestock Scales
Livestock Scale Instrumentation Request Download Email Livestock Scales
Livestock Instrumentation Compatibility Matrix Download Email Livestock Scales
Livestock Space Requirement Guide Download Email Livestock Scales

Title Version Size Release Date Download Email
920i Static AG Weigh Center iRite Application 1.05 1.3 MB 07/30/2019 Download Email

Title View Email Category
Load Cell Rewire for Ag Scales Download Email Agriculture|Livestock Scales|Load Cells

Title View Download Email Category
Livestock Scales Sales Video View Download Email Livestock Scales|Agriculture
What is "Shrink" When Weighing Livestock? View Download Email Livestock Scales
MAS-LC Livestock Scale in Action View Download Email Livestock Scales|Agriculture
MAS-LC Stationary Livestock Scale Overview View Download Email Agriculture|Livestock Scales

Parts

X-Lug Flooring

Part # Description List Price Cart
192672 13 x 8 LC AG Scale Footprint: 154in long and 101in wide. 25,000 LB CAPACITY - (2017 Design Changes) X-Lug

Call for price

192670 15 x 8 LC AG Scale Footprint: 176in long and 101in wide. 25,000 LB CAPACITY - (2017 Design Changes) X-Lug

Call for price

192669 17 x 8 LC AG Scale Footprint: 200in long and 101in wide. 25,000 LB CAPACITY -(2017 Design Upgrades) X-Lug

Call for price

192668 19 x 8 LC AG Scale Footprint: 224in long and 101in wide.25,000 LB CAPACITY -(2017 Design Upgrades) X-Lug

Call for price

192665 22 x 8 LC AG Scale Footprint: 258in long and 101in wide. 25,000 LB CAPACITY - (2017 Design Changes) X-Lug

Call for price

192664 22 x 10 LC AG Scale Footprint: 259in long and 131in wide. 25,000 LB CAPACITY - (2017 Design Changes) X-Lug

Call for price

X-Plank Flooring

Custom Sizes - Legal For Trade Application Parameters for MAS-LC Series CC 99-091

Options

Part # Description List Price Cart
174071 Indicator,482AG LCD Display, Rechargeable Battery with 115VAC NEMA 5-15 Plug Stainless Steel Enclosure, With Quick Connect AG MULTI-ANIMAL SOFTWARE

Call for price

131436 Weigh Center,920i with Printer and Cabling MAS-M AG Scale

Call for price

167689 Indicator,920i Cattle 920i Digital Weight Indicator Single Channel With Group Animal Weighing Software 115 VAC

Call for price

169478 Indicator,920i Cattle 920i Digital Weight Indicator Single Channel With Group Animal Weighing Software 12VDC

Call for price

130961 Factory Scale Assembly Factory Scale Assembly Of Mobile And Portable AG Scales

Call for price

156758 Adaptor,Box,AC/DC Portable Livestock Scales

Call for price

23113 Printer,Ticket TMU295 Epson Cool White 24VDC W/115-230VAC External Power Supply

List Price: $650.00

15547 Cable,Universal Serial Interface (Both RS232/20mA) 25 Pin D-Sub Male To Blunt End 25-pin side-3-Red, 7-Black, 4 & 5 jumpered, 9-Green, 10-White

List Price: $70.00

71630 Ticket,Print 4-1/4x7 in 2 Part Carbonless, White Cover & Yellow Copy Attached at Top Rice Lake Scale Ticket 500/PKG

List Price: $60.00

177788 CATTLE SCALE TRANSIENT PK Transient Protection Package, Cattle Scale

Call for price

127561 Cable ASSY,4 Pin Female CONN 192 Inch with Dust Cap for Animal Scale Indicator

Call for price

176542 Cable ASSY,482AG Cable Quick Connect 4 Pin Male

Call for price

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
