MAS-LM Stationary Mechanical Animal Scale

  • Bolt-on racks and swinging gates
  • Durable X-Lug or X-Plank floor over steel
  • Solid 48-inch kick panel rack
  • Solid 48-inch kick panel swinging gate
  • Spring-loaded latch on swinging gates
  • Rugged all-weather powder paint
  • Scale collapses for shipping
  • Factory assembly at no charge

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO Measurementcanada Approved BW

WARNING: Cancer and Reproductive Harm California Proposition 65

A Mechanical Livestock Scale Prepared for Anything

This scale combines the durability of a mechanical scale with steel I-Beam weigh bridge designs typically found in heavy capacity vehicle weighing scales. With a wide range of sizes, the MAS-LM is the right choice for any stationary livestock weighing application.

Full Scale Capacity:
20,000 lb

Inside Dimension:
(L x W) 12 ft 2 in x 6 ft 6 in
(L x W) 14 ft 1 in x 6 ft 6 in
(L x W) 16 ft 1 in x 6 ft 6 in
(L x W) 18 ft 1 in x 6 ft 6 in

Outside Dimension:
(L x W) 13 ft x 9 ft
(L x W) 15 ft x 9 ft
(L x W) 17 ft x 9 ft
(L x W) 19 ft x 9 ft

Decking:*

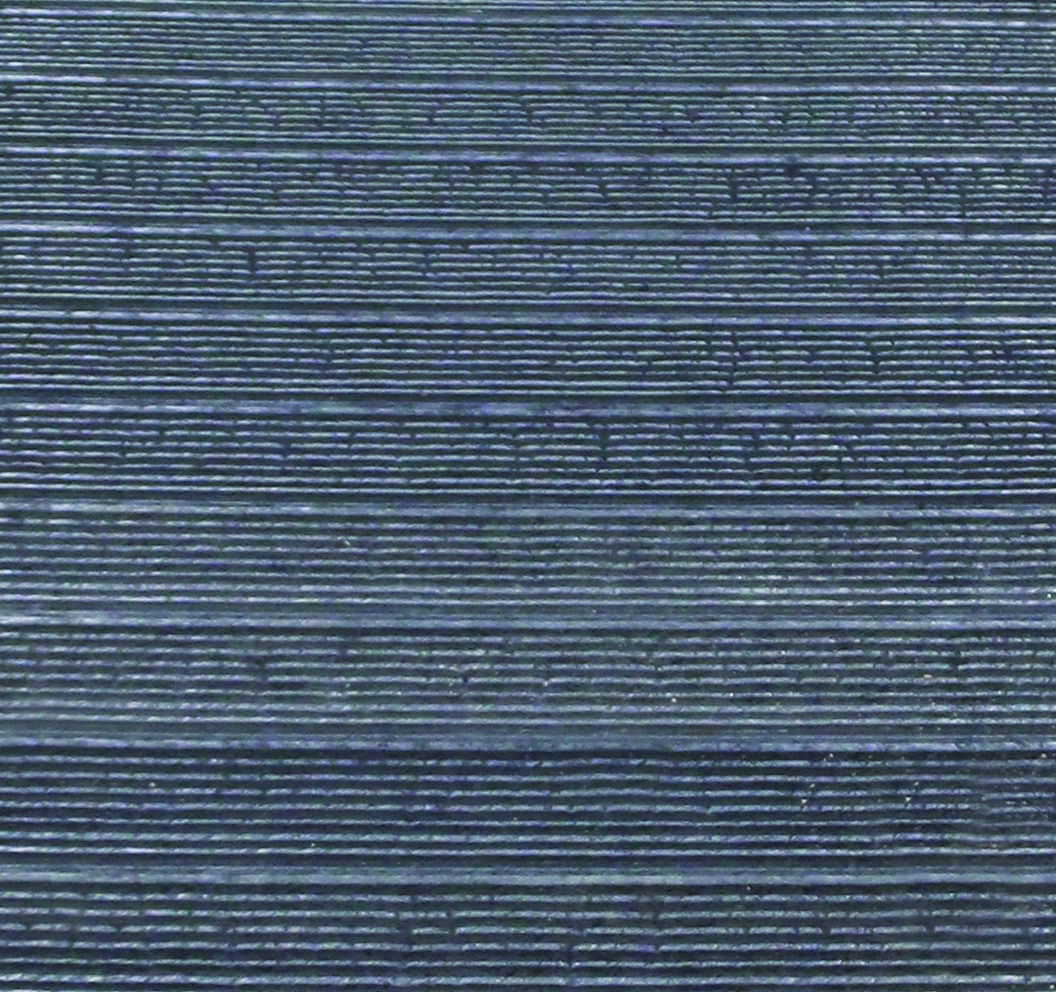

X-Lug or X-Plank rubber deck with
steel I-beam construction

Racks and Gates:
Constructed of three-inch steel main tubes; two-inch steel support tubes
Two end swing gates with latch (gates swing outward from scale)

Load Cells:
Single tool steel S-beam

Warranty:
Two-year limited warranty on the weighbridge
Two-year parts and electronics warranty

Approvals:
NTEP CC 94-126

*Slab foundation is required

Resources / Downloads

Title View Email Category Type
5 Factors to Consider when Purchasing a Livestock Scale Email Agriculture|Livestock Scales Articles
A Winning Investment View Email Agriculture Application Story
Steering Profits View Email Livestock Scales|Agriculture Application Story

Title Download Email
MAS-LM Mechanical Animal Scale Catalog Page Download Email

Title Version Revision Download Email Category Archived
482-AG Livestock Digital Weight Indicator Technical Manual B Download Email Weight Indicators|Livestock Scales|Agriculture No
Rice Lake Stationary Livestock Scale MAS-LM Installation Manual C Download Email Livestock Scales|Agriculture No
920i AC/DC Agricultural Multi-Animal Indicator C Download Email Livestock Scales|Weight Indicators|Indicators / Controllers No
Portable Animal Scales AC/DC Power Supply Adaptor Box Kit Installation A Download Email Agriculture|Livestock Scales No

Title Download Email
Livestock Scale Gate Questionnaire Download Email

Title Collateral Wizard Request Download Email Category
MAS-LM Mechanical Stationary Animal Scale Collateral Wizard Request Download Email Livestock Scales
Livestock Weighing Buyers Guide Request Download Email Livestock Scales
Rice Lake Livestock Scale Overview Guide Request Download Email Livestock Scales
Importance of Cattle Shrink Download Email Livestock Scales
Livestock Space Requirement Guide Download Email Livestock Scales
Livestock Scale Instrumentation Request Download Email Livestock Scales
Livestock Instrumentation Compatibility Matrix Download Email Livestock Scales

Title View Download Email Category
Livestock Scales Sales Video View Download Email Livestock Scales|Agriculture
What is "Shrink" When Weighing Livestock? View Download Email Livestock Scales
MAS-LM Mechanical Livestock Scale Overview View Download Email Agriculture|Livestock Scales

Parts

Part # Description List Price Cart
132881 15 x 9 LM AG Scale 20000 LB CAPACITY - AH10L-4

Call for price

132882 17 x 9 LM AG Scale 20000 LB CAPACITY - AH10L-4

Call for price

132883 19 x 9 LM AG Scale 20000 LB CAPACITY - AH10L-4

Call for price

Options

Part # Description List Price Cart

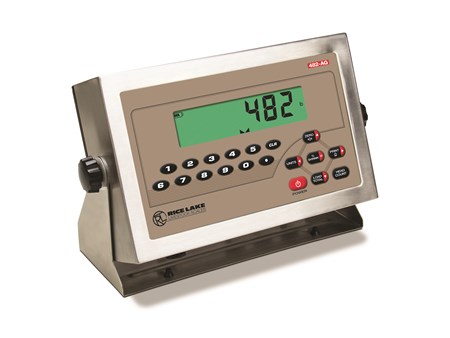

174071 Indicator,482AG LCD Display, Rechargeable Battery with 115VAC NEMA 5-15 Plug Stainless Steel Enclosure, With Quick Connect AG MULTI-ANIMAL SOFTWARE

Call for price

169478 Indicator,920i Cattle 920i Digital Weight Indicator Single Channel With Group Animal Weighing Software 12VDC

Call for price

167689 Indicator,920i Cattle 920i Digital Weight Indicator Single Channel With Group Animal Weighing Software 115 VAC

Call for price

156758 Adaptor,Box,AC/DC Portable Livestock Scales

Call for price

23113 Printer,Ticket TMU295 Epson Cool White 24VDC W/115-230VAC External Power Supply

List Price: $650.00

15547 Cable,Universal Serial Interface (Both RS232/20mA) 25 Pin D-Sub Male To Blunt End 25-pin side-3-Red, 7-Black, 4 & 5 jumpered, 9-Green, 10-White

List Price: $70.00

71630 Ticket,Print 4-1/4x7 in 2 Part Carbonless, White Cover & Yellow Copy Attached at Top Rice Lake Scale Ticket 500/PKG

List Price: $60.00

130961 Factory Scale Assembly Factory Scale Assembly Of Mobile And Portable AG Scales

Call for price

189536 Solar Charger,3W Maintainer, Retrofit Kit, All AG Scale Battery Boxes

Call for price
