MAS-M Mobile Animal Scale

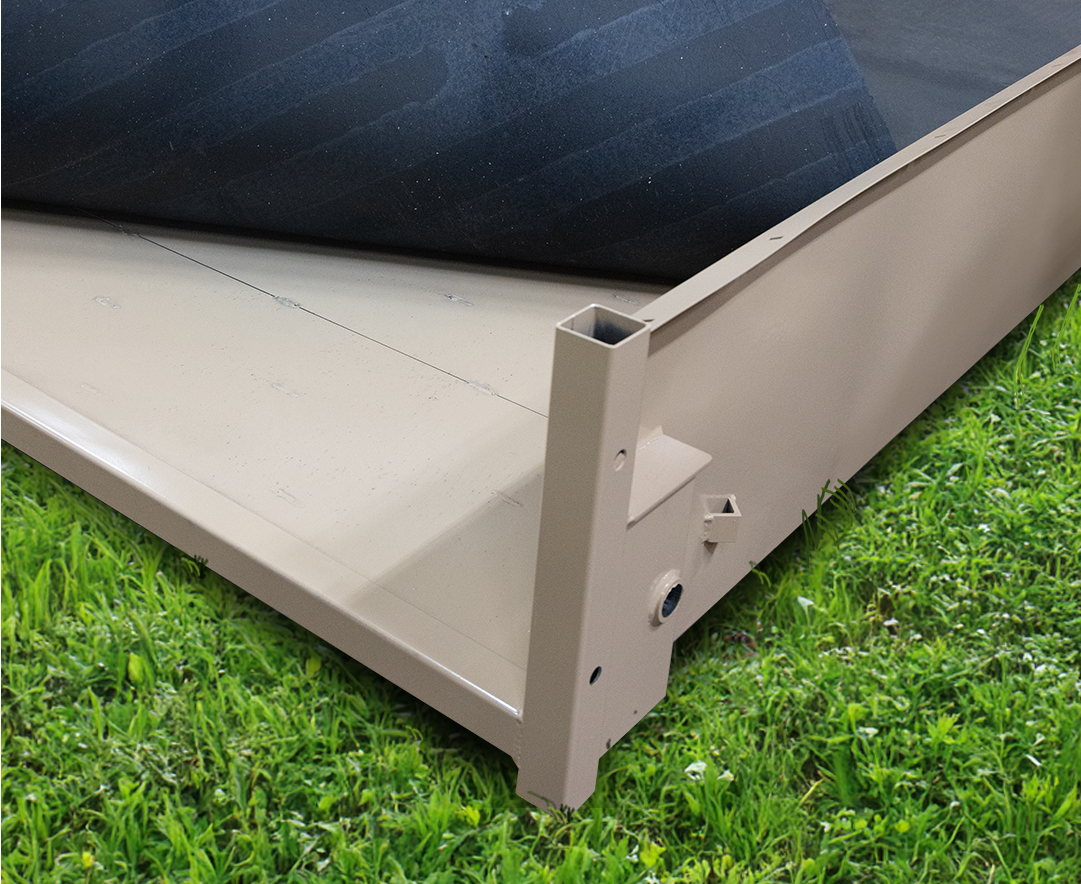

  • Rubberized deck
  • Enclosed scale includes two standard swinging gates
  • Rugged all-weather powder paint
  • Low deck height of only six inches when in weigh mode
  • 12-volt battery pack (recharged by tow vehicle)
  • Integrated air pump to lift and lower air bag suspension
  • Electric brakes
  • Can be used on any firm surface up to a 6% grade
  • Junction box for load cells
  • Rubber flooring strip on entry and exit
  • Solar panel charger for onboard battery

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO Measurementcanada Approved BW

WARNING: Cancer and Reproductive Harm California Proposition 65

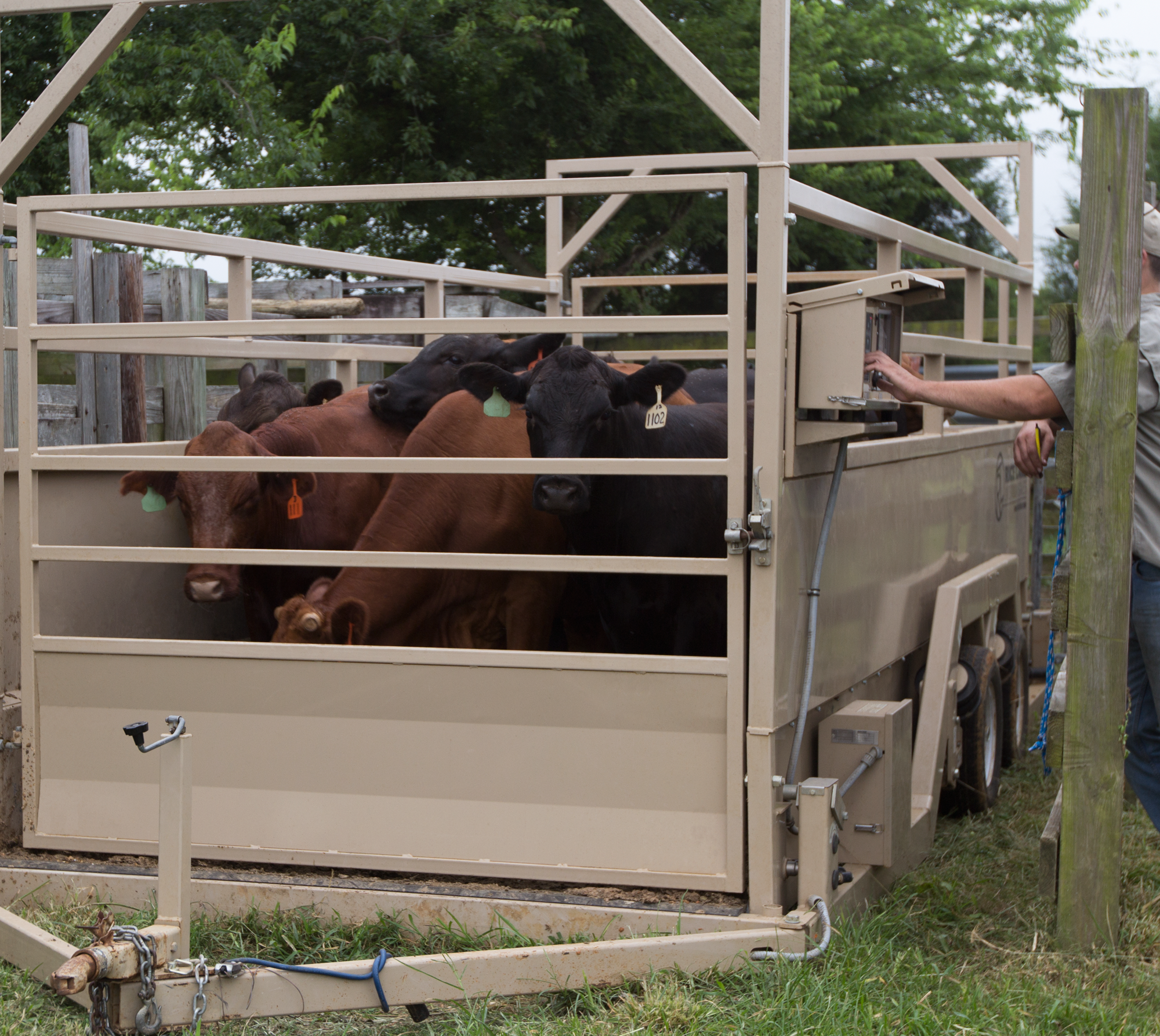

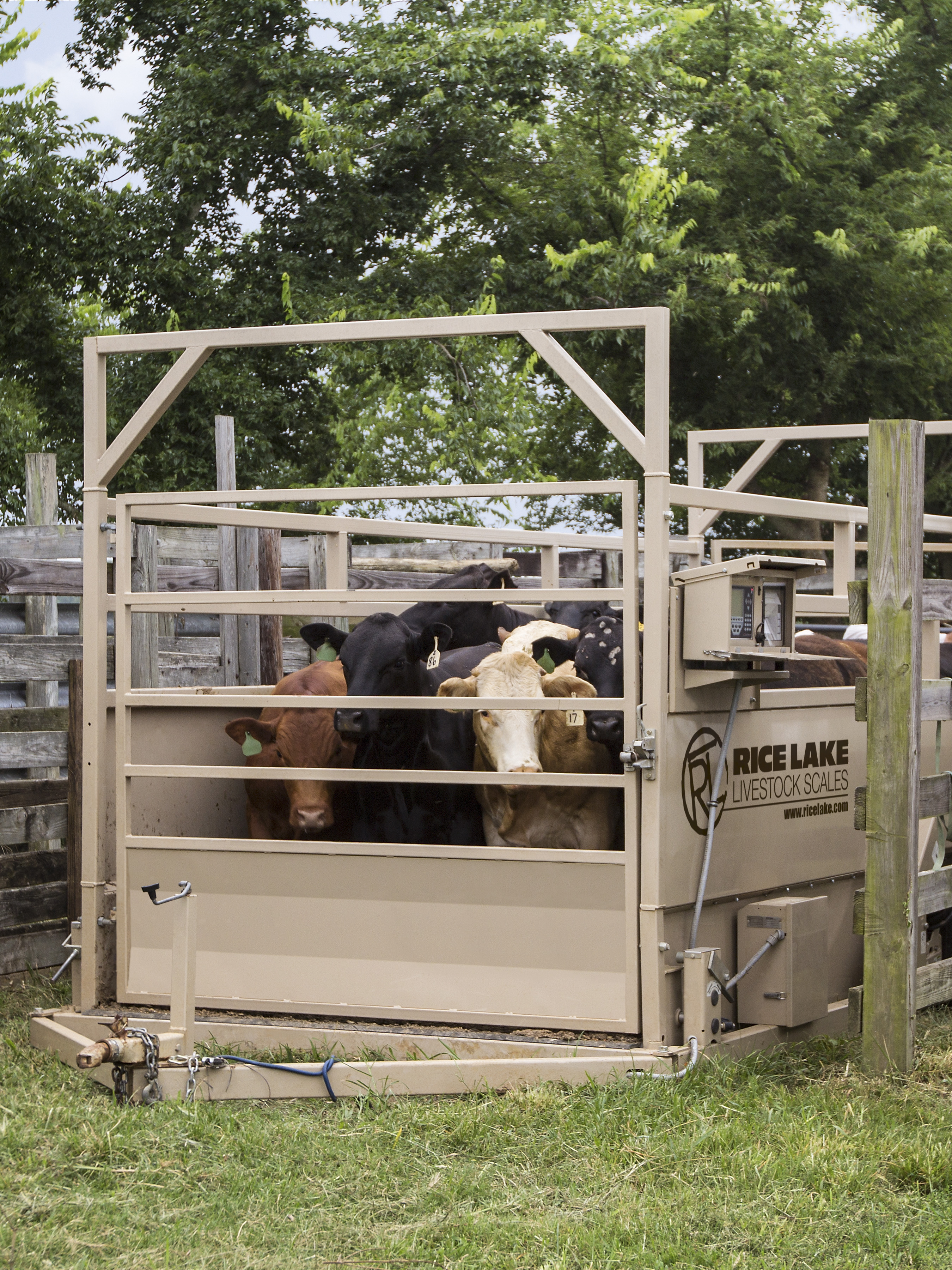

Legal for Trade Mobile Livestock Scale


Built with the physical demands of remote weighing in mind, the MAS-M livestock scale provides Legal for Trade measurements even when the scale is placed off-level by up to three degrees (or 6%). No other model brings as much flexibility to Rice Lake Livestock Scale performance.

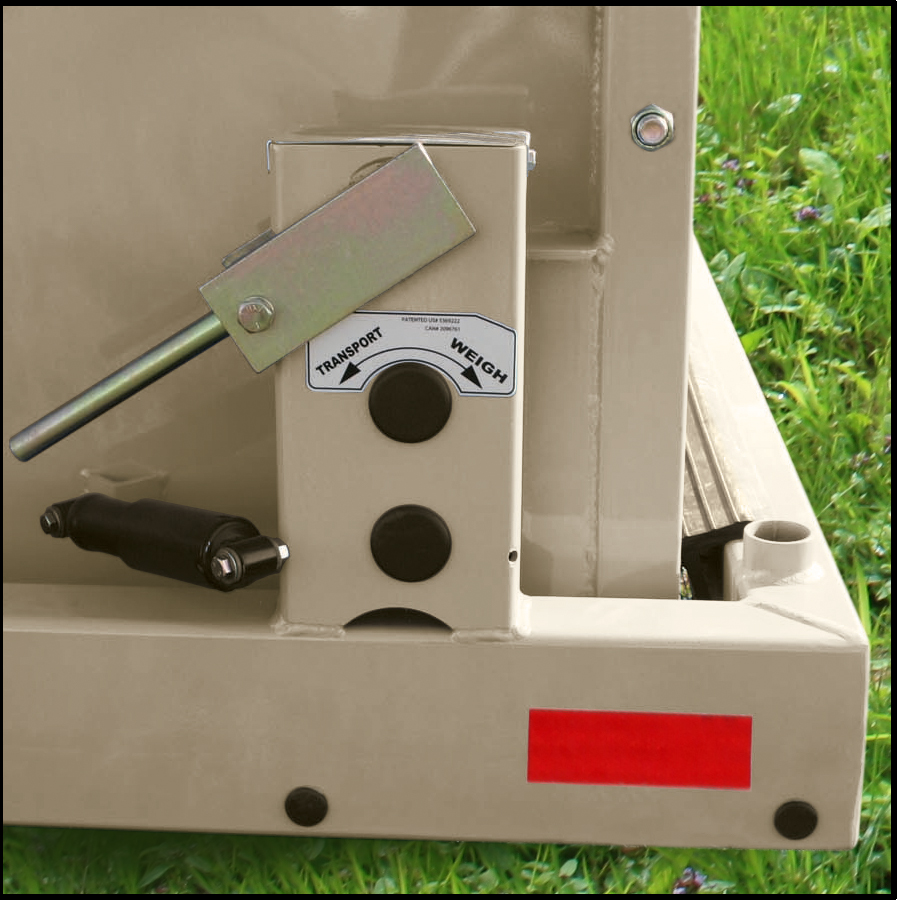

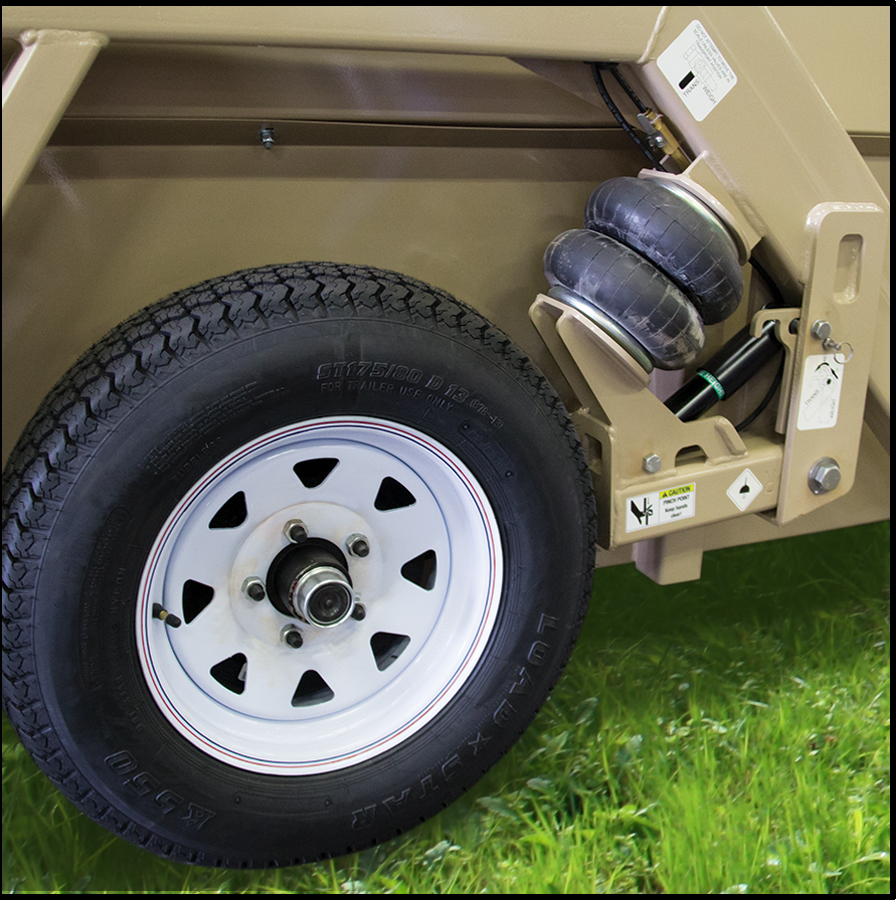

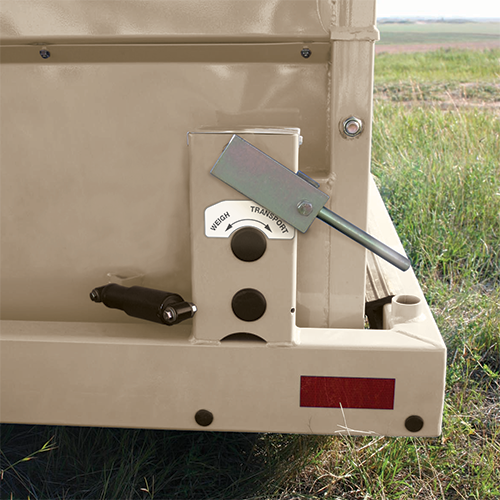

The scale employs an independent air ride suspension which allows it to be moved in and out of weighing mode by simply adjusting the air pressure in the air bags. Load is applied to and or removed, from the cells through a manual lift/lower lever system.

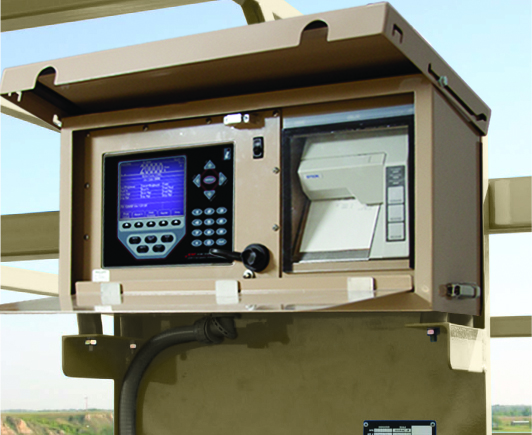

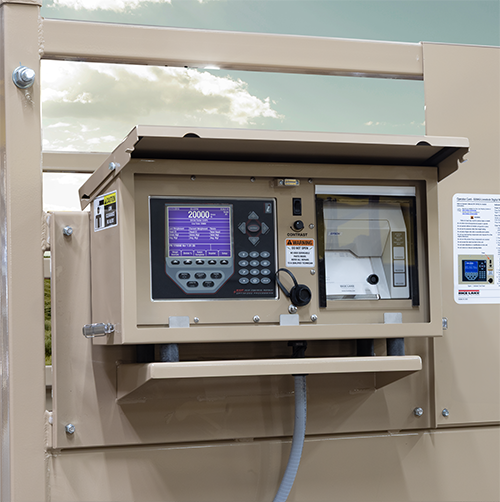

Rice Lake's Onboard weighing design is ideally suited to the unpredictable conditions of multi-site use. The Mobile Group Animal Scale is capable of providing Legal-for-Trade weights in locations where the scale may be off-level by as much as four degrees. In addition to the scale’s ability to meet the physical demands of remote weighing, the instrumentation package that complements the scale provides a complete report for each batch and lot of cattle weighed.

When the scale is in weigh-mode the deck is only six inches off the ground. The low profile of the weighing platform makes loading and unloading livestock quick, easy and safe.

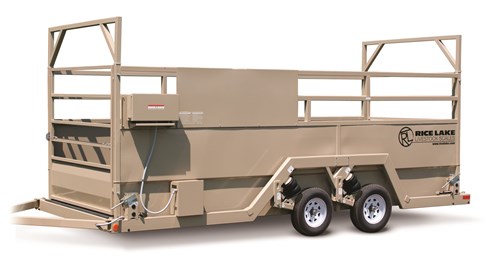

The Mobile Group Livestock Scale includes transport wheels, lift system, and folding hitch. Optional pen siding is available to enclose the bottom three feet of pen. Enclosing this area improves animal handling and safety. Optional brakes, lighting package, air pump and instrumentation are also available depending on your individual needs. Various sizes and capacities are available to meet your specific weighing requirements.

Full Scale Capacity:
13 x 8: 15,000 lb, 5 lb increments
18 x 8: 20,000 lb, 5 lb increments

Axle Type:
13 x 8: Single
18 x 8: Tandem

Surface Dimension:
(L x W) 12 ft 8 in x 7 ft
(L x W) 18 ft 5 in x 7 ft

Outside Dimension (without tongue length):
(L x W) 13 ft x 8 ft 8 in
(L x W) 19 ft 6 in x 8 ft 8 in

Outside Dimension (with tongue length):
(L x W) 18 ft 7 in x 8 ft 6 in
(L x W) 24 ft 5 in x 8 ft 6 in

Weigh Mode Height:
8 ft 3 in

Transport Mode Height:
8 ft 11 in

Warranty:
Two-year limited warranty

Approvals:
NTEP CC 99-091
Measurement Canada AM-4847

Resources / Downloads

Title View Email Category Type
5 Factors to Consider when Purchasing a Livestock Scale Email Agriculture|Livestock Scales Articles
A Winning Investment View Email Agriculture Application Story
Steering Profits View Email Livestock Scales|Agriculture Application Story
The Wisconsin Brand View Email Livestock Scales Articles|Application Story
Weighing Livestock for Healthy Profits Email Agriculture|Livestock Scales Articles

Title Download Email
MAS-M Mobile Animal Scale Catalog Page Download Email

Title Version Revision Download Email Category Archived
Multiple Animal Scale Mobile - MAS-M Installation Manual K Download Email Livestock Scales|Agriculture No
Early Rice Lake Models Repair Parts Manual Download Email Livestock Scales|Agriculture No
920i AC/DC Agricultural Multi-Animal Indicator C Download Email Livestock Scales|Weight Indicators|Indicators / Controllers No
920i Weigh Center Addendum - Upload to Excel using a Flash Drive Instructions A Download Email Agriculture|Livestock Scales No
920i Weigh Center Operation Manual I Download Email Agriculture|Livestock Scales No
920i® Weigh Center Contrast Control Potentiometer Installation A Download Email Agriculture|Livestock Scales No
Particulate Filter Installation Instructions Download Email Agriculture|Livestock Scales No
Multiple Animal Scale-Mobile Wheel Swing Arm Replacement A Download Email Agriculture|Livestock Scales No

Title Collateral Wizard Request Download Email Category
MAS-M Mobile Group Livestock Scale Collateral Wizard Request Download Email Livestock Scales
Livestock Weighing Buyers Guide Request Download Email Livestock Scales
Rice Lake Livestock Scale Overview Guide Request Download Email Livestock Scales
Importance of Cattle Shrink Download Email Livestock Scales
Livestock Instrumentation Compatibility Matrix Download Email Livestock Scales
Livestock Scale Instrumentation Request Download Email Livestock Scales
Livestock Space Requirement Guide Download Email Livestock Scales

Title Version Size Download Email
920i Mobile AG Weigh Center iRite Application 1.08 1.3 MB Download Email

Title View Email Category
Load Cell Rewire for Ag Scales Download Email Agriculture|Livestock Scales|Load Cells

Title View Download Email Category
Livestock Scales Sales Video View Download Email Livestock Scales|Agriculture
What is "Shrink" When Weighing Livestock? View Download Email Livestock Scales
MAS-M Livestock Scale in Action View Download Email Agriculture|Livestock Scales
MAS-M Mobile Livestock Scale Overview View Download Email Agriculture|Livestock Scales
ScaleTalk: Importing Livestock Scale Data from a Flash Drive to a PC View Download Email Livestock Scales
ScaleTalk: Turning on Reports for Rice Lake Livestock Scales View Download Email Livestock Scales

Parts

Part # Description List Price Cart
131035 Mobile Scale, 18 x 8 Mobile Scale System With Weigh Center And TM U295 Printer 20,000 lb Capacity AH10L-4

Call for price

131034 Mobile Scale, 13 x 8 Mobile Scale System With Weigh Center And TM U295 Printer 15,000 lb Capacity AH8L-4

Call for price

Options

Part # Description List Price Cart
127685 Light Kit,Magnetic Towing Set 12V 6 Pin CONN with RV Blade Adapter

Call for price

152935 Sliding Gate, MAS(M/P)

Call for price

130961 Factory Scale Assembly Factory Scale Assembly Of Mobile And Portable AG Scales

Call for price

161442 Filter,Particulate Kit Includes Fittings Required For Installation

Call for price

71630 Ticket,Print 4-1/4x7 in 2 Part Carbonless, White Cover & Yellow Copy Attached at Top Rice Lake Scale Ticket 500/PKG

List Price: $50.00

189536 Solar Charger,3W Maintainer, Retrofit Kit, All AG Scale Battery Boxes

Call for price

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
