Master™ 14X Belt Scale Weigh Frame

  • Custom built for each application
  • Fits standard conveyors
  • Multiple idler design
  • Inner frame has free-floating platform

Options

  • 304 stainless steel
  • Two, three or four weigh idlers
  • Customer lifting weights available upon request

Applications

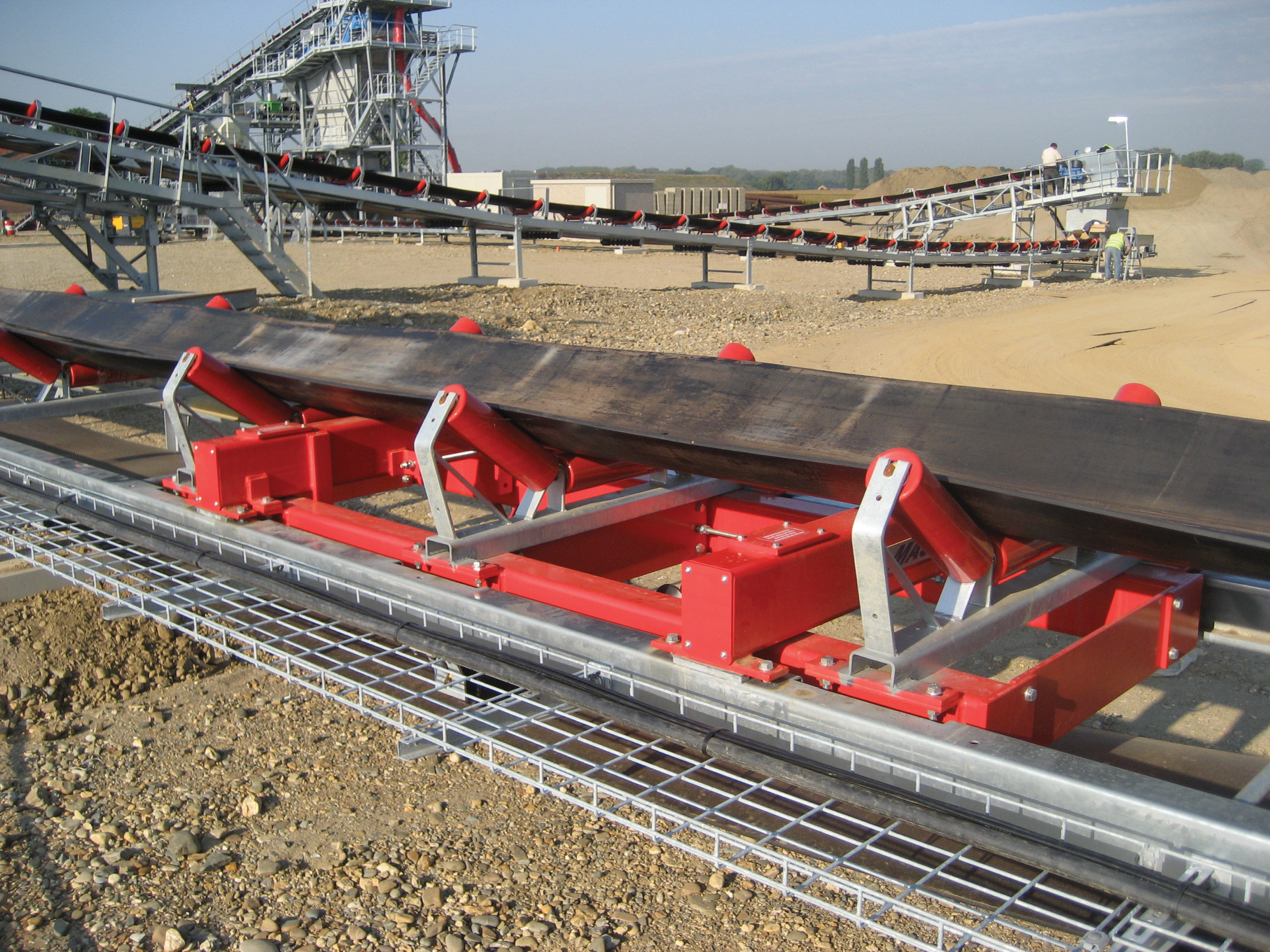

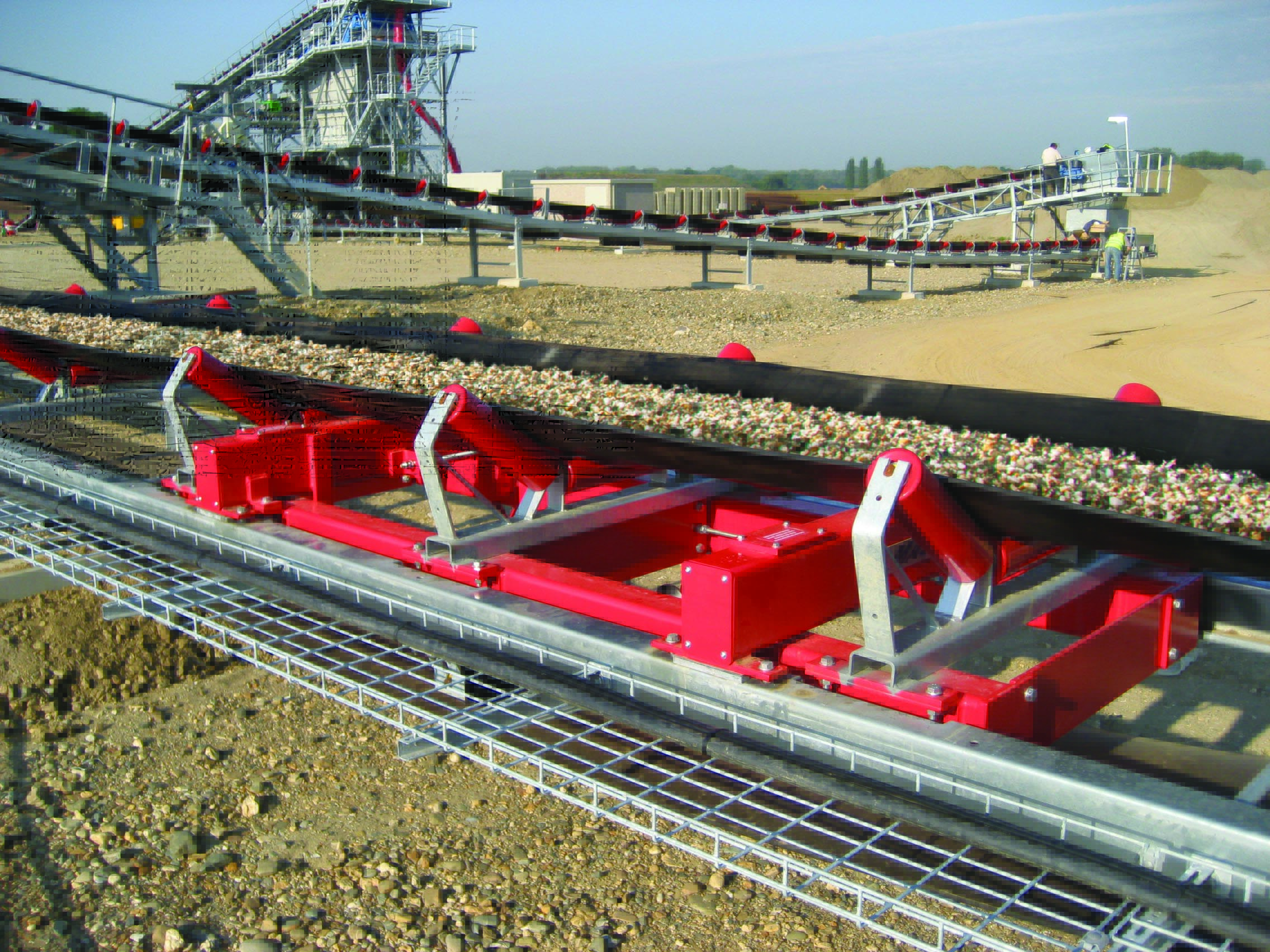

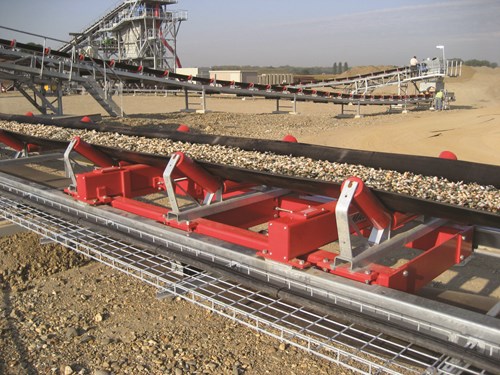

  • Medium to heavy capacity, mining and aggregate

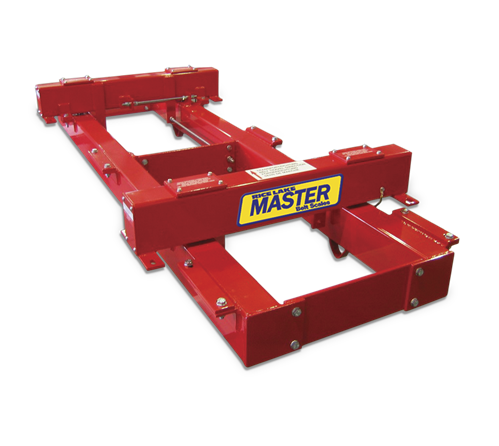

14x Master Belt Scale Weigh Frame

Weigh three idlers on an inner frame, supported by four load cells with the 14x Master belt scale weigh frame. This creates an incredibly accurate belt scale qualified for high capacities and belt speeds. The 14x is often used in mining and aggregate applications. The frame is custom-made using the specifications of the conveyor belt, making it suitable for different belt conveyor models.

Conveyor Width:
20 to 120 in (500 to 3,000 mm)

Capacity:
20,000 tons per hour

Belt Speed:
1,400 ft/ minute (7 m/s)
Inclination:
25 degrees

Material:
Powder coated mild steel

Accuracy Guidelines:
0.25 %
Load Cell:
RL20001 alloy steel S-beam
(capacity selected from application)

Warranty:
One-year limited

Resources / Downloads

Title Download Email
Master 14X Belt Scales Catalog Page Download Email

Title Version Revision Download Email Category Archived
14x Master Belt Scale Weigh Frame Installation Manual A Download Email Belt Scale Components|Belt Scale Weigh Frames No

Title Download Email
Belt Scale Application Questionnaire Download Email

Title Collateral Wizard Request Download Email Category
Belt Scale In-Motion Systems Collateral Wizard Request Download Email Belt Scale Weigh Frames|Bulk Indicators/Controllers

Parts

Part # Description List Price Cart
Consult Master 142

Call for price

Consult Master 143

Call for price

Consult Master 144

Call for price

Consult Lifting weight kit

Call for price

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
