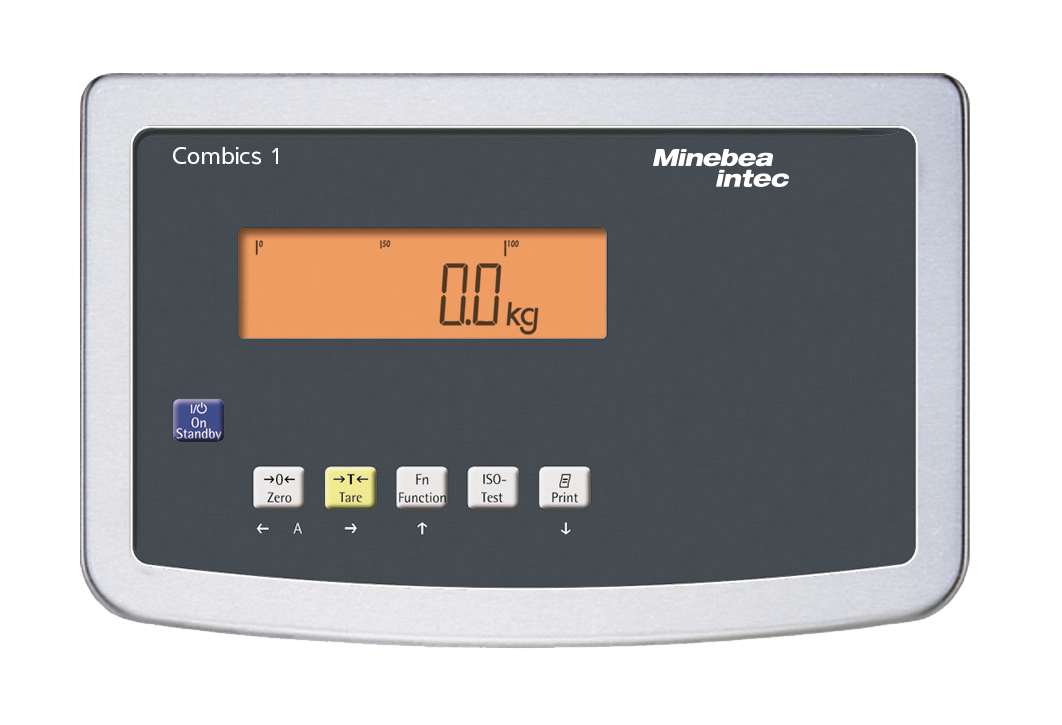

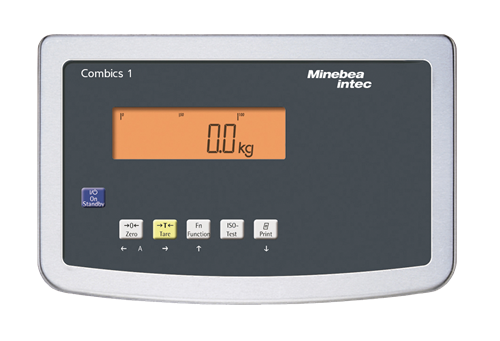

Minebea Intec Combics 1 Digital Weight Indicator

  • Amber backlit LCD display, 0.8 in
  • External calibration routine
  • RS-232C
  • On/Off, Zero, Tare, Print/Data keys
  • Function keys for: Gross/net toggle; three-way unit toggle; 10X higher resolution toggle
  • Automatic tare feature
  • One scale connection

Load Cell Connection:
4 or 6 wire

Excitation Voltage:
9 V

Power Requirements:
120 to 240 VAC, 17 W / 23 VA maximum

Housing:
AISI 304 stainless steel

Dimensions:
(L × W × H)
11.9 × 7.4 × 3.5 in
(302.26 × 187.96 × 88.9 mm)

Operating Temperature:
14 °F to 104 °F (-10 °C to 40 °C)

IP Rating:
IP44, IP69K

Net Weight:
5 lb (2.3 kg)

Warranty:
Two-year limited
Accessories: One-year limited

Resources / Downloads

Title Download Email
Combics 1 Catalog Page Download Email

Title Version Revision Download Email Category Archived
Minebea Combics Series Operating Instructions Download Email Indicators / Controllers|Weight Indicators No

Title Collateral Wizard Request Download Email Category
Combics 1 Download Email Precision Industrial|Indicators / Controllers

Parts

Part # Description List Price Cart
102396 Indicator,CAISL1-U Combics and IF Indicator with IP44 Rating, LCD Display, RS-232C 110-240VAC, US Power Cord

List Price: $1,369.00

102398 Indicator,CAIS1-U Combics 1 and IF Indicator with IP69K, LCD, RS232C 110-240VAC, US Power Cord

List Price: $1,830.00

115668 Indicator,CAISL1-UV1 Minebea, Combics I, Direct Connection to IS Platform, IP44, LCD, RS-232C, 110-240VAC, US Power Cord

List Price: $1,919.00

115671 Indicator,CAIS1-UV1 Minebea, Combics I, Direct Connection to IS Platform, IP69K, LCD, RS-232C, 110-240VAC, US Power Cord

List Price: $2,208.00

Options

Brackets, Connectivity and Misc Options

Part # Description List Price Cart
105607 Kit,Wall Mount Combics Tiltable SST YDH02CISUS

List Price: $106.00

171727 Bracket,Bench Mount Fits 10x10 in, 12x12 in and 18x18 in Combics platform, YDH12CWSUS

List Price: $106.00

156440 Column,YDH01CWSUS Minebea Post Mount Assembly, 10x10in platform, 13in High, SST

List Price: $248.00

156441 Column,YDH02CWSUS Minebea Post Mount Assembly, 12x12in platform, 19in High

List Price: $266.00

156442 Column,YDH03CWSUS Minebea Post Mount Assembly, 18x18in platform, 29in High

List Price: $307.00

103049 Accessory,Power Supply Module Industrial 24V (Replaces Standard Unit) Midrics, Signum, Combics 1, Combics 1 Plus, Combics 2

List Price: $237.00

162640 Output,Ethernet TCP/IP Combics YD002C-ETH

List Price: $946.00

155826 Output,Analog Combics 0-20mA, 4-20 mA, 0-10V, 16-bit YDO02C-AO

List Price: $946.00

193049 Dust Cover,Combics Series Indicator Pack of 2

List Price: $92.00

Cables

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
