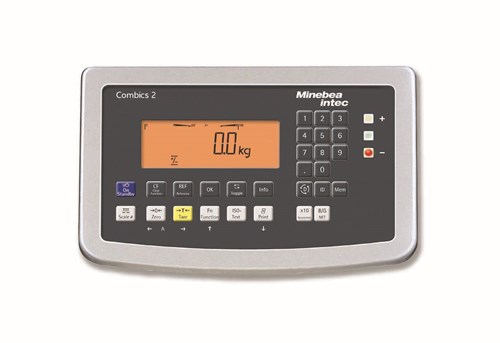

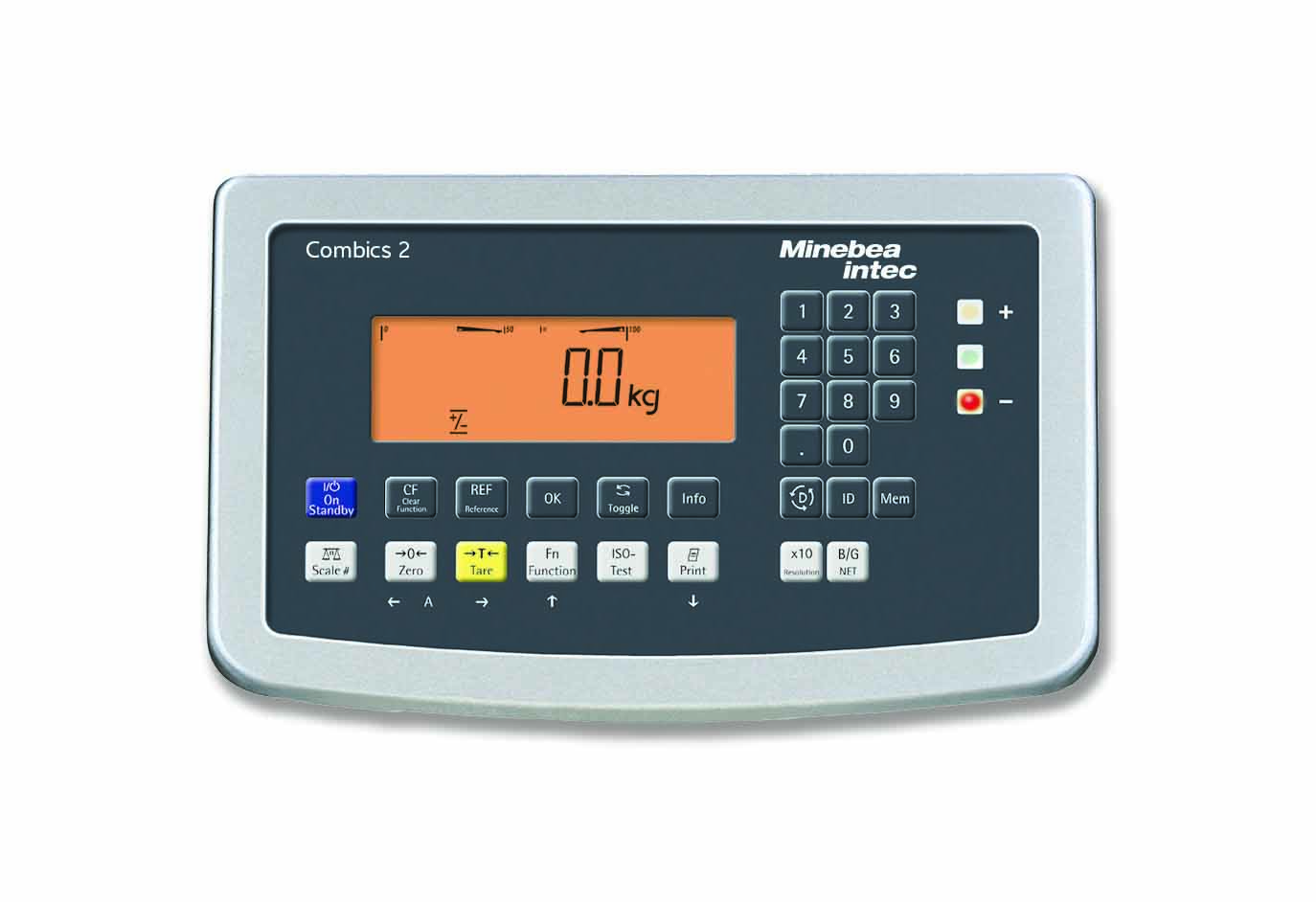

Minebea Intec Combics 2 Digital Weight Indicator

  • Choice of IP protection rating (IP44, IP69K)
  • Amber backlit LCD display, 0.8 in, 13-segment
  • External calibration routine
  • RS-232C
  • On/Off, Zero, Tare, Print/Data Keys
  • Function keys for: Gross/net toggle; three-way unit toggle; 10X higher resolution toggle
  • Numeric keypad with two IDs for entering identifier codes and preset tare
  • Info key for quick and easy display of tare input and ID codes
  • Date/time fully integrated
  • GMP compliant printable record
  • NICE Label Express FlexiPrint compatible
  • Platform toggling and four function keys
  • Three built-in LED checkweighing lights
  • Bar graph weighing range indicator
  • Application data and totalization memory stored in battery-backed RAM
  • Optional barcode scanner for preset tare, reference weight and ID entry
  • Stored customer-specific data records
  • Optional two scale connections, analog or digital

Load Cell Connection:
4 or 6 wire

Excitation Voltage:
9 V

Power Requirements:
120-240 VAC, 17 W / 23 VA maximum

Housing:
AISI 304 stainless steel

Dimensions:
(W x D x H): 11.9 x 7.4 x 3.5 in (302.26 x 187.96 x 88.9 mm)

Operating Temperature:
14° F to 104° F (-10° C to 40° C)

Net Weight:
5 lb (2.3 kg)

Warranty:
Two-year limited warranty on indicator
Accessories: One-year limited warranty

Resources / Downloads

Title Download Email
Combics 2 Digital Weight Indicator Catalog Page Download Email

Title Version Revision Download Email Category Archived
Minebea Combics Series Operating Instructions Download Email Indicators / Controllers|Weight Indicators No

Title Collateral Wizard Request Download Email Category
Combics 2 Download Email Precision Industrial|Indicators / Controllers

Parts

Part # Description List Price Cart
102402 Indicator,CAISL2-U Combics 2 Indicator, IP44 Rating, 110-240VAC, US Power Cord

List Price: $1,593.00

102404 Indicator,CAIS2-U Combics 2 Indicator With IP69K RS232C, 110-240VAC, US Power Cord

List Price: $2,017.00

115670 Indicator,CAISL2-UV1 Minebea, Combics 2, Direct Connection to IS Platform, IP44, LCD, RS-232C, 110-240VAC, US Power Cord

List Price: $2,085.00

115673 Indicator,CAIS2-UV1 Minebea, Combics 2, Direct Connection to IS Platform, IP69K, LCD, RS-232C, 110-240VAC, US Power Cord

List Price: $2,463.00

Options

Brackets, Connectivity and Misc Options

Part # Description List Price Cart
105607 Kit,Wall Mount Combics Tiltable SST YDH02CISUS

List Price: $99.00

171727 Bracket,Bench Mount Fits 10x10 in, 12x12 in and 18x18 in Combics platform, YDH12CWSUS

List Price: $99.00

156440 Column,YDH01CWSUS Minebea Post Mount Assembly, 10x10in platform, 13in High, SST

List Price: $231.00

156441 Column,YDH02CWSUS Minebea Post Mount Assembly, 12x12in platform, 19in High

List Price: $248.00

156442 Column,YDH03CWSUS Minebea Post Mount Assembly, 18x18in platform, 29in High

List Price: $287.00

103049 Accessory,Power Supply Module Industrial 24V (Replaces Standard Unit) Midrics, Signum, Combics 1, Combics 1 Plus, Combics 2

List Price: $221.00

162640 Output,Ethernet TCP/IP Combics YD002C-ETH

List Price: $883.00

155826 Output,Analog Combics 0-20mA, 4-20 mA, 0-10V, 16-bit YDO02C-AO

List Price: $883.00

193049 Dust Cover,Combics Series Indicator Pack of 2

List Price: $86.00

Cables

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
