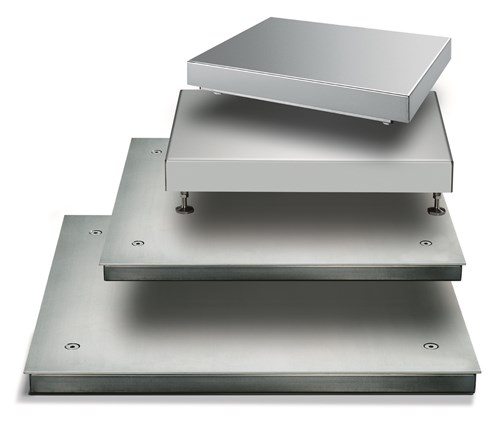

Minebea Intec Combics Bench and Floor Platform Scales
- One or four load cells (as noted)
- NTEP Certified (up to 5,000e) and capable of up to 30,000d for Non-NTEP
- Compatible with all Rice Lake and Combics indicators (30,000d not guaranteed with Rice Lake instrumentation)
Optional Configurations:
- Complete selection of pit frames for flush mounting available
- R2 - electropolished 316T, stainless steel
- T1 - pressure lift system (only available for II platforms and larger)
- Drive-on ramps
- Pit frame
- Mild steel painted or 304 stainless steel
- 304 stainless steel platters
Approvals
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
Minebea Intec Combics Bench and Floor Platforms Specifications
| Cable Length: 10 ft/3 m-up to 1,000 lb 30 × 30 in 20 ft/6 m 1,000 lb and above 36 × 36 in |
Operating Temperature: Height: |
Warranty: Two-year limited Accessories: One-year limited |
Resources / Downloads
Parts
Painted Steel
| Part # | Description | List Price | Cart |
|---|---|---|---|
| 102285 | Base,CAPP1U-10CC-LU Combics, 15lb x 0.0005lb (6kg x 0.0002kg), 10In x 10In, Painted |
List Price: $896.00 |
|
| 102286 | Base,CAPP1U-20CC-LU Combics, 30lb x 0.001lb (15kg x 0.0005kg), 10In x 10In, Painted NEMA4/IP65 |
List Price: $896.00 |
|
| 102287 | Base,CAPP1U-50CC-LU Combics, 60lb x 0.002lb (30kg x 0.001kg), 10In x 10In, Painted NEMA4/IP65 |
List Price: $896.00 |
|
| 102288 | Base,CAPP1U-50DD-LU Combics, 60lb x 0.002lb, (30kg x 0.001kg), 12In x 12In, Painted NEMA4/IP65 |
List Price: $983.00 |
|
| 102289 | Base,CAPP1U-50EE-LU Combics, 60lb x 0.002lb, (30kg x 0.001kg), 18In x 18In, Painted NEMA4/IP65 |
List Price: $1,316.00 |
|
| 102291 | Base,CAPP1U-100DD-LU Combics,150lb x 0.005lb, (60kg x 0.002kg), 12In x 12In, Painted NEMA4/IP65 |
List Price: $983.00 |
|
| 102292 | Base,CAPP1U-100EE-LU Combics,150lb x 0.005lb, (60kg x 0.002kg), 18In x 18In, Painted NEMA4/IP65 |
List Price: $1,316.00 |
|
| 102294 | Base,CAPP1U-100GG-LU Combics, 150lb x 0.005lb, (60kg x 0.002kg), 24In x 24In, Painted NEMA4/IP65 |
List Price: $2,627.00 |
|
| 102296 | Base,CAPP1U-100HH-LU Combics, 150lb x 0.005lb, (60kg x 0.002kg), 30In x 30In, Painted NEMA4/IP65 |
List Price: $3,247.00 |
|
| 102297 | Base,CAPP1U-200EE-LU Combics, 200lb x 0.02lb, (100kg x 0.005kg), 18In x 18In, Painted NEMA4/IP65 |
List Price: $1,316.00 |
|
| 102299 | Base,CAPP1U-250GG-LU Combics, 300lb x 0.01lb, (150kg x 0.005kg), 24In x 24In, Painted NEMA4/IP65 |
List Price: $2,627.00 |
|
| 102301 | Base,CAPP1U-250HH-LU Combics, 300lb x 0.01lb, (150kg x 0.005kg), 30In x 30In Painted, NEMA4/IP65 |
List Price: $3,247.00 |
|
| 102302 | Base,CAPP1U-500GG-LU Combics, 600lb x 0.02lb (300kg x 0.01kg), 24In x 24In, Painted NEMA4/IP65 |
List Price: $2,627.00 |
|
| 102304 | Base,CAPP1U-500HH-LU Combics, 600lb x 0.02lb (300kg x 0.01kg), 30In x 30In, Painted NEMA4/IP65 |
List Price: $3,247.00 |
|
| 102306 | Base,CAPP1U-1000HH-LU Combics, 1500lb x 0.05lb, (600kg x 0.02kg), 30In x 30In, Painted, NEMA4/IP65 |
List Price: $3,247.00 |
Painted Steel Pit Frames
Stainless Steel
Stainless Steel Pit Frames
Options
No options found for this product
Replacement Parts
Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.
To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
