Minebea Intec Combics Explosion Proof Bench and Platform Scales

  • Can be used in areas where explosive gas and dust mixtures occur
  • Documentation to verify intrinsic safety available upon request
  • Completely constructed with AISI 304 stainless steel
  • All units are built for easy cleaning and disinfection and meet HACCP and FDA requirements for the food industry
  • Load cells are hermetically sealed, IP68 protection rated
  • Load cell cables are 10 ft (for bases up to 30 x 30 in) or 20 ft (for bases 36 x 36 in and larger)
  • NEMA Type 4/IP67 protection rated
  • Pit frames for flush mounting available
  • High resolution 30,000 d

Applications:

  • Pharmaceutical, chemical, electronics, food processing, precious metals, metal production and processing
  • Regulatory Compliance: NEMA, HACCP, FDA, GLP/GMP*, FM

*GLP/GMP requires use of Combics 1 Plus or higher digital weight indicator

Approvals

Some approval documents are available to view by clicking the icons below.

LOGO FM Approved

WARNING: Cancer and Reproductive Harm California Proposition 65

Minebea Intec Combics explosion proof bench and platform scales are completely customizable industrial scale systems, ideal for counting, batching, sorting and checkweighing applications.

Cable Length:
Up to 30 × 30: 10 ft
36 × 36 and over: 20 ft

Operating Temperature:
14 °F to 104 °F (-10 °C to 40 °C)


Ingress Protection Rating:
NEMA Type 4/IP67

Indicator Option:
CIXS3-U

Warranty:
Two-year limited
Accessories: One-year limited

Approvals:
FM approved Classes 1,2,3, Division 1, Groups ABCDEGFT4, US and Canadian hazardous areas, when used with CISX3-U or FCT01-X indicator

Resources / Downloads

Title Download Email
Combics Explosion Proof Catalog Page Download Email

Title View Download Email Category
ScaleTalk: What are Hazardous Areas? View Download Email

Parts

Part # Description List Price Cart
100919 Base,CAPXS1U-10CC Combics SS Explosion Proof, 10 X 10 in, 6 kg X 0.0002 kg (15lb x 0.0005lb) FM Approved Class 1,2,3, Division 1, Groups ABCDEFGT4 Constructed of 304 SS HACCP and FDA Accepted

List Price: $1,253.00

100920 Base,CAPXS1U-20CC Combics SS Explosion Proof, 10 X 10 in, 15 kg x 0.0005 kg (30lb x 0.001lb) FM Approved Class 1,2,3, Division 1, Groups ABCDEFGT4 Constructed of 304 SS HACCP and FDA Accepted

List Price: $1,253.00

100921 Base,CAPXS1U-50CC Combics SS Explosion Proof, 10 x 10 in, 30 kg x 0.001 kg (60lb x 0.002lb) FM Approved Class 1,2,3, Division 1, Groups ABCDEFGT4 Constructed of 304 SS HACCP and FDA Accepted

List Price: $1,253.00

100922 Base,CAPXS1U-50DD EX Combics, SS Explosion Proof, 12 x 12 in, 30 kg x 0.001 kg (60lb x 0.002lb) FM Approved Class 1,2,3, Division 1, Groups ABCDEFGT4 Constructed of 304 SS HACCP and FDA Accepted

List Price: $1,402.00

100923 Base,CAPXS1U-100DD Combics SS Explosion Proof, 12 X 12 in, 60 kg x 0.002 kg (150lb x 0.005lb) FM Approved Class 1,2,3, Division 1, Groups ABCDEFGT4 Constructed of 304 SS HACCP and FDA Accepted

List Price: $1,402.00

100924 Base,CAPXS1U-50EE Combics SS Explosion Proof, 18 x 18 in, 30 kg x 0.001 kg, (60lb x 0.002lb) FM Approved Class 1,2,3, Division 1, Groups ABCDEFGT4 Constructed of 304 SS HACCP and FDA Accepted

List Price: $1,734.00

100925 Base,CAPXS1U-100EE Combics SS Explosion Proof, 18 X 18 in, 60 kg x 0.002 kg (150lb x 0.005lb) FM Approved Class 1,2,3, Division 1, Groups ABCDEFGT4 Constructed of 304 SS HACCP and FDA Accepted

List Price: $1,734.00

100926 Base,CAPXS1U-200EE Combics SS Explosion Proof, 18 X 18 in, 100 kg x 0.005 kg (200lb x 0.01lb) FM Approved Class 1,2,3, Division 1, Groups ABCDEFGT4 Constructed of 304 SS HACCP and FDA Accepted

List Price: $1,734.00

100934 Base,CAPXS4U-250GG Combics SS Explosion Proof, 24 X 24 in, 150 kg x 0.005 kg, (300lb x 0.01lb) FM Approved Class 1,2,3, Division 1, Groups ABCDEFGT4 HACCP And FDA Compliant

List Price: $5,733.00

100935 Base,CAPXS4U-500GG-LU Combics, SS Explosion Proof Platform, 24 x 24 in, 300kg x 0.01kg (600lb x 0.02lb) FM Approved Class 1,2,3, Division 1, Groups ABCDEFGT4 HACCP And FDA Compliant

List Price: $5,733.00

100943 Base,CAPXS4U-500HH Combics SS Explosion Proof, 30 X 30 in, 300 kg x 0.01 kg (600lb x 0.02lb) FM Approved Class 1,2,3, Division 1, Gorups ABCDEFGT4 HACCP and FDA Compliant

List Price: $6,102.00

100944 Base,CAPXS4U-1000HH Combics SS Explosion Proof, 30 X 30 in, 600 kg x 0.02 kg, (1500lb x 0.05lb) FM Approved Class 1,2,3, Division 1, Gorups ABCDEFGT4 HACCP and FDA Compliant

List Price: $6,102.00

100945 Base,CAPXS4U-1000KK Combics SS Explosion Proof, 36 X 36 in, 600 kg x 0.02 kg, (1500lb x 0.05lb) FM Approved Class 1,2,3, Division 1, Groups ABCDEFGT4 HACCP and FDA Compliant

List Price: $6,102.00

100946 Base,CAPXS4U-2500KK Combics SS Explosion Proof, 36 X 36 in, 1500 kg x 0.05 kg (3000lb x 0.1lb) FM Approved Class 1,2,3, Division 1, Groups ABCDEFGT4 HACCP and FDA Compliant

List Price: $6,805.00

100947 Base,CAPXS4U-5000KK Combics SS Explosion Proof, 36 X 36 in, 3000 kg x 0.1 kg (6000lb x 0.2lb) FM Approved Class 1,2,3, Division 1, Groups ABCDEFGT4 HACCP and FDA Compliant

List Price: $6,805.00

100949 Base,CAPXS4U-2500NN Combics SS Explosion Proof, 48 X 48 in, 1500 kg x 0.05 kg (3000lb x 0.1lb) FM Approved Class 1,2,3, Division 1, Groups ABCDEFGT4 HACCP and FDA Compliant

List Price: $8,343.00

100950 Base,CAPXS4U-5000NN Combics SS Explosion Proof, 48 X 48 in, 3000 kg x 0.1 kg, (6000lb x 0.2lb) FM Approved Class 1,2,3, Division 1, Groups ABCDEFGT4 HACCP and FDA Compliant

List Price: $8,343.00

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

Related Products

WEB SC IF Series Explosionproof

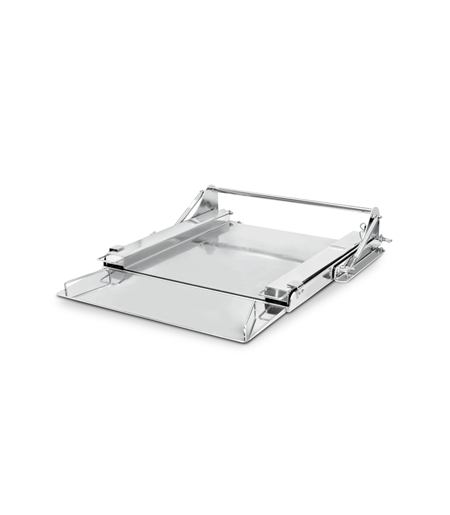

Minebea Intec IF Series Explosion Proof Weighing Platform Scales

Minebea IF Series explosion-proof floor scales are flatbed scales available in various sizes, designs, weighing capacities and resolutions.
