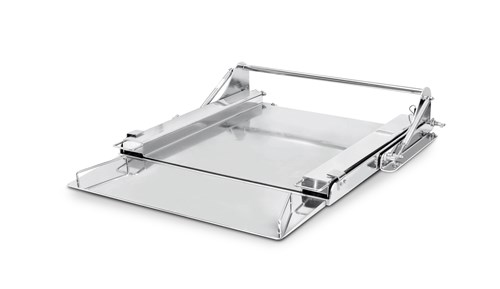

Minebea Intec IF Series Explosion Proof Weighing Platform Scales

  • Capacities from 150 kg to 3,000 kg (330 to 6,613 lb) with resolutions up to 30,000 d
  • Ultra low profile: standard platform height is 35 mm; optional heights available as low as 25 mm
  • Material/surface finish: 304 bead-blasted stainless steel
  • Drive-on ramp included with every platform
  • No pit required
  • Load cells are hermetically sealed, IP68 protection rated
  • Convenient for application-oriented weighing systems from processing to the chemical industry
  • Standard configuration: AISI 304 stainless steel

Optional Configurations

  • Electro-polished finish
  • AISI 304 electro-polished stainless steel platform
  • AISI 316Ti electro-polished stainless steel platform
  • Ingenious manually-operated lifting mechanism option (patented system) for effortless raising of the
  • platform to facilitate cleaning underneath.
  • R2: Cold rolled AISI 316Ti stainless steel, electro-polished
  • R6: AISI 304 2b stainless steel, electro-polished
  • T4: Stop bar
  • T5: Tow bar and stop bar
  • T6: Two handles and two rollers
  • T7: Retractable wheels (reduces effective resolution to 15,000 dd)
  • T9: Additional bottom plate
  • T15: Second ramp
  • T14: Integrated column
  • T13: Four handles

Applications

  • Pharmaceutical, chemical, electronics, food processing, precious metals, metal production and processing

Approvals

Some approval documents are available to view by clicking the icons below.

LOGO FM Approved

WARNING: Cancer and Reproductive Harm California Proposition 65

Minebea Intec IF Series Explosion Proof Weighing Platform Scales

Sartorius IF Series floor scales are flat-bed scales that are available in various sizes, designs, weighing capacities and resolutions. They feature strain-gauge load cells that provide especially precise resolution. All flat-bed scales can be configured as high resolution instruments or for use in legal metrology.

IF series protection is rated at IP67/68 which is suitable for wet environments. If the application requires, an optional innovative lifting mechanism is available for easy cleaning under the platform at the place of installation. Design material options include stainless steel, glass bead-blasted, polished or electropolished.

The IF Series floor scales can be easily connected to intrinsically safe Sartorius indicators or to a Sartorius controller in safe areas via interface converter. All components for use in hazardous areas come with verification of intrinsic safety.

Applications:

IP Rating:
IP68

Cable Length:
19.7 ft (6 m)

Warranty:
Two-year limited

Approvals:
FM approved, IFXS4 series, are certified for use in Class 1,2,3, Div. 1, Groups ABCDEFT4 (Verification of Intrinsic Safety included; also covers any explosion protected Minebea components combined with this platform series)

Regulatory Compliance:
NEMA, HACCP, FDA, GLP/GMP*, Class 10,000 clean rooms (US Federal Standard 209D)
(Equivalent to Class C in accordance with EEC-GWP), FM

*GLP/GMP requires use of Combics 1 Plus or higher digital weight indicator

Resources / Downloads

Title Download Email
IF Series, Explosion Proof Weighing Platforms Catalog Page Download Email

Title View Download Email Category
ScaleTalk: What are Hazardous Areas? View Download Email

Parts

23.6 x 23.6 inch Weighing Surface Dimensions (Rails add 16.1 inches to width)

Part # Description List Price Cart
102530 Base,IFXS4-150GG EX-proof 330lb x 0.01 (150kg x 0.005), 23.6 in x 23.6 in Includes SS Deck, 4 ea IP-68 Hermetically Sealed Load Cells, And SS Ramp. Rated IP-68. 4 ea IP-68 Hermetically Sealed Load Cells. Meets HACCP and FDA Requirements

List Price: $14,838.00

102531 Base,IFXS4-300GG EX-proof 660lb x 0.02 (300kg x 0.01), 23.6 in x 23.6 in Includes SS Deck, 4 ea IP-68 Hermetically Sealed Load Cells, And SS Ramp. Rated IP-68. 4 ea IP-68 Hermetically Sealed Load Cells. Meets HACCP and FDA Requirements

List Price: $14,838.00

102532 Base,IFXS4-600GG EX-proof 1320lb x 0.05 (600kg x 0.02), 23.6 in x 23.6 in Includes SS Deck, 4 ea IP-68 Hermetically Sealed Load Cells, And SS Ramp. Rated IP-68. 4 ea IP-68 Hermetically Sealed Load Cells. Meets HACCP and FDA Requirements

List Price: $14,838.00

102533 Base,IFXS4-1000GG 2200lb x 0.1lb, (1000kg x 0.05kg), 23.6 in x 23.6 in, EX-proof Includes SS Deck, 4 ea IP-68 Hermetically Sealed Load Cells, And SS Ramp. Rated IP-68. 4 ea IP-68 Hermetically Sealed Load Cells. Meets HACCP and FDA Requirements

List Price: $14,838.00

31.5 x 23.6 inch Weighing Surface Dimensions (Rails add 16.1 inches to width)

31.5 x 31.5 inch Weighing Surface Dimensions (Rails add 16.1 inches to width)

39.4 x 23.6 inch Weighing Surface Dimensions (Rails add 16.1 inches to width)

39.4 x 31.5 inch Weighing Surface Dimensions (Rails add 16.1 inches to width)

39.4 x 39.4 inch Weighing Surface Dimensions (Rails add 16.1 inches to width)

49.2 x 39.4 inch Weighing Surface Dimensions (Rails add 16.1 inches to width)

49.2 x 49.2 inch Weighing Surface Dimensions (Rails add 16.1 inches to width)

59.1 x 49.2 inch Weighing Surface Dimensions (Rails add 16.1 inches to width)

Options

Options/Accessories - Not Available On All Models

Part # Description List Price Cart
T4 Stop bar

Call for price

T5 Tow bar and stop bar

Call for price

T6 Two handles and two rollers

Call for price

T7 Retractable wheels

Call for price

T9 Bottom plate

Call for price

T13 Four handles

Call for price

T14 Integrated column

Call for price

T15 Second ramp

Call for price

Stainless Steel

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
