Minebea Intec IF Series Painted Steel Platform Scale

  • Various options for portability utilizing unique MoveLine weighing platform
  • Four strain gauge stainless steel load cells ensure precise results
  • Ultra low profile: standard platform height
  • Material/surface finish: mild steel powder coated
  • Resolution: scale intervals of 15,000 d or 30,000 d
  • Drive-on ramp included with every platform
  • No pit required
  • IP65/NEMA Type 4 dust and water protection
Applications:
  • Pharmaceutical, chemical, electronics, food processing, precious metals, metal production and processing

Optional Configurations:

  • T14: Integrated column
  • T4: Stop bar
  • T15: Second ramp

The Minebea Intec IF Series painted steel platform scales delivers various options for portability utilizing the unique MovelIne weighing platform.

Cable Length:
6 m (19.7 ft)

Ingress Protection Rating:
IP65

Regulatory Compliance:
HACCP, FDA

Warranty:
Two-year limited warranty

Resources / Downloads

Title Download Email
IF Series Painted Steel Platform Catalog Page Download Email

Parts

Weighing Surface 23.6 inches x [multiple dimensions]

Part # Description List Price Cart
100970 Base,Painted IFP4-150GG IF Series Painted Steel Platform, 23.6 Inches x 23.6 Inches 330 lb x 0.01lb (150 kg x 0.005kg) Standard Platform includes Stainless Steel Load Cells and Mild Steel Ramp, Unit Rated IP-65

List Price: $8,657.00

100973 Base,Painted IFP4-300GG IF Series Painted Steel Platform, 23.6 Inches x 23.6 Inches 660 lb x 0.02lb (300 kg x 0.01kg) Standard Platform includes Stainless Steel Load Cells and Mild Steel Ramp, Unit Rated IP-65

List Price: $8,657.00

100974 Base,Painted IFP4-600GG IF Series Painted Steel Platform, 23.6 Inches x 23.6 Inches 1320 lb x 0.05lb (600 kg x 0.002kg) Standard Platform includes Stainless Steel Load Cells and Mild Steel Ramp, Unit Rated IP-65

List Price: $8,657.00

100975 Base,Painted IFP4-1000GG IF Series Painted Steel Platform, 23.6 Inches x 23.6 Inches 2200 lb x 0.1lb (1000 kg x 0.05kg) Standard Platform includes Stainless Steel Load Cells and Mild Steel Ramp, Unit Rated IP-65

List Price: $8,657.00

Weighing Surface 31.5 inches x [multiple dimensions]

Weighing Surface 39.4 inches x [multiple dimensions]

Weighing Surface 49.2 inches x [multiple dimensions]

Weighing Surface 59.1 inches x [multiple dimensions]

Weighing Surface 78.7 inches x [multiple dimensions]

Options

Part # Description List Price Cart
Consult T4 Stop bar

Call for price

Consult T5 Tow Bar

Call for price

Consult T6 Two handles and two rollers

Call for price

Consult T7 Retractable wheels (not available with the GG and IG models)

Call for price

Consult T9 Bottom plate

Call for price

Consult L6, Kit IP69k

Call for price

Consult T13 Four handles

Call for price

Consult T14 Integrated column

Call for price

Consult T15, 2nd Ramp

Call for price

Consult Pressure lift (not available for 30,000d models)

Call for price

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

Related Products

WEB SC Combics2completesystem

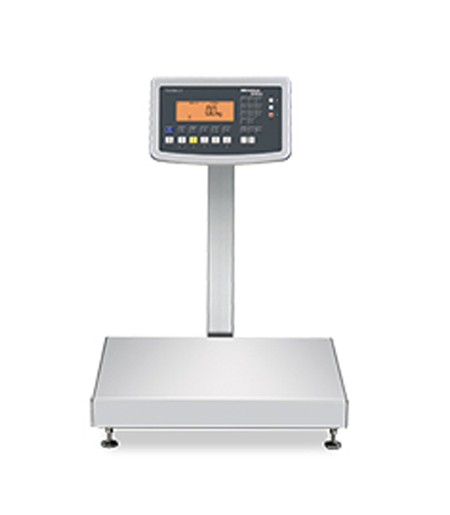

Minebea Intec Combics 2 Complete Scale System
