Minebea Intec Inteco Stainless Steel Star Mount Kits

  • Fast and easy installation
  • Mounting kit with dummy function included

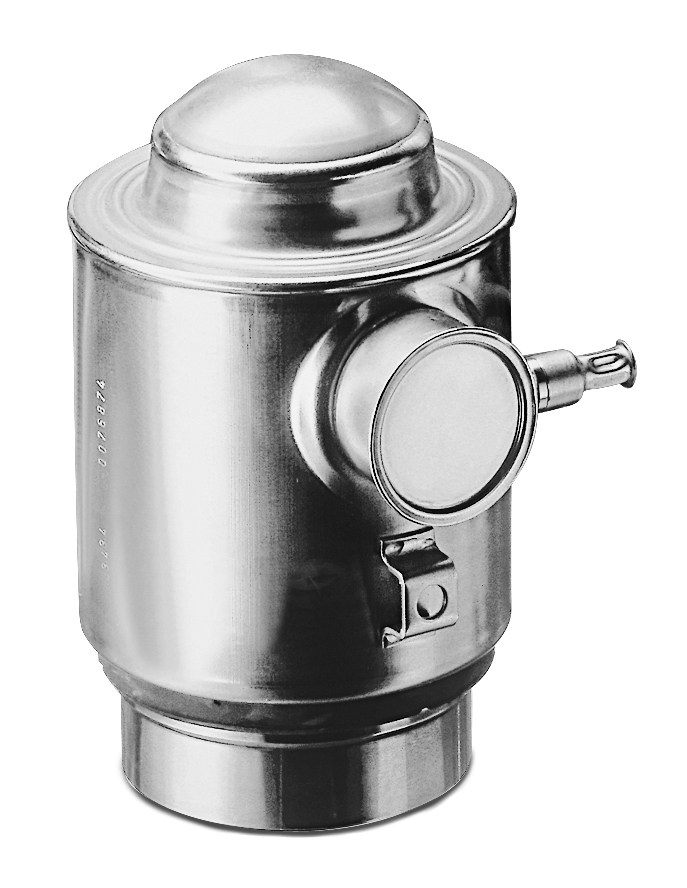

  • Inteco load cell for capacities ranging from 500 kg to 300 t
  • Designed to withstand high lateral forces
  • Maintenance-free constrainer and module construction
  • Patent pending DE 101 38 435A1
  • Approval Certificate “Germanischer Lloyd” No. 47-458-03HH
  • Load cell output 1 mV/V
  • 15-year load cell warranty
  • 10,000 division load cell
  • 39 kN stainless steel mount destructive lateral force; 20 kN permissible lift-off protection
  • Foot 20 kN lateral force and lift-off protection

Approvals

Some approval documents are available to view by clicking the icons below.

LOGO FM Approved EX

WARNING: Cancer and Reproductive Harm California Proposition 65

Minebea Intec Inteco Stainless Steel Star Mount Kits

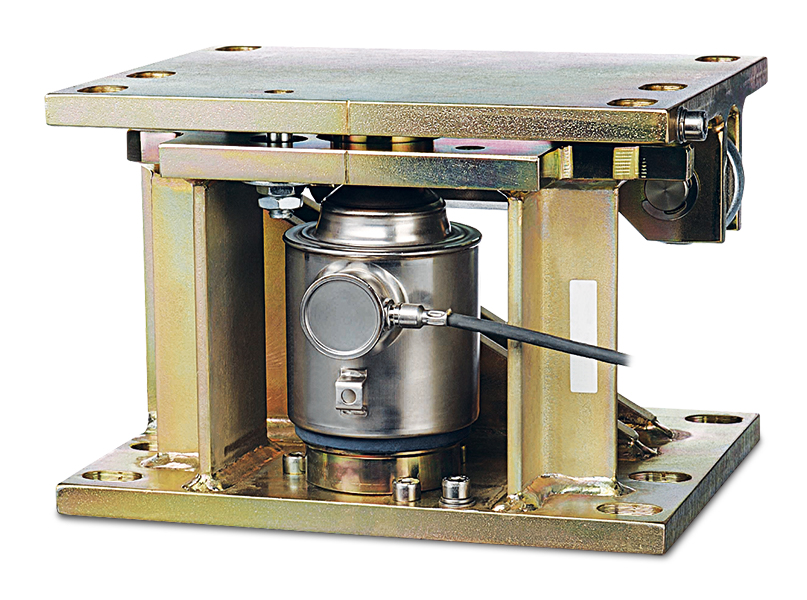

The stainless steel star mount kit is optimized for the Inteco load cell family to guarantee the best weighing performance. It covers the capacity range from 500 kg up to 300 t. The special design allows a horizontal displacement in the unconstrained direction of the load cell. All constrainers are 100% maintenance-free. There are two different materials available: stainless steel or mild steel zinc plated. Its unique design includes a dummy functionality to install the vessel without load cell. The top load disc remains in place even when the load cell is not mounted. The design principle integrates a lift-off protection and built-in stops.

Resources / Downloads

Title Download Email
Inteco Stainless Steel Star Mount Kits Catalog Page Download Email

Title Version Revision Download Email Category Archived
Sartorius Intec PR6201 Manual Download Email Weigh Modules No

Parts

3-Module Kit

Part # Description List Price Cart
158727 Mount Kit,Inteco-1532-U 3-Leg Tank Kit, Total Capacity 3,300lb (1,500kg) Stainless Steel Consists of 3 Inteco-500kgD1 Maxi Flexlock SS Load Cell 3 PR6001/10S Mount kit, 1 PR6130/64S SS J-box, and 25 ft PR6135 Cable

List Price: $10,098.25

158788 Mount Kit,Inteco-3032-U Minebea 3-Leg Tank Kit, Total Capacity - 6,600lb (3,000kg) Consists of 3 Inteco-1tD1 Maxi Flexlock SS Load Cell 3 PR6001/10S Mount Kit, 1 PR6130/64S SS J-box, and 25 ft PR6135 Cable

List Price: $10,098.25

158731 Mount Kit,Inteco-6032-U 3-Leg Tank Kit, Total Capacity 13,200lb (6,000kg) Stainless Steel Consists of 3 Inteco-2tD1 Maxi Flexlock SS Load Cell 3 PR6001/10S Mount kit, 1 PR6130/64S SS J-box, and 25 ft PR6135 Cable

List Price: $12,476.25

158733 Mount Kit,Inteco-9032-U 3-Leg Tank Kit, Total Capacity 19,800lb (9000kg) Stainless Steel Consists of 3 Inteco-3tD1 Maxi Flexlock SS Load Cell 3 PR6001/10S Mount kit, 1 PR6130/64S SS J-box, and 25 ft PR6135 Cable

List Price: $10,098.25

158735 Mount Kit,Inteco-15032-U 3-Leg Tank Kit, Total Capacity 33,300lb (15,000kg) Stainless Consists of 3 Inteco-5tD1 Maxi Flexlock SS Load Cell Cell, 3 PR6001/10S Mount kit, 1 PR6130/64S SS J-box, and 25 ft PR6135 Cable

List Price: $10,347.25

158737 Mount Kit,Inteco-30032-U 3-Leg Tank Kit, Total Capacity 66,000lb (30000kg) Stainless Steel, Consists of 3 Inteco-10tD1 Maxi Flexlock SS Load Cell, 3 PR6001/10S Mount kit, 1 PR6130/64S SS J-box, and 25 ft PR6135 Cable

List Price: $11,031.25

158739 Mount Kit,Inteco-60032-U 3-Leg Tank Kit, Total Capacity 132,000lb (60,000kg) Stainless Steel, Consists of 3 Inteco-20tD1 Maxi Flexlock SS Load Cells, 3 PR6001/11S Mount kit, 1 PR6130/64S SS J-box, and 25 ft PR6135 Cable

List Price: $11,343.25

158741 Mount Kit,Inteco-90032-U 3-Leg Tank Kit, Total Capacity 198,000lb (90,000kg) Stainless Steel, Consists of 3 Inteco-30tD1 Maxi Flexlock SS Load 3 PR6001/11S Mount kit, 1 PR6130/64S SS J-box, and 25 ft PR6135 Cable

List Price: $11,742.25

158743 Mount Kit,Inteco-150032-U 3-Leg Tank Kit, Total Capacity 330,500lb (150,000kg) Stainless Steel, Consists of 3 Inteco-50tD1 Maxi Flexlock SS Load Cell, 3 PR6001/11S Mount kit, 1 PR6130/64S SS J-box, and 25 ft PR6135 Cable

List Price: $12,705.25

4-Module Kit

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
