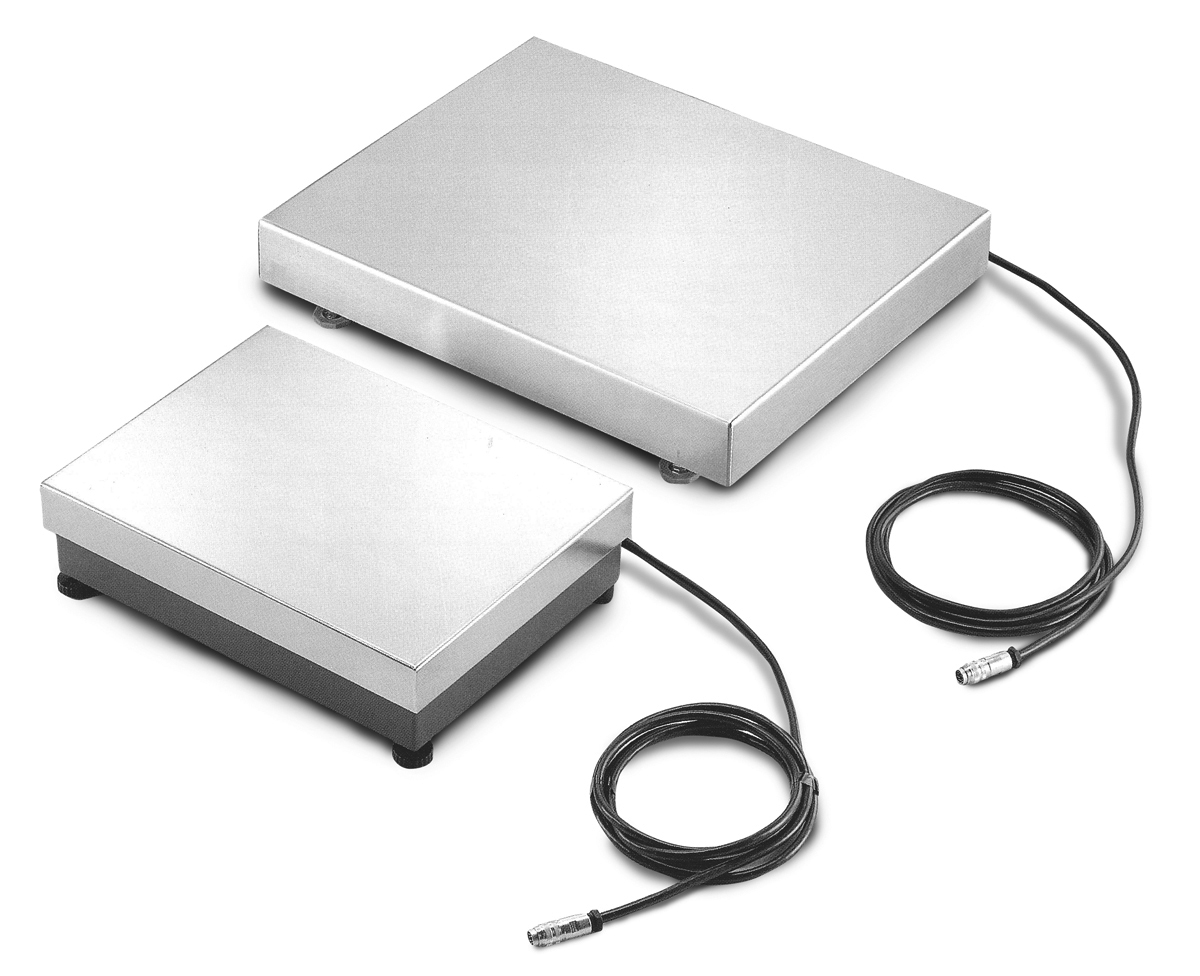

Minebea Intec IS Series Platform Scale

  • The standard RS-485 interface is X-bus compatible. An RS-232C interface is available as an option.
    Power requirements range from 10.6 VDC to 30 VDC
  • At the touch of the unique ISO TEST key, the IS platform calibrates and adjusts itself automatically
    using a built-in calibration weight
  • High internal resolution guarantees reliable weight readouts
  • Weighing results: up to 50 times/second
  • All scales come standard with stainless steel load plate (wrap-around design optional). High IP rating
    for ideal protection
  • Internal Calibration (ISEDE and ISIGG models only)

Accessories and Options:

  • A complete selection of options and accessories are available, including interfaces, cables and connectors, power supplies, mechanical accessories, software and mechanical security devices

The IS Series industrial weighing platform scale comes with a complete selection of options and accessories including interfaces, cables and connectors, power supplies, mechanical accessories, software and mechanical security devices.

Indicator Connectivity:
Combics UV1

Models Sensing:
Force motor cell

Cable Length:
6 meters

Stability:
Weight stabilizes 1.5 second

Power Requirements:
10.6 VDC to 30 VDC supplied by external power Supply, battery pack or Combics IS indicator

Weighing Design:
Electro magnetic

Indicators Options:
Combics UVI models

Construction:
Stainless steel platforms
Die-cast or galvanized base construction (model dependent)

Ingress Protection Rating:
BBD/DCP: IP54
EDE: IP65
IGG: IP67

Warranty:
Two-year limited warranty
Accessories: One-year limited warranty

Resources / Downloads

Title Download Email
IS Series Weighing Platforms Catalog Page Download Email

Parts

Part # Description List Price Cart
174127 Base,HPHP ISBBP-06-H Platform 4.5 Inches, 0.62kg x 0.001g (1.6lb x 0.00002lb) 6 Meter Cable Length

List Price: $3,675.00

174128 Base,HPHP ISBBP-3-H Platform 7.1 In x 7.1 In, 3.1kg x 0.01g (6.8lb x 0.00002lb)

List Price: $3,208.00

174129 Base,HPHP ISBBP-6-H Platform 7.1 In x 7.1 In, 6.2kg x 0.01g (13.7lb x 0.00002lb)

List Price: $4,083.00

102003 Base,HPHC ISDCS-16-H Platform 15.8 In x 11.8 In, 16 kg x 0.1 g (35 lb x 0.0002 lb)

List Price: $5,128.00

102004 Base,HPHC ISDCS-35-H Platform 15.8 In x 11.8 In, 34 kg x 0.1 g (75 lb x 0.0002 lb)

List Price: $6,294.00

102005 Base,HPHC ISEDE-64-SV1 Platform 15.8 In x 11.8 In, 64 kg x 1 g (141 lb x 0.002 lb)

List Price: $6,119.00

102006 Base,HPHC ISEDE-64-HV1 Platform 15.8 In x 11.8 In, 64 kg x 0.1g (141 lb x 0.002 lb)

List Price: $8,394.00

102008 Base,ISIGG-150-HV1 150 kg Minebea, IS Series Weighing Platform, 32 x 24 in, 150 kg x 1 g

List Price: $8,732.00

102009 Base,ISIGG-300-HV1 300 kg Platform 32 In x 24 In, 300 kg x 2 g (660lb x 0.005 lb)

List Price: $8,732.00

Special Order

Indicators

Options

Part # Description List Price Cart
Consult Interface Mode (RS-485/422) required with Combics II indicators

Call for price

Consult DC power supply to weigh platform

Call for price

Consult Cable, 25-Pin to 9-Pin D sub, cable for PC

Call for price

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
