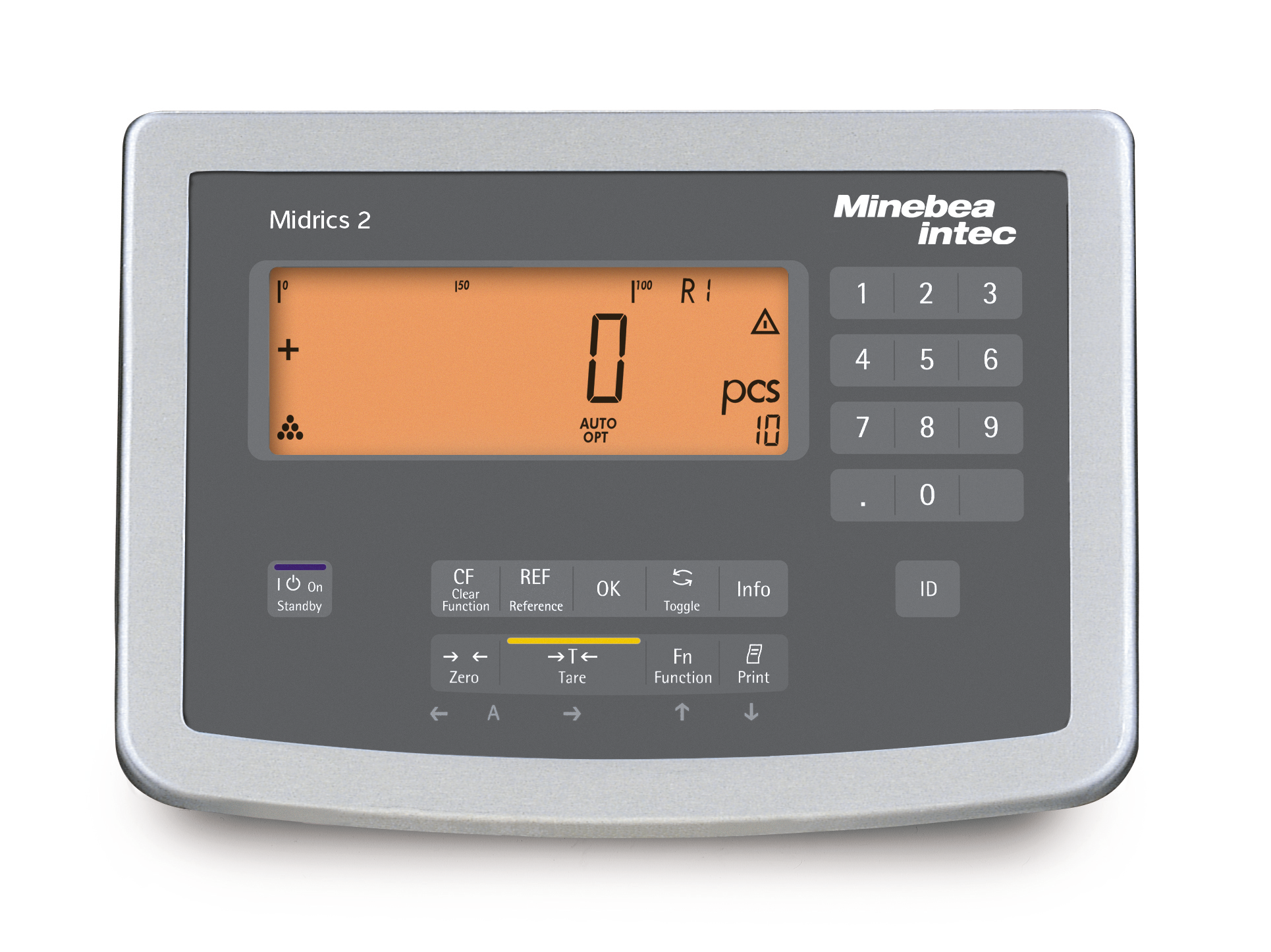

Minebea Intec Midrics® 1 and 2 Series Digital Weight Indicator

  • Backlit 14-segment, 20 mm LCD display
  • 304 stainless steel enclosure, IP65 rated
  • Wall-mount bracket
  • Time and date
  • RS-232 and clock (V1 and V2 models only)

Midrics 2 Additional Feature:

  • Numerical keyboard

Applications:

  • Weighing
  • Counting
  • Checkweighing
  • Sorting (3 or 5 classes)
  • Totalizing
  • Net-total
  • Animal weighing
  • Weighing in percent
  • Neutral measurement

Options:

  • 4-2O mA

Load Cell Connection:
Excitation voltage 8.4 V
4 or 6 conductor

Power Requirements:
100 - 240 VAC (-15/10) 50-60 Hz, Max 17 W/23 VA

Power Cord:
3 m

Housing:
304 stainless steel enclosure, IP65

Dimensions:
(W x D x H): 9 1/3 x 6 1/2 x 3 3/4 in (238 x 165 x 94 mm)

Operating Temperature:
14° F to 104° F (-10° C to 40° C)

Net Weight:
5 lb (2.3 kg)

Warranty:
Two-year limited warranty

Approvals:
NTEP Class III

Resources / Downloads

Title Download Email
Midrics 1 and 2 Series Catalog Page Download Email

Title Version Revision Download Email Category Archived
Minebea Midrics 1 & 2 Options Installation Manual Download Email Indicators / Controllers|Weight Indicators No

Title Collateral Wizard Request Download Email Category
Midrics 1 Indicator Download Email Precision Industrial|Indicators / Controllers
Midrics 2 Indicator Download Email Precision Industrial|Indicators / Controllers

Parts

Part # Description List Price Cart
155855 Indicator,MIS1UR-V1 Minebea Midrics, 110-240 VAC, US power cord

List Price: $733.00

155857 Indicator,MIS1U-L9 Minebea Midrics, Internal Battery, 110-240 VAC, US power cord

List Price: $1,230.00

155856 Indicator,MIS2UR-V2 Minebea Midrics, 110-240 VAC, US power cord

List Price: $827.00

155859 Indicator,MIS2U-L9 Minebea Midrics, Internal Battery, 110-240 VAC, US power cord

List Price: $1,364.00

155860 Interface,RS232 & Clock Minebea Midrics or Midrics Extend OPT YDO01M-232CLK

List Price: $204.00

Options

Part # Description List Price Cart
103044 Output,Analog Combics 0-20ma, 0-5V, 16-Bit For Combics 1, Combics Plus, Combics 2

List Price: $508.00

155805 Cable,RS-232 to USB Connector,2m,25-pin YCC01-USBM2 Sartorius Cubis, Minebea Combics

List Price: $291.00

155806 Cable,RS-232 IP69K Unit Open end to 25 pin D-SUB Female, Minebea Accessories, YCC02-D25F6

List Price: $291.00

193048 Dust Cover,Midrics and Signum Series Indicator - Pack of 2

List Price: $87.00

171727 Bracket,Bench Mount Fits 10x10 in, 12x12 in and 18x18 in Combics platform, YDH12CWSUS

List Price: $99.00

Consult Panel mount option, YAS03-M1

Call for price

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
