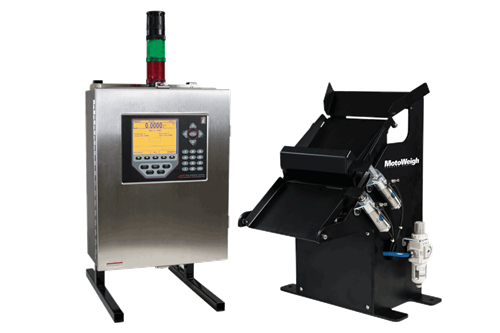

MotoWeigh® Cascade Scale

Software

  • Single part drop detection (part outside of the bag)
  • Statistical information
  • Store up to 500 different products

Hardware

  • Mild steel construction
  • Electrostatic dissipative powder coating
  • 920i® wall mount
  • Air regulator
  • Bimba® air cylinders
  • MAC® solenoid valves

Options

  • SST construction
  • LED communication tower
  • Audible alarm
  • Draft shield

The Motoweigh® Cascade Scale in-motion gravity drop checkweigher offers increased efficiency, as well as product consistency in a compact package. Ideal for checkweighing small part kits that do not register well on a standard conveyor scale, the Cascade Scale can be incorporated to decrease product returns and shorted product by ensuring all parts are present and containers are not packed with extra components.

The Cascade Scale is a cost effective solution for applications looking to automate their production line. Conveyor belt transitions are not a problem with the Cascade Scale. The unique design prevents parts from falling off the conveyor, making it easy to process small parts kits. This drop checkweighing system is extremely precise at 0.2 gram accuracy and can process up to 45 products per minute. The compact size also makes it easy to integrate into preexisting conveyor lines.

The Cascade Scale’s standard mild steel, anti-static powder-coated frame is built to handle in-motion applications while reducing static build-up. Pair with Rice Lake’s 920i® indicator and see the results this power-packed system delivers.

Construction:
Mild steel
Electrostatic dissipative powder coat

Capacity:
1.5 lb (680.4 g)

Maximum Container Size:
7 × 7 × 1.5 in (L x W x H)

Accuracy:
±0.00044 lb (0.2 g)

Maximum Product Throughput:
45 parts per minute*

Cylinder Stroke:
1.75 in
*Variable based on product size, cylinder stroke, and scale accuracy

Resources / Downloads

Title Download Email
MotoWeigh Cascade Checkweigher Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
MotoWeigh Cascade Scale Request Download Email In-Motion Checkweighers|Bulk Material Weighing

Parts

Part # Description List Price Cart
212750 Cascade Scale, Painted MS Single drop scale, 920i wall mount controls, 115VAC input voltage 1 Lb capacity, 7in X 7in X 3in product max, 20ft of cable from scale to controls

List Price: $9,375.00

212751 Cascade Scale, SST Single drop scale, 920i wall mount controls, 115VAC input voltage 1 Lb capacity, 7in X 7in X 3in product max, 20ft of cable from scale to controls

List Price: $10,250.00

Options

Part # Description List Price Cart
185808 Stacklight Assembly,Moto Surface Mount W/Red and Green Lights, 24VDC Motoweigh

List Price: $775.00

186577 Red, green, and alarm communication tower

Call for price

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
