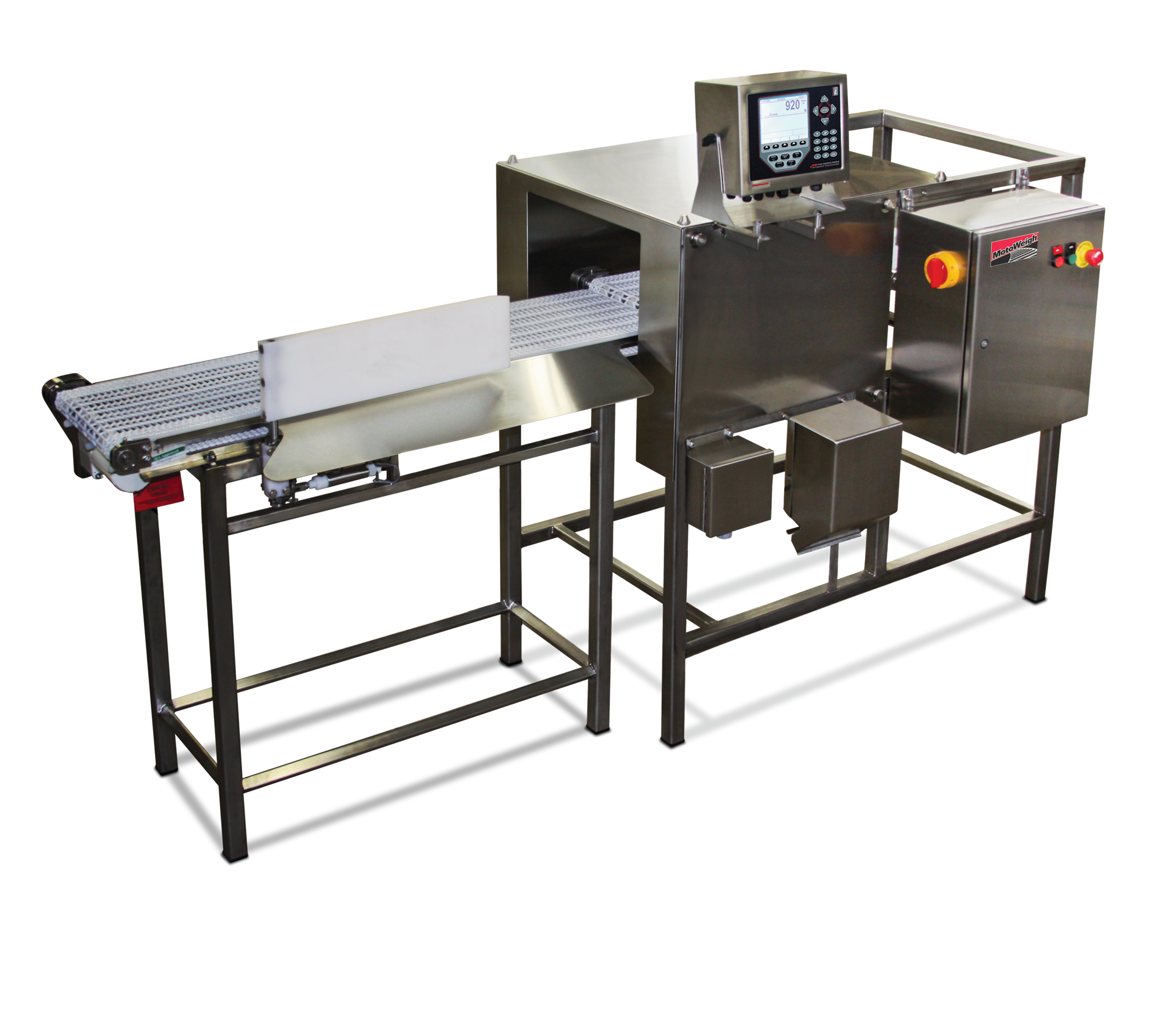

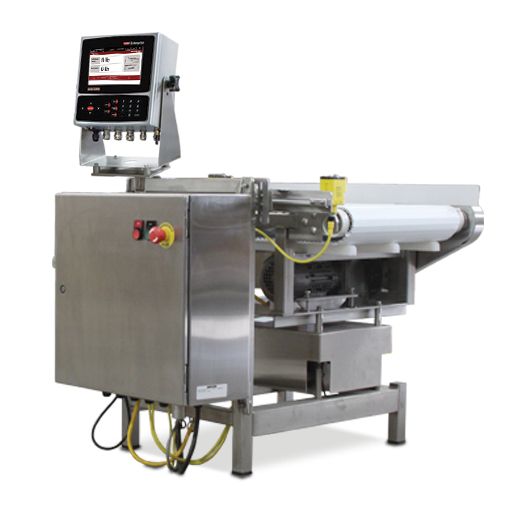

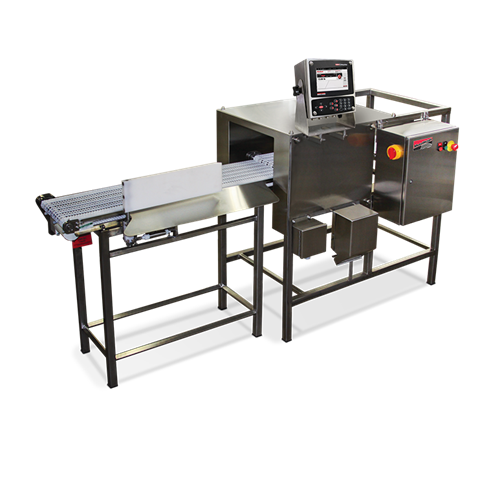

MotoWeigh® IMW In-Motion Checkweighers and Conveyor Scales

Software
  • Four levels of security
  • Real-time statistical information
  • Product report
  • Statistical report
  • Parameter report
  • User report
  • Store up to 1,000 different products
  • Five zone classification
Control Panel
  • 1280 controller
  • Power disconnect with lock-out/tag-out
  • E-stop
  • VFD (variable frequency drive)
  • Motor overloads
Hardware
  • Square tube construction (SST or aluminum)
  • 32 in height from top of belt with ±2.5 in of adjustment

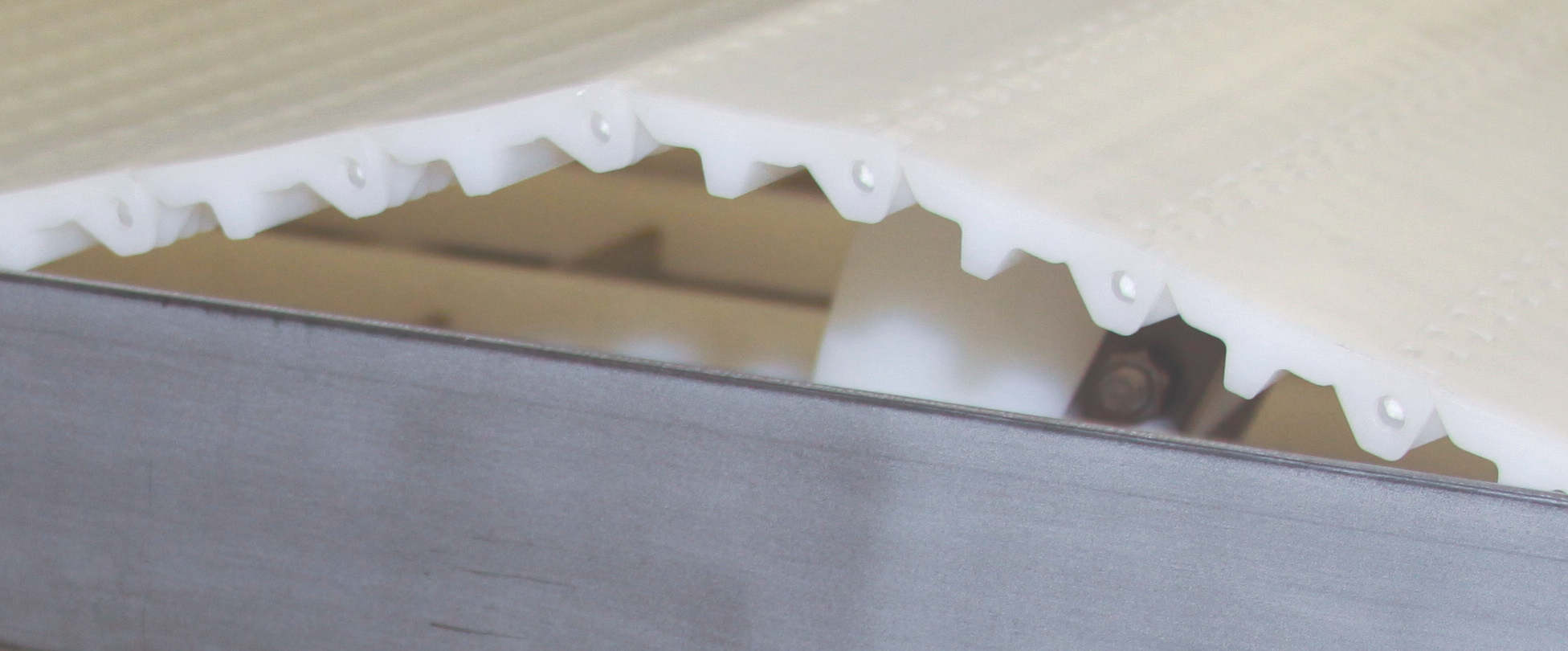

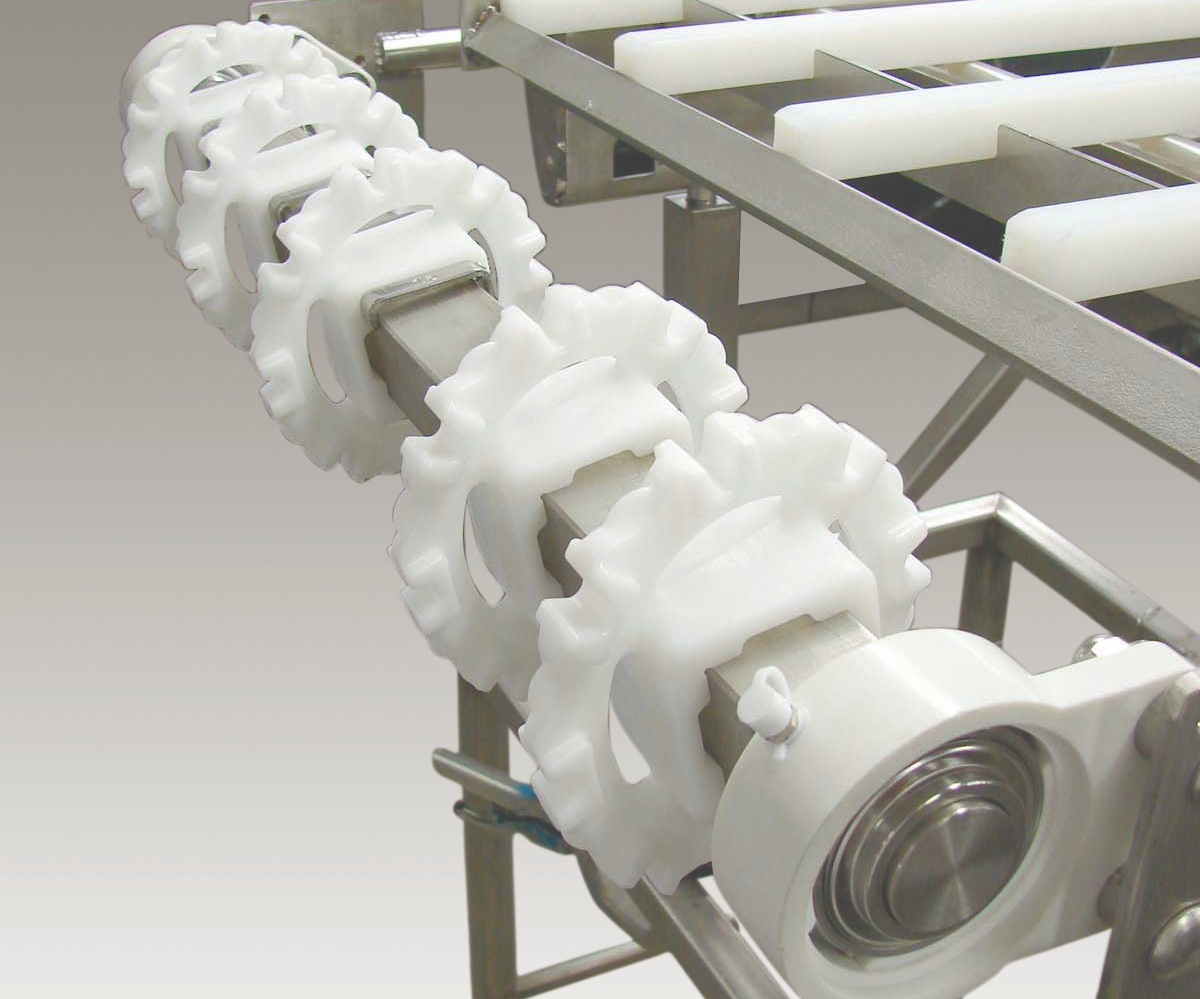

  • Modular belting
  • Drive on right side of belt (looking down belt flow)
  • Control panel mounted on left side of belt (looking down belt flow)

Options

  • Divert methods:
    • ​Pneumatic pusher
    • Air blast
    • Drop conveyor
    • Paddle
    • Secondary diverter in series or parallel
  • One, three or five zone communication tower
  • Audible alarm (non-washdown only)
  • Draft shields
  • Drop chutes
  • Pull cord E-stops
  • Portability package (non-NTEP Certified only)
  • Conveyor guide rails (round or flat)
  • Custom programming available
  • Food-grade SST angle construction, NEMA Type 4X IP66 washdown systems
  • Meets HACCP requirements
  • UL 508
  • NTEP Certified Legal for Trade (up to 2,000 divisions and 60 ppm)
  • Pacing conveyor

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo UL Listed

WARNING: Cancer and Reproductive Harm California Proposition 65

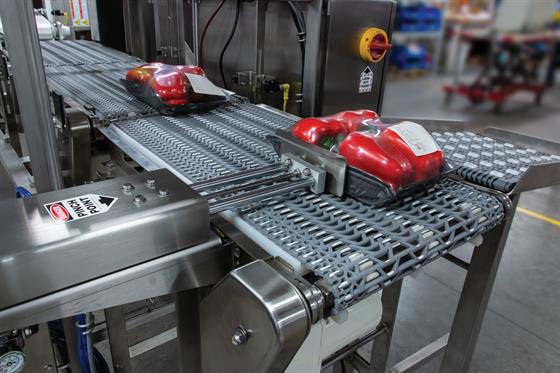

MotoWeigh...Made Your Way

Now producers of every size can automate their processes and achieve more, thanks to MotoWeigh In-Motion Checkweigher and Conveyor Systems. Harness a range of MotoWeigh components and accessories and you’ll not only automate, but improve nearly every facet of your operation.

MotoWeigh is helping producers tighten target weights, loosen profit margins, and improve quality and customer satisfaction with options like bar code readers and metal detection systems. These are just a few of the benefits you’ll discover when MotoWeigh gives your business a much needed edge over the competition.

The advantages of MotoWeigh are as limitless as your business’s potential. Contact Rice Lake to learn more about what MotoWeigh can do for you. We help design a system as unique as your application, customized to the specific demands of each environment, wet or dry.


Base components, made to order:

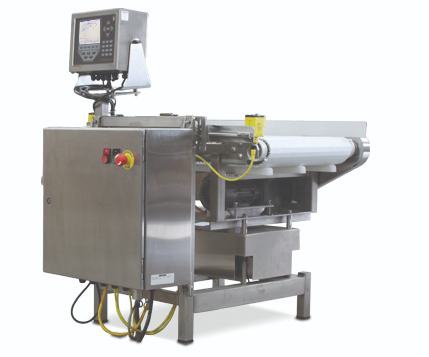

Checkweighers
For individual products, get quick, in-motion verification of a targeted weight range. Create up to four lanes of operation customized with barc ode verification or reject systems. For product up to 200 pounds, non-Legal for Trade systems are available with a resolution as precise as one gram, at speeds up to 80 units per minute.

Conveyor Scales
For individual product labeling or weight-data capture, conveyor scales are designed to send weight data to peripheral devices like PCs, printers and weigh price labelers. MotoWeigh conveyor scales offer Legal for Trade accuracy at up to 60 units per minute and 2000 divisions.

Construction:
Stainless steel food-grade, stainless steel non-food-grade or aluminum non-food-grade

Configurations:
Checkweigher or conveyor scale

Speed:
Up to 240 ft per minute

Container Types:
Boxes, bags, pouches, trays, tubs, cups, blister packs, display packs, clam shells

Container Weights:
Up to 200 lb
Resolution down to 0.01 lb/5 g, or better (dependent on scale capacity)

Belts:
Interlox® Habasit®

Power Configuration:
110 VAC single phase, 60 Hz
230/460 VAC 3 phase, 60 Hz

Approvals:
Optional NTEP: 60 ppm at 2,000 divisions
Optional: UL 508

Warranty:
Two-year limited warranty (excludes powertrain and wear parts)

Configuration Input Power Indicator and Material
Scale Conveyor Only 115 VAC, 230 VAC
Single Phase
920
Mild Steel
1280
Stainless Steel
230 VAC, 460 VAC
3 Phase
920
Mild Steel
230 VAC, 460 VAC
3 Phase
Checkweigher with Reject 115 VAC, 230 VAC
Single Phase
920
Mild Steel
1280
Stainless Steel
  920
Mild Steel
1280
Stainless Steel
More input voltages are available upon request
Notes:
1. For single phase input power, total conveyor length must be >= 20 in or controls will need to be remote mounted
2. For 3 phase input power, total conveyor length must be >= 24 in or controls will need to be remote mounted

Standard Conveyor System Sizes and Configurations
Configuration Scale Width Scale Length Capacity PPM Material
Scale Conveyor Only 6 12 10, 20 Min Length: 3 in
Max Length (40ppm): 7 in
Max Length (75ppm): 3 in
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded
6 18 10, 20 Min Length: 3 in
Max Length (40ppm): 11.5 in
Max Length (80ppm): 5 in
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded
6 24 10, 20 Min Length: 3 in
Max Length (40ppm): 15.5 in
Max Length (80ppm): 7.5 in
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded
Checkweigher With Linear Thrust Reject Device (Includes: Infeed, Scale, and Outfeed conveyors. All conveyors same length) 6 12 10, 20 Min Length: 3 in
Max Length (40ppm): 7 in
Max Length (75ppm): 3 in
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded
6 18 10, 20 Min Length: 3 in
Max Length (40ppm): 11.5 in
Max Length (80ppm): 5 in
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded
6 24 10, 20 Min Length: 3 in
Max Length (40ppm): 15.5 in
Max Length (80ppm): 7.5 in
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded
Scale Conveyor Only 12 18 10, 20, 40 Min Length: 3 in (6 [email protected] lb)
Max Length (40ppm): 11.5 in
Max Length (80ppm): 5 in
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded
12 24 10, 20, 40 Min Length: 3 in (6 [email protected] lb)
Max Length (40ppm): 15.5 in
Max Length (80ppm): 7.5 in
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded
12 30 10, 20, 40 Min Length: 3 in (6 [email protected] lb)
Max Length (40ppm): 20 in
Max Length (80ppm): 10 in
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded
12 36 10, 20, 40 Min Length: 3 in (6 [email protected] lb)
Max Length (35ppm): 25.5 in
Max Length (70ppm): 15.5 in
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded
Checkweigher With Linear Thrust Reject Device (Includes: Infeed, Scale, and Outfeed conveyors. All conveyors same length) 12 18 10, 20, 40 Min Length: 3 in (6 [email protected] lb)
Max Length (40ppm): 11.5 in
Max Length (80ppm): 5 in
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded
12 24 10, 20, 40 Min Length: 3 in (6 [email protected] lb)
Max Length (40ppm): 15.5 in
Max Length (80ppm): 7.5 in
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded
12 30 10, 20, 40 Min Length: 3 in (6 [email protected] lb)
Max Length (40ppm): 20 in
Max Length (80ppm): 10 in
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded
12 36 10, 20, 40 Min Length: 3 in (6 [email protected] lb)
Max Length (35ppm): 25.5 in
Max Length (70ppm): 15.5 in
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded
Scale Conveyor Only 18 24 20, 40, 100 Min Length: 6 in (3 [email protected] lb)
Max Length (40ppm): 15.5 in
Max Length (80ppm): 7.5 in
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded
18 30 20, 40, 100 Min Length: 6 in (3 [email protected] lb)
Max Length (40ppm): 20 in
Max Length (80ppm): 10 in
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded
18 36 20, 40, 100 Min Length: 6 in (3 [email protected] lb)
Max Length (35ppm): 25.5 in
Max Length (70ppm): 15.5 in
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded
18 42 20, 40, 100 Min Length: 6 in (3 [email protected] lb)
Max Length (30ppm): 32 in
Max Length (60ppm): 22 in
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded
18 48 20, 40, 100 Min Length: 6 in (3 [email protected] lb)
Max Length (30ppm): 36.5 in
Max of 54ppm
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded
Checkweigher With Linear Thrust Reject Device (Includes: Infeed, Scale, and Outfeed conveyors. All conveyors same length) 18 24 20, 40, 100 Min Length: 3 in (6 [email protected] lb)
Max Length (35ppm): 25.5 in
Max Length (70ppm): 15.5 in
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded
18 30 20, 40, 100 Min Length: 6 in (3 [email protected] lb)
Max Length (40ppm): 20 in
Max Length (80ppm): 10 in
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded
18 36 20, 40, 100 Min Length: 6 in (3 [email protected] lb)
Max Length (35ppm): 25.5 in
Max Length (70ppm): 15.5 in
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded
18 42 20, 40, 100 Min Length: 6 in (3 [email protected] lb)
Max Length (30ppm): 32 in
Max Length (60ppm): 22 in
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded
18 48 20, 40, 100 Min Length: 6 in (3 [email protected] lb)
Max Length (30ppm): 36.5 in
Max of 54ppm
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded
Scale Conveyor Only 24 30 40, 100 Min Length: 6 in
Max Length (40ppm): 20 in
Max Length (80ppm): 10 in
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded
24 36 40, 100 Min Length: 6 in
Max Length (35ppm): 25.5 in
Max Length (70ppm): 15.5 in
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded
24 42 40, 100 Min Length: 6 in
Max Length (30ppm): 32 in
Max Length (60ppm): 22 in
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded
24 48 40, 100 Min Length: 6 in
Max Length (30ppm): 36.5 in
Max of 54ppm
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded
24 54 40, 100 Min Length: 6 in
Max Length (30ppm): 41.5 in
Max of 48ppm
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded
24 60 40, 100 Min Length: 6 in
Max Length (30ppm): 46 in
Max of 44ppm
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded
Checkweigher With Linear Thrust Reject Device (Includes: Infeed, Scale, and Outfeed conveyors. All conveyors same length) 24 30 40, 100 Min Length: 6 in
Max Length (40ppm): 20 in
Max Length (80ppm): 10 in
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded
24 36 40, 100 Min Length: 6 in
Max Length (35ppm): 25.5 in
Max Length (70ppm): 15.5 in
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded
24 42 40, 100 Min Length: 6 in
Max Length (30ppm): 32 in
Max Length (60ppm): 22 in
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded
24 48 40, 100 Min Length: 6 in
Max Length (30ppm): 36.5 in
Max of 54ppm
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded
24 54 40, 100 Min Length: 6 in
Max Length (30ppm): 41.5 in
Max of 48ppm
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded
24 60 40, 100 Min Length: 6 in
Max Length (30ppm): 46 in
Max of 44ppm
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded
Scale Conveyor Only 30 36 40, 100 Min Length: 6 in
Max Length (35ppm): 25.5 in
Max Length (70ppm): 15.5 in
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded
30 42 100, 200 Min Length: 6 in
Max Length (30ppm): 32 in
Max Length (60ppm): 22 in
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded
30 48 100, 200 Min Length: 6 in
Max Length (30ppm): 36.5 in
Max of 54ppm
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded
30 54 100, 200 Min Length: 6 in
Max Length (30ppm): 41.5 in
Max of 48ppm
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded
30 60 100, 200 Min Length: 6 in
Max Length (30ppm): 46 in
Max of 44ppm
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded
Checkweigher With Linear Thrust Reject Device (Includes: Infeed, Scale, and Outfeed conveyors. All conveyors same length) 30 36 100, 200 Min Length: 6 in
Max Length (35ppm): 25.5 in
Max Length (70ppm): 15.5 in
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded
30 42 100, 200 Min Length: 6 in
Max Length (30ppm): 32 in
Max Length (60ppm): 22 in
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded
30 48 100, 200 Min Length: 6 in
Max Length (30ppm): 36.5 in
Max of 54ppm
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded
30 54 100, 200 Min Length: 6 in
Max Length (30ppm): 41.5 in
Max of 48ppm
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded
30 60 100, 200 Min Length: 6 in
Max Length (30ppm): 46 in
Max of 44ppm
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded
Scale Conveyor Only 36 42 100, 200 Min Length: 6 in
Max Length (30ppm): 32 in
Max Length (60ppm): 22 in
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded
36 48 100, 200 Min Length: 6 in
Max Length (30ppm): 36.5 in
Max of 54ppm
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded
36 54 100, 200 Min Length: 6 in
Max Length (30ppm): 41.5 in
Max of 48ppm
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded
36 60 100, 200 Min Length: 6 in
Max Length (30ppm): 46 in
Max of 44ppm
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded
Checkweigher With Linear Thrust Reject Device (Includes: Infeed, Scale, and Outfeed conveyors. All conveyors same length) 36 42 100, 200 Min Length: 6 in
Max Length (30ppm): 32 in
Max Length (60ppm): 22 in
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded
36 48 100, 200 Min Length: 6 in
Max Length (30ppm): 36.5 in
Max of 54ppm
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded
36 54 100, 200 Min Length: 6 in
Max Length (30ppm): 41.5 in
Max of 48ppm
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded
36 60 100, 200 Min Length: 6 in
Max Length (30ppm): 46 in
Max of 44ppm
AL, Ind Welded
SST, Ind Welded
SST, Food Grade Welded



Resources / Downloads

Title View Email Category Type
Cherries in Motion View Email Agriculture|Checkweighers|Dynamic Weighing|In-Motion Checkweighers Articles
What are IP Ratings? Email Checkweighers|Indicators / Controllers|Load Cells|Platform Scales|Precision Balances|Retail Equipment|Wrappers|Weigh Modules Articles

Title Download Email
MotoWeigh IMW Catalog Page Download Email

Title Version Revision Download Email Category Archived
MotoWeigh IMW In-Motion Checkweigher with 1280 Enterprise Series Indicator Technical Manual A Download Email In-Motion Checkweighers No
MotoWeigh IMW In-Motion Checkweigher with 920i Programmable HMI Indicator/Controller Technical Manual D Download Email In-Motion Checkweighers No

Title Download Email
Motoweigh In-motion Checkweigher/Case Weigher Questionnaire Download Email
MotoWeigh Inspection Checklist Download Email
Motoweigh Integrator Application Specifications Questionnaire Download Email

Title Collateral Wizard Request Download Email Category
MotoWeigh In-Motion Weighing Equipment Request Download Email In-Motion Checkweighers|Bulk Material Weighing
The In-Motion Checkweighing Buyer's Guide Request Download Email In-Motion Checkweighers
Washdown Solutions Request Download Email Washdown Scales
The Food Safety Modernization Act: Sanitary Design Principles and the Role of Scales in Food Processing Request Download Email Washdown Scales|Bench Scales|Floor Scales|Checkweighers|In-Motion Checkweighers

Title View Download Email Category

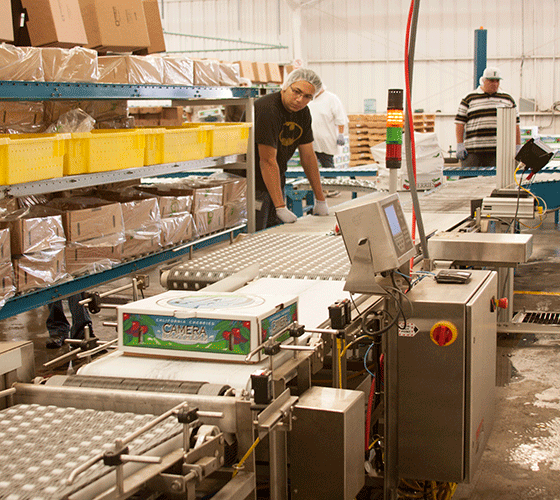

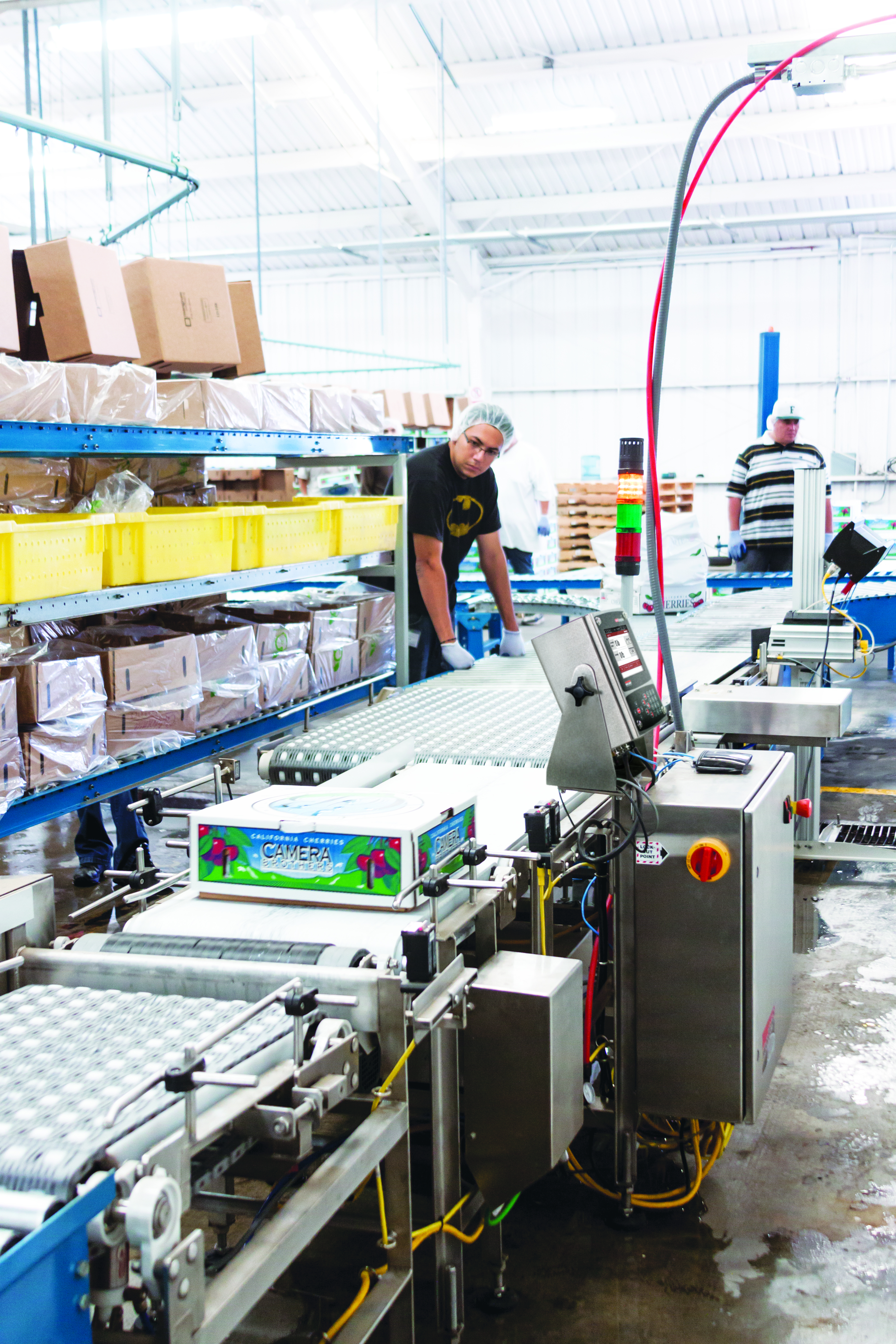

MotoWeigh Cherry Weighing Application View Download Email In-Motion Checkweighers
MotoWeigh In-motion Weighing System Demo: 360° VR Video View Email In-Motion Checkweighers

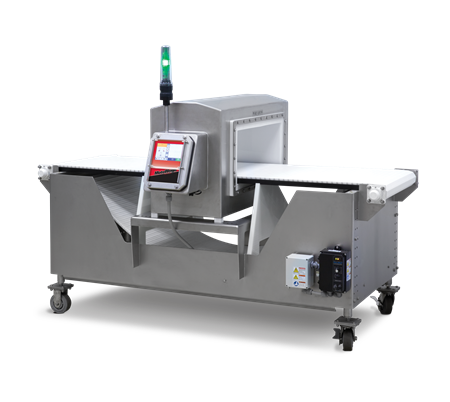

MotoWeigh® In-Motion Checkweigher & Metal Detection Demo Video View Download Email In-Motion Checkweighers
What's New with MotoWeigh® View Download Email In-Motion Checkweighers

Title Download Email Category
The Food Safety Modernization Act: Sanitary Design Principles and the Role of Scales in Food Processing Download Email Washdown Scales

Parts

Part # Description List Price Cart

Options

Part # Description List Price Cart

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

Browsers and Cookies

For optimal performance, please use a current version of Google Chrome or Microsoft Edge. Rice Lake and our third-party partners collect data and use cookies in order to personalize advertising and analyze traffic. Read our privacy policy for more information

Agree and Continue Close
