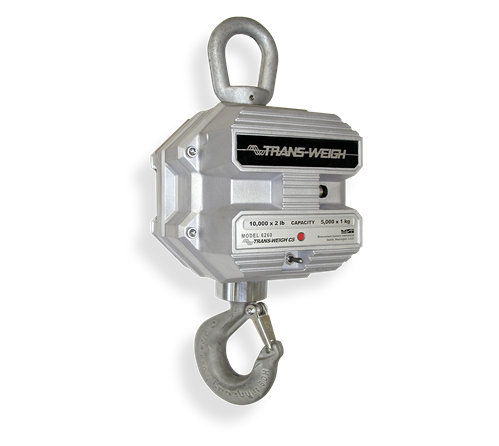

MSI-6260CS Trans-Weigh RF Crane Scale

(Contact MSI for application consultation)

  • Crane unit with 2.4 GHz spread spectrum transceiver
  • Top lifting eye or shackle, bottom thrust bearing swivel hook
  • 12 volt rechargeable battery and universal 115/230 VAC, 50/60 Hz battery charger (NA Plug Standard)
  • Meets or exceeds OSHA, ANSI, ASME and other safety design standards (5:1 Ultimate Safety Factor)
  • NTEP Certified configuration

Options

  • ScaleCore configurations available
  • Anti-heat shielding for high-temperature applications
  • Substitute bottom swivel hook with shackle
  • Oversized top lifting eye or shackle
  • Oversized bottom hook
  • Low headroom top adaptor
  • Universal direct power supply; 85 to 265 VAC, 47 to 440 Hz / 130 to 300 VDC
  • Wireless 802.11 b/g Ethernet connectivity
  • MSI-6260CS retrofit kit - conversion kit to upgrade existing MSI-4260 crane scales to MSI-6260CS
  • Custom top and bottom interfaces
  • Potential receivers: MSI-9850, MSI-9750A, Scoreboard, TranSend
  • Crane scale cart

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo

WARNING: Cancer and Reproductive Harm California Proposition 65

A World-Renowned Wireless Crane Scale

WIRELESS CONNECTIVITY IN AUTOMATED INDUSTRIAL WEIGHING AND PROCESS CONTROL INSTALLATIONS

The MSI-6260CS RF is a key member of the MSI CellScale™ product family and a world-renowned industrial grade crane scale featuring RF wireless connectivity with nearly all types of plant information systems. When networked with other CellScale components, the MSI- 6260CS provides enhanced system solutions for advanced wireless data collection and transfer in industrial material weighing as well as process control applications.

MSI-6260CS integrated with CellScale technology enables single or multiple crane scales to be controlled and monitored safely and efficiently from MSI’s RF remote indicators MSI-9850 and MSI-9750A. Wireless, real-time transmission of weight and product information may be processed through a system-configured network of CellScale components from distances up to 1000 feet (300m). Operating ranges can be further increased when optional long-range antennas are configured with other networked CellScale components. Both fixed and handheld digital weight indicators are available as well as RF modems for wireless connectivity to peripheral computers and scoreboards. Optional 802.11b/g Ethernet connectivity is also supported for adaptation with existing plant information systems.

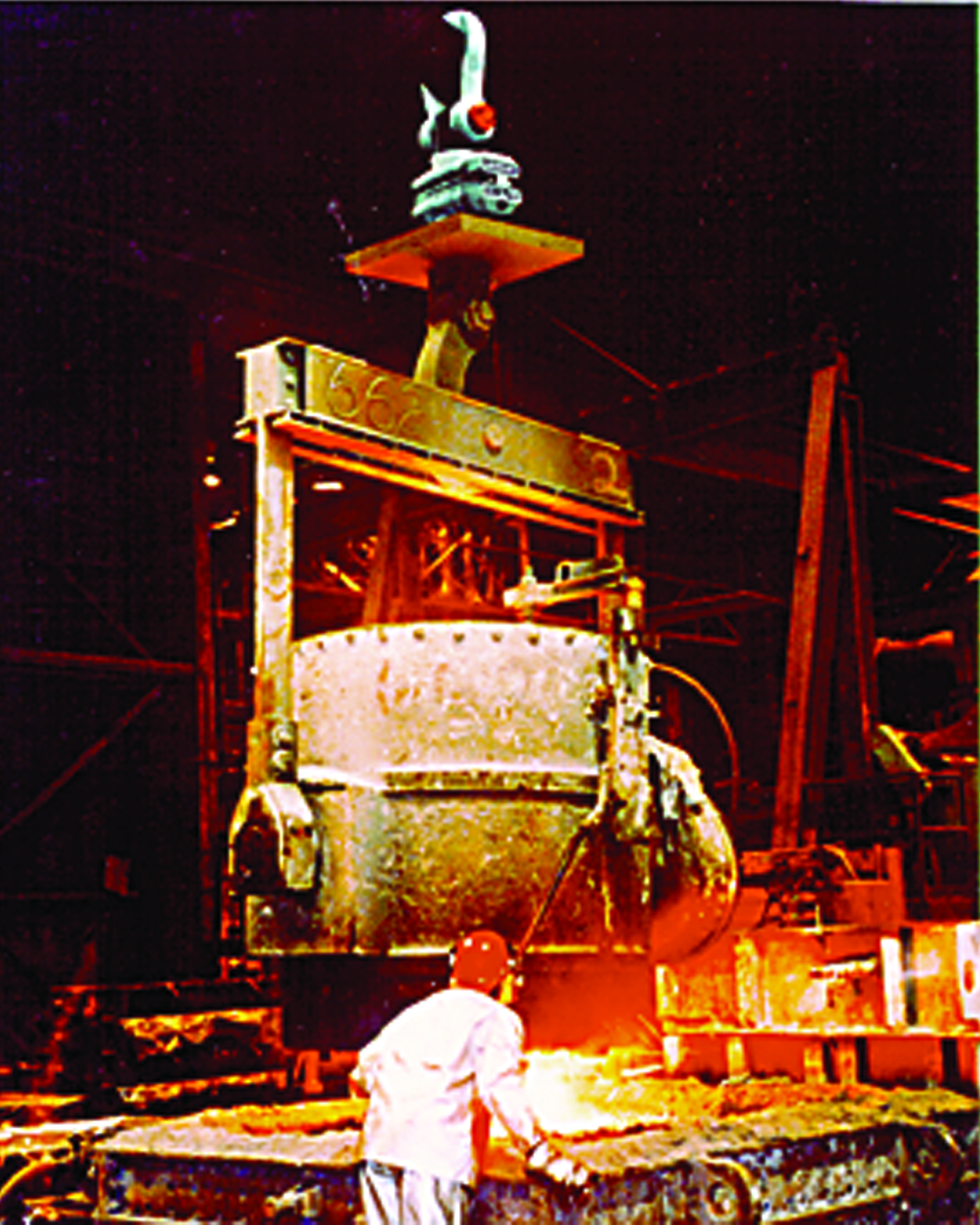

Ideal for use in demanding industrial applications and environments, the MSI-6260CS is available in a standard range of capacities up to 50 tons. Larger capacity and application specific designs are also available on request. All electronics are securely shock mounted in a robust NEMA 4/IP66 marine grade enclosure. Additional options are also available for mill and foundry use over high-temperature ladle installations.

Also see specifications for other CellScale family components complementing the MSI-6260CS including: MSI-9750A, MSI-9850, RF indicators, MSI-9000, MSI-9020, RF scoreboards and MSI-9300 and MSI-9300HT crane scales. The MSI-9300 and MSI-9300HT provide all of the same features and benefits of the MSI-6260CS plus an integrated digital display and fixed hook options for use with powered rotating hooks or special installations. MSI CellScale products provide configurable system solutions to satisfy nearly any wireless weighing application.

Accuracy:
± (0.1% +1 d) of applied load

Resolution:
3,000 to 5,000 d standard (Up to 10,000 d available)

Enclosure:
NEMA Type 4, IP66, marine grade 356 alloy anodized cast aluminum

Lifting Eye, Shackle & Hook:
Crosby® or equivalent with 360° thrust-bearing swivel hook

Design Overload:
200% Safe / 500% Ultimate (except where noted)

Functions:
POWER On/Off (all other scale functions are controlled from other optional networked MSI scale indicators MSI-9850 and/or MSI-9750A)

Displayable Units:
Pounds or kilograms selectable

Power:
12 Volt rechargeable battery, 115/230 VAC battery charger included

Operating Time:
Up to 40 hours between charging with typical use

Operating Temperature:
-4 °F to 140 °F (-20 °C to 60 °C)
Legal for Trade: 14 °F to 104 °F (-10 °C to 40 °C)

Calibration:
Digital via MSI-9750A or MSI-9850 RF indicators or via serial interface with PC terminal program

Radio Link:
FHSS at 2.4 GHz

Radio Link Effective Range:
Typically 500 ft (150 m) indoor, 1,000 ft (300 m) outdoor with standard antennas

Warranty:
One-year limited

Approvals:
NTEP CC 07-007: 5,000 to 70,000 lb
(2,500 to 35,000 kg)

Resources / Downloads

Title View Email Category Type
Which Crane Scale is the best fit for my Application? Email MSI Crane Scales|Overhead Weighing Systems Articles
When to Use a Dynamometer to Measure Tension Email MSI Crane Scales|Tension Dynamometers Articles

Title Download Email
MSI-6260CS Trans-Weigh CellScale RF Catalog Page Download Email

Title Version Revision Download Email Category Archived
Ethernet 802.11b Configuration Manual A Download Email MSI Crane Scales No
MSI Crane Scale Safety and Periodic Maintenance Manual A Download Email MSI Crane Scales No
MSI-6260CS Calibration Guide Download Email MSI Crane Scales No
MSI-6260CS Operator's Manual Download Email MSI Crane Scales No
MSI-6260CS Setup Exit Guide Download Email MSI Crane Scales No
MSI-6260CS Software Upgrade Guide Download Email MSI Crane Scales No

Title Download Email
Low Headroom Questionnaire Download Email
MSI Hook Questionnaire Download Email
Overhead Weighing Systems Questionnaire Download Email
Weighing System Questionnaire Download Email

Title Download Email
MSI-6260CS Replacement Parts Page Download Email

Title Collateral Wizard Request Download Email Category
Crane Scale Selection Guide Request Download Email MSI Crane Scales|Overhead Weighing Systems
MSI Crane Scale Installation Tips Download Email MSI Crane Scales
MSI Crane Scale Family Comparison Download Email MSI Crane Scales
MSI Overhead Weighing Product Guide Request Download Email MSI Crane Scales
MSI-6260CS Retrofit Kit RF Digital Crane Scale Request Download Email MSI Crane Scales
MSI-6260CS Trans-Weigh RF Digital Crane Scale Request Download Email MSI Crane Scales
The Overhead Weighing Solutions Buyer's Guide Request Download Email Systems Integration/Load Cells|Tension Dynamometers|MSI Software|MSI Aircraft Load Monitoring|MSI Crane Scales|Overhead Weighing Systems
Why Buy MSI? Download Email MSI Crane Scales|Overhead Weighing Systems

Title View Download Email Category
Ensure Safety with MSI View Download Email Overhead Weighing Systems|MSI Crane Scales|Systems Integration/Load Cells|Hanging Scales|Weight Indicators|MSI Software|MSI Aircraft Load Monitoring
Types of Crane Scales View Download Email Overhead Weighing Systems

Parts

MSI-6260CS Trans-Weigh RF

Part # Description List Price Cart
138729 MSI-6260 500 Lb Final Assembly. Trans-Weigh CellScale Crane Scale With Integrated 2.4 Ghz Frequency Hopping Spread Spectrum RF Transceiver. Standard Features Include: Crosby or Equivalent Top Lifting Eye/Shackle, and Bottom Thrust Bearing Swivel Hook. A Twelve-Volt Rechargeable Battery And Universal 115/230 VAC, 50/60 Hz Battery Charger Are Also Included.

List Price: $5,730.00

138730 MSI-6260 2000 Lb Final Assembly. Trans-Weigh CellScale Crane Scale With Integrated 2.4 Ghz Frequency Hopping Spread Spectrum RF Transceiver. Standard Features Include: Crosby or Equivalent Top Lifting Eye/Shackle, and Bottom Thrust Bearing Swivel Hook. A Twelve-Volt Rechargeable Battery And Universal 115/230 VAC, 50/60 Hz Battery Charger Are Also Included.

List Price: $5,730.00

138731 MSI-6260 5000 Lb Final Assembly. Trans-Weigh CellScale Crane Scale With Integrated 2.4 Ghz Frequency Hopping Spread Spectrum RF Transceiver. Standard Features Include: Crosby or Equivalent Top Lifting Eye/Shackle, and Bottom Thrust Bearing Swivel Hook. A Twelve-Volt Rechargeable Battery And Universal 115/230 VAC, 50/60 Hz Battery Charger Are Also Included.

List Price: $5,830.00

138732 MSI-6260 10000 Lb Final Assembly. Trans-Weigh CellScale Crane Scale With Integrated 2.4 Ghz Frequency Hopping Spread Spectrum RF Transceiver. Standard Features Include: Crosby or Equivalent Top Lifting Eye/Shackle, and Bottom Thrust Bearing Swivel Hook. A Twelve-Volt Rechargeable Battery And Universal 115/230 VAC, 50/60 Hz Battery Charger Are Also Included.

List Price: $6,090.00

138506 MSI-6260 20000 Lb Final Assembly. Trans-Weigh CellScale Crane Scale With Integrated 2.4 Ghz Frequency Hopping Spread Spectrum RF Transceiver. Standard Features Include: Crosby or Equivalent Top Lifting Eye/Shackle, and Bottom Thrust Bearing Swivel Hook. A Twelve-Volt Rechargeable Battery And Universal 115/230 VAC, 50/60 Hz Battery Charger Are Also Included.

List Price: $7,430.00

138507 MSI-6260 30000 Lb Final Assembly. Trans-Weigh CellScale Crane Scale With Integrated 2.4 Ghz Frequency Hopping Spread Spectrum RF Transceiver. Standard Features Include: Crosby or Equivalent Top Lifting Eye/Shackle, and Bottom Thrust Bearing Swivel Hook. A Twelve-Volt Rechargeable Battery And Universal 115/230 VAC, 50/60 Hz Battery Charger Are Also Included.

List Price: $7,800.00

138508 MSI-6260 50000 Lb Final Assembly. Trans-Weigh CellScale Crane Scale With Integrated 2.4 Ghz Frequency Hopping Spread Spectrum RF Transceiver. Standard Features Include: Crosby or Equivalent Top Lifting Eye/Shackle, and Bottom Thrust Bearing Swivel Hook. A Twelve-Volt Rechargeable Battery And Universal 115/230 VAC, 50/60 Hz Battery Charger Are Also Included.

List Price: $10,580.00

138509 MSI-6260 70000 Lb Final Assembly. Trans-Weigh CellScale Crane Scale With Integrated 2.4 Ghz Frequency Hopping Spread Spectrum RF Transceiver. Standard Features Include: Crosby or Equivalent Top Lifting Eye/Shackle, and Bottom Thrust Bearing Swivel Hook. A Twelve-Volt Rechargeable Battery And Universal 115/230 VAC, 50/60 Hz Battery Charger Are Also Included.

List Price: $12,890.00

138510 MSI-6260 100000 Lb Final Assembly. Trans-Weigh CellScale Crane Scale With Integrated 2.4 Ghz Frequency Hopping Spread Spectrum RF Transceiver. Standard Features Include: Crosby or Equivalent Top Lifting Eye/Shackle, and Bottom Thrust Bearing Swivel Hook. A Twelve-Volt Rechargeable Battery And Universal 115/230 VAC, 50/60 Hz Battery Charger Are Also Included.

List Price: $20,700.00

Options

Options

Part # Description List Price Cart
159625 MSI-9850 Meter AC POWER United States

List Price: $2,920.00

138486 MSI-9750A RF Indicator Final Assembly, Portable. Compatible With MSI-6260CS, MSI-9300 And MSI-9000 CellScale. Includes Integrated Rechargeable Battery And Universal Charger

List Price: $2,190.00

138341 MSI-9850 Mounting Bracket Universal

List Price: $160.00

159221 MSI CRANE CART (48.50)

List Price: $1,250.00

138575 FINAL ASSY 6260CS 2450 RETROFIT

List Price: $3,130.00

139056 MSI-Scoreboard RF, Final Assembly. 4 Red Characters, Six Digits. For Use With CellScale Enabled Devices

List Price: $3,440.00

139052 MSI-Scoreboard RF, Final Assembly. 6 Red Characters, Six Digits. For Use With CellScale Enabled Devices

List Price: $4,260.00

Consult AC power supply

Call for price

Consult Anti-heat shield

Call for price

Consult Wi-Fi Ethernet option

Call for price

Consult Audible alarm

Call for price

Accessories

6260 Sub Hook with Shackle

6260 Oversize Lifting Eye/Shackle

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

Related Products

WEB SC MSI9300

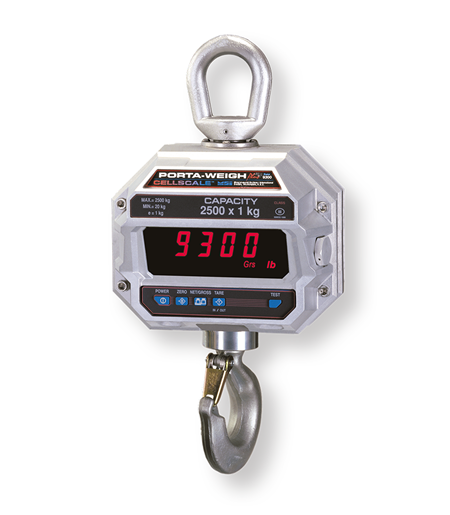

MSI-9300 Port-A-Weigh Plus CellScale™ RF Crane Scale

The MSI-9300 Port-A-Weigh Plus RF crane scale uses advanced CellScale™ technology to power medium- to heavy-capacity and duty-cycle crane scale applications.

Hdimage(1) (1)

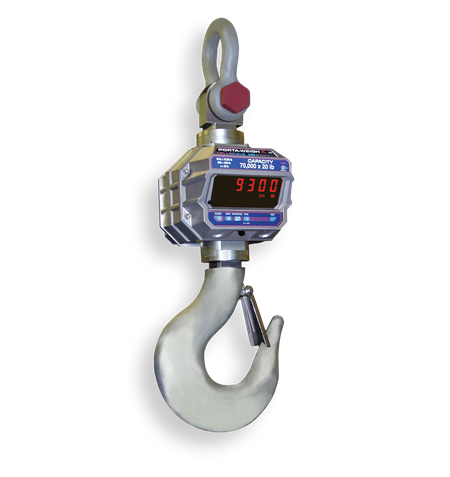

MSI-9300HT Hi-Torque Port-A-Weigh Plus CellScale™ RF Crane Scale

The MSI-9300HT crane scale offers a unique and robust "high torque" load train with a fixed hook for applications involving Powered Rotating Load Block or attachment.

Hdimage(1)

MSI-7300 Dyna-Link 2 Digital Tension Dynamometer

The industry's most advanced digital tension dynamometer, the new and improved MSI-7300, provides more features and benefits than earlier dynamometer models.

Hdimage(1)

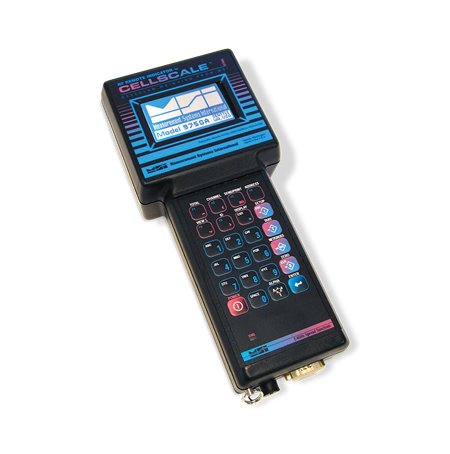

MSI-9750A CellScale™ RF Portable Indicator

Choose the MSI-9750A handheld RF portable indicator for remote operation of MSI's CellScale crane scale models.

Hdimage(1)

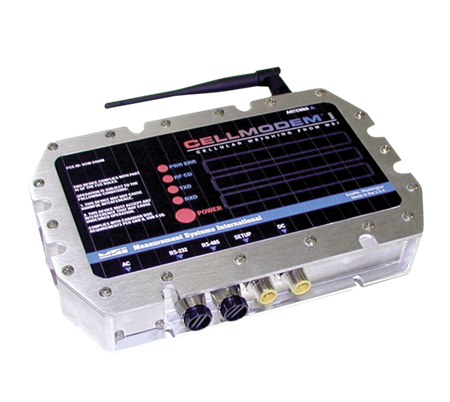

MSI-9020 CellScale™ RF CellModem
