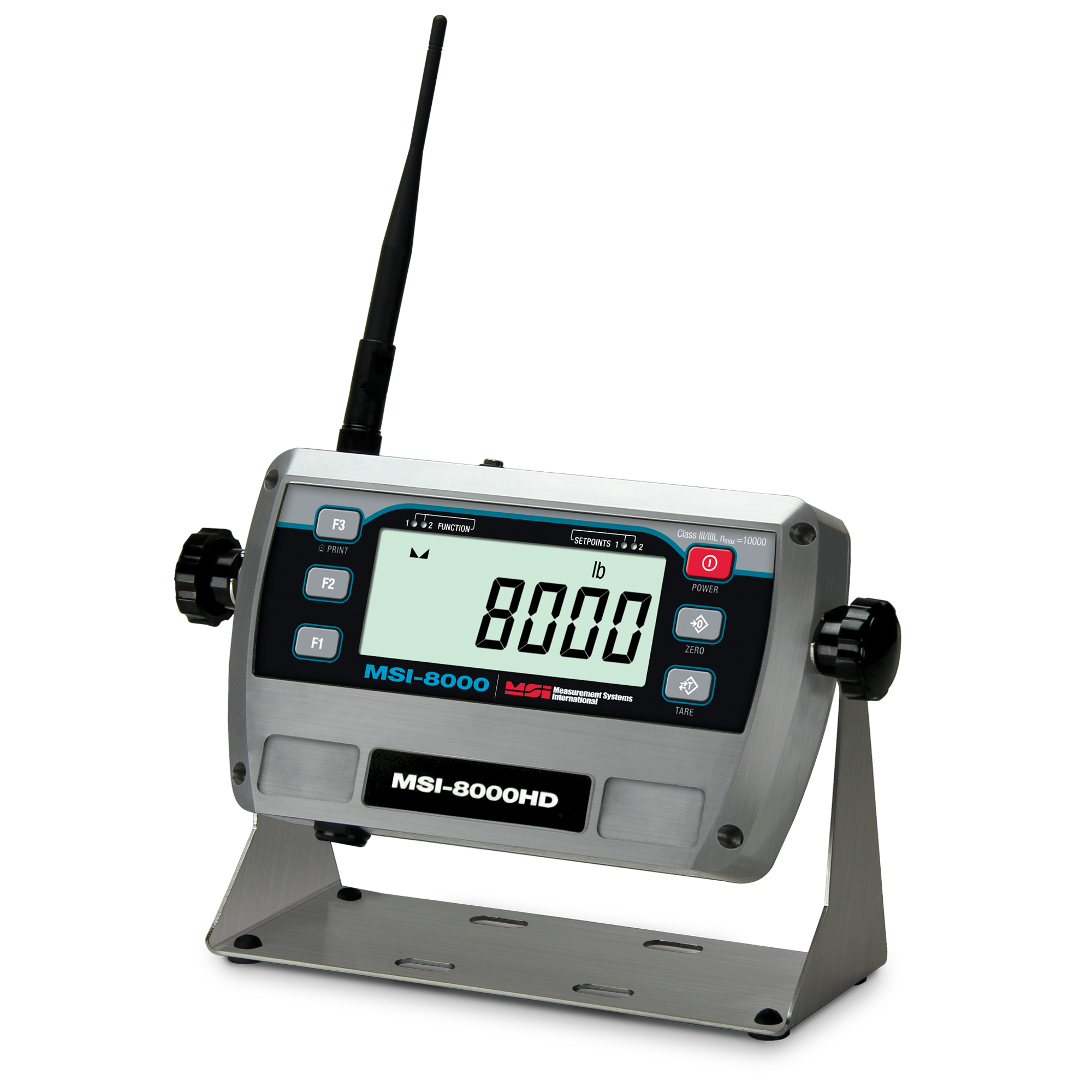

MSI-8000HD Indicator/Remote Display

  • Compatible with all ScaleCore™-based products including: MSI-7300 Dyna-Link 2, MSI-3460 Challenger 3, MSI-4260 Port-A-Weigh, MSI-7000 and MSI-7001 TranSend™, MSI-9600HT and MSI-6360
  • LCD display
  • IP68 milled aluminum enclosure
  • Time and date
  • Membrane keypad for remote-control functionality
  • User-definable function keys for added versatility
  • Swivel tilt stand

Options
(Contact MSI for application consultation)

  • Up to 8 configurable relay outputs
  • Wi-Fi communications
  • 802.15.4 Serial RF
  • FHSS
  • Wired Ethernet

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo

WARNING: Cancer and Reproductive Harm California Proposition 65

Rugged, Versatile Control

Fortified by the acclaimed reputation of its star precursor, MSI-8000HD is the heavy duty version of the reputable handheld MSI-8000 RF remote display. The milled anodized aluminum, IP68-rated, enclosure is mountable in either a direct panel mount or optional tilt stand. The full waterproof construction resists most elements making it especially appealing to the petro-chemical, energy, marine and aerospace industries. Fully compatible with all MSI ScaleCore-based crane scales and dynamometers, the MSI-8000HD provides utmost versatility for any application.

Rugged, Versatile Communication

User-definable function keys and a bold six-digit one inch display ease usability and readability. Process control, safety and other systems benefit with optional relays installed to optimize workflow and operator ease. The MSI-8000HD meters may be used as a fully functional weigh meter with the standard inclusion of a precision 24-bit A/D. Additionally, the MSI-8000HD-2 has RF capability to transmit data to a secondary MSI-8000 or non-A/D MSI-8000HD. Wi-Fi, Ethernet or serial option cards are available for direct connections to networks and computers for advanced traceability and reporting.

Power:
90-267 VAC, 9-36 VDC, 18-72 VDC, 120-300 VDC
Optional battery power module available

Excitation Voltage:
4.8V current limited and over-voltage protected

RF Remote Channels:
Up to four remote sensors, monitored individually, in pairs or sum all (non-A/D version only)

Service Counters:
A/D version only

A/D Inputs:
Two independent or summing load cell inputs

Filtering:
Off, Low, Hi-1, Hi-2



RF Radio Link:
2.4 GHz 802.15.4
Compatible with all ScaleCore™ based products including:
MSI-7300 Dyna-Link 2, MSI-3460 Challenger 3,
MSI-4260 Port-A-Weigh, MSI-7000 and MSI-7001

RF Effective Range:
Typically 100 to 300 ft, line of sight; for longer range consult factory

Communication Ports:
Dual RS-232 communication ports

Optional Communications:
Wi-Fi
Serial RF (Single Sequence or FHSS)

Annunciators:
Stable, COZ, peak, kg, kN. lb, M, ton, setpoint, function LEDs
Channels: 1, 2, 3, 4, TTL

Display:
Six-digit 1.0 in (26.4 mm) LCD

Units Displayed:
Pounds, kilograms, tons, metric tons, kilonewtons

Keys/Buttons:
On/Off, Zero (100%), Tare, Print, and Two user-defined keys for the following functions: peak hold, high resolution, total, view total, net/gross, units switching

Rating/Material:
Enclosure: NEMA Type 4, IP68 milled anodized aluminum with O-ring gaskets

Temperature Range:
Operating: -4 °F to 140 °F (-20 °C to 60 °C)
Certified: 14 °F to 104 °F (-10º °C to 40 °C)

Warranty:
One-year limited

Approvals:
NTEP CC 15-110 (-10 °C to 40 °C)

Dimensions
A 5.09 in (129 mm) C 1.35 in (34 mm)
B 8.98 in (228 mm) D 1.63 in (41 mm)







Dimensions (With Tilt Stand)
A 11.06 in (281 mm) D 8.02 (204 mm)
B 9.13 in (232 mm) E 6.16 in (156 mm)
C 9.50 in (241 mm) F 3.25 in (83 mm)

Resources / Downloads

Title View Email Category Type
Flipping for Wireless View Email Overhead Weighing Systems Application Story
Overhead Weighing Safety Guide Email Overhead Weighing Systems Articles

Title Download Email
MSI-8000HD Catalog Page Download Email

Title Version Revision Download Email Category Archived
MSI-8000HD RF Indicator Technical Manual C Download Email MSI Crane Scales No
MSI-8000HD RF Remote Display Technical Manual C Download Email MSI Crane Scales No
Ethernet 802.11b Configuration Manual A Download Email MSI Crane Scales No
MSI Crane Scale Safety and Periodic Maintenance Manual A Download Email MSI Crane Scales No
MSI Wi-Fi Setup Download Email MSI Crane Scales No
MSI-8000HD and MSI-8004HD Expanded Relay Option Kit Addendum Download Email MSI Crane Scales No
ScaleCore Connect Software Manual B Download Email MSI Crane Scales|Overhead Weighing Systems No

Title Download Email
Overhead Weighing Systems Questionnaire Download Email

Title Download Email
MSI-8000HD Replacement Parts Page Download Email

Title Collateral Wizard Request Download Email Category
6 Step Integrated Crane Weighing Component Selector Guide Request Download Email MSI Crane Scales
Crane Scale Selection Guide Request Download Email MSI Crane Scales|Overhead Weighing Systems
MSI Overhead Weighing Product Guide Request Download Email MSI Crane Scales
MSI-8000 and MSI-8000HD Request Download Email MSI Crane Scales|Remote Displays / Scoreboards
Overhead Weighing Safety Guide Request Download Email Overhead Weighing Systems|MSI Crane Scales
The Overhead Weighing Solutions Buyer's Guide Request Download Email Systems Integration/Load Cells|Tension Dynamometers|MSI Software|MSI Aircraft Load Monitoring|MSI Crane Scales|Overhead Weighing Systems
Why Buy MSI? Download Email MSI Crane Scales|Overhead Weighing Systems

Title Version Size Release Date Download Email
ScaleCore Configuration Management Program (ScCMP) Software v2-0-5-51 44.9 MB 06/17/2015 Download Email
ScaleCore Connect 1.01 47.3 MB 11/25/2019 Download Email
MSI WiFi Connect 1.0 58.3 MB 05/04/2017 Download Email

Title View Download Email Category
Ensure Safety with MSI View Download Email Overhead Weighing Systems|MSI Crane Scales|Systems Integration/Load Cells|Hanging Scales|Weight Indicators|MSI Software|MSI Aircraft Load Monitoring
MSI-8000HD and MSI-7300 Dyna-Link Car-pulling Demonstration View Download Email Overhead Weighing Systems|Tension Dynamometers

Title Download Email Category
Connecting with MSI Download Email MSI Crane Scales

Parts

Part # Description List Price Cart
153591 FINAL ASSY REMOTE DISPLAY AC POWER 8000HD

List Price: $1,440.00

154853 FINAL ASSY REMOTE DISPLAY BATTERY POWER 8000HD

List Price: $1,560.00

160476 FINAL ASSY REMOTE DISPLAY 8000HD 7-36VDC Non Isolated

List Price: $1,390.00

159377 FINAL ASSY REMOTE DISPLAY 8000HD 18-72VDC Isolated

List Price: $1,420.00

159376 FINAL ASSY REMOTE DISPLAY 8000HD 9-36VDC Isolated

List Price: $1,420.00

158427 Final Assy 8000HD Meter Non-RF AC Power

List Price: $1,750.00

158428 Final Assy 8000HD Meter Non-RF Battery Power

List Price: $1,860.00

160478 FINAL ASSY 8000HD METER NON-RF 7-36VDC Non Isolated

List Price: $1,560.00

159381 FINAL ASSY 8000HD METER NON-RF 18-72VDC Isolated

List Price: $1,600.00

159380 FINAL ASSY 8000HD METER NON-RF 9-36VDC Isolated

List Price: $1,600.00

158425 Final Assy 8000HD Meter RF AC Power

List Price: $1,770.00

158426 Final Assy 8000HD Meter RF Battery Power

Call for price

160477 FINAL ASSY 8000HD METER RF 7-36VDC Non Isolated

List Price: $1,770.00

159379 FINAL ASSY 8000HD METER RF 18-72VDC Isolated

List Price: $1,780.00

159378 FINAL ASSY 8000HD METER RF 9-36VDC Isolated

List Price: $1,780.00

176958 Final Assy 8000HD Meter WIFI, AC Power

List Price: $1,470.00

176960 Final Assy 8000HD Meter WIFI, Battery Power

List Price: $1,600.00

176964 Final Assy 8000HD Meter WIFI, 7-36VDC Non Isolated

List Price: $1,420.00

176966 Final Assy 8000HD Meter WIFI, 9-36VDC Isolated

List Price: $1,460.00

176968 Final Assy 8000HD Meter WIFI, 18-72VDC Isolated

List Price: $1,460.00

Options

Options

Part # Description List Price Cart
155173 OPTION KIT TILT STAND 8000HD

List Price: $83.00

155193 OPTION KIT ETHERNET 8000HD

List Price: $410.00

162178 Option Kit Remote Antenna 7000/7001 (Uses Standard Antenna)

List Price: $465.00

148624 Cable Assembly RS232/485 CellScale To DB-9, For Scale Calibration And Configuration.

List Price: $135.00

158779 Option Kit Coil Relays 250VAC / 30VDC 4A or 100VDC 0.4A 8000HD

List Price: $355.00

158780 Option Kit Solid State Relays 60Vpk 2.7A

List Price: $355.00

158781 Option Kit Solid State Relays 200Vpk 0.9A

List Price: $355.00

149549 MSI-8000 Battery Charger 115/230 VAC 50/60 Hz. North American Style Plug

List Price: $155.00

149550 FINAL ASSY BATTERY CHARGER INTL 8000

List Price: $150.00

171203 Option Kit Audible Alarm 8000HD

List Price: $355.00

176963 Cable Assy. Comm. 3 Wire DTE 9 Pin Male

List Price: $155.00
