MSI-9020 CellScale™ RF CellModem

  • Modem-only component; provides serial interface with computers, printers and scoreboards to a CellScale network
  • 2.4 GHz spread spectrum frequency hopping
  • Power cable, 13 ft (4 m) for 9-30 VDC input
  • One communication port; RS-232 or RS-422, 13 ft (4 m) interface cable
  • NEMA Type 4, IP65 enclosure (NEMA Type 6, IP67 with long range antenna)

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo

WARNING: Cancer and Reproductive Harm California Proposition 65

The MSI-9020 CellModem is an accessory of the CellScale and wireless weighing systems. The CellModem provides a wireless interface from a CellScale to any serial device. Support is provided for computers, scoreboards, printers, PLC's and virtually any serial connected device.

The MSI-9020 CellModem is an accessory of the CellScale and wireless weighing systems. The CellModem provides a wireless interface from a CellScale to any serial device. Support is provided for computers, scoreboards, printers, PLC's and virtually any serial connected device.

Enclosure:
NEMA Type 4, IP65 milled anodized aluminum with O-ring gaskets
NEMA Type 6, IP67 with optional long range antenna

Weight:
3.5 lb (1.6 kg)

Annunciators:
3 LED status lamps for Power, Data TX/RX and Configuration

Power Input:
9 to 30 VDC (Internal 85 to 265 VAC, 47 to 440 Hz power supply optional)

Operating Temperature:
-4 °F to 158 °F (-20 °C to 70 °C)
Legal for Trade: 14 °F to 104 °F (-10 °C to 40 °C)

Radio Link:
FHSS at 2.4 GHz (up to 64 network selections)

Radio Link Effective Range:
Typically 500 ft (150 m) indoor, 1,000 ft (300 m) outdoor with standard antennas
(See optional antennas for longer range)

Standard Antenna:
1/2 wave 2dBi, articulated

RFI/EMI Shielding:
Exceeds NIST HB44 and CE Standards

Data I/O:
1 Comm Port with two connector interfaces for RS-232 and RS-422

Warranty:
One-year limited

Approvals:
NTEP CC 05-077

Resources / Downloads

Title Download Email
MSI-9020 CellScale RF CellModem Catalog Page Download Email

Title Version Revision Download Email Category Archived
MSI-9020 CellModem User Guide Download Email MSI Crane Scales No

Title Download Email
MSI-9020 Replacement Parts Page Download Email

Title Collateral Wizard Request Download Email Category
MSI Overhead Weighing Product Guide Request Download Email MSI Crane Scales

Title View Download Email Category
Ensure Safety with MSI View Download Email Overhead Weighing Systems|MSI Crane Scales|Systems Integration/Load Cells|Hanging Scales|Weight Indicators|MSI Software|MSI Aircraft Load Monitoring

Parts

MSI-9020

Part # Description List Price Cart
138477 FINAL ASSY 9020 2450 DC

List Price: $2,680.00

138478 F/A 9020 2450 AC/DC

List Price: $3,020.00

Options

Options

Part # Description List Price Cart
137567 CABLE ASSY,RS232/485 9020 TO DB9 DCE

List Price: $130.00

143466 ANTENNA 2.4 GHz MAST MOUNT 9dBi TNC

Call for price

Consult 9 dBi or 14 dBi gain corner reflector antenna

Call for price

Consult 5 dBi gain vehicle/cab mount whip antenna, includes 17 ft/5.2 m coaxial cable

Call for price

Consult CellScale Virtual Monitor (CVM) application software (enables PC to emulate scale indicator., contact factory for assistance)

Call for price

Consult Internal 85-265 VAC, 47-440 Hz power supply

Call for price

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

Related Products

WEB SC MSI9300

MSI-9300 Port-A-Weigh Plus CellScale™ RF Crane Scale

The MSI-9300 Port-A-Weigh Plus RF crane scale uses advanced CellScale™ technology to power medium- to heavy-capacity and duty-cycle crane scale applications.

Hdimage(1) (1)

MSI-9300HT Hi-Torque Port-A-Weigh Plus CellScale™ RF Crane Scale

The MSI-9300HT crane scale offers a unique and robust "high torque" load train with a fixed hook for applications involving Powered Rotating Load Block or attachment.

Hdimage(1)

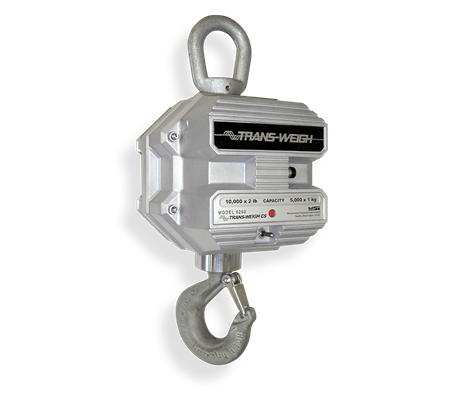

MSI-6260CS Trans-Weigh RF Crane Scale
