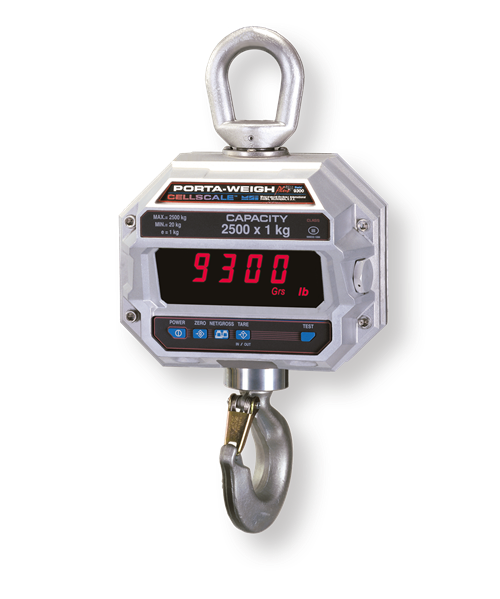

MSI-9300 Port-A-Weigh Plus CellScale™ RF Crane Scale

Standard Features

  • Crane unit with 2.4 GHz spread spectrum transceiver
  • Six-digit, 1.2 in (30 mm) LED display and annunciators
  • Top lifting eye or shackle, bottom thrust bearing swivel hook
  • 12 volt rechargeable battery and universal 115/230 VAC, 50/60 Hz battery charger (NA Plug Standard)
  • NTEP Certified configuration

Options

(Contact MSI for application consultation)

  • RF remote crane unit control, includes On/Off, Zero, Tare, Net/Gross, Total and programmable function keys
  • Audible alarm
  • Anti-heat shielding for high-temperature applications
  • Substitute bottom swivel hook with shackle
  • Low headroom top adapter
  • Oversized top lifting eye or shackle
  • Oversized bottom hook
  • Universal direct power supply; 85-265 VAC, 47-440 Hz / 130-300 VDC
  • Wireless 802.11 b/g Ethernet connectivity
  • MSI-9300 retrofit kit - conversion kit to upgrade existing MSI-4300 crane scale to 9300 RF unit
  • Custom top and bottom interfaces
  • Potential receivers: MSI-9850, 9750A, remote RF Indicators (each sold separately)
  • Crane scale cart

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo

WARNING: Cancer and Reproductive Harm California Proposition 65

The Premier Solution for Wireless Overhead Weighing and Process Control Applications

The MSI-9300 crane scale combines an integrated weight display with advanced wireless data processing capability providing versatile solutions in overhead industrial weighing applications. The MSI-9300 merges MSI’s advanced CellScale™ technology with world-renowned crane scale designs providing local and remote control capabilities along with connectivity with plant information systems.

This model features industrial-grade, shock-mounted electronics, watertight packaging with large ultra-bright displays readable at distances up to 50 feet (15m). Integrated CellScale technology offers the ability to effectively monitor and control single or multiple crane scales from multiple locations throughout plant operations. Wireless, real-time transmission of weight and product information can be processed through a system-configured network of CellScale components from distances up to 1000feet (300m) with standard antennas. Operating range can be further increased with optional antennas configured with other networked CellScale components.

Both fixed and handheld digital weight indicators are available in addition to RF modems for wireless connectivity with peripheral computers and scoreboards. Optional 802.11b/g Ethernet connectivity is also supported for adaptation and integration with existing plant information systems.

The MSI-9300 is available in a standard range of capacities, up to 50 tons. Larger and application specific designs are available for capacities over 50 tons. Additional options and configurations are also available for mill and foundry over high temperature ladle installations.

Accuracy:
± (0.1% +1 d) of applied load

Resolution:
3,000 to 5,000 d standard (Up to 10,000 d available)

Enclosure:
NEMA Type 4, IP66, marine grade 356 alloy anodized cast aluminum

Lifting Eye, Shackle & Hook:
Crosby® or equal with 360º thrust-bearing swivel hook

Design Overload:
200% Safe / 500% Ultimate (except where noted)

Functions:
Power, zero, net/gross, tare and programmable test/user

Display:
Six digit, 1.2 in (30 mm) LED with 14 feature annunciators and programmable brightness control

Displayable Units:
Pounds or kilograms selectable

Power:
12 V rechargeable battery, 115-230 VAC battery charger included

Operating Time:
Up to 30 hours between charging with typical use

Operating Temperature:
-4º F to 140º F (-20º C to 60º C)
Legal for Trade: 14° to 104°F (-10º C to 40° C)

Calibration:
Digital via MSI-9750A or MSI-9850 RF indicators or via serial interface with PC terminal program

Filtering:
LO, Medium and HI selectable

Radio Link:
FHSS at 2.4 GHz

Radio Effective Range:
Typically 500 ft (150 m) indoor, 1000 ft (300 m) outdoor with standard antennas

Approvals:
NTEP CC 07-007; 5,000 - 70,000 lb (2,500 - 35,000 kg capacities)

Warranty:
One-year limited

Resources / Downloads

Title View Email Category Type
6 Steps to Create an Integrated Crane Weighing System View Email MSI Crane Scales Articles
What are Overhead Weighing Solutions? Email Overhead Weighing Systems|MSI Software|Tension Dynamometers Articles
Which Crane Scale is the best fit for my Application? Email MSI Crane Scales|Overhead Weighing Systems Articles
When to Use a Dynamometer to Measure Tension Email MSI Crane Scales|Tension Dynamometers Articles

Title Download Email
MSI-9300 Port-A-Weigh Plus CellScale RF Catalog Page Download Email

Title Version Revision Download Email Category Archived
Ethernet 802.11b Configuration Manual A Download Email MSI Crane Scales No
MSI Crane Scale Safety and Periodic Maintenance Manual A Download Email MSI Crane Scales No
MSI-9300 and MSI-4300 Crane Scale Cage Kit Download Email MSI Crane Scales No
MSI-9300 Calibration Guide Download Email MSI Crane Scales No
MSI-9300 Operator's Manual Download Email MSI Crane Scales No
MSI-9300 Setup Exit Guide Download Email MSI Crane Scales No
MSI-9300 Software Upgrade Guide Download Email MSI Crane Scales No

Title Download Email
Low Headroom Questionnaire Download Email
MSI Hook Questionnaire Download Email
Overhead Weighing Systems Questionnaire Download Email
Weighing System Questionnaire Download Email

Title Download Email
MSI-9300 Replacement Parts Page Download Email

Title Collateral Wizard Request Download Email Category
MSI-9300 and MSI-9300HT Port-A-Weigh Plus Request Download Email MSI Crane Scales
MSI-9300 Retrofit Kit RF Digital Crane Scale Request Download Email MSI Crane Scales
MSI Overhead Weighing Product Guide Request Download Email MSI Crane Scales
Crane Scale Selection Guide Request Download Email MSI Crane Scales|Overhead Weighing Systems
The Overhead Weighing Solutions Buyer's Guide Request Download Email Systems Integration/Load Cells|Tension Dynamometers|MSI Software|MSI Aircraft Load Monitoring|MSI Crane Scales|Overhead Weighing Systems
MSI Crane Scale Installation Tips Download Email MSI Crane Scales
Why Buy MSI? Download Email MSI Crane Scales|Overhead Weighing Systems
Wireless Crane Scale Integrated with PLC and SQL Server Download Email MSI Crane Scales

Title View Download Email Category
Ensure Safety with MSI View Download Email Overhead Weighing Systems|MSI Crane Scales|Systems Integration/Load Cells|Hanging Scales|Weight Indicators|MSI Software|MSI Aircraft Load Monitoring
Types of Crane Scales View Download Email Overhead Weighing Systems

Parts

MSI-9300 Port-A-Weigh Plus CellScale RF

Part # Description List Price Cart
138704 MSI-9300 500 Lb. Final Assembly. Port-A-Weigh Plus Crane Scale With CellScale RF. 2.4GHz Frequency Hopping Spread Spectrum. Standard Features Include: Six-Digit LED Display With Annunciators, Crosby or Equivalent Top Lifting Eye and Thrust Bearing Swivel Hook, NEMA 4/IP66, Marine-Grade 356 Alloy And A Double O-Ring Gasket. A Twelve-Volt Rechargeable Battery And Universal Charger Are Also Included.

List Price: $6,825.00

138705 MSI-9300 2000 Lb. Final Assembly. Port-A-Weigh Plus Crane Scale With CellScale RF. 2.4GHz Frequency Hopping Spread Spectrum. Standard Features Include: Six-Digit LED Display With Annunciators, Crosby or Equivalent Top Lifting Eye and Thrust Bearing Swivel Hook, NEMA 4/IP66, Marine-Grade 356 Alloy And A Double O-Ring Gasket. A Twelve-Volt Rechargeable Battery And Universal Charger Are Also Included.

List Price: $6,825.00

138706 MSI-9300 5000 Lb. Final Assembly. Port-A-Weigh Plus Crane Scale With CellScale RF. 2.4GHz Frequency Hopping Spread Spectrum. Standard Features Include: Six-Digit LED Display With Annunciators, Crosby or Equivalent Top Lifting Eye and Thrust Bearing Swivel Hook, NEMA 4/IP66, Marine-Grade 356 Alloy And A Double O-Ring Gasket. A Twelve-Volt Rechargeable Battery And Universal Charger Are Also Included.

List Price: $6,950.00

138707 MSI-9300 10000 Lb. Final Assembly. Port-A-Weigh Plus Crane Scale With CellScale RF. 2.4GHz Frequency Hopping Spread Spectrum. Standard Features Include: Six-Digit LED Display With Annunciators, Crosby or Equivalent Top Lifting Eye and Thrust Bearing Swivel Hook, NEMA 4/IP66, Marine-Grade 356 Alloy And A Double O-Ring Gasket. A Twelve-Volt Rechargeable Battery And Universal Charger Are Also Included.

List Price: $7,200.00

138409 MSI-9300 20000 Lb Final Assembly. Port-A-Weigh Plus Crane Scale With CellScale RF. 2.4GHz Frequency Hopping Spread Spectrum. Standard Features Include: Six-Digit LED Display With Annunciators, Crosby or Equivalent Top Lifting Eye and Thrust Bearing Swivel Hook, NEMA 4/IP66, Marine-Grade 356 Alloy And A Double O-Ring Gasket. A Twelve-Volt Rechargeable Battery And Universal Charger Are Also Included.

List Price: $8,525.00

138410 MSI-9300 30000 Lb Final Assembly. Port-A-Weigh Plus Crane Scale With CellScale RF. 2.4GHz Frequency Hopping Spread Spectrum. Standard Features Include: Six-Digit LED Display With Annunciators, Crosby or Equivalent Top Lifting Eye and Thrust Bearing Swivel Hook, NEMA 4/IP66, Marine-Grade 356 Alloy And A Double O-Ring Gasket. A Twelve-Volt Rechargeable Battery And Universal Charger Are Also Included.

List Price: $8,900.00

138419 MSI-9300 50000 Lb Final Assembly. Port-A-Weigh Plus Crane Scale With CellScale RF. 2.4GHz Frequency Hopping Spread Spectrum. Standard Features Include: Six-Digit LED Display With Annunciators, Crosby or Equivalent Top Lifting Eye and Thrust Bearing Swivel Hook, NEMA 4/IP66, Marine-Grade 356 Alloy And A Double O-Ring Gasket. A Twelve-Volt Rechargeable Battery And Universal Charger Are Also Included.

List Price: $11,675.00

138420 MSI-9300 70000 Lb Final Assembly. Port-A-Weigh Plus Crane Scale With CellScale RF. 2.4GHz Frequency Hopping Spread Spectrum. Standard Features Include: Six-Digit LED Display With Annunciators, Crosby or Equivalent Top Lifting Eye and Thrust Bearing Swivel Hook, NEMA 4/IP66, Marine-Grade 356 Alloy And A Double O-Ring Gasket. A Twelve-Volt Rechargeable Battery And Universal Charger Are Also Included.

List Price: $14,000.00

138421 MSI-9300 100000 Lb Final Assembly. Port-A-Weigh Plus Crane Scale With CellScale RF. 2.4GHz Frequency Hopping Spread Spectrum. Standard Features Include: Six-Digit LED Display With Annunciators, Crosby or Equivalent Top Lifting Eye and Thrust Bearing Swivel Hook, NEMA 4/IP66, Marine-Grade 356 Alloy And A Double O-Ring Gasket. A Twelve-Volt Rechargeable Battery And Universal Charger Are Also Included.

List Price: $21,800.00

Options

Options

Part # Description List Price Cart
159625 MSI-9850 Meter AC POWER United States

List Price: $2,775.00

138486 MSI-9750A RF Indicator Final Assembly, Portable. Compatible With MSI-6260CS, MSI-9300 And MSI-9000 CellScale. Includes Integrated Rechargeable Battery And Universal Charger

List Price: $2,080.00

138341 MSI-9850 Mounting Bracket Universal

List Price: $150.00

159221 MSI CRANE CART

Call for price

138298 RF REMOTE OPT 418MHz 9300

List Price: $345.00

138317 Assembly 418MHz RF Remote Transmitter

List Price: $125.00

138452 RETROFIT 4300 TO 9300 2450

List Price: $4,800.00

138453 RETROFIT 4300 TO 9300 NO MODEM

List Price: $3,800.00

138454 RETROFIT 12V 4300 TO 9300 2450

List Price: $4,350.00

138455 RETROFIT 12V 4300 TO 9300 NO MODEM

List Price: $3,250.00

Consult 4 in (101 mm) six-digit RF scoreboard

Call for price

Consult 6 in (152 mm) six-digit RF scoreboard

Call for price

Consult AC power supply

Call for price

Consult Anti-heat shield

Call for price

Consult Audible alarm

Call for price

Consult Wi-Fi Ethernet option

Call for price

9300 Sub Hook with Shackle

9300 Oversize Lifting Eye/Shackle

Accessories

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

Related Products

Hdimage(1) (1)

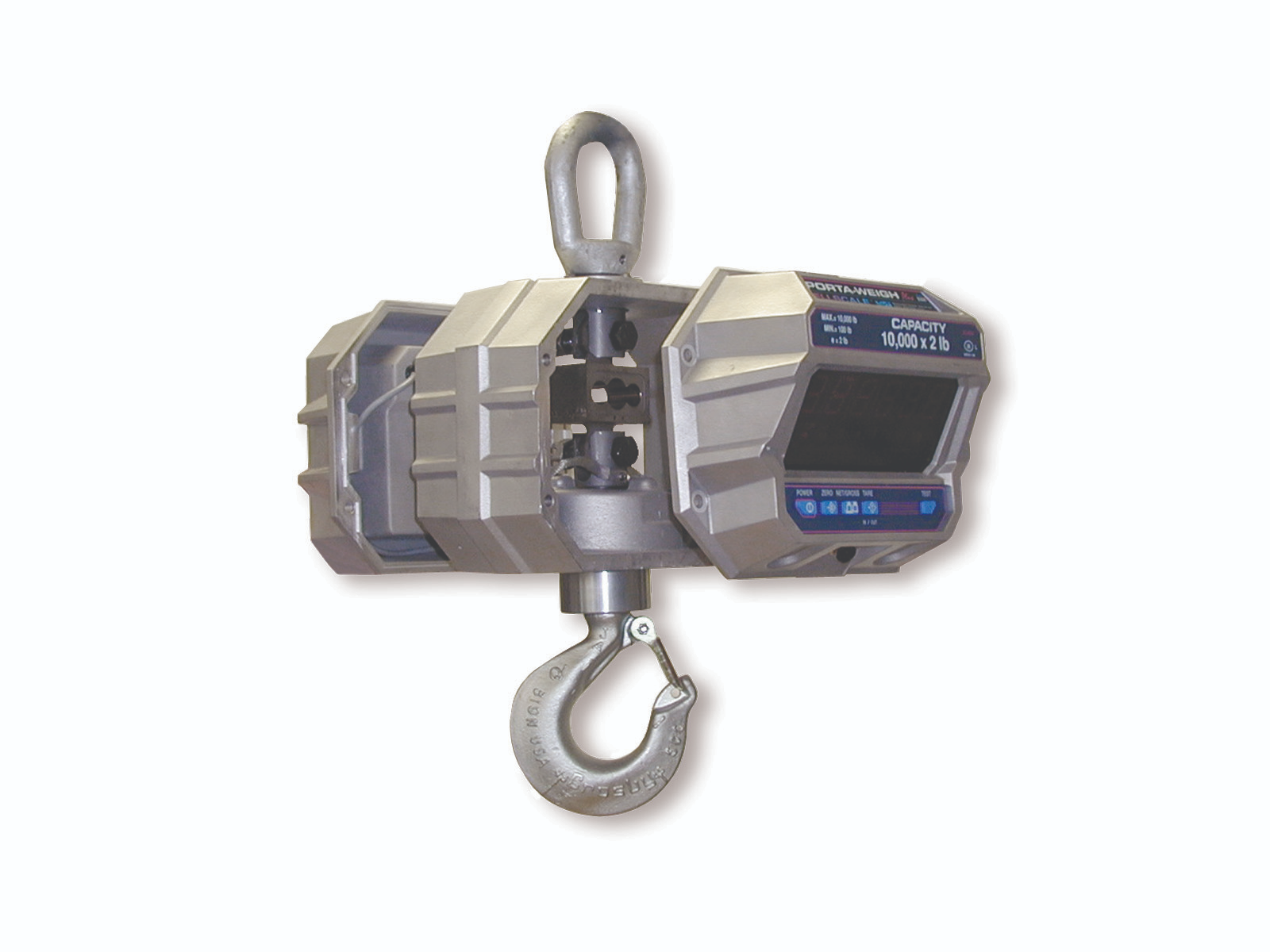

MSI-9300HT Hi-Torque Port-A-Weigh Plus CellScale™ RF Crane Scale

The MSI-9300HT crane scale offers a unique and robust "high torque" load train with a fixed hook for applications involving Powered Rotating Load Block or attachment.

Hdimage(1)

MSI-7300 Dyna-Link 2 Digital Tension Dynamometer

The industry's most advanced digital tension dynamometer, the new and improved MSI-7300, provides more features and benefits than earlier dynamometer models.

Hdimage(1)

MSI-6260CS Trans-Weigh RF Crane Scale

The MSI-6260CS RF crane scale is ideal for medium- and heavy-capacity and duty cycle applications not requiring an integral display.

Hdimage(1)

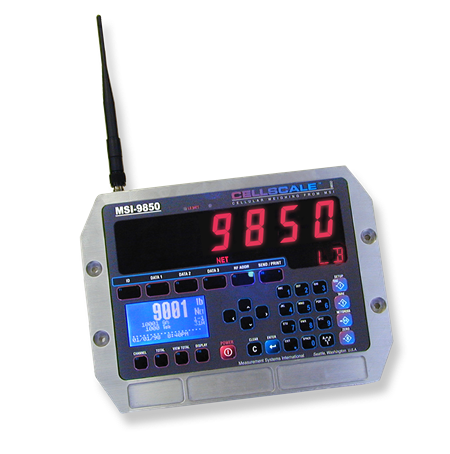

MSI-9850 CellScale™ RF Digital Weight Indicator
