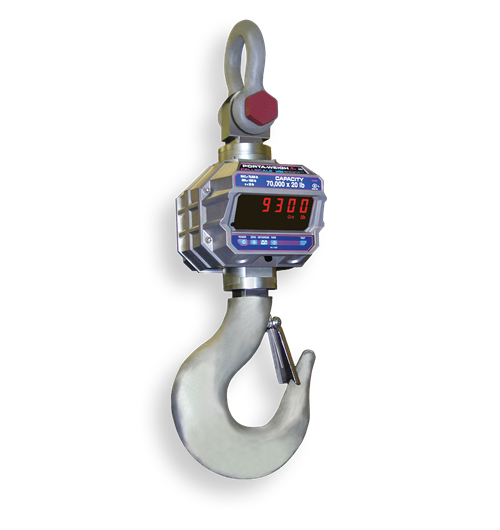

MSI-9300HT Hi-Torque Port-A-Weigh Plus CellScale™ RF Crane Scale

Standard Features

  • Crane unit with 2.4 GHz spread spectrum transceiver
  • Six-digit, 1.2 in (30 mm) LED display and annunciators
  • Top shackle (sold separately)
  • 12 volt rechargeable battery and universal 115/230 VAC, 50/60 Hz battery charger (NA plug standard)
  • Hi-torque load train designed for use with powered rotation

Options

(Contact MSI for application consultation)

  • RF remote crane unit control, includes On/Off, Zero, Tare, Net/Gross, Total and programmable function keys
  • Anti-heat shielding for high-temperature applications
  • Substitute bottom swivel hook with shackle
  • Oversized top or shackle
  • Oversized bottom hooks
  • Universal direct power supply; 85-265 VAC, 47-440 Hz / 130-300 VDC
  • Wireless 802.11 b/g Ethernet connectivity
  • Low headroom top adaptor
  • Top shackle
  • Audible alarm
  • Custom top and bottom interfaces
  • Potential receivers: MSI-9850, 9750A, r emote RF Indicators (each sold separately)

Heavy Capacity Overhead Weighing

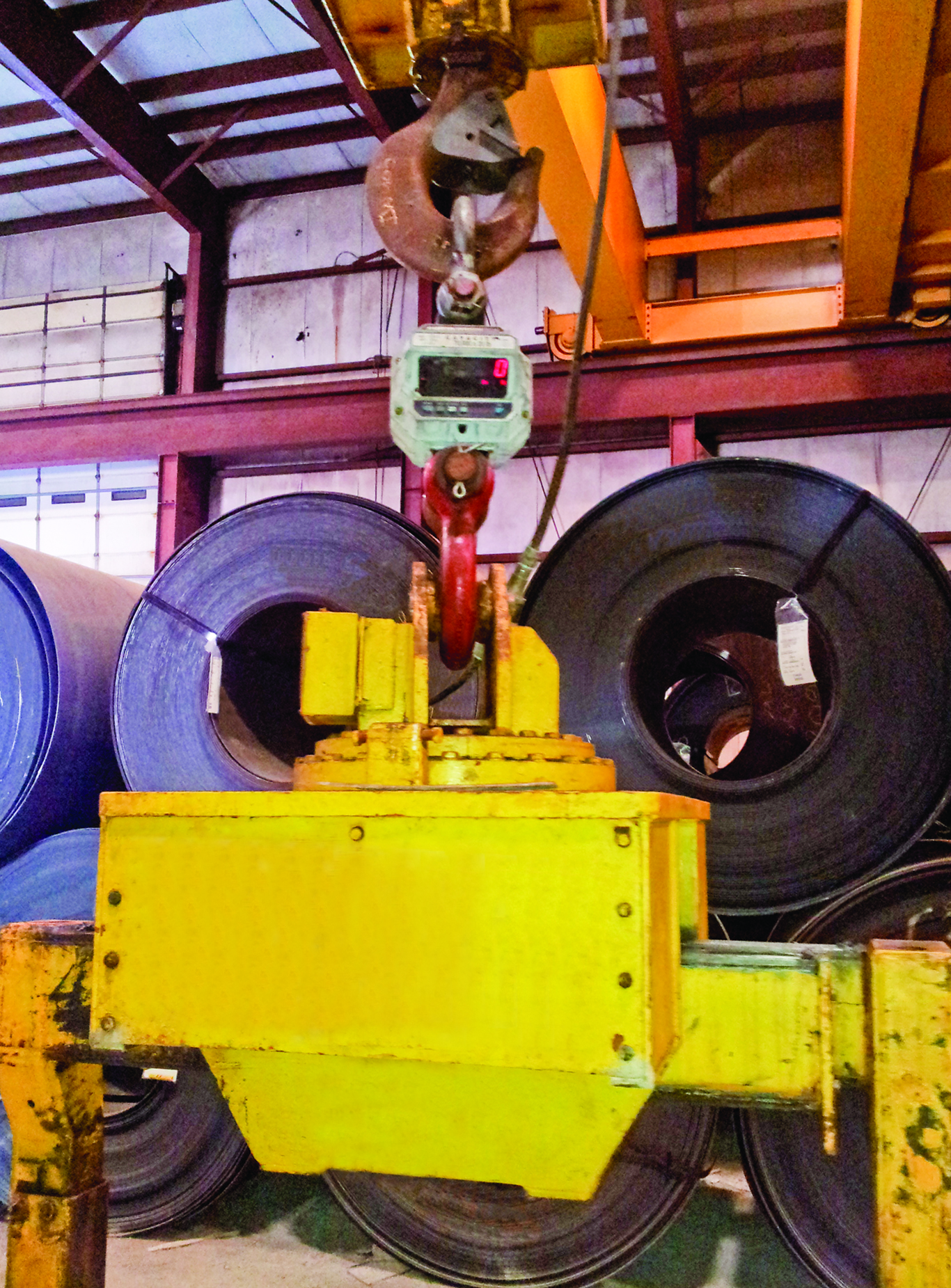

The MSI-9300HT is a unique crane scale configuration specially designed for heavy capacity coil handling applications, up
to 35 tons. A fixed hook is featured for interface compatibility with crane hooks equipped with powered rotation and where high torque
conditions exist between the crane hook and load.

With Advanced Wireless Communication

The MSI-9300HT (high-torque) crane scale combines an integrated weight display with advanced wireless data processing capability providing versatile solutions in overhead industrial weighing applications. The MSI-9300HT merges advanced CellScale™ technology with world-renowned crane scale designs providing local and remote control capabilities along with connectivity with plant information systems. The MSI-9300 HT features industrial-grade, shock-mounted electronics, watertight packaging and a large, ultra-bright display. Integrated CellScale technology offers the ability to effectively monitor and control single or multiple crane scales from multiple locations throughout plant operations. The MSI-9300HT is available in addition to RF modems for wireless connectivity with peripheral computers and scoreboards. Optional 802.11b/g Ethernet connectivity is also supported for adaptation and integration with existing plant information systems.

Accuracy:
± (0.1%  +1 d) of capacity

Resolution:
3,000 to 5,000 d standard (Up to 10,000 d available)

Enclosure:
NEMA Type 4, IP66, marine grade 356 alloy anodized cast aluminum

Lifting Eye, Shackle & Hook:
Shackle is optional and Crosby® fixed hook provided as standard

Design Overload:
200% Safe / 500% Ultimate

Functions:
Power, zero, net/gross, tare and programmable test/user

Display:
6 digit, 1.2 in (30 mm) LED with 14 feature annunciators and programmable brightness control

Displayable Units:
Pounds or kilograms selectable

Power:
12 Volt rechargeable battery, 115-230 VAC battery charger included

Operating Time:
Up to 30 hours between charging with typical use

Operating Temperature:
-4º F to 140º F (-20º C to 60º C)

Calibration:
Digital via MSI-9750A or MSI-9850 RF indicators or via serial interface with PC terminal program

Filtering:
LO, Medium and HI selectable

Radio Link:
FHSS at 2.4 GHz

Radio Effective Range:
Typically 500 ft (150 m) indoor, 1000 ft (300 m) outdoor with standard antennas

Warranty:
One-year limited

Resources / Downloads

Title View Email Category Type
When to Use a Dynamometer to Measure Tension Email MSI Crane Scales|Tension Dynamometers Articles
Which Crane Scale is the best fit for my Application? Email MSI Crane Scales|Overhead Weighing Systems Articles
What are Overhead Weighing Solutions? Email Overhead Weighing Systems|MSI Software|Tension Dynamometers Articles

Title Download Email
MSI-9300HT Hi-Torque Port-A-Weigh Plus CellScale RF Catalog Page Download Email

Title Version Revision Download Email Category Archived
Ethernet 802.11b Configuration Manual A Download Email MSI Crane Scales No
MSI Crane Scale Safety and Periodic Maintenance Manual A Download Email MSI Crane Scales No
MSI-9300 Calibration Guide Download Email MSI Crane Scales No
MSI-9300 Operator's Manual Download Email MSI Crane Scales No
MSI-9300 Setup Exit Guide Download Email MSI Crane Scales No
MSI-9300 Software Upgrade Guide Download Email MSI Crane Scales No

Title Download Email
Low Headroom Questionnaire Download Email
MSI Hook Questionnaire Download Email
Overhead Weighing Systems Questionnaire Download Email
Weighing System Questionnaire Download Email

Title Download Email
MSI-9300HT Replacement Parts Page Download Email

Title Collateral Wizard Request Download Email Category
MSI-9300 and MSI-9300HT Port-A-Weigh Plus Request Download Email MSI Crane Scales
MSI-9300HT with Coil Scale Request Download Email MSI Crane Scales
MSI Overhead Weighing Product Guide Request Download Email MSI Crane Scales
The Overhead Weighing Solutions Buyer's Guide Request Download Email Systems Integration/Load Cells|Tension Dynamometers|MSI Software|MSI Aircraft Load Monitoring|MSI Crane Scales|Overhead Weighing Systems
MSI Crane Scale Family Comparison Download Email MSI Crane Scales
MSI Crane Scale Installation Tips Download Email MSI Crane Scales
MSI-9000 CellScale RF Wireless Weighing Solutions Request Download Email MSI Crane Scales
Sea Port Monitoring Solutions Request Download Email MSI Crane Scales

Title View Download Email Category
Ensure Safety with MSI View Download Email Overhead Weighing Systems|MSI Crane Scales|Systems Integration/Load Cells|Hanging Scales|Weight Indicators|MSI Software|MSI Aircraft Load Monitoring
Types of Crane Scales View Download Email Overhead Weighing Systems

Parts

MSI-9300HT Hi-Torque

Part # Description List Price Cart
138440 MSI-9300HT 30000 Lb Final Assembly. Hi-Torque Port-A-Weigh Plus CellScale RF Crane Scale . 2.4 GHz Frequency Hopping Spread Spectrum. Standard Features Include: Six-Digit LED Display With Annunciators, Crosby or Equivalent Fixed Hook (Specific Orientation Can Be Requested), Hi-Torque Load Train Designed For Use With Powered Rotation. NEMA4/IP66, Marine-Grade 356 Alloy And A Double O-Ring Gasket. A Twelve-Volt Rechargeable Battery And Universal Charger Are Also Included. Crosby Top Lifting Shackle Sold Separately.

List Price: $15,325.00

138441 MSI-9300HT 70000 Lb Final Assembly. Hi-Torque Port-A-Weigh Plus CellScale RF Crane Scale . 2.4 GHz Frequency Hopping Spread Spectrum. Standard Features Include: Six-Digit LED Display With Annunciators, Crosby or Equivalent Fixed Hook (Specific Orientation Can Be Requested), Hi-Torque Load Train Designed For Use With Powered Rotation. NEMA4/IP66, Marine-Grade 356 Alloy And A Double O-Ring Gasket. A Twelve-Volt Rechargeable Battery And Universal Charger Are Also Included. Crosby Top Lifting Shackle Sold Separately.

Call for price

162377 MSI-9300HT 120000Lb Final Assembly. Hi-Torque Port-A-Weigh Plus CellScale RF Crane Scale . 2.4 GHz Frequency Hopping Spread Spectrum. Standard Features Include: Six-Digit LED Display With Annunciators, Crosby or Equivalent Fixed Hook (Specific Orientation Can Be Requested), Hi-Torque Load Train Designed For Use With Powered Rotation. NEMA4/IP66, Marine-Grade 356 Alloy And A Double O-Ring Gasket. A Twelve-Volt Rechargeable Battery And Universal Charger Are Also Included. Crosby Top Lifting Shackle Sold Separately.

Call for price

Options

Options

Part # Description List Price Cart
138486 MSI-9750A RF Indicator Final Assembly, Portable. Compatible With MSI-6260CS, MSI-9300 And MSI-9000 CellScale. Includes Integrated Rechargeable Battery And Universal Charger

List Price: $2,080.00

141992 Shackle Anchor 17 Ton Bolt Type, G-2130

Call for price

146335 Shackle Anchor 40 Ton Bolt Type

Call for price

146336 Shackle Anchor 55 Ton Bolt Type

Call for price

159625 MSI-9850 Meter AC POWER United States

List Price: $2,775.00

138341 MSI-9850 Mounting Bracket Universal

List Price: $150.00

159221 MSI CRANE CART

Call for price

138317 Assembly 418MHz RF Remote Transmitter

List Price: $125.00

138298 RF REMOTE OPT 418MHz 9300

List Price: $345.00

139056 MSI-Scoreboard RF, Final Assembly. 4 Red Characters, Six Digits. For Use With CellScale Enabled Devices

List Price: $3,275.00

139052 MSI-Scoreboard RF, Final Assembly. 6 Red Characters, Six Digits. For Use With CellScale Enabled Devices

List Price: $4,050.00

Consult AC direct power supply

Call for price

Consult Anti-heat shield

Call for price

Consult Wi-Fi Ethernet option

Call for price

Consult Audible alarm

Call for price

Accessories

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

Related Products

WEB SC MSI9300

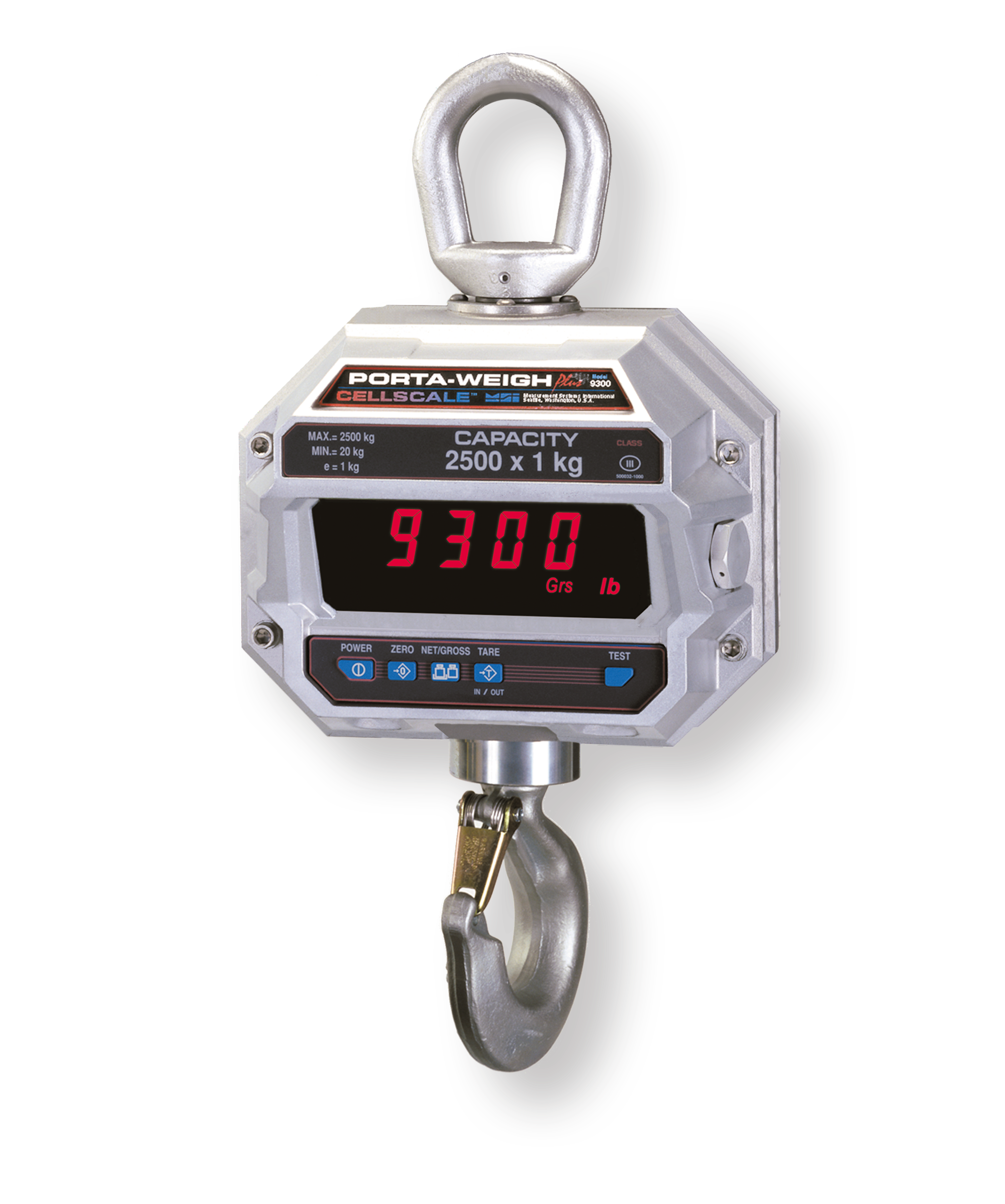

MSI-9300 Port-A-Weigh Plus CellScale™ RF Crane Scale
