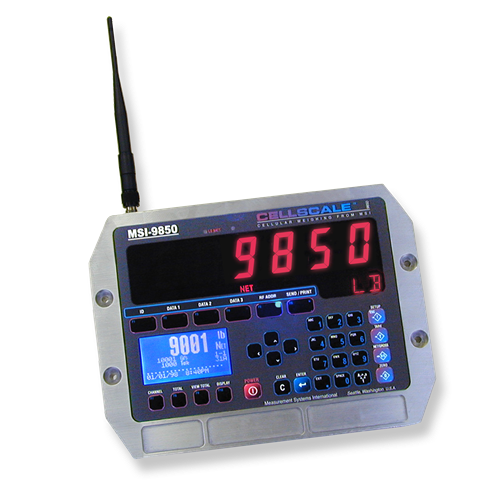

MSI-9850 CellScale™ RF Digital Weight Indicator

(Contact MSI for application consultation)

  • Compatible with MSI-6260CS, MSI-9300 and MSI-9000 CellScale
  • Six-digit 1.2 in (30 mm) LED display
  • 1.4 × 2.6 in (36 × 67 mm) information LCD display
  • 2.4 GHz spread spectrum transceiver
  • RS-232 data I/O with real-time clock
  • NEMA Type 4, IP65 enclosure
  • Power input 85 to 265 VAC, 47 to 440 Hz / 130 to 300 VDC; 8 ft/2.4 m power cable included (NA plug standard)

Options

  • NTEP Certified
  • Long range antenna, omni-directional with 9dBi
  • Wi-Fi Ethernet connectivity (802.11b)
  • Hardwired Ethernet output connection
  • Single and dual 4-20 mA output, provides programmable current output
  • Bar code scanner
  • Setpoint relays, provides up to eight setpoint relay outputs for direct interfacing to external devices
  • External audible alarm (activates with setpoint control)
  • Universal mounting bracket for either desktop or wall/bulkhead mount
  • Optional isolated and non-isolated DC power supplies
Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO Measurementcanada Approved BW

WARNING: Cancer and Reproductive Harm California Proposition 65
Hdimage(1)

RF Weight Indicator with Remote Capabilities

DELIVERING OUTSTANDING PERFORMANCE IN THE MOST DEMANDING ENVIRONMENTS

The MSI-9850 RF digital weight indicator is the latest addition to complement MSI’s CellScale™ technology. Combined with one or more MSI CellScale components, the MSI-9850 serves as a wireless remote controller and weight indicator providing remote access to multiple scales and sensors in a configured CellScale network.

All CellScale component features are supported remotely by the MSI-9850, including calibration, data-logging, totalizing and statistics. The MSI-9850 features a large primary weight display that is easily viewed from a distance and a secondary information display that provides complete visibility to all selected scales and sensors configured in a CellScale network.

The MSI-9850 also provides a simple user interface to all of the advanced features of CellScale wireless technology. Enhanced data acquisition, sophisticated data-logging, and remote control of multiple scales and sensors can be initiated and managed through the MSI-9850. Rugged industrial packaging and flexible-mounting options allow the MSI-9850 to easily integrate and provide outstanding performance in the most demanding applications. Also see specifications for other CellScale components: MSI-9000, MSI-9020, MSI-9750A, and MSI-6260CS, MSI-9300, and MSI-9300HT crane scales for complete capabilities and solutions provided through CellScale technology.

Enclosure:
NEMA Type 4, IP65 milled anodized aluminum with O-ring gaskets
NEMA Type 6, IP67 with optional long-range antenna

Weight:
5.0 lb (2.8 kg)

Keypad:
33 keys–12 key alphanumeric, four cursor keys, seven control keys and 10 user programmable keys
Password protected with lock feature

Weight Display:
Six-digit, 1.2 in (30 mm) high numeric weight LED, four alphanumeric 0.5 in (13 mm) high data LED, six LED function select annunciators, 10 LED annunciators, low battery LED indicator

Information Display:
1.4 in x 2.6 in (36 x 67 mm) backlit LCD. Capable of 8 lines of 21 characters each backlight selectable on, off or automatic.

Power Input:
Internal AC/DC power supply: 85-265 VAC, 47-440 Hz/130-300 VDC
Also included: An independent 7-25 VDC power input (requires optional power/switch interface cable)
8 ft/2.4 m power cable included (NA plug standard)

Operating Temperature:
-4 °F to 158 °F (-20 °C to 70 °C)
Legal for Trade: 14 °F to 104 °F (-10 °C to 40 °C)

Radio Link:
FHSS at 2.4 GHz (up to 64 network selections)

Radio Link Effective Range:
Typically 500 ft (150 m) indoor, 1,000 ft (300 m) outdoor with standard antennas
See optional antennas for longer range

Standard Antenna:
1/2 wave 2 dBi, articulated

RFI/EMI Shielding:
Exceeds NIST HB44 and CE Standards

Connectors:
RS-232, Turck compatible Pico connector

Warranty:
One-year limited

Approvals:
NTEP CC 05-077

Resources / Downloads

Title Download Email
MSI-9850 CellScale RF Digital Indicator Catalog Page Download Email

Title Version Revision Download Email Category Archived
MSI-9850 Operator's Manual Download Email MSI Crane Scales No
Ethernet 802.11b Configuration Manual A Download Email MSI Crane Scales No
Overhead Weighing Safety and Periodic Maintenance Manual B Download Email MSI Crane Scales|Overhead Weighing Systems No

Title Download Email
Weighing System Questionnaire Download Email

Title Download Email
MSI-9850 Replacement Parts Page Download Email

Title Collateral Wizard Request Download Email Category
6 Step Integrated Crane Weighing Component Selector Guide Request Download Email MSI Crane Scales
Crane Scale Selection Guide Request Download Email MSI Crane Scales|Overhead Weighing Systems
MSI Overhead Weighing Product Guide Request Download Email MSI Crane Scales
MSI-9300 and MSI-9300HT Port-A-Weigh Plus Request Download Email MSI Crane Scales
MSI-9850 CellScale RF Digital Indicator Request Download Email MSI Crane Scales
Sea Port Monitoring Solutions Request Download Email MSI Crane Scales
Why Buy MSI? Download Email MSI Crane Scales|Overhead Weighing Systems
MSI Accessory Shackles Request Download Email MSI Crane Scales

Title View Download Email Category
Ensure Safety with MSI View Download Email Overhead Weighing Systems|MSI Crane Scales|Systems Integration/Load Cells|Hanging Scales|Weight Indicators|MSI Software|MSI Aircraft Load Monitoring
Types of Crane Scales View Download Email Overhead Weighing Systems

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

Related Products

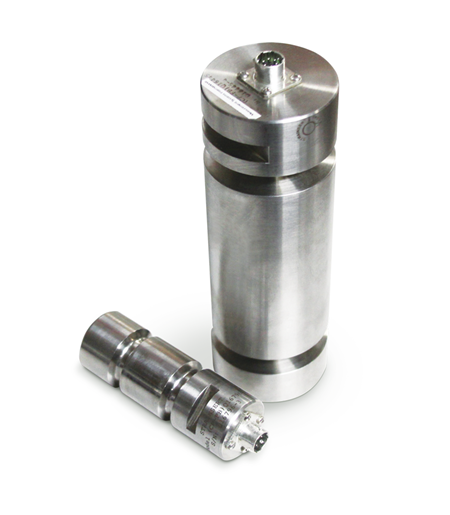

WEB SC Loadpin

MSI Load Pin Sensors

Strictly industrial-grade clevis load pin sensors are key components of MSI’s integrated overhead weighing solutions.

WEB SC MSI9300

MSI-9300 Port-A-Weigh Plus CellScale™ RF Crane Scale

The MSI-9300 Port-A-Weigh Plus RF crane scale uses advanced CellScale™ technology to power medium- to heavy-capacity and duty-cycle crane scale applications.

Hdimage(1) (1)

MSI-9300HT Hi-Torque Port-A-Weigh Plus CellScale™ RF Crane Scale

The MSI-9300HT crane scale offers a unique and robust "high torque" load train with a fixed hook for applications involving Powered Rotating Load Block or attachment.

Hdimage(1)

MSI-6260CS Trans-Weigh RF Crane Scale

The MSI-6260CS RF crane scale is ideal for medium- and heavy-capacity and duty cycle applications not requiring an integral display.

Hdimage(1)

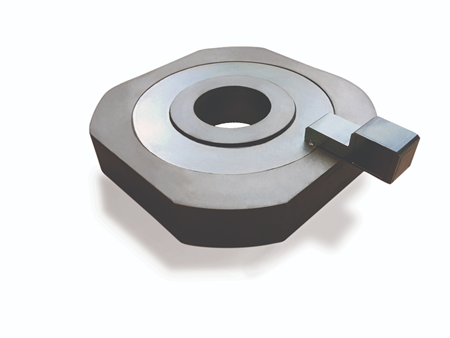

MSI Shear Web Load Cell

The MSI-Shear Web Load Cell is an integrated, low-profile load cell that compensates for hook rotation and eliminates headroom loss without sacrificing accuracy.

Hdimage(1)

MSI-9750A CellScale™ RF Portable Indicator

Choose the MSI-9750A handheld RF portable indicator for remote operation of MSI's CellScale crane scale models.

Hdimage(1)

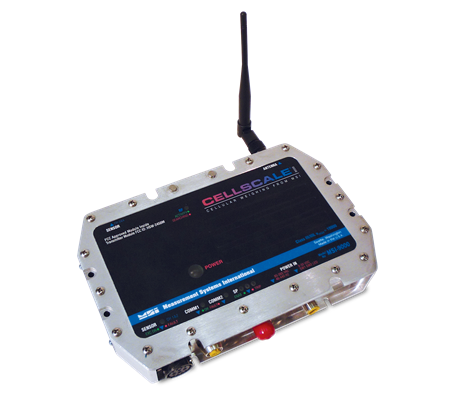

MSI-9000 CellScale™ Wireless Weighing Solution
