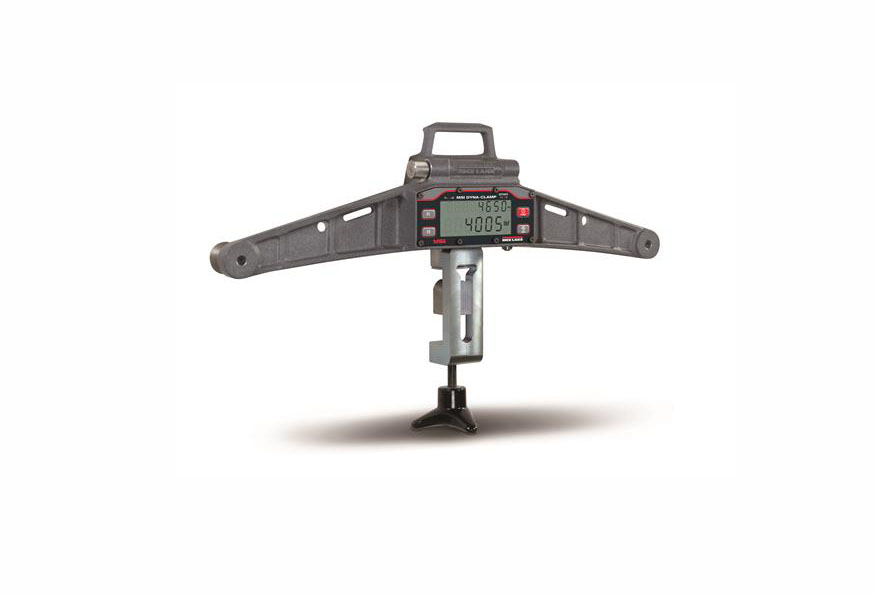

MSI Dyna-Clamp Tension Meter

  • Dual line LCD display
  • Two user-programmable function keys
  • IP65 powder-coated aluminum frame
  • RS-232 port
  • Up to 8 factory calibrations included at no additional cost

Additional Options
(Contact MSI for application consultation)

  • Heavy-duty carrying case

Approvals

Some approval documents are available to view by clicking the icons below.

CE Mark

WARNING: Cancer and Reproductive Harm California Proposition 65

Reliable Tension Meter with Easy-to-Read LCD Display

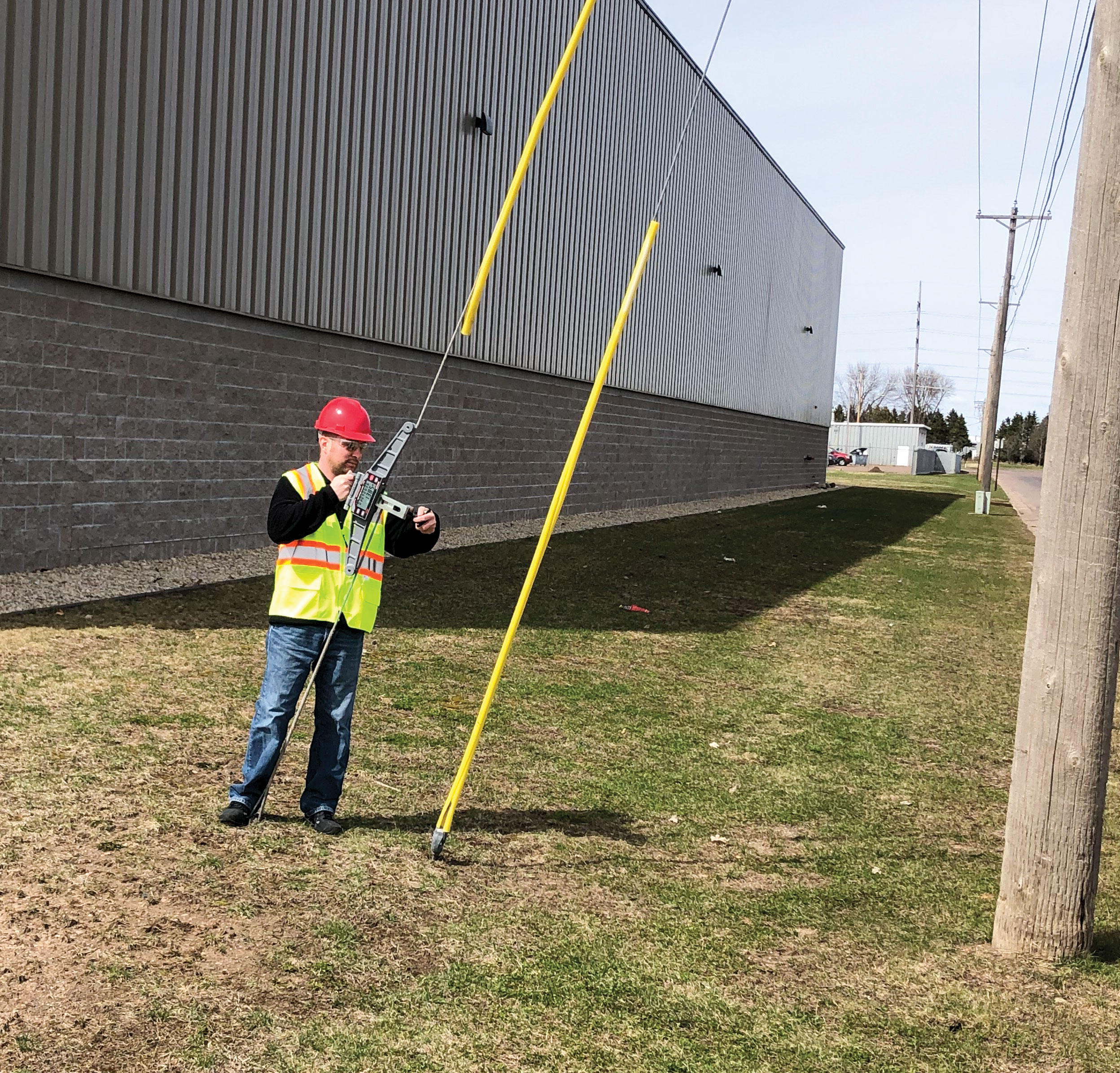

Quickly Check Wire Rope Tension

The MSI Dyna-Clamp tension meter has a wire rope engagement site window to help ensure accurate tension readings. The MSI Dyna-Clamp features an easy-turn power screw, to make measuring wire rope tension simple and effortless, even in difficult environments.

Meeting Safety Standards with Every Application

The MSI Dyna-Clamp has accommodations for a safety strap, complying with OSHA requirements. Users can measure wire ropes with up to one-inch diameters without changing equipment.

Large, Easy-To-Read Display

The Dyna-Clamp’s large LCD display can be clearly read in bright, sunny conditions and features a scratch-resistant overlay for added durability. Two lines on the display allow users to view two measurements. The live wire rope tension is prominently displayed on the primary display line, while the secondary display line is configurable to show wire rope diameter, average tension, or peak tension.

Power:
Battery operated two AA Cell 1.5 V alkaline batteries
(can be replaced with rechargeable NiMH cells)

Max Tension:
12,500 lbf

Operating Time:
Alkaline AA Cells 24 hours

Wire Rope:
Diameter 3/16 in (5 mm) – 1 in (25 mm)

Accuracy:
Rated Accuracy ±3% of capacity

Units:
lbf, kgf, kN

Resolution:
Standard: 2500 divisions

Two-Line LCD Display:
Primary display (bottom) six, 0.7 in (18 mm) numeric digits
Secondary display (top) eight, 0.5 in (13 mm) numeric digits

Function Keys:
Two programmable keys (user-defined) – F1, F2
(TEST, UNIT, PRINT, SCROLL, ACTFUN)
Two permanent keys – POWER, ZERO

Setpoints:
Two dedicated setpoints for minimum and
maximum allowable wire rope tension (LEDs for
measurements outside of allowable range)

Auto-Off Mode:
Prolongs battery life by turning power OFF after
15, 30, 45 or 60 minutes of no activity
(user determined)

Enclosure:
IP65 powder-coated aluminum frame

Calibration:
Up to eight (8) factory programmed wire
rope calibrations

Operating Temp:
-4°F to 122°F (-20°C to 50°C)

Operator Use:
Outdoor

Storage:
Indoor

Approvals:
CE Marked

Resources / Downloads

Title View Email Category Type
Easy Wire Rope Tension Measuring with the New MSI Dyna-Clamp Email Tension Dynamometers|Overhead Weighing Systems Articles

Title Download Email
MSI Dyna-Clamp Catalog Page Download Email

Title Version Revision Download Email Category Archived
MSI Dyna-Clamp Tension Meter Operation Manual C Download Email MSI Crane Scales|Tension Dynamometers No

Title Collateral Wizard Request Download Email Category
MSI Dyna-Clamp Easy-to-use Versatile Tension Meter Flyer Download Email Tension Dynamometers|MSI Crane Scales
MSI Dyna-Clamp Tension Meter Request Download Email MSI Crane Scales|Tension Dynamometers

Title View Download Email Category
Rice Lake's MSI Dyna-Clamp Tension Meter View Download Email Tension Dynamometers
The Dyna-Clamp Clamp-On Tension Meter Can Handle Any Tension-Measuring Need View Download Email Tension Dynamometers
Types of Crane Scales View Download Email Overhead Weighing Systems

Parts

Part # Description List Price Cart
189581 Dyna-Clamp Line Tensiometer for 1.0in Rope 12,500lbs

List Price: $4,395.00

Options

Part # Description List Price Cart
198418 Dyna-Clamp Carrying Case

List Price: $550.00

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
