MSI Shear Web Load Cell

  • Designed to be placed above the trunnion of a load block, this integrated low-profile load cell eliminates headroom loss
  • Off-axis compensation

(Contact MSI for application consultation)

Integrated Shear Web Load Cell

When load block integration is key, a low-profile, donut-style load cell that compensates for hook rotation without losing accuracy is essential. MSI designed the MSI-Shear Web Load Cell to be an integrated, low-profile load cell that can eliminate headroom loss without sacrificing accuracy.

With extensive crane hook integration possibilities, the load cell can be custom-fit for use with existing equipment. To transmit load data, the load cell can be interfaced with a wireless RF transmitter to communicate with a digital weight indicator or handheld remote display. Reliable and durable, the shear web load cell is IP67 rated, zinc plated and constructed with 4340 alloy steel. Designed for placement above the load block trunnion, the load cell features off-axis compensation and 0.10 percent accuracy of rated capacity.

Accuracy (Static Load):
0.5 to 1% system accuracy of rated capacity

Material:
4340 alloy steel, zinc plated

IP Rating:
IP67

Resistance:
700 ohm

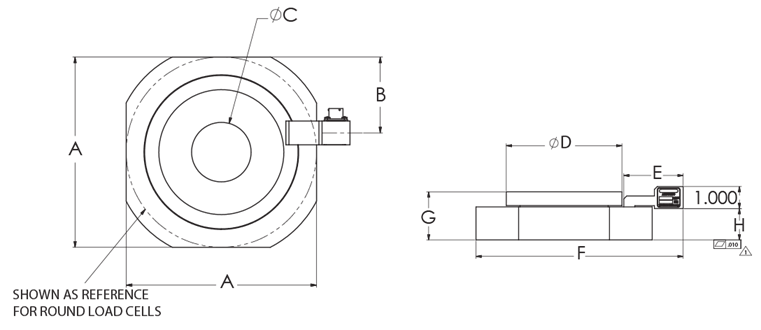

Part # Capacity A B

C
(+0.005-
0.000)

D E F G H Required Hook
Shank Diameter
(+0.000,-0.005)
160651 10,000 lb 3.500 1.350 1.005 2.450 1.880 4.905 1.500 1.000 1.000
163595 20,000 lb 6.000 2.500 1.505 3.500 2.443 7.405 1.750 1.250 1.500
163596 40,000 lb 7.500 3.150 2.005 5.000 2.580 8.905 2.000 1.375 2.000
163829 60,000 lb 8.000 3.190 2.505 5.250 2.695 9.405 2.188 1.500 2.500
163597 80,000 lb 8.500 3.650 3.505 5.750 2.680 9.905 2.313 1.500 3.500
163598 100,000 lb 9.125 3.873 4.005 7.000 2.382 10.530 2.668 1.875 4.000
159550 120,000 lb 9.125 3.873 4.005 7.000 2.382 10.530 2.813 2.000 4.000
163599 160,000 lb 16.000 7.030 6.005 14.500 2.955 17.405 4.625 2.500 6.000
163600 200,000 lb 16.000 7.030 6.005 14.500 2.955 17.405 5.125 3.000 6.000

Resources / Downloads

Title View Email Category Type
What are Overhead Weighing Solutions? Email Overhead Weighing Systems|MSI Software|Tension Dynamometers Articles
What is a Shear Web Load Cell? Email Overhead Weighing Systems Articles

Title Download Email
MSI Shear Web Load Cell Catalog Page Download Email

Title Download Email
Overhead Weighing Systems Questionnaire Download Email

Title Collateral Wizard Request Download Email Category
6 Step Integrated Crane Weighing Component Selector Guide Request Download Email MSI Crane Scales
Container Weighing Solutions Request Download Email MSI Crane Scales|Overhead Weighing Systems
Crane Scale Selection Guide Request Download Email MSI Crane Scales|Overhead Weighing Systems
MSI Shear Web Load Cell and MSI Load Pin Sensor Request Download Email MSI Crane Scales
Overhead Weighing Safety Guide Request Download Email Overhead Weighing Systems|MSI Crane Scales
The Overhead Weighing Solutions Buyer's Guide Request Download Email Systems Integration/Load Cells|Tension Dynamometers|MSI Software|MSI Aircraft Load Monitoring|MSI Crane Scales|Overhead Weighing Systems
Why Buy MSI? Download Email MSI Crane Scales|Overhead Weighing Systems

Title View Download Email Category
Ensure Safety with MSI View Download Email Overhead Weighing Systems|MSI Crane Scales|Systems Integration/Load Cells|Hanging Scales|Weight Indicators|MSI Software|MSI Aircraft Load Monitoring
Get to Know MSI Integrated Solutions View Download Email Overhead Weighing Systems|Systems Integration/Load Cells

Parts

MSI Shear Web Load Cell

Part # Description List Price Cart
160651 Load Cell Assy 10K Crane Block Shear Web

Call for price

163595 Load Cell Assy 20K Crane Block Shear Web

Call for price

163596 Load Cell Assy 40K Crane Block Shear Web

Call for price

163829 Load Cell Assy 60K Crane Block Shear Web

Call for price

163597 Load Cell Assy 80K Crane Block Shear Web

Call for price

163598 Load Cell Assy 100K Crane Block Shear Web

Call for price

159550 Load Cell Assy 120K Crane Block Shear Web

Call for price

163599 Load Cell Assy 160K Crane Block Shear Web

Call for price

163600 Load Cell Assy 200K Crane Block Shear Web

Call for price

Options

Options

Part # Description List Price Cart
165978 Cable, LP to 7001LC 6.5ft PT06-10-6S to M12 Shielded, PUR Outer Jacket, 2m

List Price: $315.00

165979 Cable, LP to 7001LC 10ft PT06-10-6S to M12 Shielded, PUR Outer Jacket, 3m

List Price: $340.00

165980 Cable, LP to 7001LC 16ft PT06-10-6S TO M12 Shielded, PUR Outer Jacket, 5m

List Price: $360.00

165989 Cable, LP to 7001LC 20ft PT06-10-6S to M12 Shielded, PUR Outer Jacket, 6.1m

List Price: $390.00

165990 Cable, LP to 7001LC 25ft PT06-10-6S to M12 Shielded, PUR Outer Jacket, 7.6m

List Price: $420.00

165991 Cable, LP to 7001LC 32ft PT06-10-6S to M12 Shielded, PUR Outer Jacket, 10m

List Price: $485.00

134498 Cable Assy. L-C To CS, 1-CH. 4 Cond. 20-AWG. 6-S PT Conn. 5 Feet

List Price: $350.00

134495 Cable Assy. L-C To CS, 1-CH. 4 Cond. 20-AWG. 6-S PT Conn. 10 Feet

List Price: $380.00

134500 Cable Assy. L-C To CS, 1-CH. 4 Cond. 20-AWG. 6-S PT Conn. 15 Feet

List Price: $400.00

134499 Cable Assy. L-C To CS, 1-CH. 4 Cond. 20-AWG. 6-S PT Conn. 20 Feet

List Price: $430.00

134501 Cable Assy. L-C To CS, 1-CH. 4 Cond. 20-AWG. 6-S PT Conn. 25 Feet

List Price: $460.00
