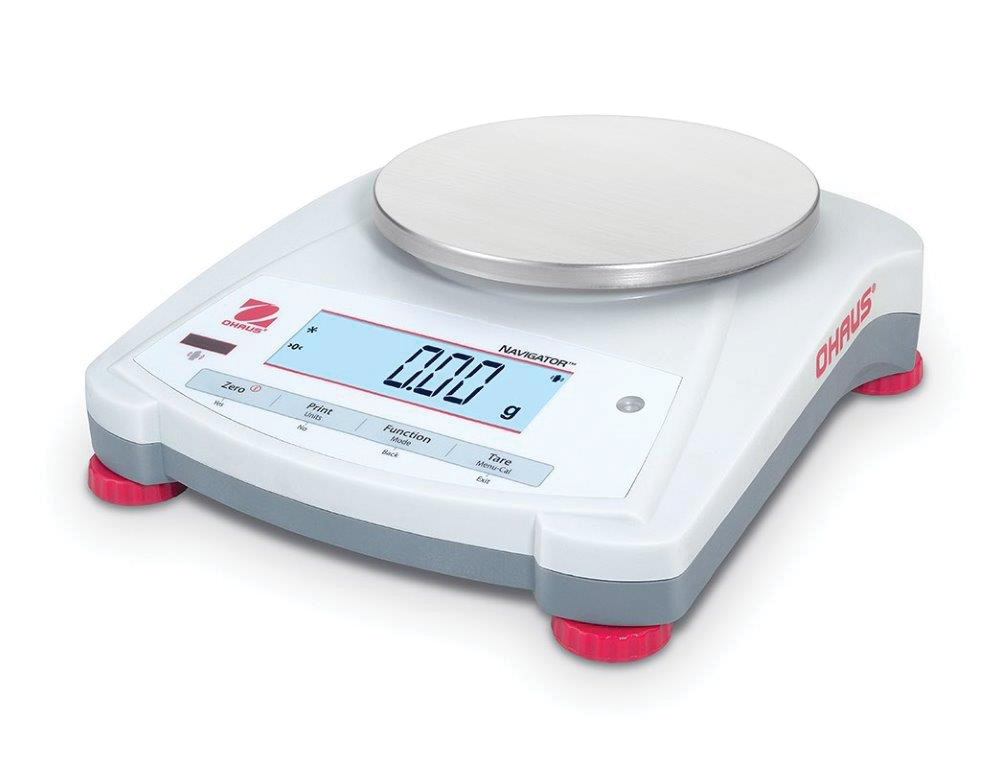

Navigator® XT Series, OHAUS Toploader Balance

  • Touchless IR (infrared) sensors minimize keypad use
  • Program IR sensor to control zero, print tare, backlight and power functions
  • Backlit 0.8 in LCD display for high visibility
  • Illuminated level indicator at start-up
  • Integrated transportation and calibration lock switch
  • Hygienic design for easy cleanup in food, laboratory and industrial applications
  • Impact-resistant ABS plastic housing with polished stainless steel spill-resistant pan
  • Non-skid leveling feet

Hands-Free Weighing

The Navigator® series offers a unique combination of features, including touchless sensors, ultra-fast response time and superior overload protection for use in a wide variety of weighing applications.


Unsurpassed Cleanliness

Designed with two touchless sensors that free up your hands, the Ohaus Navigator compact bench scale allows you to focus on handling samples and keeping the scale free from contaminants. The touch-free control of tare, zero, print, function and display backlight helps to minimize touching the keypad, thereby avoiding cross-contamination or unwanted residue on or from the scale. A polished stainless steel pan, corrosion-free plastic housing and spill-resistant pan sub-assembly embodies a hygienic design that is easy to clean. The optional full-body in-use cover wraps over and around the housing and keypad to guard against spills, dust and contamination.


Unmatched Productivity

The Ohaus Navigator has amazing stabilization in less than one second to provide fast, accurate and repeatable weighing results; improving operator efficiency and increasing productivity. It includes an internal rechargeable lead acid battery that operates up to 100 hours (or over twelve eight-hour days) of normal use on a full charge. With maximized portability, the scale can be transported and used where power outlets are not readily available. A wave of the hand over the touchless sensors eliminates the extra effort or time to press the keys. A bright backlit LCD display provides optimum visibility in any lighting condition – indoors or out – with large digits and indicators that make it fast and easy to read the weighing results.


Unbeatable Durability

Built to handle serious loads, the Ohaus Navigotor has a superior mechanical overload protection system to enable the scale to safely bear loads up to four times its rated capacity. It is constructed of a high-strength 304 type stainless steel pan and impact-resistant ABS plastic housing that helps the scale stand up to years of use. The touchless sensors minimize keypad use, reducing operational wear and tear.

Model  Capacity Readability Linearity Pan Size Dimensions Part #

NVT2201

2,200 g

0.1 g

0.1 g/±0.2 g

9.1 x 6.9 in
(230 x 174 mm)

9.5 x 9.8 x 2.9 in
(240 x 250 x 74 mm)

194607

NVT4201

4,200 g

0.1 g

0.1 g/±0.2 g

9.1 x 6.9 in
(230 x 174 mm)

9.5 x 9.8 x 2.9 in
(240 x 250 x 74 mm)

194608

NVT6200

6,200 g

1 g

1 g/±2 g

9.1 x 6.9 in
(230 x 174 mm)

9.5 x 9.8 x 2.9 in
(240 x 250 x 74 mm)

194609

NVT12000

12,000 g

1 g

1 g/±2 g

9.1 x 6.9 in
(230 x 174 mm)

9.5 x 9.8 x 2.9 in
(240 x 250 x 74 mm)

194610

NVT22000

22,000 g

1 g

1 g/±2 g

9.1 x 6.9 in
(230 x 174 mm)

9.5 x 9.8 x 2.9 in
(240 x 250 x 74 mm)

194611



Resources / Downloads

Title Download Email
Ohaus Navigator XT Series Toploader Balance, Catalog Page Download Email

Title Version Revision Download Email Category Archived
OHAUS Navigator™ XT Series Instruction Manual Download Email Precision Balances No

Title Collateral Wizard Request Download Email Category
OHAUS Navigator XT Series Download Email Balances

Parts

Part # Description List Price Cart
194607 Scale,Navigator NVT2201 2200g x 0.1g, AC Adaptor 100-240V

List Price: $436.00

194608 Scale,Navigator NVT4201 4200g x 0.1g, AC Adaptor 100-240V

List Price: $545.00

194609 Scale,Navigator NVT6200 6200g x 1g, AC Adaptor 100-240V

List Price: $545.00

194610 Scale,Navigator NVT12000 12,000g x 1g, 100-240 VAC Adaptor

List Price: $590.00

194611 Scale,Navigator NVT22000 22,000g x 1g, AC Adaptor 100-240V

List Price: $705.00

Options

Part # Description List Price Cart
118779 Interface,RS-232 kit Ohaus Navigator XT, SPU, TA

List Price: $188.00

118780 Interface,USB Ohaus Navigator XT and Scout Pro kit

List Price: $188.00

194615 Adapter,Univeral Ohaus Navigator, CR Series - Power Adapter with Universal Plug Set.

List Price: $44.00

194616 Case,Carrying Ohaus Navigator

List Price: $123.00

118781 Interface,Ethernet Ohaus Navigator XT kit

List Price: $188.00

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
