Complete Kit Includes

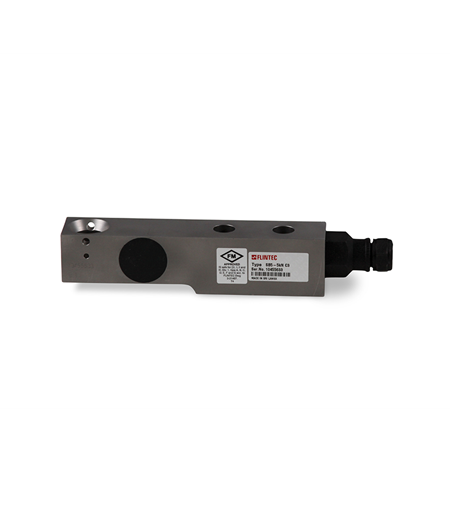

One fixed-pin module, one side-stop module, and one or two free-sliding assemblies. Each module is complete with a NTEP Certified Flintec® SB5 stainless steel environmentally protected load cell.
One JB4SS NEMA Type 4X stainless steel signal trim junction box
25 ft of hostile environment EL147HE SURVIVOR® load cell cable
Standard Features
Capacities (per module): 5 to 20 kN
NTEP Certified 1:5000d, Class II load cells
Unique design allows for thermal expansion/contraction
Jacking screw allows empty vessel to be lifted clear of load cell for maintenance
Unique blind load hole eliminates unwanted side and eccentric loads
Vessel is free to slide laterally on PTFE-coated surfaces
mV/V/ohm load cell outputs allow for replacement without further calibration
Applications
Light- to medium-capacity tanks and hoppers
Process measurement and control
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
The Paramounts EP system offers all the design advantages of the Paramounts system in applications where the extensive sealing of the SB4 load cell is not necessary. Paramounts EP provides a low-cost alternative for the superior mechanical loading system found in the standard Paramounts. Economy and performance are in one complete weighing system.
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 33683 | Mount Kit,Paramount EP 3ea 5kn 1,125lb Mild Steel Zinc Plated Compression Incl SB5 And JB4SS | List Price: $2,665.00 | |
| 33682 | Mount Kit,Paramount EP 3ea 10kn 2,250lb Mild Steel Zinc Plated Compression Incl SB5 And JB4SS | List Price: $2,665.00 | |
| 33681 | Mount Kit,Paramount EP 3ea 20KN 4,500lb Mild Steel Zinc Plated Compression Incl SB5 Load Cell and JB4SS junction box | List Price: $2,665.00 | |
| 33680 | Mount Kit,Paramount EP 3ea 50kn 11,250lb Mild Steel Zinc Plated Compression Incl SB5 And JB4SS | List Price: $3,055.00 |
Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.
To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
