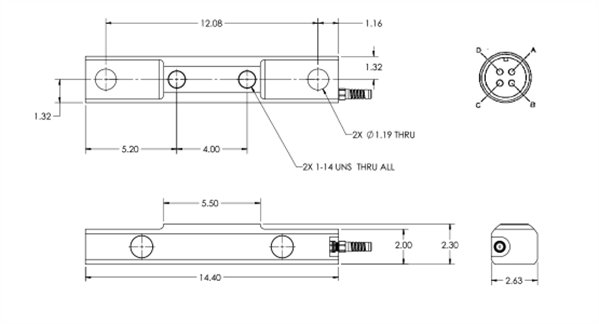

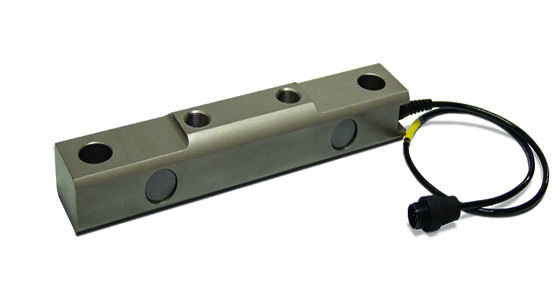

PL9000-14.4 Alloy Steel, Environmentally Sealed Load Cell

The PL9000-14.4 is ideal for under-body and body rest mounts in four- or six-point system configurations. This load cell offers higher load ratings with a single-piece bearing plate and overall length of 14 inches.



Full Scale Output:
0.75 mV/V at 12,500 lb

Output Resistance:
350 (nominal)

Input Resistance:
350 (nominal)

Material/Finish:
Alloy steel

Temperature:
14 °F to 104 °F (-10 °C to 40 °C)



Rated Excitation:
15 VDC (5-10 V recommended)

Non-linearity:
±0.1% full scale

Insulation Resistance:
500 megohms at 50 VDC

Seal Type:
Environmentally sealed



Cable Length:
32 in cable

Connector Type:
Conxall, 4-pin (male)

Connection Pin Out:
A - Excitation +
B - Signal +
C - Signal -
D - Excitation -

Warranty:
One-year limited warranty
