PL9000-22 Alloy Steel, Environmentally Sealed Load Cell

The PL9000-22 is designed for underbody mounts and low-profile axle scales such as Rice Lake's AX3040. It has a 2.4-inch profile and is 22.6 inches long.

Full Scale Output:
0.5mV/V at 12,500 lb

Output Resistance:
350 (nominal)

Input Resistance:
350 (nominal)

Alloy steel

14 °F to 104 °F (-10 °C to 40 °C)

Rated Excitation:
15 VDC

±1.0% full scale

Insulation Resistance:
500 megohms at 50 VDC

Seal Type:
Environmentally sealed, IP66


Connector Type:

Connector Pin Out:
A - Signal + (white)
C - Excitation - (black)
D - Excitation + (red)
F - Signal - (green)
F - Shield

One-year limited

Resources / Downloads

Title Download Email
PL9000-22 Catalog Page Download Email
PL Series Load Cells Catalog Page Download Email
Onboard Weighing Load Cell, Complete Selection Download Email

Title Version Revision Download Email Category Archived
Load Cell EZ Test Download Email Onboard Weighing No
Precision Loads Onboard Weighing Systems Installation and Service Manual C Download Email Onboard Weighing|Vehicle Scale System|Precision Industrial No


Part # Description List Price Cart
111766 Load Cell,PL9000-22 22.6 Inch Bolt On Alloy Steel Dynamic Capacity 20,000lb. IP66 Also used in AX3040 Axle Scale

List Price: $1,120.00


No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

Related Products

Portals 0 Products D37c7f9403c742babbd596100252ce36 Orig

AX3040 Axle Scale

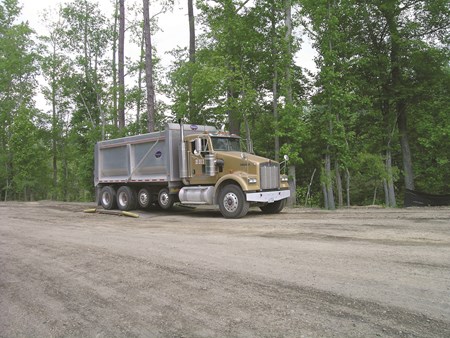

The AX3040 axle scale is easily portable, available in multiple lengths, and is ideal for monitoring vehicle weights in temporary sites.
