PL9000-50 Alloy Steel, Hermetically Sealed Load Cell

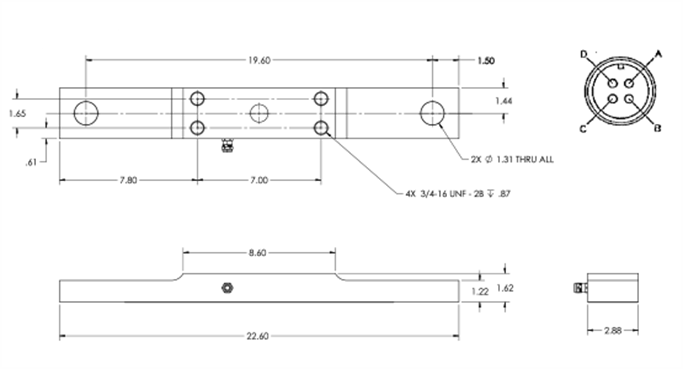

The PL9000-50 is designed for 5th wheel kits and spring suspension equalizer hangers. The PL9000-50 has two separate bearing plates, one on each end, and an overall profile of 2.8 inches.

Full Scale Output:
0.25 mV/V at 12,500 lb

Output Resistance:
350 (nominal)

Input Resistance:
350 (nominal)

Material/Finish:
Alloy steel

Temperature:
14 °F to 104 °F (-10 °C to 40 °C)

Rated Excitation:
15 VDC (5 to 10 V recommended)

Non-linearity:
±0.1% full scale

Insulation Resistance:
500 megohms at 50 VDC

Seal Type:
Hermetically sealed, IP68

Cable Length:
32 in cable

Connector Type:
Conxall, 4-pin (male)

Connection Pin Out:
A - Excitation +
B - Signal +
C - Signal -
D - Excitation -

Warranty:
One-year limited

Resources / Downloads

Title Download Email
PL9000-50 Catalog Page Download Email
PL Series Load Cells Catalog Page Download Email
Onboard Weighing Load Cell, Complete Selection Download Email

Title Version Revision Download Email Category Archived
Load Cell EZ Test Download Email Onboard Weighing No
Precision Loads Onboard Weighing Systems Installation and Service Manual C Download Email Onboard Weighing|Vehicle Scale System|Precision Industrial No

Title Collateral Wizard Request Download Email Category
Precision Beam Onboard Weighing Tractor Kits Download Email Onboard Weighing

Parts

Part # Description List Price Cart
114326 Load Cell,Bending Beam PL9000-50 0.25 mV/[email protected],500 LB 350 Ohm

List Price: $890.00

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
