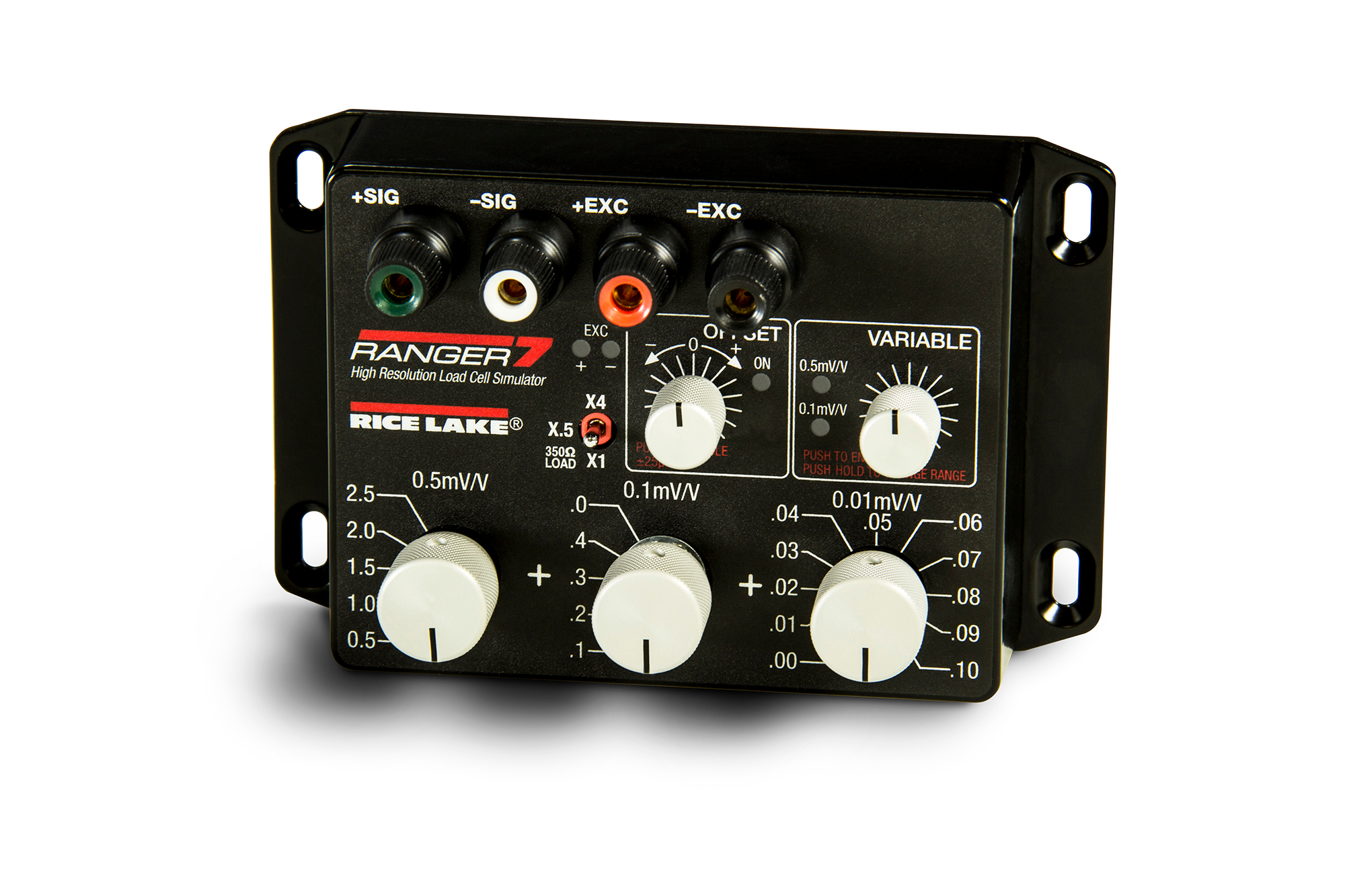

Ranger 7 Variable Range Simulator

Standard Features

  • Designed for high resolution,
  • Used in high precision testing, troubleshooting and calibrating digital weight indicators
  • Switchable offset
  • Painted die-cast enclosure

Precise and Dependable Load Cell Simulator

The Ranger 7 is the simulator of choice for precision testing. Designed for applications that require high resolutions, it features a switchable offset and two Vernier controls, along with switches that go down to 0.01 mV/V.

Vernier:
Two ranges; one is equal to the sum of the 0.05 mV/V switch and the 0 mV/V-0.5 mV/V switch. The other is the sum of the 0.5 mV/V, 0.1 mV/V and 0.01 mV/V switches.

Load Impedance:
Three settings:
X0.5: 700 ohm
X1: 350 ohm (one standard load cell)
X4: 87.5 ohm (four load cell platform)

Linearity:
± 0.01% + 1µV

Connectors:
Low Thermal Electronics, Type 2758 precision gold plated binding posts Standard banana jacks or
14 AWG wire

Temperature Coefficient:
5 ppm/°C

Zero Offset:
± 0.0005 mV/V

Output Range:
0 mV/V to 3 mV/V in 0.01 mV/V steps

LED Annunciators:
EXC +
EXC –
Offset ON
0.5 mV/V
0.1 mV/V

Warranty:
One-year limited

Resources / Downloads

Title Download Email
Ranger 7 Catalog Page Download Email

Title Version Revision Download Email Category Archived
Ranger Series Load Cell Simulators Operation Manual A Download Email Accessories|Simulators No

Parts

Part # Description List Price Cart
157323 Simulator, Ranger 7 High Resolution Load Cell Simulator, With Selectable 0.01mV Steps

List Price: $945.00

Options

Part # Description List Price Cart
21116 Cable,Interface Simulator I four foot cable with banana plugs

List Price: $68.00

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
