Relays and Racks
Rice Lake has a variety of input/output components and relays to supplement your unit from multi-function and channel relays, input only, output only, and octal relays and sockets.
Grayhill Relays and Racks are available in 8-channel to 24-channel relay racks. Find input relays, digital input/outputs, cables and jumper straps compatible with a variety of units.
Grayhill 8-Channel Dimensions
| Dimensions | |||||
|---|---|---|---|---|---|
| A | 4.27 in (108 mm) | B | 3.5 in (89 mm) | C | 3.22 in (82 mm) |
Grayhill 16-Channel Dimensions
| Dimensions | |||||
|---|---|---|---|---|---|
| A | 4.27 in (108 mm) | B | 5.50 in (140 mm) | C | 3.22 in (82 mm) |
Grayhill 24-Channel Dimensions
| Dimensions | |||||
|---|---|---|---|---|---|
| A | 4.27 in (108 mm) | B | 7.50 in (191 mm) | C | 3.22 in (82 mm) |

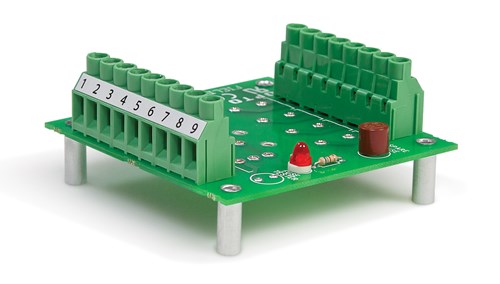

OPTO 22 4-Channel Dimensions
| Dimensions | |||||
|---|---|---|---|---|---|
| A | 3.25 in (83 mm) | B | 3.25 in (83 mm) | C | 2.32 in (59 mm) |
OPTO 22 4-Channel (non-UL) Dimensions
| Dimensions | |||||
|---|---|---|---|---|---|
| A | 1.20 in (30 mm) | B | 6.11 in (155 mm) | C | 2.32 in (59 mm) |
OPTO 22 16-Channel Dimensions
| Dimensions | |||||
|---|---|---|---|---|---|
| A | 3.25 in (83 mm) | B | 10.0 in (254 mm) | C | 2.32 in (59 mm) |

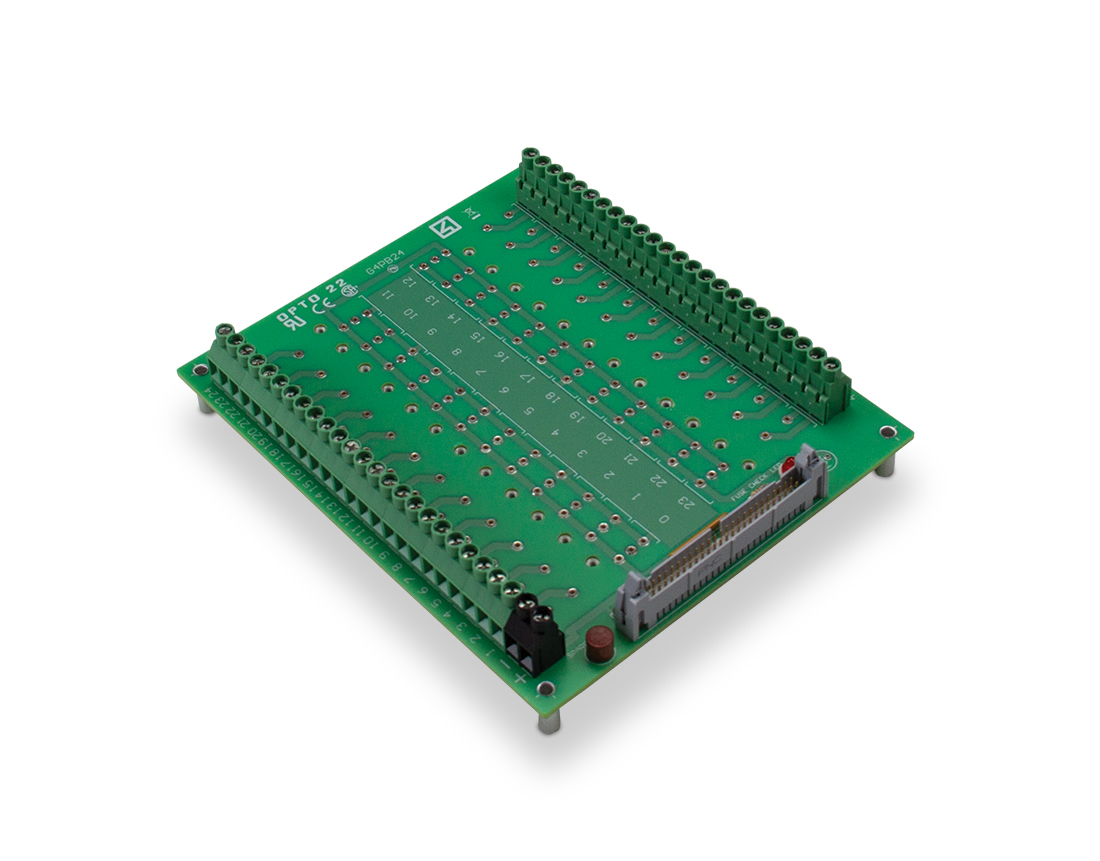

OPTO 22 24-Channel Dimensions
| Dimensions | |||||
|---|---|---|---|---|---|
| A | 7.50 in (83 mm) | B | 6.25 in (83 mm) | C | 2.32 in (59 mm) |
Resources / Downloads
Parts
Input/Output Component
| Part # | Description | List Price | Cart |
|---|---|---|---|
| 43942 | Relay,Multi-Function Time Multi-Range, Digital Display, 100-240 VAC, 50/60 Hz |
List Price: $575.00 |
|
| 29616 | Relay,Multi-Function Time Multi-Range Solid State |
List Price: $325.00 |
Other Relays
Grayhill Relays and Racks
OPTO 22 Relays and Racks
Relay Boards Fixed Dry Contact Relay
Options
Cables for Digital I/O
| Part # | Description | List Price | Cart |
|---|---|---|---|
| 70780 | Cable,50 Pin Flat Ribbon for Digital I/O To Grayhill Relay Rack |
List Price: $50.00 |
|
| 93577 | Cable,50 Pin Flat Ribbon Length = 31 Inches |
List Price: $75.00 |
|
| 94384 | Cable,50 Pin Flat Ribbon Length = 50 Inches |
List Price: $83.00 |
|
| 70779 | Cable,50 Pin Round Ribbon 5ft for Digital I/O to Grayhill Relay Rack |
List Price: $155.00 |
|
| 72442 | Cable,50 Pin Round Ribbon 5ft for 920i Panel Mount, Digital I/O to Grayhill Relay Rack |
List Price: $150.00 |
|
| 170008 | Cable Opt,1280 Digital I/O To X80 DIO adapter 163776 Includes 60 Pin Flat Ribbon Cable 163777. Length 24 inches. |
List Price: $130.00 |
|
| 170009 | Cable Opt,1280 Digital I/O To X80 DIO adapter 163776 Includes 60 Pin Round Ribbon Cable 163778. Length 60 inches |
List Price: $155.00 |
|
| 170736 | Cable Opt,1280 Digital I/O To X80 DIO adapter 163776 Includes 60 Pin Round Ribbon Cable And One PG13.5 Cord Grip (169876). Length 60 inches. |
List Price: $155.00 |
|
| 46189 | Strap,Jumper 10 Position 5mm Spacing |
List Price: $5.25 |
