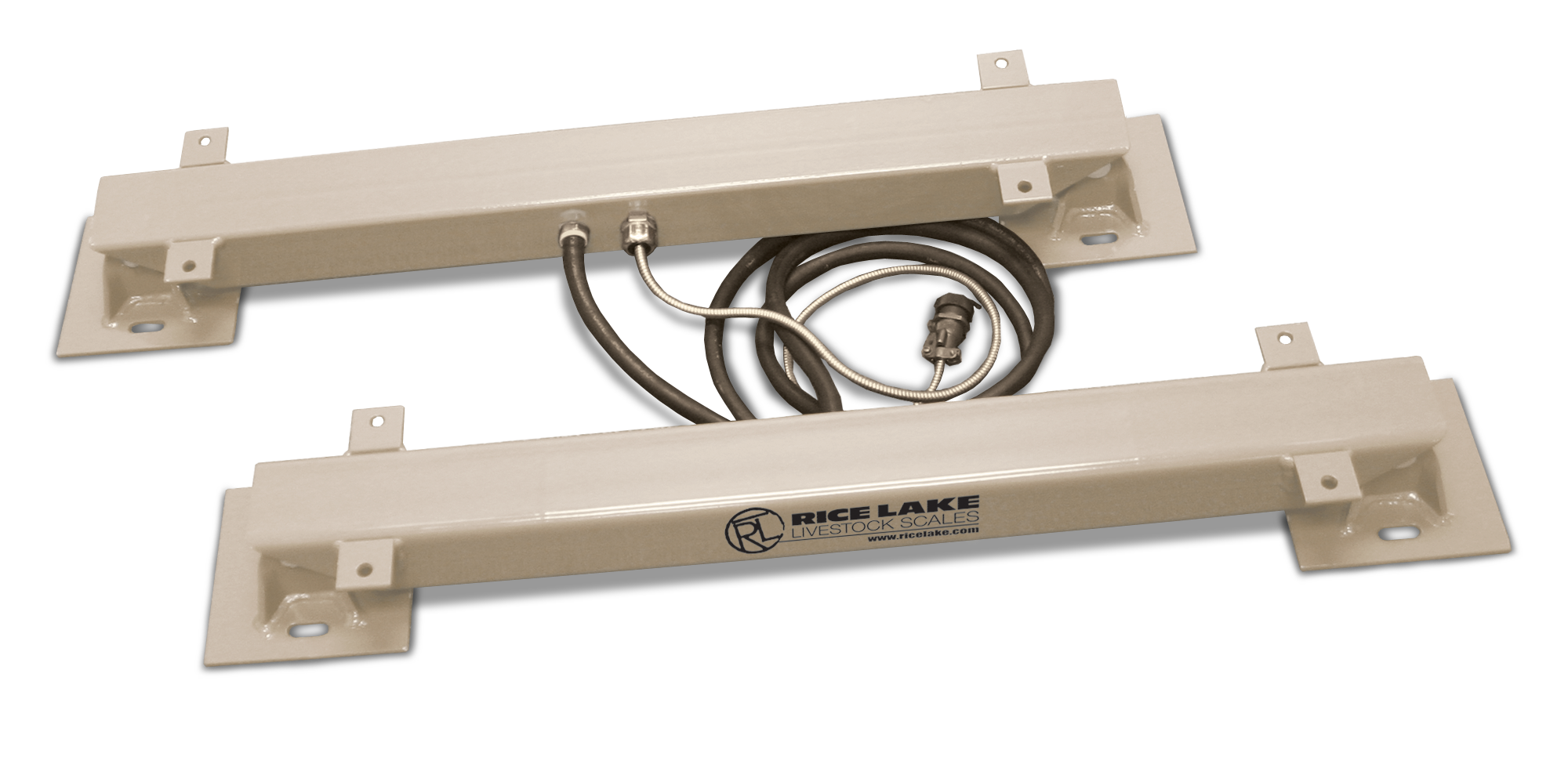

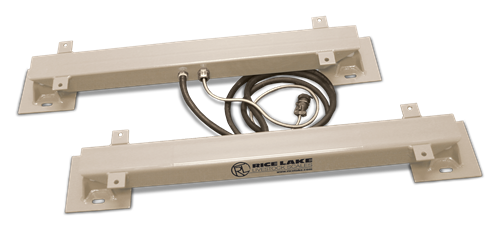

Rice Lake Farm Bars

  • 3 ft ArmorGuard cable included
  • Capacities from 2,500 to 10,000 lb

Durable and Versatile Livestock Weigh Bars

Farm Bar animal scales are available in three capacities and cover a variety of weighing applications. These heavy-duty, electronic load cell scales can be mounted under most cattle squeeze chutes, hog crates, feed hoppers and custom platforms.

Safe Overload:
150%

Full Scale Output:
3mv/V nominal
Output is standardized for each model of load bar, consult factory for details

Maximum Excitation:
15 VDC

Nonlinearity:
0.02% full scale

Hysteresis:
0.02% full scale

Bridge Resistance:
350 ohm



Temperature Range:
-40 °F to 111 °F (-40 °C to 44 °C)

Cable Configuration:
8 ft between bars and 12 ft for the indicator

Warranty:
Two-year limited

Farm Bar 2,500U
A B* C D* E
22.00 in 15.00 in 19.75 in 25.75 in 4.00 in

Farm Bar 5,000U
A B* C D* E
26.00 in 19.00 in 23.75 in 29.75 in 4.00 in
33.00 in 26.00 in 30.75 in 36.75 in 4.00 in
36.00 in 29.00 in 33.75 in 39.75 in 4.00 in
40.00 in 33.00 in 37.75 in 43.75 in 4.00 in
44.00 in 37.00 in 41.75 in 47.75 in 4.00 in
48.00 in 41.00 in 45.75 in 51.75 in 4.00 in

Farm Bar 10,000U
A B* C D* E
32.00 in 25.00 in 29.75 in 35.75 in 4.00 in
36.00 in 29.00 in 33.75 in 39.75 in  4.00 in
48.00 in 41.00 in 45.75 in 51.75 in 4.00 in
60.00 in 53.00 in 57.75 in 63.75 in 4.00 in
72.00 in 65.00 in 69.75 in 75.75 in 4.00 in
*B equals dimension A less 7 inches
*D equals dimension C plus 6 inches

Resources / Downloads

Title View Email Category Type
A Winning Investment View Email Agriculture Application Story
Steering Profits View Email Livestock Scales|Agriculture Application Story

Title Download Email
Farm Bars Without Instrumentation Catalog Page Download Email

Title Version Revision Download Email Category Archived
Farm Bars Animal Scale Operation Manual C Download Email Livestock Scales|Agriculture|Veterinary Scales No
Farm Bar U Series Operation Manual (Archived) B Download Email Livestock Scales|Agriculture|Veterinary Scales Yes

Title Download Email
Farm Bars Replacement Parts Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
Rice Lake Farm Bar Universal Livestock Scale Request Download Email Livestock Scales
Livestock Weighing Buyers Guide Request Download Email Livestock Scales
Livestock Instrumentation Compatibility Matrix Download Email Livestock Scales
Livestock Scale Instrumentation Request Download Email Livestock Scales

Title View Download Email Category
What is "Shrink" When Weighing Livestock? View Download Email Livestock Scales

Parts

2,500 lb Capacity

Part # Description List Price Cart
152016 Scale,2500U 2 Loadbar System Standard Bar 22 Inches Long 2500lb/1250kg Capacity Without Indicator

List Price: $2,900.00

5,000 lb Capacity

10,000 lb Capacity

Options

Part # Description List Price Cart
159788 Cable,Extension Bar

List Price: $240.00

127556 Cable ASSY,4 Pin Male CONN 144 Inch for Animal Scale Indicator

List Price: $115.00

202711 Indicator,380 Universal Segmented LCD Display, Battery Powered, Synergy Series

List Price: $635.00

164582 Indicator,482 Legend LCD Display, Rechargeable Battery with 115VAC NEMA 5-15 Plug Stainless Steel Enclosure

List Price: $1,225.00

23113 Printer,Ticket TMU295 Epson Cool White 24VDC W/115-230VAC External Power Supply

List Price: $650.00

71630 Ticket,Print 4-1/4x7 in 2 Part Carbonless, White Cover & Yellow Copy Attached at Top Rice Lake Scale Ticket 500/PKG

List Price: $60.00

15547 Cable,Universal Serial Interface (Both RS232/20mA) 25 Pin D-Sub Male To Blunt End 25-pin side-3-Red, 7-Black, 4 & 5 jumpered, 9-Green, 10-White

List Price: $70.00
