Rice Lake RL1010 Aluminum, Single Point Load Cell
Off-center loading load cell designed for long-lasting, durable mounting of the weighing platform. Load cells with potted cavities are available for improved performance in damp environments. Potted model capacities range from 7 kg to 90 kg with 10 ft of load cell cable. Unpotted model capacities range from 3 kg and 5 kg with 3 ft of load cell cable. NTEP Certified from 10 kg to 50 kg.
Approvals
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
RL1010 Load Cell Specifications
|
Full Scale Output: Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: Rated Excitation: Combined Error: Insulation Resistance: Deflection at Capacity: Cable Length: Cable Diameter: |
Cable Color Code: Max Platform Size: Warranty: Approvals: |
RL1010 Load Cell Dimensions
| Rated Capacity | A | B | C | D | E | F | G | H | K | L | M | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| kg/mm | ||||||||||||
| 3 to 90 | 118.1 | 34.00 | 3.00 | 110.5 | 66.0 | 80.0 | 25.0 | 1/4-20 UNC × 13 DP | 7.5 | 19.1 | 25.4 | 33.5 |
Resources / Downloads
Sales Literature
| Title | Collateral Wizard | Request | Download | Category | |
|---|---|---|---|---|---|
| Load Cell Wiring Guide | Request | Download |  Email |
Load Cells | |
| Load Cell Selection Guide | Request | Download | Email |
Load Cells|Weigh Modules | |
| Load Cell and Weigh Module Selection Guide | Request | Download | Email |
Load Cells|Weigh Modules | |
| Load Cell and Weigh Module Handbook | Request | Download | Email |
Load Cells|Weigh Modules |
Parts
NTEP Certified, Potted
| Part # | Description | List Price | Cart |
|---|---|---|---|
| 50819 | Load Cell,SPT RL1010-10kg 10kg 10ft 2mV/V 350 OHM NTEP III 5 S FM AL Potted IP67 |
List Price: $205.00 |
|
| 50820 | Load Cell,SPT RL1010-15kg 15kg 10ft 2mV/V 350 OHM NTEP III 5 S FM AL Potted IP67 |
List Price: $205.00 |
|
| 50821 | Load Cell,SPT RL1010-20kg -00-0001 20kg 10ft 2mV/V 350 OHM NTEP III 5 S FM AL Potted IP67 |
List Price: $205.00 |
|
| 50822 | Load Cell,SPT RL1010-30kg 30kg 10ft 2mV/V 350 OHM NTEP III 5 S FM AL Potted IP67 |
List Price: $205.00 |
|
| 50823 | Load Cell,SPT RL1010-50kg -00-0001 50kg 10ft 2mV/V 350 OHM NTEP III 5 S FM AL Potted IP67 |
List Price: $205.00 |
Non-NTEP Certified, Potted
Non-NTEP Certified, Unpotted
Related Products

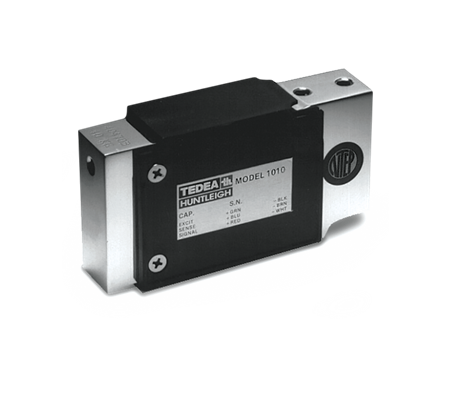

VPG Tedea-Huntleigh 1010/1015 Aluminum Single Point Load Cell
