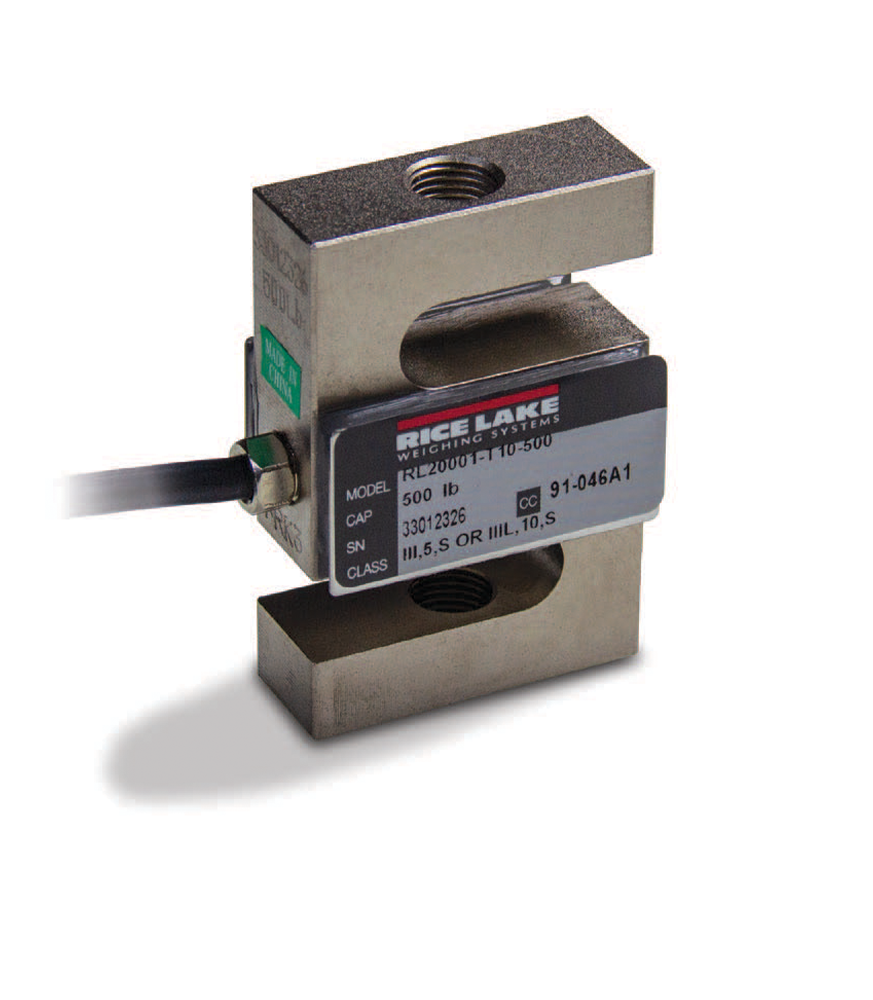

Rice Lake RL20000FLS Stainless Steel, S-Beam Load Cell
Ideal for suspended applications or mechanical scale conversions, the RL20000FLS S-beam load cell is also NTEP certified. This load cell is stainless steel, environmentally sealed and has an IP67 protection rating for use in dry, corrosive environments. It is available with a capacity of 5,000 lb.
Approvals
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
RL20000FLS Load Cell Specifications
|
Full Scale Output: |
Seal Type: Environmentally sealed, IP67 Safe Overload: 150% full scale Rated Excitation: 5 to 10 VDC (15 V maximum) Combined Error: 0.02% full scale Insulation Resistance: 5,000 megohms at 50 VDC |
Cable Length: 30 in Wire Color Code: Red +Excitation (Pin 3) Black -Excitation (Pin 4) Green +Signal (Pin 1) White -Signal (Pin 2) Yellow Shield (Pin 5) Warranty: Two-year limited Approvals: NTEP |
RL20000FLS Load Cell Dimensions
| Rated Capacity | A | B | C | D | E |
|---|---|---|---|---|---|
| lb/in | |||||
| 5,000 | 1/2-20 UNF | 1.25 | 1.00 | 3.00 | 4.00 |
Resources / Downloads
Sales Literature
| Title | Collateral Wizard | Request | Download | Category | |
|---|---|---|---|---|---|
| Load Cell Wiring Guide | Request | Download |  Email |
Load Cells | |
| Load Cell Selection Guide | Request | Download | Email |
Load Cells|Weigh Modules | |
| Load Cell and Weigh Module Selection Guide | Request | Download | Email |
Load Cells|Weigh Modules | |
| Load Cell and Weigh Module Handbook | Request | Download | Email |
Load Cells|Weigh Modules |
Parts
| Part # | Description | List Price | Cart |
|---|---|---|---|
| 215390 | Load Cell,SBM RL20000 FLS 5,000lb 3ft 1.5mv/v 350 Ohm NTEP IIIL 10S SST Matched Outputs 1/2-20 threads, Molded M12 connector |
List Price: $725.00 |
|
| 96196 | Wrench, Box Load Cell Forklift Scale |
List Price: $40.00 |
|
| 125543 | Load Cell,With Quick Connect SBM RL20000 FLS 5,000lb 3ft 1.5mv/v 350 Ohm NTEP IIIL 10 S SST FM Matched Outputs |
Call for price |
