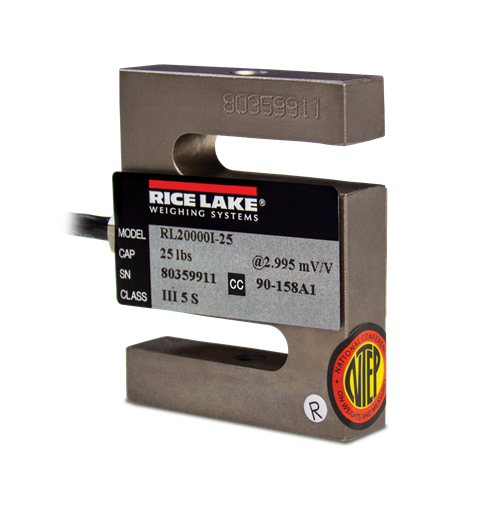

Rice Lake RL20000I Alloy Steel, S-Beam Load Cell

Ideally suited for scale conversions and general-purpose weighing. Compact and rugged design. Capacities range from 25 lb to 20,000 lb. Complete with 20 ft of load cell cable.

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65

Full Scale Output:
3.0 mV/V

Output Resistance:
350 (± 3) ohm

Input Resistance:
385 (± 5) ohm

Material/Finish:
High-alloy steel, nickel plated

Temperature:
Compensated range
14° F to 104° F (-10° C to 40° C)
Operating range
0° F to 150° F (-18° C to 65° C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohms

Cable Length:
20 ft

Cable Diameter:
0.200 in polyurethane jacket

Cable Color Code:
Red +Excitation
Black -Excitation
Green +Signal
White -Signal

Warranty:
Two-year limited warranty

Approvals:
NTEP
cFMus

Rated Capacity A B C D E
lb/in
25-300 1/4-28 UNF 0.75 0.50 2.00 2.50
500-1,500 1/2-20 UNF 1.00 0.75 2.00 2.50
2,000-2,500 1/2-20 UNF 1.25 1.00 2.00 2.50
3,000 1/2-20 UNF 1.25 1.00 3.00 4.00
5,000-10,000 3/4-16 UNF 1.25 1.00 3.00 4.00
15,000 1-12 UNF 1.50 1.25 4.00 5.50
20,000 1 1/4-12 UNF 2.25 2.00 5.00 7.00





Resources / Downloads

Title Download Email
RL20000I Load Cell Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
Your First Choice in Load Cells Download Email Load Cells
Load Cell Wiring Guide Request Download Email Load Cells
Load Cell Selection Guide Request Download Email Load Cells|Weigh Modules
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules
Load Cell and Weigh Module Handbook Request Download Email Load Cells|Weigh Modules

Title View Download Email Category
Rice Lake's Load Cell Service, Selection and Speed View Download Email Load Cells

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells
Properly Welding on Structures with Load Cells Download Email Load Cells

Parts

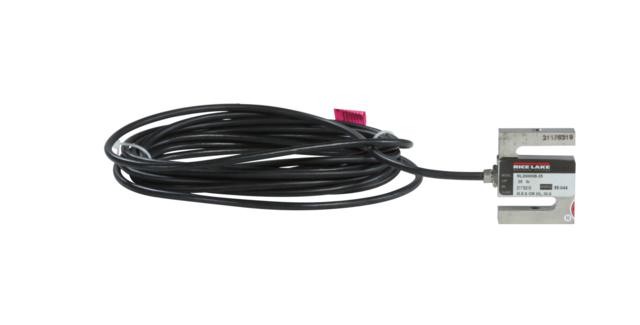

20ft Cable

Part # Description List Price Cart
21428 Load Cell,SBM RL20000I-25 25lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67

List Price: $275.00

21429 Load Cell,SBM RL20000I-50 50lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67

List Price: $275.00

21430 Load Cell,SBM RL20000I-75 75lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67

List Price: $275.00

21431 Load Cell,SBM RL20000I- 100 100lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67

List Price: $275.00

21432 Load Cell,SBM RL20000I- 150 150lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67

List Price: $275.00

21433 Load Cell,SBM RL20000I- 200 200lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67

List Price: $275.00

21434 Load Cell,SBM RL20000I- 250 250lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67

List Price: $275.00

21435 Load Cell,SBM RL20000I- 300 300lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67

List Price: $275.00

21436 Load Cell,SBM RL20000I- 500 500lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67

List Price: $275.00

21437 Load Cell,SBM RL20000I- 750 750lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67

List Price: $275.00

21438 Load Cell,SBM RL20000I-1K 1000lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67

List Price: $275.00

21439 Load Cell,SBM RL20000I- 1.5K 1500lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67

List Price: $275.00

21440 Load Cell,SBM RL20000I-2K 2000lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67

List Price: $275.00

21441 Load Cell,SBM RL20000I- 2.5K 2500lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67

List Price: $275.00

21442 Load Cell,SBM RL20000I-3K 3000lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67

List Price: $315.00

21443 Load Cell,SBM RL20000I-5K 5000lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67

List Price: $440.00

21444 Load Cell,SBM RL20000I- 10K 10,000lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67

List Price: $440.00

21445 Load Cell,SBM RL20000B- 15K 15,000lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67

List Price: $555.00

21446 Load Cell,SBM RL20000I- 20K 20,000lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S WW FM IP67

List Price: $875.00

30ft or 35ft Cable (Trimmed outputs and are used in many batch plants)

Options

Conduit Adapter Kit (must be factory installed to maintain warranty)

Part # Description List Price Cart
31533 Adapter,Conduit SST 3/8-24UNF Thread Nipple

List Price: $35.00

31534 Adapter,Conduit SST 1/4-18 NPT 3/8-24UNF-ZA

List Price: $35.00

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
