Rice Lake RL20001HE Stainless Steel, S-Beam Load Cell

The RL20001HE is a full stainless steel, welded-seal, S-beam available in capacities ranging from 500 lb to 10,000 lb. This model is featured in our ITCM HE products, and is ideal for the harshest tension mounting applications. NTEP Certified in capacities ranging from 500 lb to 5,000 lb.

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65

Full Scale Output:
2.0 mV/V

Bridge Resistance:
350 ohm, nominal

Material/Finish:
Stainless steel

Temperature:
Compensated range
14°F to 104°F (-10°C to 40°C)
Operating range
0°F to 150°F (-18°C to 65°C)

Seal Type:
Welded-seal, IP68

Safe Overload:
150% full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohms

Cable Length:
20 ft

Cable Diameter:
0.200 in polyurethane jacket

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
Two-year limited

Approvals:
cFMus
NTEP

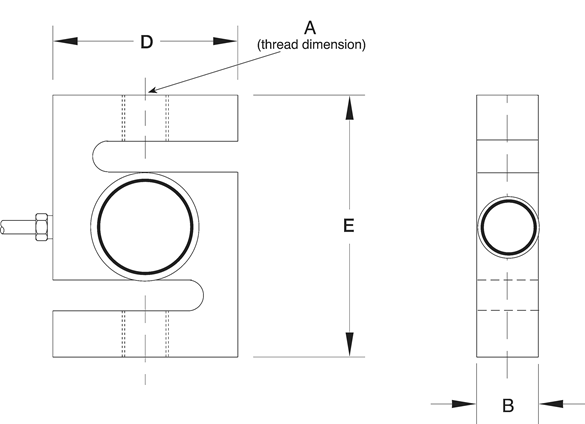

Rated Capacity A B D E
lb/in
500-3,000 1/2-20 UNF 1.00 2.00 3.00
5,000-10,000 3/4-16 UNF 1.00 3.50 4.75





Resources / Downloads

Title Download Email
RL20001HE Load Cell Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
Load Cell Wiring Guide Request Download Email Load Cells
Load Cell Selection Guide Request Download Email Load Cells|Weigh Modules
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules
Load Cell and Weigh Module Handbook Request Download Email Load Cells|Weigh Modules
Your First Choice in Load Cells Download Email Load Cells

Title View Download Email Category
Rice Lake's Load Cell Service, Selection and Speed View Download Email Load Cells

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells
Properly Welding on Structures with Load Cells Download Email Load Cells

Parts

NTEP Certified

Part # Description List Price Cart
46469 Load Cell,SBM RL20001HE- 500 500lb 20ft 2mV/V 350 Ohm WW SST WS NTEP III 5S/IIIL 10S IP68

List Price: $900.00

46470 Load Cell,SBM RL20001HE- 750 750lb 20ft 2mV/V 350 Ohm WW SST WS NTEP III 5S/IIIL 10S IP68

List Price: $900.00

46471 Load Cell,SBM RL20001HE- 1K 1000lb 20ft 2mV/V 350 Ohm WW SST WS NTEP III 5S/IIIL 10S IP68

List Price: $900.00

46472 Load Cell,SBM RL20001HE- 1.5K 1500lb 20ft 2mV/V 350 Ohm WW SST WS NTEP III 5S/IIIL 10S IP68

List Price: $900.00

46473 Load Cell,SBM RL20001HE- 2K 2000lb 20ft 2mV/V 350 Ohm WW SST WS NTEP III 5S/IIIL 10S IP68

List Price: $900.00

46474 Load Cell,SBM RL20001HE- 2.5K 2500lb 20ft 2mV/V 350 Ohm WW SST WS NTEP III 5S/IIIL 10S IP68

List Price: $900.00

46475 Load Cell,SBM RL20001HE- 3K 3000lb 20ft 2mV/V 350 Ohm WW SST WS NTEP III 5S/IIIL 10S IP68

List Price: $900.00

46476 Load Cell,SMB RL20001HE- 5K 5000lb 20ft 2mV/V 350 Ohm WW SST WS NTEP III 5S/IIIL IP68

List Price: $1,205.00

Non-NTEP Certified

Options

No options found for this product

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
