Rice Lake RL20001I Alloy Steel, S-Beam Load Cell

Ideally suited for scale conversions, tension applications and general-purpose weighing. Compact and rugged design. Capacities range from 250 lb to 20,000 lb. Complete with 20 ft of load cell cable.

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65

Full Scale Output:
3.0 mV/V

Output Resistance:
350 (± 3) ohm

Input Resistance:
385 (± 5) ohm

Material/Finish:
High-alloy steel, nickel plated

Temperature:
Compensated range
14° F to 104° F (-10° C to 40° C)
Operating range
0° F to 150° F (-18° C to 65° C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Rated Excitation:
5-10 VAC/DC (15 V maximum)

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohms

Cable Length:
20 ft

Cable Diameter:
0.200 in polyurethane jacket

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
Two-year limited warranty

Approvals:
cFMus
NTEP

Rated Capacity A B C D E
lb/in
250 3/8-24 UNF 0.75 0.50 2.00 3.00
500-2,000 1/2-20 UNF 1.00 0.75 2.00 3.00
2,500-3,000 1/2-20 UNF 1.25 1.00 2.00 3.00
5,000 3/4-16 UNF 1.25 1.00 3.00 4.25
10,000 3/4-16 UNF 1.25 1.00 3.50 4.75
15,000 1-14 UNS 1.50 1.25 4.00 5.50
20,000 1 1/4-12 UNF 2.25 2.00 5.00 7.00





Resources / Downloads

Title Download Email
RL20001I Load Cell Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
Load Cell Wiring Guide Request Download Email Load Cells
Load Cell Selection Guide Request Download Email Load Cells|Weigh Modules
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules
Load Cell and Weigh Module Handbook Request Download Email Load Cells|Weigh Modules

Title View Download Email Category
Rice Lake's Load Cell Service, Selection and Speed View Download Email Load Cells

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells
Properly Welding on Structures with Load Cells Download Email Load Cells

Parts

Part # Description List Price Cart
21402 Load Cell,SBM RL20001I- T10-250 250lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S FM WW IP67

List Price: $275.00

21403 Load Cell,SBM RL20001I T10-500 500lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S FM WW IP67

List Price: $275.00

21404 Load Cell,SBM RL20001-T10 -750 750lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S FM WW IP67

List Price: $275.00

21405 Load Cell,SBM RL20001-T10 -1K 1000lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S FM WW IP67

List Price: $275.00

21406 Load Cell,SBM RL20001-T10 -1.5K 1500lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S FM WW IP67

List Price: $275.00

21407 Load Cell,SBM RL20001-T10 -2K 2000lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S FM WW IP67

List Price: $275.00

21408 Load Cell,SBM RL20001-T10 -2.5K 2500lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S FM WW IP67

List Price: $275.00

21409 Load Cell,SBM RL20001-T10 -3K 3000lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S FM WW IP67

List Price: $315.00

21410 Load Cell,SBM RL20001-T10 -5K 5000lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S FM WW IP67

List Price: $440.00

21411 Load Cell,SBM RL20001-T10 -10K 10,000lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S FM WW IP67

List Price: $440.00

21412 Load Cell,SBM RL20001-T10 -15K 15,000lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S FM WW IP67

List Price: $555.00

21413 Load Cell,SBM RL20001-T10 -20K 20,000lb 20ft 3mv/v 350 Ohm NTEP III 5S/IIIL 10S FM WW IP67

List Price: $875.00

Options

Conduit Adapter Kit (must be factory installed to maintain warranty)

Part # Description List Price Cart
21533 Load Cell,SEB RL35023-N5- 5KLE 5000lb 20ft 3mv/v 350 Ohm NTEP III 5M FM WW IP67 LE.

List Price: $375.00

21534 Load Cell,SEB RL35023-N5- 10K 10,000lb 20ft 3mv/v 350 Ohm NTEP III 5M FM WW IP67

List Price: $375.00

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

Related Products

Portals 0 Products 1691A79430de4bfaa23000d5b9181fd2 Orig

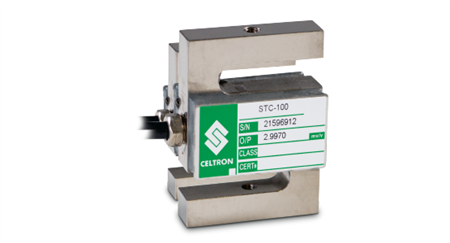

VPG Celtron STC Low-Capacity Alloy Steel Load Cell
