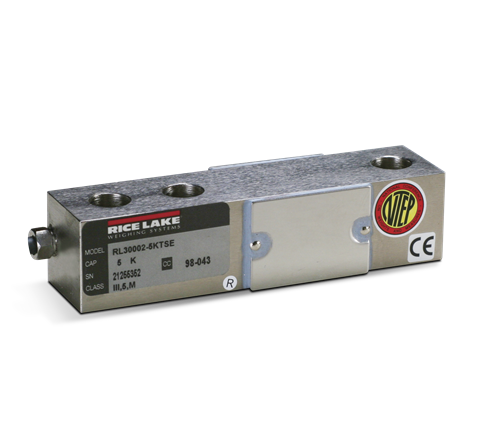

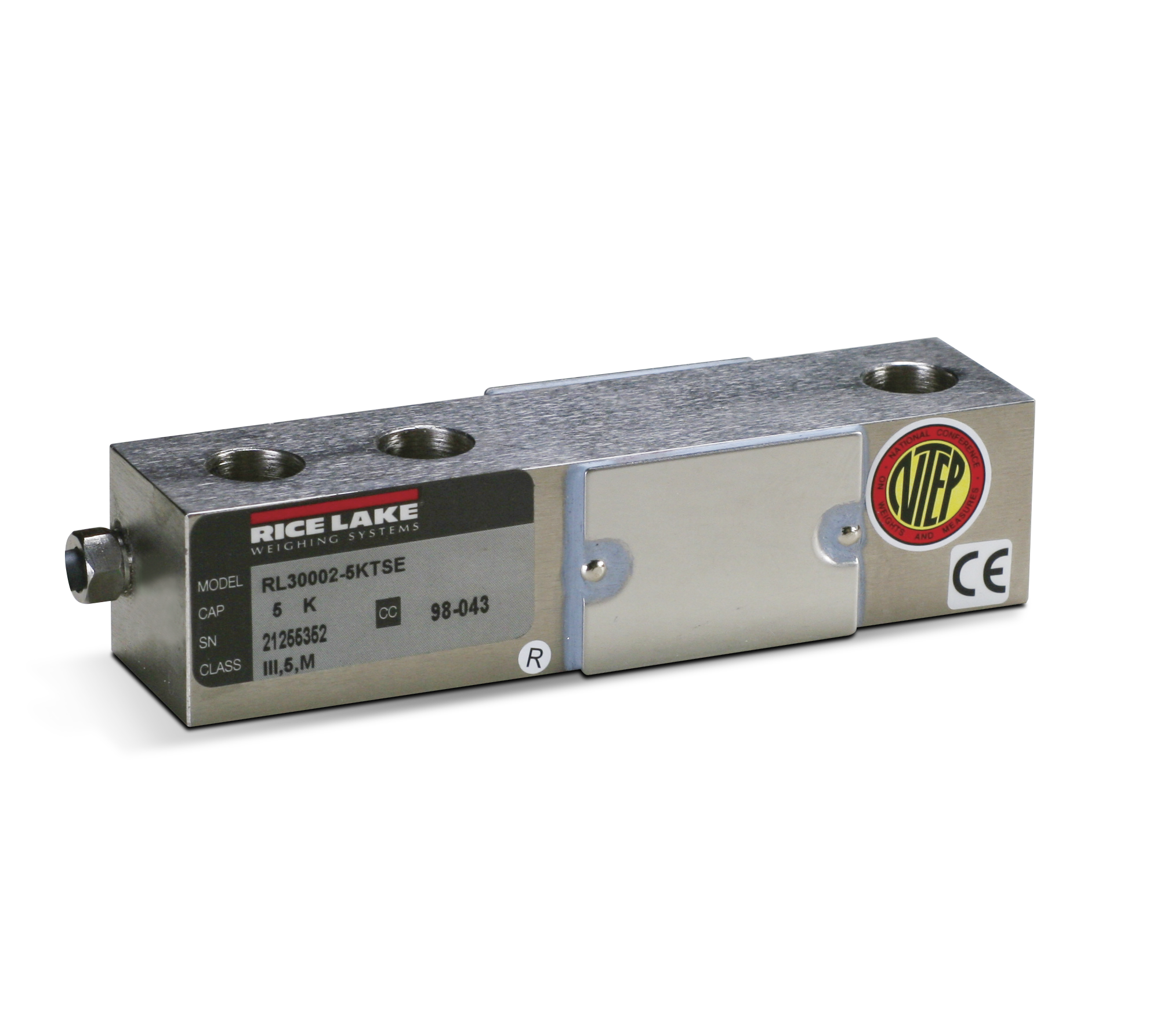

The RL30002 single-ended beam is designed for low-profile scales and process applications. It comes with 20 feet of load cell cable. NTEP Certified small-envelope models are available in capacities ranging from 1,000 to 5,000 pounds.
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 21521 | Load Cell,SEB RL30002-1K 1000lb 20ft 3mv/v 350 Ohm NTEP III 3S/III 5M WW IP67 THRU | List Price: $315.00 | |
| 21522 | Load Cell,SEB RL30002-2K 2000lb 20ft 3mv/v 350 Ohm NTEP III 3S/III 5M WW IP67 THRU | List Price: $315.00 | |
| 21523 | Load Cell,SEB RL30002- 2.5k 2500lb 20ft 3mv/ 350 Ohm NTEP III 3S/III 5M WW IP67 THRU | List Price: $315.00 | |
| 21524 | Load Cell,SEB RL30002-4K 4000lb 20ft 3mv/v 350 Ohm NTEP III 3S/III 5M WW IP67 THRU | List Price: $315.00 | |
| 21525 | Load Cell,SEB RL30002-5K 5000lb 20ft 3mv/v 350 Ohm NTEP III 3S/III 5M WW IP67 THRU SE | List Price: $315.00 |
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 31533 | Adapter,Conduit SST 3/8-24UNF Thread Nipple | List Price: $40.00 | |
| 31534 | Adapter,Conduit SST 1/4-18 NPT 3/8-24UNF-ZA | List Price: $40.00 |
